#include <QmitkColourImageProcessingView.h>

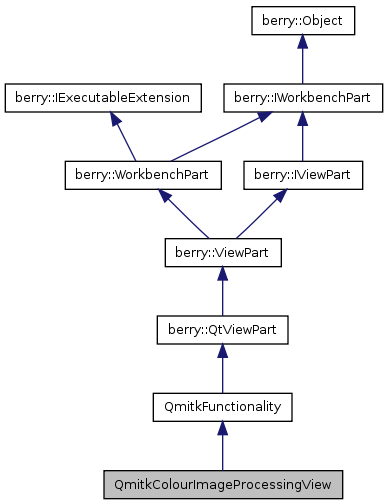

Inheritance diagram for QmitkColourImageProcessingView:

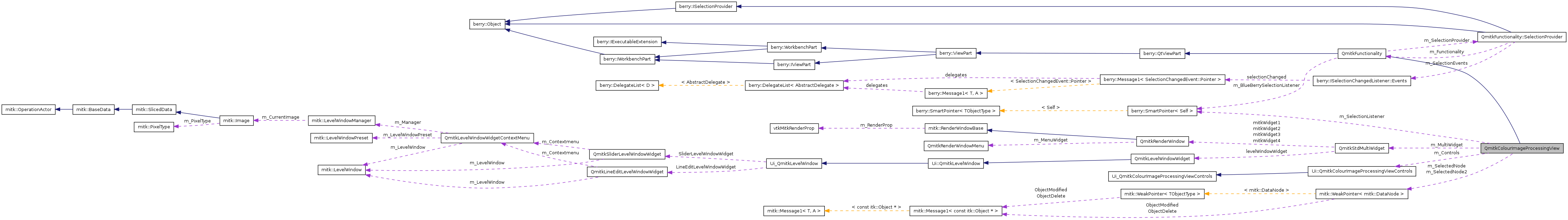

Collaboration diagram for QmitkColourImageProcessingView:

Public Member Functions
	QmitkColourImageProcessingView ()
virtual	~QmitkColourImageProcessingView ()
virtual void	CreateQtPartControl (QWidget *parent)
virtual void	SelectionChanged (berry::IWorkbenchPart::Pointer part, berry::ISelection::ConstPointer selection)
Static Public Attributes
static const std::string	VIEW_ID = "org.mitk.views.colourimageprocessing"
Protected Slots
void	OnConvertToRGBAImage ()
void	OnConvertImageMaskColorToRGBAImage ()
void	OnCombineRGBA ()
void	OnChangeColor ()
Protected Attributes
Ui::QmitkColourImageProcessingViewControls *	m_Controls
QmitkStdMultiWidget *	m_MultiWidget
berry::ISelectionListener::Pointer	m_SelectionListener

Detailed Description

Definition at line 35 of file QmitkColourImageProcessingView.h.

Constructor & Destructor Documentation

QmitkColourImageProcessingView::QmitkColourImageProcessingView ( )

Definition at line 43 of file QmitkColourImageProcessingView.cpp.

References m_Controls.

: QmitkFunctionality(),
  m_MultiWidget(NULL)
{
  m_Controls=NULL;

  m_Color[0]= 255;
  m_Color[1]= 0;
  m_Color[2]= 0;
}

QmitkColourImageProcessingView::~QmitkColourImageProcessingView ( ) [virtual]

Definition at line 54 of file QmitkColourImageProcessingView.cpp.

References berry::WorkbenchPart::GetSite(), m_SelectionListener, and berry::ISelectionService::RemoveSelectionListener().

{
 berry::ISelectionService* s = GetSite()->GetWorkbenchWindow()->GetSelectionService();
  if(s)
    s->RemoveSelectionListener(m_SelectionListener);
}

Member Function Documentation

void QmitkColourImageProcessingView::CreateQtPartControl ( QWidget * parent ) [virtual]

Implements berry::QtViewPart.

Definition at line 61 of file QmitkColourImageProcessingView.cpp.

{
  if (!m_Controls)
  {
    m_Controls = new Ui::QmitkColourImageProcessingViewControls;
    m_Controls->setupUi(parent);

    connect( m_Controls->m_ConvertImageToRGBA, SIGNAL( clicked(bool) ),this, SLOT( OnConvertToRGBAImage() ));
    connect( m_Controls->m_ConvertImageMaskToRGBA, SIGNAL( clicked(bool) ),this, SLOT( OnConvertToRGBAImage() ));
    connect( m_Controls->m_ConvertImageMaskColorToRGBA, SIGNAL( clicked(bool) ),this, SLOT( OnConvertImageMaskColorToRGBAImage() ));
    connect( m_Controls->m_ColorButton, SIGNAL( clicked(bool) ),this, SLOT( OnChangeColor() ));
    connect( m_Controls->m_CombineRGBAButton, SIGNAL( clicked(bool) ),this, SLOT( OnCombineRGBA() ));

    m_Controls->m_ImageSelectedLabel->hide();
    m_Controls->m_NoImageSelectedLabel->show();



  }

   m_SelectionListener = berry::ISelectionListener::Pointer(new berry::SelectionChangedAdapter<QmitkColourImageProcessingView>
    (this, &QmitkColourImageProcessingView::SelectionChanged));
  berry::ISelectionService* s = GetSite()->GetWorkbenchWindow()->GetSelectionService();
  if(s)
    s->AddSelectionListener(m_SelectionListener);

}

void QmitkColourImageProcessingView::OnChangeColor ( ) [protected, slot]

Definition at line 245 of file QmitkColourImageProcessingView.cpp.

References Ui_QmitkColourImageProcessingViewControls::m_ColorButton, and m_Controls.

Referenced by CreateQtPartControl().

{
  QColor color = QColorDialog::getColor();
  if (color.spec() == 0)
  {
    color.setRed(255);
    color.setGreen(0);
    color.setBlue(0);
  }

  m_Color[0]= color.red();
  m_Color[1]= color.green();
  m_Color[2]= color.blue();

  m_Controls->m_ColorButton->setStyleSheet(QString("background-color:rgb(%1,%2, %3)").arg(color.red()).arg(color.green()).arg(color.blue()));
}

void QmitkColourImageProcessingView::OnCombineRGBA ( ) [protected, slot]

Definition at line 263 of file QmitkColourImageProcessingView.cpp.

References mitk::mitkColourImageProcessor::combineRGBAImage(), QmitkFunctionality::GetDefaultDataStorage(), mitk::WeakPointer< TObjectType >::IsNull(), MITK_INFO, and mitk::DataNode::New().

Referenced by CreateQtPartControl().

{
 if(m_SelectedNode.IsNull())
    return;

  if(m_SelectedNode2.IsNull())
    return;


  mitk::mitkColourImageProcessor CImageProcessor;

  mitk::Image::Pointer RGBAImageResult;

   RGBAImageResult = CImageProcessor.combineRGBAImage(dynamic_cast<mitk::Image*>(m_SelectedNode->GetData()),dynamic_cast<mitk::Image*>(m_SelectedNode2->GetData()));
  MITK_INFO <<"RGBAImage Result";
  mitk::DataNode::Pointer dtn = mitk::DataNode::New();

  dtn->SetData( RGBAImageResult );

  this->GetDefaultDataStorage()->Add( dtn ); // add as a child, because the segmentation "derives" from the original

}

void QmitkColourImageProcessingView::OnConvertImageMaskColorToRGBAImage ( ) [protected, slot]

Definition at line 200 of file QmitkColourImageProcessingView.cpp.

References mitk::mitkColourImageProcessor::convertToRGBAImage(), mitk::mitkColourImageProcessor::convertWithBinaryAndColorToRGBAImage(), QmitkFunctionality::GetDefaultDataStorage(), mitk::TransferFunctionProperty::GetValue(), mitk::WeakPointer< TObjectType >::IsNotNull(), mitk::WeakPointer< TObjectType >::IsNull(), and mitk::DataNode::New().

Referenced by CreateQtPartControl().

{
   if(m_SelectedNode.IsNull())
    return;


  mitk::TransferFunctionProperty::Pointer transferFunctionProp = dynamic_cast<mitk::TransferFunctionProperty*>(m_SelectedNode->GetProperty("TransferFunction"));

  if(transferFunctionProp.IsNull())
    return;

  mitk::TransferFunction::Pointer tf = transferFunctionProp->GetValue();

  if(tf.IsNull())
    return;

  mitk::mitkColourImageProcessor CImageProcessor;

  mitk::Image::Pointer RGBAImageResult;

  if(m_SelectedNode2.IsNotNull())
  {
    RGBAImageResult = CImageProcessor.convertWithBinaryAndColorToRGBAImage(dynamic_cast<mitk::Image*>(m_SelectedNode->GetData()),dynamic_cast<mitk::Image*>(m_SelectedNode2->GetData()),tf, m_Color);
  }
  else
  {
    RGBAImageResult = CImageProcessor.convertToRGBAImage(dynamic_cast<mitk::Image*>(m_SelectedNode->GetData()),tf);
  }

  if (!RGBAImageResult)
  {
    QMessageBox::warning(NULL, "Warning", QString("Unsupported pixeltype"));
    return;
  }

  mitk::DataNode::Pointer dtn = mitk::DataNode::New();

  dtn->SetData( RGBAImageResult );
  dtn->SetName(m_SelectedNode->GetName() + "_RGBA");

  this->GetDefaultDataStorage()->Add( dtn ); // add as a child, because the segmentation "derives" from the original

}

void QmitkColourImageProcessingView::OnConvertToRGBAImage ( ) [protected, slot]

Definition at line 155 of file QmitkColourImageProcessingView.cpp.

References mitk::mitkColourImageProcessor::convertToRGBAImage(), mitk::mitkColourImageProcessor::convertWithBinaryToRGBAImage(), QmitkFunctionality::GetDefaultDataStorage(), mitk::TransferFunctionProperty::GetValue(), mitk::WeakPointer< TObjectType >::IsNotNull(), mitk::WeakPointer< TObjectType >::IsNull(), MITK_INFO, and mitk::DataNode::New().

Referenced by CreateQtPartControl().

{
  if(m_SelectedNode.IsNull())
    return;


  mitk::TransferFunctionProperty::Pointer transferFunctionProp = dynamic_cast<mitk::TransferFunctionProperty*>(m_SelectedNode->GetProperty("TransferFunction"));

  if(transferFunctionProp.IsNull())
    return;

  mitk::TransferFunction::Pointer tf = transferFunctionProp->GetValue();

  if(tf.IsNull())
    return;

  mitk::mitkColourImageProcessor CImageProcessor;

  mitk::Image::Pointer RGBAImageResult;

  if(m_SelectedNode2.IsNotNull())
  {
    RGBAImageResult = CImageProcessor.convertWithBinaryToRGBAImage(dynamic_cast<mitk::Image*>(m_SelectedNode->GetData()),dynamic_cast<mitk::Image*>(m_SelectedNode2->GetData()),tf);
  }
  else
  {
    RGBAImageResult = CImageProcessor.convertToRGBAImage(dynamic_cast<mitk::Image*>(m_SelectedNode->GetData()),tf);
  }

  if (!RGBAImageResult)
  {
    QMessageBox::warning(NULL, "Warning", QString("Unsupported pixeltype"));
    return;
  }

  mitk::DataNode::Pointer dtn = mitk::DataNode::New();

  dtn->SetData( RGBAImageResult );
  dtn->SetName(m_SelectedNode->GetName() + "_RGBA");
  this->GetDefaultDataStorage()->Add( dtn ); // add as a child, because the segmentation "derives" from the original

  MITK_INFO << "convertToRGBAImage finish";

}

void QmitkColourImageProcessingView::SelectionChanged	(	berry::IWorkbenchPart::Pointer	part,
		berry::ISelection::ConstPointer	selection
	)		`[virtual]`

Definition at line 90 of file QmitkColourImageProcessingView.cpp.

References berry::SmartPointer< TObjectType >::Cast(), mitk::DataNodeObject::GetDataNode(), berry::SmartPointer< TObjectType >::IsNotNull(), m_Controls, Ui_QmitkColourImageProcessingViewControls::m_ImageSelectedLabel, and Ui_QmitkColourImageProcessingViewControls::m_NoImageSelectedLabel.

Referenced by CreateQtPartControl().

{

  mitk::DataNodeSelection::ConstPointer _DataNodeSelection
    = selection.Cast<const mitk::DataNodeSelection>();

  if(_DataNodeSelection.IsNotNull())
  {
    std::vector<mitk::DataNode*> selectedNodes;
    mitk::DataNodeObject* _DataNodeObject = 0;

    for(mitk::DataNodeSelection::iterator it = _DataNodeSelection->Begin();it != _DataNodeSelection->End(); ++it)
    {
      _DataNodeObject = dynamic_cast<mitk::DataNodeObject*>((*it).GetPointer());
      if(_DataNodeObject)
      {
        mitk::DataNode::Pointer node = _DataNodeObject->GetDataNode();

        if( node.IsNotNull() && dynamic_cast<mitk::Image*>(node->GetData())&&dynamic_cast<mitk::Image*>(node->GetData())->GetDimension()>=3   )
          selectedNodes.push_back( node );
      }
    }

    mitk::DataNode::Pointer node;

    if(selectedNodes.size() > 0)
      node=selectedNodes[0];

    if( node.IsNotNull() )
    {
      m_SelectedNode = node;

      m_Controls->m_NoImageSelectedLabel->hide();
      m_Controls->m_ImageSelectedLabel->show();

      std::string  infoText = std::string("Selected Image: ") + node->GetName();

      if(selectedNodes.size() > 1)
      {
        mitk::DataNode::Pointer node2;
        node2=selectedNodes[1];
        m_SelectedNode2=node2;
        infoText = infoText + " and " + node2->GetName();
      }
      else
      {
        m_SelectedNode2= 0;
      }

      m_Controls->m_ImageSelectedLabel->setText( QString( infoText.c_str() ) );

    }
    else
    {
      m_Controls->m_ImageSelectedLabel->hide();
      m_Controls->m_NoImageSelectedLabel->show();

      m_SelectedNode = 0;
      m_SelectedNode2= 0;
    }

  }
}
