Data Management Classes

This category includes the data classes themselves (images, surfaces, etc.) as well as management classes to organize the data during run-time in a tree structure, called the data tree (mitk::DataTree). More...

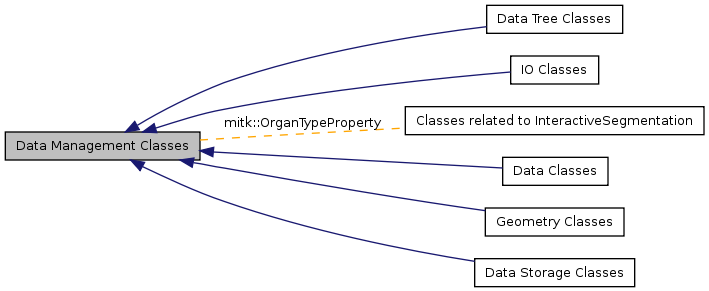

Collaboration diagram for Data Management Classes:

Classes
class	mitk::AnnotationProperty
	Property for annotations. More...
class	mitk::BaseProperty
	Abstract base class for properties. More...
class	mitk::ClippingProperty
	Property for clipping datasets; currently only clipping planes are possible. More...
class	mitk::ColorProperty
	RGB color property. More...
class	mitk::DataNode
	Class for nodes of the DataTree. More...
class	mitk::EnumerationProperty
class	mitk::GroupTagProperty
	Property class that has no value. More...
class	mitk::LevelWindow
	Class to store level/window values. More...
class	mitk::LevelWindowProperty
	Property for level/window data. More...
class	mitk::ModalityProperty
	Enumerates all known modalities. More...
class	mitk::PropertyList
	Key-value list holding instances of BaseProperty. More...
class	mitk::SmartPointerProperty
	Property containing a smart-pointer. More...
class	mitk::StringProperty
	Property for strings. More...
class	mitk::WeakPointerProperty
	Property containing a smart-pointer. More...
class	mitk::LookupTableProperty
	Property for LookupTable data. More...
class	mitk::OrganTypeProperty
	Enumerates all known organs :-) More...
class	mitk::PlanarFigureControlPointStyleProperty
	Defines the rendering style of control points for PlanarFigure objects. More...
Modules
	IO Classes
	This subcategory includes the IO classes to read or write data objects.
	Data Tree Classes
	This subcategory includes the data tree classes, which organizes the data during run-time in a tree structure.
	Geometry Classes
	This subcategory includes the geometry classes, which describe the geometry of the data in space and time.
	Data Classes
	This subcategory includes the data classes, e.g., for images (mitk::Image), surfaces (mitk::Surface), vessel-trees (mitk::VesselTreeData), etc.
	Data Storage Classes
	This subcategory includes the classes to store and retrieve objects from the mitk::DataStorage.

---

Detailed Description

This category includes the data classes themselves (images, surfaces, etc.) as well as management classes to organize the data during run-time in a tree structure, called the data tree (mitk::DataTree).

Overview

There are two things in MITK: data itself and the organization of data in a tree. The data tree is used for communication between different parts of an application: The renderer uses it to find the things to render, functionalities use it to find "all images" or "all surfaces", and the event handling uses it to distribute events to interactors.

For a list of all possible kind of data, look at Data Classes. IO Classes lists classes that help to read and write data sets.

For an explanation of the data tree, iterators and tree nodes, refer to Data Tree Classes.

Geometry Classes groups all classes that describe the spatial/temporal position and orientation of data sets.
