The vtkQtChartSeriesLayer class is the base class for chart layers that use the chart series model. More...

#include <vtkQtChartSeriesLayer.h>

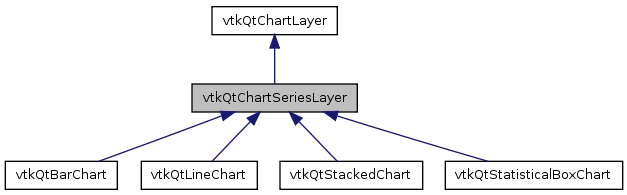

Inheritance diagram for vtkQtChartSeriesLayer:

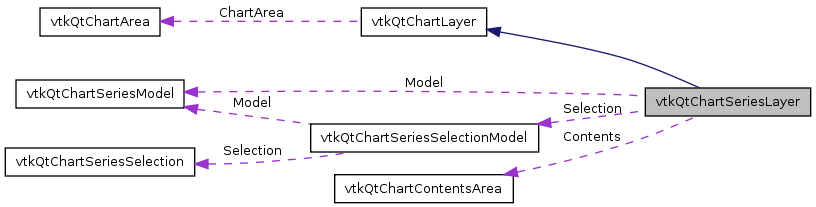

Collaboration diagram for vtkQtChartSeriesLayer:

Public Types
enum	{ Type = vtkQtChart_SeriesLayerType }
Public Slots
void	setXOffset (float offset)
	Sets the contents x-axis offset.
void	setYOffset (float offset)
	Sets the contents y-axis offset.
void	resetSeriesOptions ()
	Resets the series options for the model.
Signals
void	modelChanged (vtkQtChartSeriesModel previous, vtkQtChartSeriesModel current)
	Emitted when the series model is changed.
void	modelSeriesChanged (int first, int last)
	Emitted when the name or icon changes for a set of series.
void	modelSeriesVisibilityChanged (int series, bool visible)
	Emitted when the visibility for a series has changed.
Public Member Functions
	vtkQtChartSeriesLayer (bool useContents=true)
virtual	~vtkQtChartSeriesLayer ()
virtual void	setChartArea (vtkQtChartArea *area)
	Sets the chart area for the chart layer.
vtkQtChartSeriesModel *	getModel () const
	Gets the chart series model.
virtual void	setModel (vtkQtChartSeriesModel *model)
	Sets the chart series model.
vtkQtChartSeriesOptions *	getSeriesOptions (int series) const
	Gets the drawing options for the given series.
int	getSeriesOptionsIndex (vtkQtChartSeriesOptions *options) const
	Gets the index for the given series options.
virtual QPixmap	getSeriesIcon (int series) const
	Gets the icon for a given series.
vtkQtChartSeriesSelectionModel *	getSelectionModel () const
	Gets the chart series selection model.
virtual void	getSeriesAt (const QPointF &point, vtkQtChartSeriesSelection &selection) const
	Gets the list of series at a given position.
virtual void	getPointsAt (const QPointF &point, vtkQtChartSeriesSelection &selection) const
	Gets the list of points at a given position.
virtual void	getSeriesIn (const QRectF &area, vtkQtChartSeriesSelection &selection) const
	Gets the list of series in a given area.
virtual void	getPointsIn (const QRectF &area, vtkQtChartSeriesSelection &selection) const
	Gets the list of points in a given area.
Protected Member Functions
virtual vtkQtChartSeriesOptions *	createOptions (QObject *parent)=0
	Creates an options object for a series.
virtual void	setupOptions (vtkQtChartSeriesOptions *options)=0
	Sets up the options object.
Protected Attributes
vtkQtChartSeriesSelectionModel *	Selection
	Stores the series/point selection.
vtkQtChartSeriesModel *	Model
	Stores the series model.
vtkQtChartContentsArea *	Contents
	Used for panning.

Detailed Description

The vtkQtChartSeriesLayer class is the base class for chart layers that use the chart series model.

It stores the pointer to the chart series model and the list of options for the series. The series options are created using the createOptions method. Subclasses should overload this method to create the appropriate type of options object.

Definition at line 49 of file vtkQtChartSeriesLayer.h.

Member Enumeration Documentation

anonymous enum

Enumerator:

Type

Definition at line 54 of file vtkQtChartSeriesLayer.h.

{Type = vtkQtChart_SeriesLayerType};

Constructor & Destructor Documentation

vtkQtChartSeriesLayer::vtkQtChartSeriesLayer ( bool useContents = true )

virtual vtkQtChartSeriesLayer::~vtkQtChartSeriesLayer ( ) [inline, virtual]

Definition at line 58 of file vtkQtChartSeriesLayer.h.

{}

Member Function Documentation

virtual vtkQtChartSeriesOptions* vtkQtChartSeriesLayer::createOptions ( QObject * parent ) [protected, pure virtual]

Creates an options object for a series.

Note:: Subclasses should only create the options in this method. Use the setupOptions to set up connections.

Parameters:

parent The parent of the options object.

Returns:: A pointer to a new options object.

See also:: vtkQtChaerSeriesLayer::setupOptions(vtkQtChartSeriesOptions *)

Implemented in vtkQtBarChart, vtkQtLineChart, vtkQtStackedChart, and vtkQtStatisticalBoxChart.

vtkQtChartSeriesModel* vtkQtChartSeriesLayer::getModel ( ) const [inline]

Gets the chart series model.

Returns:: A pointer to the chart series model.

Definition at line 75 of file vtkQtChartSeriesLayer.h.

{return this->Model;}

virtual void vtkQtChartSeriesLayer::getPointsAt	(	const QPointF &	point,
		vtkQtChartSeriesSelection &	selection
	)		const `[virtual]`

Gets the list of points at a given position.

Parameters:

point	The position in scene coordinates.
selection	Used to return the list of points.

Reimplemented in vtkQtBarChart, vtkQtLineChart, vtkQtStackedChart, and vtkQtStatisticalBoxChart.

virtual void vtkQtChartSeriesLayer::getPointsIn	(	const QRectF &	area,
		vtkQtChartSeriesSelection &	selection
	)		const `[virtual]`

Gets the list of points in a given area.

Parameters:

area	The rectangle in scene coordinates.
selection	Used to return the list of points.

Reimplemented in vtkQtBarChart, vtkQtLineChart, vtkQtStackedChart, and vtkQtStatisticalBoxChart.

vtkQtChartSeriesSelectionModel* vtkQtChartSeriesLayer::getSelectionModel ( ) const

Gets the chart series selection model.

Returns:: A pointer to the chart series selection model.

virtual void vtkQtChartSeriesLayer::getSeriesAt	(	const QPointF &	point,
		vtkQtChartSeriesSelection &	selection
	)		const `[virtual]`

Gets the list of series at a given position.

Parameters:

point	The position in scene coordinates.
selection	Used to return the list of series.

Reimplemented in vtkQtBarChart, vtkQtLineChart, vtkQtStackedChart, and vtkQtStatisticalBoxChart.

virtual QPixmap vtkQtChartSeriesLayer::getSeriesIcon ( int series ) const [virtual]

Gets the icon for a given series.

The icon is used by the chart legend.

Parameters:

series The index of the series.

Returns:: A pixmap representation of the series.

Reimplemented in vtkQtBarChart, vtkQtLineChart, vtkQtStackedChart, and vtkQtStatisticalBoxChart.

virtual void vtkQtChartSeriesLayer::getSeriesIn	(	const QRectF &	area,
		vtkQtChartSeriesSelection &	selection
	)		const `[virtual]`

Gets the list of series in a given area.

Parameters:

area	The rectangle in scene coordinates.
selection	Used to return the list of series.

Reimplemented in vtkQtBarChart, vtkQtLineChart, vtkQtStackedChart, and vtkQtStatisticalBoxChart.

vtkQtChartSeriesOptions* vtkQtChartSeriesLayer::getSeriesOptions ( int series ) const

Gets the drawing options for the given series.

Parameters:

series The index of the series.

Returns:: A pointer to the drawing options for the given series.

int vtkQtChartSeriesLayer::getSeriesOptionsIndex ( vtkQtChartSeriesOptions * options ) const

Gets the index for the given series options.

Parameters:

options The series options object.

Returns:: The index for the given series options.

void vtkQtChartSeriesLayer::modelChanged	(	vtkQtChartSeriesModel *	previous,
		vtkQtChartSeriesModel *	current
	)		`[signal]`

Emitted when the series model is changed.

Parameters:

previous	The previous series model.
current	The current series model.

void vtkQtChartSeriesLayer::modelSeriesChanged	(	int	first,
		int	last
	)		`[signal]`

Emitted when the name or icon changes for a set of series.

Parameters:

first	The first series index of the range.
last	The last series index of the range.

void vtkQtChartSeriesLayer::modelSeriesVisibilityChanged	(	int	series,
		bool	visible
	)		`[signal]`

Emitted when the visibility for a series has changed.

Parameters:

series	The index of the series.
visible	True if the series is visible.

void vtkQtChartSeriesLayer::resetSeriesOptions ( ) [slot]

Resets the series options for the model.

virtual void vtkQtChartSeriesLayer::setChartArea ( vtkQtChartArea * area ) [virtual]

Sets the chart area for the chart layer.

If the model is set before the chart layer is added to a chart area, series options will not be available. Setting the chart area will create the series options for the model in this case. Subclasses can extend this method to handle the new options.

Parameters:
