vtkQtChartSeriesOptions Class Reference

The vtkQtChartSeriesOptions class stores the common series drawing options. More...

#include <vtkQtChartSeriesOptions.h>

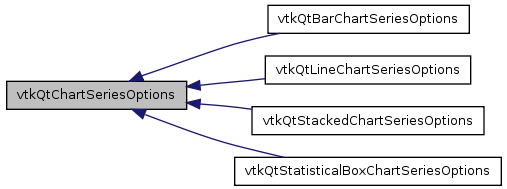

Inheritance diagram for vtkQtChartSeriesOptions:

List of all members.

Signals
void	visibilityChanged (bool visible)
	Emitted when the series visibility option has changed.
void	penChanged (const QPen &pen)
	Emitted when the series pen option has changed.
void	brushChanged (const QBrush &brush)
	Emitted when the series brush option has changed.
Public Member Functions
	vtkQtChartSeriesOptions (QObject *parent=0)
	Creates a series options object.
	vtkQtChartSeriesOptions (const vtkQtChartSeriesOptions &other)
virtual	~vtkQtChartSeriesOptions ()
vtkQtChartSeriesOptions &	operator= (const vtkQtChartSeriesOptions &other)
int	getStyle () const
	Gets the style generator index for the series.
virtual void	setStyle (int style, vtkQtChartStyleGenerator *generator)
	Sets the style generator index for the series.
bool	isVisible () const
	Gets whether or not the series should be visible.
void	setVisible (bool visible)
	Sets whether or not the series should be visible.
const QPen &	getPen () const
	Gets the series pen.
void	setPen (const QPen &pen)
	Sets the series pen.
const QBrush &	getBrush () const
	Gets the series brush.
void	setBrush (const QBrush &brush)
	Sets the series brush.

---

Detailed Description

The vtkQtChartSeriesOptions class stores the common series drawing options.

Definition at line 39 of file vtkQtChartSeriesOptions.h.

---

Constructor & Destructor Documentation

vtkQtChartSeriesOptions::vtkQtChartSeriesOptions

(

QObject *

parent = 0 )

Creates a series options object.

Parameters:

parent

The parent object.

vtkQtChartSeriesOptions::vtkQtChartSeriesOptions

(

const vtkQtChartSeriesOptions &

other )

virtual vtkQtChartSeriesOptions::~vtkQtChartSeriesOptions

(

)

[virtual]

---

Member Function Documentation

void vtkQtChartSeriesOptions::brushChanged

(

const QBrush &

brush )

[signal]

Emitted when the series brush option has changed.

Parameters:

brush

The new series brush.

const QBrush& vtkQtChartSeriesOptions::getBrush

(

)

const

Gets the series brush.

Returns:

A reference to the series brush.

const QPen& vtkQtChartSeriesOptions::getPen

(

)

const

Gets the series pen.

Returns:

A reference to the series pen.

int vtkQtChartSeriesOptions::getStyle

(

)

const [inline]

Gets the style generator index for the series.

Returns:

The style generator index for the series.

Definition at line 57 of file vtkQtChartSeriesOptions.h.

{return this->Style;}

bool vtkQtChartSeriesOptions::isVisible

(

)

const [inline]

Gets whether or not the series should be visible.

Returns:

True if the series should be visible.

Definition at line 73 of file vtkQtChartSeriesOptions.h.

{return this->Visible;}

vtkQtChartSeriesOptions& vtkQtChartSeriesOptions::operator=

(

const vtkQtChartSeriesOptions &

other )

void vtkQtChartSeriesOptions::penChanged

(

const QPen &

pen )

[signal]

Emitted when the series pen option has changed.

Parameters:

pen	The new series pen.

void vtkQtChartSeriesOptions::setBrush

(

const QBrush &

brush )

Sets the series brush.

Parameters:

brush

The new series brush.

void vtkQtChartSeriesOptions::setPen

(

const QPen &

pen )

Sets the series pen.

Parameters:

pen	The new series pen.

virtual void vtkQtChartSeriesOptions::setStyle	(	int	style,
		vtkQtChartStyleGenerator *	generator
	)		[virtual]

Sets the style generator index for the series.

This method only sets the style index. It can be overridden to use the generator to set other series options.

Parameters:

style	The style index for the generator.
generator	The style generator to use.

Reimplemented in vtkQtBarChartSeriesOptions, vtkQtLineChartSeriesOptions, vtkQtStackedChartSeriesOptions, and vtkQtStatisticalBoxChartSeriesOptions.

void vtkQtChartSeriesOptions::setVisible

(

bool

visible )

Sets whether or not the series should be visible.

Parameters:

visible

True if the series should be visible.

void vtkQtChartSeriesOptions::visibilityChanged

(

bool

visible )

[signal]

Emitted when the series visibility option has changed.

Parameters:

visible

True if the series should be displayed.

---

The documentation for this class was generated from the following file:

• vtkQtChartSeriesOptions.h
