vtkQtChartSeriesModel Class Reference

The vtkQtChartSeriesModel class is the base class for all chart series models. More...

#include <vtkQtChartSeriesModel.h>

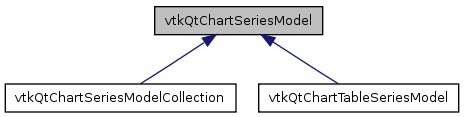

Inheritance diagram for vtkQtChartSeriesModel:

List of all members.

Signals
void	modelAboutToBeReset ()
	Emitted when the model is about to be reset.
void	modelReset ()
	Emitted when the model has been reset.
void	seriesAboutToBeInserted (int first, int last)
	Emitted when series will be inserted into the model.
void	seriesInserted (int first, int last)
	Emitted when series have been inserted into the model.
void	seriesAboutToBeRemoved (int first, int last)
	Emitted when series will be removed from the model.
void	seriesRemoved (int first, int last)
	Emitted when series have been removed from the model.
Public Member Functions
	vtkQtChartSeriesModel (QObject *parent=0)
	Creates a chart series model.
virtual	~vtkQtChartSeriesModel ()
virtual int	getNumberOfSeries () const =0
	Gets the number of series in the model.
virtual int	getNumberOfSeriesValues (int series) const =0
	Gets the number of values in a series.
virtual QVariant	getSeriesName (int series) const =0
	Gets the name for the given series.
virtual QVariant	getSeriesValue (int series, int index, int component) const =0
	Gets the series value for the given index and component.
virtual QList< QVariant >	getSeriesRange (int series, int component) const =0
	Gets the value range for a series component.

---

Detailed Description

The vtkQtChartSeriesModel class is the base class for all chart series models.

Definition at line 36 of file vtkQtChartSeriesModel.h.

---

Constructor & Destructor Documentation

vtkQtChartSeriesModel::vtkQtChartSeriesModel

(

QObject *

parent = 0 )

Creates a chart series model.

Parameters:

parent

The parent object.

virtual vtkQtChartSeriesModel::~vtkQtChartSeriesModel

(

)

[inline, virtual]

Definition at line 45 of file vtkQtChartSeriesModel.h.

{}

---

Member Function Documentation

virtual int vtkQtChartSeriesModel::getNumberOfSeries

(

)

const [pure virtual]

Gets the number of series in the model.

Returns:

The number of series in the model.

Implemented in vtkQtChartSeriesModelCollection, and vtkQtChartTableSeriesModel.

virtual int vtkQtChartSeriesModel::getNumberOfSeriesValues

(

int

series )

const [pure virtual]

Gets the number of values in a series.

Parameters:

series

The series index.

Returns:

The number of values in a series.

Implemented in vtkQtChartSeriesModelCollection, and vtkQtChartTableSeriesModel.

virtual QVariant vtkQtChartSeriesModel::getSeriesName

(

int

series )

const [pure virtual]

Gets the name for the given series.

Parameters:

series

The series index.

Returns:

The name for the given series.

Implemented in vtkQtChartSeriesModelCollection, and vtkQtChartTableSeriesModel.

virtual QList<QVariant> vtkQtChartSeriesModel::getSeriesRange	(	int	series,
		int	component
	)		const [pure virtual]

Gets the value range for a series component.

Parameters:

series	The series index.
component	The component index.

Returns:

The value range for a series component.

Implemented in vtkQtChartSeriesModelCollection, and vtkQtChartTableSeriesModel.

virtual QVariant vtkQtChartSeriesModel::getSeriesValue	(	int	series,
		int	index,
		int	component
	)		const [pure virtual]

Gets the series value for the given index and component.

Parameters:

series	The series index.
index	The index in the given series.
component	The component index.

Returns:

The series value for the given index and component.

Implemented in vtkQtChartSeriesModelCollection, and vtkQtChartTableSeriesModel.

void vtkQtChartSeriesModel::modelAboutToBeReset

(

)

[signal]

Emitted when the model is about to be reset.

void vtkQtChartSeriesModel::modelReset

(

)

[signal]

Emitted when the model has been reset.

void vtkQtChartSeriesModel::seriesAboutToBeInserted	(	int	first,
		int	last
	)		[signal]

Emitted when series will be inserted into the model.

Parameters:

first	The first index to be added.
last	The last index to be added.

void vtkQtChartSeriesModel::seriesAboutToBeRemoved	(	int	first,
		int	last
	)		[signal]

Emitted when series will be removed from the model.

Parameters:

first	The first index to be removed.
last	The last index to be removed.

void vtkQtChartSeriesModel::seriesInserted	(	int	first,
		int	last
	)		[signal]

Emitted when series have been inserted into the model.

Parameters:

first	The first index that was inserted.
last	The last index that was inserted.

void vtkQtChartSeriesModel::seriesRemoved	(	int	first,
		int	last
	)		[signal]

Emitted when series have been removed from the model.

Parameters:

first	The first index that was removed.
last	The last index that was removed.

---

The documentation for this class was generated from the following file:

• vtkQtChartSeriesModel.h
