mitk::UnstructuredGridVtkMapper3D Class Reference
[Mapper Classes]

Vtk-based mapper for UnstructuredGrid. More...

#include <mitkUnstructuredGridVtkMapper3D.h>

Inheritance diagram for mitk::UnstructuredGridVtkMapper3D:
Inheritance graph
[legend]

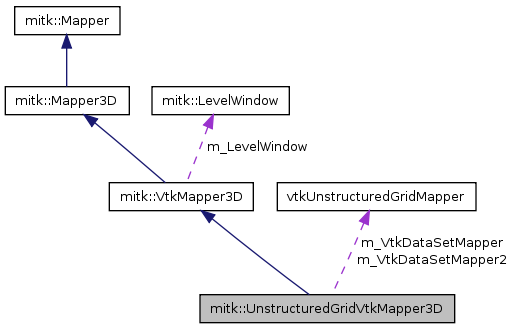

Collaboration diagram for mitk::UnstructuredGridVtkMapper3D:
Collaboration graph
[legend]

List of all members.

Public Types

typedef UnstructuredGridVtkMapper3D Self
typedef VtkMapper3D Superclass
typedef itk::SmartPointer< Self > Pointer
typedef itk::SmartPointer
< const Self > 		ConstPointer

Public Member Functions

virtual const char * GetClassName () const
virtual const
mitk::UnstructuredGrid * 		GetInput ()
virtual vtkProp * GetVtkProp (mitk::BaseRenderer *renderer)
void ApplyProperties (vtkActor *, mitk::BaseRenderer *renderer)
 Apply color and opacity read from the PropertyList.

Static Public Member Functions

static Pointer New ()
static void SetDefaultProperties (mitk::DataNode *node, mitk::BaseRenderer *renderer=NULL, bool overwrite=false)
 Set default values of properties used by this mapper to node.

Protected Member Functions

 UnstructuredGridVtkMapper3D ()
virtual ~UnstructuredGridVtkMapper3D ()
virtual void GenerateData ()
 Generate the data needed for rendering (independent of a specific renderer)
virtual void GenerateData (mitk::BaseRenderer *renderer)
 Generate the data needed for rendering into renderer.
virtual void ResetMapper (BaseRenderer *)
void SetProperties (mitk::BaseRenderer *renderer)

Protected Attributes

vtkAssembly * m_Assembly
vtkActor * m_Actor
vtkActor * m_ActorWireframe
vtkVolume * m_Volume
vtkDataSetTriangleFilter * m_VtkTriangleFilter
vtkUnstructuredGridMapper * m_VtkDataSetMapper
vtkUnstructuredGridMapper * m_VtkDataSetMapper2
vtkUnstructuredGridVolumeRayCastMapper * m_VtkVolumeRayCastMapper

Detailed Description

Vtk-based mapper for UnstructuredGrid.

Definition at line 48 of file mitkUnstructuredGridVtkMapper3D.h.

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::UnstructuredGridVtkMapper3D::ConstPointer

Reimplemented from mitk::VtkMapper3D.

Definition at line 52 of file mitkUnstructuredGridVtkMapper3D.h.

typedef itk::SmartPointer<Self> mitk::UnstructuredGridVtkMapper3D::Pointer

Reimplemented from mitk::VtkMapper3D.

Definition at line 52 of file mitkUnstructuredGridVtkMapper3D.h.

typedef UnstructuredGridVtkMapper3D mitk::UnstructuredGridVtkMapper3D::Self

Reimplemented from mitk::VtkMapper3D.

Definition at line 52 of file mitkUnstructuredGridVtkMapper3D.h.

typedef VtkMapper3D mitk::UnstructuredGridVtkMapper3D::Superclass

Reimplemented from mitk::VtkMapper3D.

Definition at line 52 of file mitkUnstructuredGridVtkMapper3D.h.

Constructor & Destructor Documentation

mitk::UnstructuredGridVtkMapper3D::UnstructuredGridVtkMapper3D (  ) [protected]

Definition at line 49 of file mitkUnstructuredGridVtkMapper3D.cpp.

References vtkUnstructuredGridMapper::New().

{

  m_VtkTriangleFilter = vtkDataSetTriangleFilter::New();

  m_Assembly = vtkAssembly::New();

  m_Volume = vtkVolume::New();
  m_Actor = vtkActor::New();
  m_ActorWireframe = vtkActor::New();

  m_VtkDataSetMapper = vtkUnstructuredGridMapper::New();
  m_VtkDataSetMapper->SetResolveCoincidentTopologyToPolygonOffset();
  m_VtkDataSetMapper->SetResolveCoincidentTopologyPolygonOffsetParameters(0,1);
  m_Actor->SetMapper(m_VtkDataSetMapper);

  m_VtkDataSetMapper2 = vtkUnstructuredGridMapper::New();
  m_VtkDataSetMapper2->SetResolveCoincidentTopologyToPolygonOffset();
  m_VtkDataSetMapper2->SetResolveCoincidentTopologyPolygonOffsetParameters(1,1);
  m_ActorWireframe->SetMapper(m_VtkDataSetMapper2);
  m_ActorWireframe->GetProperty()->SetRepresentationToWireframe();

  m_Assembly->AddPart(m_Actor);
  m_Assembly->AddPart(m_ActorWireframe);
  m_Assembly->AddPart(m_Volume);

  m_VtkVolumeRayCastMapper = 0;
  #if (VTK_MAJOR_VERSION >= 5)
  m_VtkPTMapper = 0;
  m_VtkVolumeZSweepMapper = 0;
  #endif

  //m_GenerateNormals = false;
}
mitk::UnstructuredGridVtkMapper3D::~UnstructuredGridVtkMapper3D (  ) [protected, virtual]

Definition at line 85 of file mitkUnstructuredGridVtkMapper3D.cpp.

{

  if (m_VtkTriangleFilter != 0)
    m_VtkTriangleFilter->Delete();

  if (m_VtkVolumeRayCastMapper != 0)
    m_VtkVolumeRayCastMapper->Delete();

  #if (VTK_MAJOR_VERSION >= 5)
  if (m_VtkVolumeZSweepMapper != 0)
    m_VtkVolumeZSweepMapper->Delete();

  if (m_VtkPTMapper != 0)
    m_VtkPTMapper->Delete();
  #endif

  if (m_VtkDataSetMapper != 0)
    m_VtkDataSetMapper->Delete();

  if (m_VtkDataSetMapper2 != 0)
      m_VtkDataSetMapper2->Delete();

  if (m_Assembly != 0)
    m_Assembly->Delete();

  if (m_Actor != 0)
    m_Actor->Delete();

  if (m_ActorWireframe != 0)
      m_ActorWireframe->Delete();

  if (m_Volume != 0)
    m_Volume->Delete();

}

Member Function Documentation

void mitk::UnstructuredGridVtkMapper3D::ApplyProperties ( vtkActor *  actor,
mitk::BaseRenderer *  renderer
) [virtual]

Apply color and opacity read from the PropertyList.

Reimplemented from mitk::VtkMapper3D.

Definition at line 194 of file mitkUnstructuredGridVtkMapper3D.cpp.

References mitk::SurfaceVtkMapper3D::ApplyMitkPropertiesToVtkProperty(), mitk::GridRepresentationProperty::POINTS, mitk::GridVolumeMapperProperty::RAYCAST, mitk::GridRepresentationProperty::SURFACE, mitk::GridRepresentationProperty::VOLUME, and mitk::GridRepresentationProperty::WIREFRAME.

{
  mitk::DataNode::Pointer node = this->GetDataNode();
  Superclass::ApplyProperties(m_Actor, renderer);
  Superclass::ApplyProperties(m_ActorWireframe, renderer);

  vtkVolumeProperty* volProp = m_Volume->GetProperty();
  vtkProperty* property = m_Actor->GetProperty();

  mitk::SurfaceVtkMapper3D::ApplyMitkPropertiesToVtkProperty(node,property,renderer);

  mitk::SurfaceVtkMapper3D::ApplyMitkPropertiesToVtkProperty(node,m_ActorWireframe->GetProperty(),renderer);

  mitk::TransferFunctionProperty::Pointer transferFuncProp;
  if (node->GetProperty(transferFuncProp, "TransferFunction", renderer))
  {
    mitk::TransferFunction::Pointer transferFunction = transferFuncProp->GetValue();

    volProp->SetColor(transferFunction->GetColorTransferFunction());
    volProp->SetScalarOpacity(transferFunction->GetScalarOpacityFunction());

    m_VtkDataSetMapper->SetLookupTable(transferFunction->GetColorTransferFunction());
    m_VtkDataSetMapper2->SetLookupTable(transferFunction->GetColorTransferFunction());
  }

  mitk::GridRepresentationProperty::Pointer gridRepProp;
  if (node->GetProperty(gridRepProp, "grid representation", renderer))
  {
    mitk::GridRepresentationProperty::IdType type = gridRepProp->GetValueAsId();
    bool isVolume = false;
    switch (type) {
      case mitk::GridRepresentationProperty::POINTS:
        property->SetRepresentationToPoints();
        break;
      case mitk::GridRepresentationProperty::WIREFRAME:
        property->SetRepresentationToWireframe();
        break;
      case mitk::GridRepresentationProperty::SURFACE:
        property->SetRepresentationToSurface();
        break;
      case mitk::GridRepresentationProperty::VOLUME:
        m_Assembly->RemovePart(m_Actor);
        m_Assembly->RemovePart(m_ActorWireframe);
        m_Assembly->AddPart(m_Volume);
        isVolume = true;
        break;
    }

    if (!isVolume) {
      m_Assembly->RemovePart(m_Volume);
      m_Assembly->AddPart(m_Actor);
      if (type == mitk::GridRepresentationProperty::SURFACE)
        m_Assembly->AddPart(m_ActorWireframe);
      else
        m_Assembly->RemovePart(m_ActorWireframe);
    }


  }

  mitk::GridVolumeMapperProperty::Pointer mapperProp;
  if (node->GetProperty(mapperProp, "grid volume mapper", renderer))
  {
    mitk::GridVolumeMapperProperty::IdType type = mapperProp->GetValueAsId();
    switch (type) {
      case mitk::GridVolumeMapperProperty::RAYCAST:
        if (m_VtkVolumeRayCastMapper == 0) {
          m_VtkVolumeRayCastMapper = vtkUnstructuredGridVolumeRayCastMapper::New();
          m_VtkVolumeRayCastMapper->SetInput(m_VtkTriangleFilter->GetOutput());
        }
        m_Volume->SetMapper(m_VtkVolumeRayCastMapper);
        break;
      #if (VTK_MAJOR_VERSION >= 5)
      case mitk::GridVolumeMapperProperty::PT:
        if (m_VtkPTMapper == 0) {
          m_VtkPTMapper = vtkProjectedTetrahedraMapper::New();
          m_VtkPTMapper->SetInputConnection(m_VtkTriangleFilter->GetOutputPort());
        }
        m_Volume->SetMapper(m_VtkPTMapper);
        break;
      case mitk::GridVolumeMapperProperty::ZSWEEP:
        if (m_VtkVolumeZSweepMapper == 0) {
          m_VtkVolumeZSweepMapper = vtkUnstructuredGridVolumeZSweepMapper::New();
          m_VtkVolumeZSweepMapper->SetInputConnection(m_VtkTriangleFilter->GetOutputPort());
        }
        m_Volume->SetMapper(m_VtkVolumeZSweepMapper);
        break;
      #endif
    }
  }


//   mitk::LevelWindow levelWindow;
//   if(node->GetLevelWindow(levelWindow, renderer, "levelWindow"))
//   {
//     m_VtkVolumeRayCastMapper->SetScalarRange(levelWindow.GetMin(),levelWindow.GetMax());
//   }
//   else
//   if(node->GetLevelWindow(levelWindow, renderer))
//   {
//     m_VtkVolumeRayCastMapper->SetScalarRange(levelWindow.GetMin(),levelWindow.GetMax());
//   }
//
//   mitk::VtkRepresentationProperty* representationProperty;
//   node->GetProperty(representationProperty, "material.representation", renderer);
//   if ( representationProperty != NULL )
//     m_Volume->GetProperty()->SetRepresentation( representationProperty->GetVtkRepresentation() );
//
//   mitk::VtkInterpolationProperty* interpolationProperty;
//   node->GetProperty(interpolationProperty, "material.interpolation", renderer);
//   if ( interpolationProperty != NULL )
//     m_Volume->GetProperty()->SetInterpolation( interpolationProperty->GetVtkInterpolation() );
//
//   bool scalarVisibility = false;
//   node->GetBoolProperty("scalar visibility", scalarVisibility);
//   m_VtkVolumeRayCastMapper->SetScalarVisibility( (scalarVisibility ? 1 : 0) );
//
//   if(scalarVisibility)
//   {
//     mitk::VtkScalarModeProperty* scalarMode;
//     if(node->GetProperty(scalarMode, "scalar mode", renderer))
//     {
//       m_VtkVolumeRayCastMapper->SetScalarMode(scalarMode->GetVtkScalarMode());
//     }
//     else
//       m_VtkVolumeRayCastMapper->SetScalarModeToDefault();
//
//     bool colorMode = false;
//     node->GetBoolProperty("color mode", colorMode);
//     m_VtkVolumeRayCastMapper->SetColorMode( (colorMode ? 1 : 0) );
//
//     float scalarsMin = 0;
//     if (dynamic_cast<mitk::FloatProperty *>(node->GetProperty("ScalarsRangeMinimum").GetPointer()) != NULL)
//       scalarsMin = dynamic_cast<mitk::FloatProperty*>(node->GetProperty("ScalarsRangeMinimum").GetPointer())->GetValue();
//
//     float scalarsMax = 1.0;
//     if (dynamic_cast<mitk::FloatProperty *>(node->GetProperty("ScalarsRangeMaximum").GetPointer()) != NULL)
//       scalarsMax = dynamic_cast<mitk::FloatProperty*>(node->GetProperty("ScalarsRangeMaximum").GetPointer())->GetValue();
//
//     m_VtkVolumeRayCastMapper->SetScalarRange(scalarsMin,scalarsMax);
//   }
}
void mitk::UnstructuredGridVtkMapper3D::GenerateData ( mitk::BaseRenderer *  renderer ) [protected, virtual]

Generate the data needed for rendering into renderer.

Reimplemented from mitk::Mapper.

Definition at line 136 of file mitkUnstructuredGridVtkMapper3D.cpp.

References mitk::BaseRenderer::GetDataStorage(), and mitk::UnstructuredGrid::GetVtkUnstructuredGrid().

{

  if(!IsVisible(renderer))
  {
    m_Assembly->VisibilityOff();
    return;
  }

  //
  // get the TimeSlicedGeometry of the input object
  //
  mitk::UnstructuredGrid::Pointer input  = const_cast< mitk::UnstructuredGrid* >( this->GetInput() );

  //
  // set the input-object at time t for the mapper
  //
  vtkUnstructuredGrid * grid = input->GetVtkUnstructuredGrid( this->GetTimestep() );
  if(grid == 0)
  {
    m_Assembly->VisibilityOff();
    return;
  }

  m_Assembly->VisibilityOn();

  m_VtkTriangleFilter->SetInput(grid);
  m_VtkDataSetMapper->SetInput(grid);
  m_VtkDataSetMapper2->SetInput(grid);

  mitk::DataNode::ConstPointer node = this->GetDataNode();
  bool clip = false;
  node->GetBoolProperty("enable clipping", clip);
  mitk::DataNode::Pointer bbNode = renderer->GetDataStorage()->GetNamedDerivedNode("Clipping Bounding Object", node);
  if (clip && bbNode.IsNotNull())
  {
    m_VtkDataSetMapper->SetBoundingObject(dynamic_cast<mitk::BoundingObject*>(bbNode->GetData()));
    m_VtkDataSetMapper2->SetBoundingObject(dynamic_cast<mitk::BoundingObject*>(bbNode->GetData()));
  }
  else
  {
    m_VtkDataSetMapper->SetBoundingObject(0);
    m_VtkDataSetMapper2->SetBoundingObject(0);
  }

  //
  // apply properties read from the PropertyList
  //
  ApplyProperties(0, renderer);
}
void mitk::UnstructuredGridVtkMapper3D::GenerateData (  ) [protected, virtual]

Generate the data needed for rendering (independent of a specific renderer)

Reimplemented from mitk::Mapper.

Definition at line 127 of file mitkUnstructuredGridVtkMapper3D.cpp.

{
  m_Assembly->VisibilityOn();

  m_ActorWireframe->GetProperty()->SetAmbient(1.0);
  m_ActorWireframe->GetProperty()->SetDiffuse(0.0);
  m_ActorWireframe->GetProperty()->SetSpecular(0.0);
}
virtual const char* mitk::UnstructuredGridVtkMapper3D::GetClassName (  ) const [virtual]

Reimplemented from mitk::VtkMapper3D.

const mitk::UnstructuredGrid * mitk::UnstructuredGridVtkMapper3D::GetInput ( void   ) [virtual]

Definition at line 43 of file mitkUnstructuredGridVtkMapper3D.cpp.

References mitk::Mapper::GetData().

{
  return static_cast<const mitk::UnstructuredGrid * > ( GetData() );
}
vtkProp * mitk::UnstructuredGridVtkMapper3D::GetVtkProp ( mitk::BaseRenderer *  renderer ) [virtual]

Implements mitk::VtkMapper3D.

Definition at line 122 of file mitkUnstructuredGridVtkMapper3D.cpp.

{
  return m_Assembly;
}
static Pointer mitk::UnstructuredGridVtkMapper3D::New (  ) [static]

Referenced by mitk::CoreExtObjectFactory::CreateMapper(), and mitkDataNodeExtTestClass::TestMapperSetting().

void mitk::UnstructuredGridVtkMapper3D::ResetMapper ( BaseRenderer *   ) [protected, virtual]

Reimplemented from mitk::Mapper.

Definition at line 188 of file mitkUnstructuredGridVtkMapper3D.cpp.

{
  m_Assembly->VisibilityOff();
}
void mitk::UnstructuredGridVtkMapper3D::SetDefaultProperties ( mitk::DataNode *  node,
mitk::BaseRenderer *  renderer = NULL,
bool  overwrite = false
) [static]

Set default values of properties used by this mapper to node.

Parameters:
nodeThe node for which the properties are set
overwriteoverwrite existing properties (default: false)
rendererdefines which property list of node is used (default: NULL, i.e. default property list)

Reimplemented from mitk::Mapper.

Definition at line 337 of file mitkUnstructuredGridVtkMapper3D.cpp.

References mitk::DataNode::AddProperty(), mitk::IntProperty::New(), mitk::ColorProperty::New(), mitk::BoolProperty::New(), mitk::VtkScalarModeProperty::New(), mitk::GridVolumeMapperProperty::New(), mitk::GridRepresentationProperty::New(), and mitk::SurfaceVtkMapper3D::SetDefaultPropertiesForVtkProperty().

Referenced by mitk::CoreExtObjectFactory::SetDefaultProperties().

{

  SurfaceVtkMapper3D::SetDefaultPropertiesForVtkProperty(node, renderer, overwrite);

  //node->AddProperty("TransferFunction", TransferFunctionProperty::New(), renderer, overwrite);
  node->AddProperty("grid representation", GridRepresentationProperty::New(), renderer, overwrite);
  node->AddProperty("grid volume mapper", GridVolumeMapperProperty::New(), renderer, overwrite);
  node->AddProperty("scalar mode", VtkScalarModeProperty::New(0), renderer, overwrite);
  node->AddProperty("scalar visibility", BoolProperty::New(true), renderer, overwrite);
  node->AddProperty("outline polygons", BoolProperty::New(false), renderer, overwrite);
  node->AddProperty("color", ColorProperty::New(1.0f, 1.0f, 1.0f), renderer, overwrite);
  node->AddProperty("line width", IntProperty::New(1), renderer, overwrite);

  Superclass::SetDefaultProperties(node, renderer, overwrite);
}
void mitk::UnstructuredGridVtkMapper3D::SetProperties ( mitk::BaseRenderer *  renderer ) [protected]

Member Data Documentation

vtkActor* mitk::UnstructuredGridVtkMapper3D::m_Actor [protected]

Definition at line 77 of file mitkUnstructuredGridVtkMapper3D.h.

vtkActor* mitk::UnstructuredGridVtkMapper3D::m_ActorWireframe [protected]

Definition at line 78 of file mitkUnstructuredGridVtkMapper3D.h.

vtkAssembly* mitk::UnstructuredGridVtkMapper3D::m_Assembly [protected]

Definition at line 76 of file mitkUnstructuredGridVtkMapper3D.h.

vtkVolume* mitk::UnstructuredGridVtkMapper3D::m_Volume [protected]

Definition at line 79 of file mitkUnstructuredGridVtkMapper3D.h.

vtkUnstructuredGridMapper* mitk::UnstructuredGridVtkMapper3D::m_VtkDataSetMapper [protected]

Definition at line 83 of file mitkUnstructuredGridVtkMapper3D.h.

vtkUnstructuredGridMapper* mitk::UnstructuredGridVtkMapper3D::m_VtkDataSetMapper2 [protected]

Definition at line 84 of file mitkUnstructuredGridVtkMapper3D.h.

vtkDataSetTriangleFilter* mitk::UnstructuredGridVtkMapper3D::m_VtkTriangleFilter [protected]

Definition at line 81 of file mitkUnstructuredGridVtkMapper3D.h.

vtkUnstructuredGridVolumeRayCastMapper* mitk::UnstructuredGridVtkMapper3D::m_VtkVolumeRayCastMapper [protected]

Definition at line 86 of file mitkUnstructuredGridVtkMapper3D.h.

The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Properties Friends Defines
Generated on Tue Oct 19 2010 16:20:33 for mitk by  doxygen 1.7.2
