Integrates into the VTK event mechanism to generate MITK specific events. This class is NON-QT dependent pandon to the current MITK event handling code in QmitkRenderWindow. More...

#include <mitkVtkEventProvider.h>

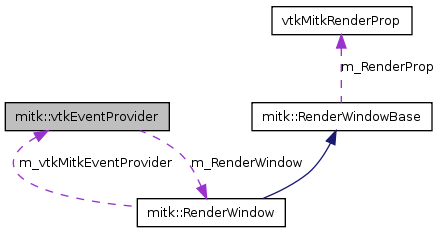

Collaboration diagram for mitk::vtkEventProvider:

[legend]

List of all members.

Public Member Functions
	vtkTypeRevisionMacro (vtkEventProvider, vtkInteractorObserver)
virtual void	SetEnabled (int)
virtual void	SetInteractor (vtkRenderWindowInteractor *iren)
virtual void	SetMitkRenderWindow (mitk::RenderWindow *renWin)
mitk::RenderWindow *	GetRenderWindow ()
Static Public Member Functions
static vtkEventProvider *	New ()
Protected Types
typedef std::vector< unsigned long >	InteractionEventsVectorType
Protected Member Functions
	vtkEventProvider ()
	~vtkEventProvider ()
void	AddInteractionEvent (unsigned long ievent)
void	RemoveInteractionEvent (unsigned long ievent)
Static Protected Member Functions
static void	ProcessEvents (vtkObject object, unsigned long event, void clientdata, void *calldata)
Protected Attributes
mitk::RenderWindow *	m_RenderWindow
InteractionEventsVectorType	m_InteractionEventsVector

Detailed Description

Integrates into the VTK event mechanism to generate MITK specific events. This class is NON-QT dependent pandon to the current MITK event handling code in QmitkRenderWindow.

Definition at line 36 of file mitkVtkEventProvider.h.

Member Typedef Documentation

typedef std::vector<unsigned long> mitk::vtkEventProvider::InteractionEventsVectorType [protected]

Definition at line 64 of file mitkVtkEventProvider.h.

Constructor & Destructor Documentation

mitk::vtkEventProvider::vtkEventProvider ( ) [protected]

Definition at line 38 of file mitkVtkEventProvider.cpp.

References AddInteractionEvent(), and ProcessEvents().

{
  // priority of the observer/command; we want MITK events processed in the very beginning
  this->Priority = 99999.99;

  //take over the processing of delete and keypress events from the superclass
  this->EventCallbackCommand->SetCallback(
    vtkEventProvider::ProcessEvents);

  // Set/Get the passive observer flag. If this is set to true, this
  // indicates that this command does not change the state of the
  // system in any way. Passive observers are processed first, and
  // are not called even when another command has focus.
  this->EventCallbackCommand->SetPassiveObserver(1); // get events first

  // mouse move
  AddInteractionEvent(vtkCommand::MouseMoveEvent);
  // mouse press
  AddInteractionEvent(vtkCommand::LeftButtonPressEvent);
  AddInteractionEvent(vtkCommand::MiddleButtonPressEvent);
  AddInteractionEvent(vtkCommand::RightButtonPressEvent);
  // mouse release
  AddInteractionEvent(vtkCommand::LeftButtonReleaseEvent);
  AddInteractionEvent(vtkCommand::MiddleButtonReleaseEvent);
  AddInteractionEvent(vtkCommand::RightButtonReleaseEvent);
  // wheel event
  AddInteractionEvent(vtkCommand::MouseWheelBackwardEvent);
  AddInteractionEvent(vtkCommand::MouseWheelForwardEvent);
  // key press event
  AddInteractionEvent(vtkCommand::KeyPressEvent);
  // window resize event
  AddInteractionEvent(vtkCommand::WidgetModifiedEvent);
}

mitk::vtkEventProvider::~vtkEventProvider ( ) [protected]

Definition at line 72 of file mitkVtkEventProvider.cpp.

{
  this->SetInteractor(0);
}

Member Function Documentation

void mitk::vtkEventProvider::AddInteractionEvent ( unsigned long ievent ) [protected]

Definition at line 250 of file mitkVtkEventProvider.cpp.

Referenced by vtkEventProvider().

{
  // Remove event if it already exists
  RemoveInteractionEvent(ievent);

  m_InteractionEventsVector.push_back(ievent);

}

mitk::RenderWindow * mitk::vtkEventProvider::GetRenderWindow ( )

Definition at line 82 of file mitkVtkEventProvider.cpp.

{
  return m_RenderWindow;
}

static vtkEventProvider* mitk::vtkEventProvider::New ( ) [static]

static void mitk::vtkEventProvider::ProcessEvents	(	vtkObject *	object,
		unsigned long	event,
		void *	clientdata,
		void *	calldata
	)		`[static, protected]`

Referenced by vtkEventProvider().

void mitk::vtkEventProvider::RemoveInteractionEvent ( unsigned long ievent ) [protected]

Definition at line 236 of file mitkVtkEventProvider.cpp.

{
  InteractionEventsVectorType::iterator it;
  if(m_InteractionEventsVector.size() > 0)
  {
    it = std::find(m_InteractionEventsVector.begin(),m_InteractionEventsVector.end(),ievent);
    if(it != m_InteractionEventsVector.end())
    {
      m_InteractionEventsVector.erase(it);
      return;
    }
  }
}

void mitk::vtkEventProvider::SetEnabled ( int enabling ) [virtual]

Definition at line 87 of file mitkVtkEventProvider.cpp.

References VTKEVENTPROVIDER_DEBUG, and VTKEVENTPROVIDER_ERROR.

Referenced by mitk::RenderWindow::RenderWindow().

{
  if ( ! this->Interactor )
    {
    VTKEVENTPROVIDER_ERROR <<"The interactor must be set prior to enabling/disabling widget";
    return;
    }

  if ( enabling ) //----------------------------------------------------------
    {
    VTKEVENTPROVIDER_DEBUG << "Enabling widget";

    if ( this->Enabled ) //already enabled, just return
      {
      return;
      }

    this->Enabled = 1;

    // listen to all event types specified in m_InteractionEventsVector
    vtkRenderWindowInteractor *i = this->Interactor;

    InteractionEventsVectorType::iterator it;
    for(it = m_InteractionEventsVector.begin(); it != m_InteractionEventsVector.end(); it++)
    {
      i->AddObserver((vtkCommand::EventIds) (*it), this->EventCallbackCommand,
                   this->Priority);
    }

    this->InvokeEvent(vtkCommand::EnableEvent,NULL);
    }

  else //disabling-----------------------------------------------------------
    {
    VTKEVENTPROVIDER_DEBUG <<"Disabling widget";

    if ( ! this->Enabled ) //already disabled, just return
      {
      return;
      }

    this->Enabled = 0;

    // don't listen for events any more
    this->Interactor->RemoveObserver(this->EventCallbackCommand);
    //this->Interactor->HandleEventLoop = 0;

    this->InvokeEvent(vtkCommand::DisableEvent,NULL);
    }
}

void mitk::vtkEventProvider::SetInteractor ( vtkRenderWindowInteractor * iren ) [virtual]

Definition at line 140 of file mitkVtkEventProvider.cpp.

Referenced by mitk::RenderWindow::RenderWindow().

{
  if (i == this->Interactor)
  {
    return;
  }
  // if we already have an Interactor then stop observing it
  if (this->Interactor)
    this->SetEnabled(0); //disable the old interactor

  this->Interactor = i;

  this->Modified();
}

void mitk::vtkEventProvider::SetMitkRenderWindow ( mitk::RenderWindow * renWin ) [virtual]

Definition at line 77 of file mitkVtkEventProvider.cpp.

Referenced by mitk::RenderWindow::RenderWindow().
