reads xml representations of mitk::PointSets from a file More...

#include <mitkPointSetReader.h>

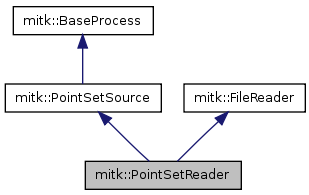

Inheritance diagram for mitk::PointSetReader:

Collaboration diagram for mitk::PointSetReader:

Public Types
typedef PointSetReader	Self
typedef FileReader	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
virtual void	SetFileName (const char *_arg)
	Sets the filename of the file to be read.
virtual const char *	GetFileName () const
	Returns the filename of the point set xml-file.
virtual void	SetFilePrefix (const char *_arg)
virtual const char *	GetFilePrefix () const
virtual void	SetFilePattern (const char *_arg)
virtual const char *	GetFilePattern () const
bool	GetSuccess () const
Static Public Member Functions
static Pointer	New ()
static bool	CanReadFile (const std::string filename, const std::string filePrefix, const std::string filePattern)
Protected Member Functions
	PointSetReader ()
virtual	~PointSetReader ()
virtual void	GenerateData ()
virtual mitk::PointSet::Pointer	ReadPoint (mitk::PointSet::Pointer newPointSet, TiXmlElement *currentTimeSeries, unsigned int currentTimeStep)
virtual void	GenerateOutputInformation ()
virtual void	ResizeOutputs (const unsigned int &num)
virtual int	CanReadFile (const char *name)
Protected Attributes
std::string	m_FileName
std::string	m_FilePrefix
std::string	m_FilePattern
bool	m_Success

Detailed Description

reads xml representations of mitk::PointSets from a file

Reader for xml files containing one or multiple xml represenations of mitk::PointSets. If multiple mitk::PointSets are stored in one file, these are assigned to multiple outputs of the filter. The number of point sets which have be read can be retrieven by a call to GetNumberOfOutputs() after the pipeline update(). The reader is able to read the old 3D Pointsets without the "specification" and "timeseries" tags and the new 4D Pointsets.

Note:: loading point sets from multiple files according to a given file pattern is not yet supported!

Definition at line 45 of file mitkPointSetReader.h.

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::PointSetReader::ConstPointer

Definition at line 49 of file mitkPointSetReader.h.

typedef itk::SmartPointer<Self> mitk::PointSetReader::Pointer

Definition at line 49 of file mitkPointSetReader.h.

typedef PointSetReader mitk::PointSetReader::Self

Definition at line 49 of file mitkPointSetReader.h.

typedef FileReader mitk::PointSetReader::Superclass

Definition at line 49 of file mitkPointSetReader.h.

Constructor & Destructor Documentation

mitk::PointSetReader::PointSetReader ( ) [protected]

Constructor

Definition at line 24 of file mitkPointSetReader.cpp.

References m_Success.

{
  m_Success = false;
}

mitk::PointSetReader::~PointSetReader ( ) [protected, virtual]

Virtual destructor

Definition at line 30 of file mitkPointSetReader.cpp.

{}

Member Function Documentation

bool mitk::PointSetReader::CanReadFile	(	const std::string	filename,
		const std::string	filePrefix,
		const std::string	filePattern
	)		`[static]`

Definition at line 135 of file mitkPointSetReader.cpp.

{
  // First check the extension
  if(  filename == "" )
  {
      //MITK_INFO<<"No filename specified."<<std::endl;
    return false;
  }

  // check if image is serie
  if( filePattern != "" && filePrefix != "" )
    return false;

  bool extensionFound = false;
  std::string::size_type MPSPos = filename.rfind(".mps");
  if ((MPSPos != std::string::npos)
      && (MPSPos == filename.length() - 4))
    {
    extensionFound = true;
    }

  MPSPos = filename.rfind(".MPS");
  if ((MPSPos != std::string::npos)
      && (MPSPos == filename.length() - 4))
    {
    extensionFound = true;
    }

  if( !extensionFound )
    {
      //MITK_INFO<<"The filename extension is not recognized."<<std::endl;
    return false;
    }

  return true;
}

int mitk::PointSetReader::CanReadFile ( const char * name ) [protected, virtual]

Checks if the given file has appropriate read access.

Returns:: true if the file exists and may be read or false otherwise.

Definition at line 127 of file mitkPointSetReader.cpp.

{
    std::ifstream in( name );
    bool isGood = in.good();
    in.close();
    return isGood;
}

void mitk::PointSetReader::GenerateData ( ) [protected, virtual]

Actually reads the point sets from the given file

Definition at line 34 of file mitkPointSetReader.cpp.

References TiXmlNode::FirstChildElement(), TiXmlHandle::FirstChildElement(), TiXmlElement::GetText(), TiXmlDocument::LoadFile(), MITK_ERROR, MITK_WARN, mitk::PointSet::New(), TiXmlNode::NextSiblingElement(), TiXmlElement::ToElement(), and TiXmlHandle::ToElement().

{
    std::locale::global(std::locale("C"));

    m_Success = false;
    if ( m_FileName == "" )
    {
      itkWarningMacro( << "Sorry, filename has not been set!" );
        return ;
    }
    if ( ! this->CanReadFile( m_FileName.c_str() ) )
    {
      itkWarningMacro( << "Sorry, can't read file " << m_FileName << "!" );
        return ;
    }

  try{
    TiXmlDocument doc(m_FileName.c_str());
    bool loadOkay = doc.LoadFile();
    if (loadOkay)
    {
      TiXmlHandle docHandle( &doc );
      unsigned int pointSetCounter(0);
          for( TiXmlElement* currentPointSetElement = docHandle.FirstChildElement("point_set_file").FirstChildElement("point_set").ToElement();
        currentPointSetElement != NULL; currentPointSetElement = currentPointSetElement->NextSiblingElement())
      {
        mitk::PointSet::Pointer newPointSet = mitk::PointSet::New();
        if(currentPointSetElement->FirstChildElement("time_series") != NULL)
        {
          for( TiXmlElement* currentTimeSeries = currentPointSetElement->FirstChildElement("time_series")->ToElement();
            currentTimeSeries != NULL; currentTimeSeries = currentTimeSeries->NextSiblingElement())
          {
            unsigned int currentTimeStep(0);
            TiXmlElement* currentTimeSeriesID = currentTimeSeries->FirstChildElement("time_series_id");

            currentTimeStep = atoi(currentTimeSeriesID->GetText());

            newPointSet = this->ReadPoint(newPointSet, currentTimeSeries, currentTimeStep);
          }
        } else {
            newPointSet = this->ReadPoint(newPointSet, currentPointSetElement, 0);
        }
        this->SetNthOutput( pointSetCounter, newPointSet );
        pointSetCounter++;
      }
    }
    else
    {
      MITK_WARN << "XML parser error!";
    }
  }catch(...)
   {
      MITK_ERROR  << "Cannot read point set.";
      m_Success = false;
   }
    m_Success = true;
}

void mitk::PointSetReader::GenerateOutputInformation ( ) [protected, virtual]

Does nothing in the current implementation

Definition at line 123 of file mitkPointSetReader.cpp.

{
}

virtual const char* mitk::PointSetReader::GetClassName ( ) const [virtual]

virtual const char* mitk::PointSetReader::GetFileName ( ) const [virtual]

Returns the filename of the point set xml-file.

Returns:: the filename of the point set xml-file.

Implements mitk::FileReader.

virtual const char* mitk::PointSetReader::GetFilePattern ( ) const [virtual]

Warning:: multiple load not (yet) supported

Implements mitk::FileReader.

virtual const char* mitk::PointSetReader::GetFilePrefix ( ) const [virtual]

Warning:: multiple load not (yet) supported

Implements mitk::FileReader.

bool mitk::PointSetReader::GetSuccess ( ) const

Returns:: whether the last read attempt was successful or not.

Definition at line 183 of file mitkPointSetReader.cpp.

{
    return m_Success;
}

static Pointer mitk::PointSetReader::New ( ) [static]

Reimplemented from mitk::PointSetSource.

Referenced by QmitkPointListWidget::OnBtnLoadPoints(), mitkPointSetFileIOTestClass::PointSetLoadAndCompareTest(), and ReaderLocaleTest().

mitk::PointSet::Pointer mitk::PointSetReader::ReadPoint	(	mitk::PointSet::Pointer	newPointSet,
		TiXmlElement *	currentTimeSeries,
		unsigned int	currentTimeStep
	)		`[protected, virtual]`

Definition at line 92 of file mitkPointSetReader.cpp.

References TiXmlNode::FirstChildElement(), TiXmlNode::NextSiblingElement(), and TiXmlElement::ToElement().

{
  if(currentTimeSeries->FirstChildElement("point") != NULL)
  {
    for( TiXmlElement* currentPoint = currentTimeSeries->FirstChildElement("point")->ToElement();
              currentPoint != NULL; currentPoint = currentPoint->NextSiblingElement())
      {
        unsigned int id(0);
        mitk::PointSpecificationType spec((mitk::PointSpecificationType) 0);
        double x(0.0);
        double y(0.0);
        double z(0.0);

       id = atoi(currentPoint->FirstChildElement("id")->GetText());
        if(currentPoint->FirstChildElement("specification") != NULL)
        {
          spec = (mitk::PointSpecificationType) atoi(currentPoint->FirstChildElement("specification")->GetText());
        }
        x = atof(currentPoint->FirstChildElement("x")->GetText());
        y = atof(currentPoint->FirstChildElement("y")->GetText());
        z = atof(currentPoint->FirstChildElement("z")->GetText());

        mitk::Point3D point;
        mitk::FillVector3D(point, x, y, z);
        newPointSet->SetPoint(id, point, spec, currentTimeStep);
      }
    }
    return newPointSet;
}

void mitk::PointSetReader::ResizeOutputs ( const unsigned int & num ) [protected, virtual]

Resizes the output-objects according to the given number.

Parameters:

num	the new number of output objects.

Definition at line 172 of file mitkPointSetReader.cpp.

{
    unsigned int prevNum = this->GetNumberOfOutputs();
    this->SetNumberOfOutputs( num );
    for ( unsigned int i = prevNum; i < num; ++i )
    {
        this->SetNthOutput( i, this->MakeOutput( i ).GetPointer() );
    }
}

virtual void mitk::PointSetReader::SetFileName ( const char * _arg ) [virtual]

Sets the filename of the file to be read.

Parameters:
