mitk::PointSetSource Class Reference [Process Classes]

Superclass of all classes generating point sets (instances of class mitk::PointSet) as output. More...

#include <mitkPointSetSource.h>

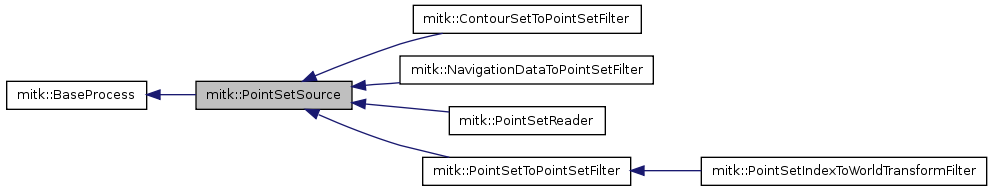

Inheritance diagram for mitk::PointSetSource:

Collaboration diagram for mitk::PointSetSource:

List of all members.

Public Types
typedef PointSet	OutputType
typedef OutputType::Pointer	OutputTypePointer
Public Member Functions
	mitkClassMacro (PointSetSource, BaseProcess)
virtual itk::DataObject::Pointer	MakeOutput (unsigned int idx)
virtual void	SetOutput (OutputType *output)
virtual void	GraftOutput (OutputType *output)
virtual void	GraftNthOutput (unsigned int idx, OutputType *output)
virtual OutputType *	GetOutput ()
virtual OutputType *	GetOutput (unsigned int idx)
Static Public Member Functions
static Pointer	New ()
Protected Member Functions
	PointSetSource ()
virtual	~PointSetSource ()

---

Detailed Description

Superclass of all classes generating point sets (instances of class mitk::PointSet) as output.

In itk and vtk the generated result of a ProcessObject is only guaranteed to be up-to-date, when Update() of the ProcessObject or the generated DataObject is called immediately before access of the data stored in the DataObject.

Definition at line 37 of file mitkPointSetSource.h.

---

Member Typedef Documentation

typedef PointSet mitk::PointSetSource::OutputType

Reimplemented in mitk::PointSetToPointSetFilter.

Definition at line 42 of file mitkPointSetSource.h.

typedef OutputType::Pointer mitk::PointSetSource::OutputTypePointer

Definition at line 46 of file mitkPointSetSource.h.

---

Constructor & Destructor Documentation

mitk::PointSetSource::PointSetSource

(

)

[protected]

Definition at line 22 of file mitkPointSetSource.cpp.

References MakeOutput(), and mitk::BaseProcess::SetNthOutput().

{
  // Create the output.
  OutputType::Pointer output = dynamic_cast<OutputType*>(this->MakeOutput(0).GetPointer());
  Superclass::SetNumberOfRequiredInputs(0);
  Superclass::SetNumberOfRequiredOutputs(1);
  Superclass::SetNthOutput(0, output.GetPointer());
}

mitk::PointSetSource::~PointSetSource

(

)

[protected, virtual]

Definition at line 34 of file mitkPointSetSource.cpp.

{
}

---

Member Function Documentation

mitk::PointSetSource::OutputType * mitk::PointSetSource::GetOutput

(

void

)

[virtual]

Returns the output with index 0 of the point set source

Returns:

the output

Definition at line 71 of file mitkPointSetSource.cpp.

{
    if ( this->GetNumberOfOutputs() < 1 )
    {
        return 0;
    }
    else
    {
      return dynamic_cast<OutputType*>
                         (this->BaseProcess::GetOutput(0));
    }
}

mitk::PointSetSource::OutputType * mitk::PointSetSource::GetOutput

(

unsigned int

idx )

[virtual]

Returns the n'th output of the point set source

Parameters:

idx	the index of the wanted output

Returns:

the output with index idx.

Definition at line 87 of file mitkPointSetSource.cpp.

{
    return dynamic_cast<OutputType*> ( this->ProcessObject::GetOutput( idx ) );
}

void mitk::PointSetSource::GraftNthOutput	(	unsigned int	idx,
		OutputType *	output
	)		[virtual]

Definition at line 63 of file mitkPointSetSource.cpp.

{
  itkWarningMacro(<< "GraftNthOutput(): This method is not yet implemented for mitk. Implement it before using!!" );
  assert(false);
}

void mitk::PointSetSource::GraftOutput

(

OutputType *

output )

[virtual]

Definition at line 58 of file mitkPointSetSource.cpp.

{
  this->GraftNthOutput(0, graft);
}

itk::DataObject::Pointer mitk::PointSetSource::MakeOutput

(

unsigned int

idx )

[virtual]

Allocates a new output object and returns it. Currently the index idx is not evaluated.

Parameters:

idx	the index of the output for which an object should be created

Returns:

the new object

Definition at line 41 of file mitkPointSetSource.cpp.

Referenced by mitk::ContourSetToPointSetFilter::ContourSetToPointSetFilter(), and PointSetSource().

{
    return OutputType::New().GetPointer();
}

mitk::PointSetSource::mitkClassMacro	(	PointSetSource	,
		BaseProcess
	)

static Pointer mitk::PointSetSource::New

(

)

[static]

Reimplemented in mitk::PointSetToPointSetFilter, mitk::PointSetReader, mitk::NavigationDataToPointSetFilter, mitk::ContourSetToPointSetFilter, and mitk::PointSetIndexToWorldTransformFilter.

void mitk::PointSetSource::SetOutput

(

OutputType *

output )

[virtual]

Allows to set the output of the point set source.

Parameters:

output

the intended output of the point set source

Definition at line 49 of file mitkPointSetSource.cpp.

{
  itkWarningMacro(<< "SetOutput(): This method is slated to be removed from ITK.  Please use GraftOutput() in possible combination with DisconnectPipeline() instead." );
    this->ProcessObject::SetNthOutput( 0, output );
}

---

The documentation for this class was generated from the following files:

• mitkPointSetSource.h
• mitkPointSetSource.cpp
