NavigationDataToNavigationDataFilter is the base class of all filters that receive NavigationDatas as input and produce NavigationDatas as output. More...

#include <mitkNavigationDataToNavigationDataFilter.h>

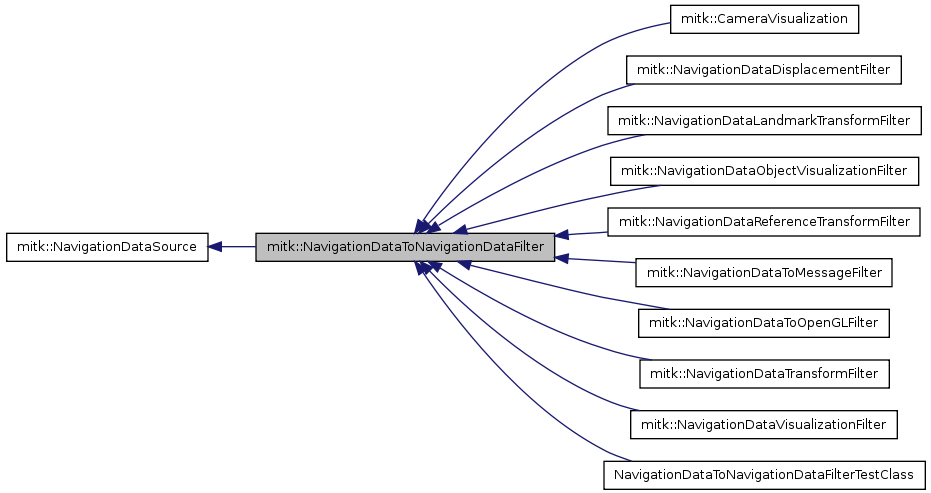

Inheritance diagram for mitk::NavigationDataToNavigationDataFilter:

[legend]

Collaboration diagram for mitk::NavigationDataToNavigationDataFilter:

[legend]

List of all members.

Public Types
typedef NavigationDataToNavigationDataFilter	Self
typedef NavigationDataSource	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
virtual void	SetInput (const NavigationData *nd)
	Set the input of this filter.
virtual void	SetInput (unsigned int idx, const NavigationData *nd)
	Set input with id idx of this filter.
const NavigationData *	GetInput (void) const
	Get the input of this filter.
const NavigationData *	GetInput (unsigned int idx) const
	Get the input with id idx of this filter.
const NavigationData *	GetInput (std::string navDataName) const
	Get the input with name navDataName of this filter.
DataObjectPointerArraySizeType	GetInputIndex (std::string navDataName)
	return the index of the input with name navDataName, throw std::invalid_argument exception if that name was not found
Protected Member Functions
	NavigationDataToNavigationDataFilter ()
virtual	~NavigationDataToNavigationDataFilter ()
void	CreateOutputsForAllInputs ()
	Create an output for each input.

Detailed Description

NavigationDataToNavigationDataFilter is the base class of all filters that receive NavigationDatas as input and produce NavigationDatas as output.

Documentation Base class that for all navigation filters that receive NavigationData objects as input and produce NavigationData objects as output. This class defines the input-interface for NavigationDataFilters.

Definition at line 37 of file mitkNavigationDataToNavigationDataFilter.h.

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::NavigationDataToNavigationDataFilter::ConstPointer

Reimplemented from mitk::NavigationDataSource.

Reimplemented in mitk::CameraVisualization, mitk::NavigationDataLandmarkTransformFilter, mitk::NavigationDataObjectVisualizationFilter, mitk::NavigationDataReferenceTransformFilter, mitk::NavigationDataToMessageFilter, mitk::NavigationDataToOpenGLFilter, mitk::NavigationDataTransformFilter, mitk::NavigationDataVisualizationFilter, and NavigationDataToNavigationDataFilterTestClass.

Definition at line 40 of file mitkNavigationDataToNavigationDataFilter.h.

typedef itk::SmartPointer<Self> mitk::NavigationDataToNavigationDataFilter::Pointer

Reimplemented from mitk::NavigationDataSource.

Reimplemented in mitk::CameraVisualization, mitk::NavigationDataLandmarkTransformFilter, mitk::NavigationDataObjectVisualizationFilter, mitk::NavigationDataReferenceTransformFilter, mitk::NavigationDataToMessageFilter, mitk::NavigationDataToOpenGLFilter, mitk::NavigationDataTransformFilter, mitk::NavigationDataVisualizationFilter, and NavigationDataToNavigationDataFilterTestClass.

Definition at line 40 of file mitkNavigationDataToNavigationDataFilter.h.

typedef NavigationDataToNavigationDataFilter mitk::NavigationDataToNavigationDataFilter::Self

Reimplemented from mitk::NavigationDataSource.

Reimplemented in mitk::CameraVisualization, mitk::NavigationDataLandmarkTransformFilter, mitk::NavigationDataObjectVisualizationFilter, mitk::NavigationDataReferenceTransformFilter, mitk::NavigationDataToMessageFilter, mitk::NavigationDataToOpenGLFilter, mitk::NavigationDataTransformFilter, mitk::NavigationDataVisualizationFilter, and NavigationDataToNavigationDataFilterTestClass.

Definition at line 40 of file mitkNavigationDataToNavigationDataFilter.h.

typedef NavigationDataSource mitk::NavigationDataToNavigationDataFilter::Superclass

Reimplemented from mitk::NavigationDataSource.

Reimplemented in mitk::CameraVisualization, mitk::NavigationDataLandmarkTransformFilter, mitk::NavigationDataObjectVisualizationFilter, mitk::NavigationDataReferenceTransformFilter, mitk::NavigationDataToMessageFilter, mitk::NavigationDataToOpenGLFilter, mitk::NavigationDataTransformFilter, mitk::NavigationDataVisualizationFilter, and NavigationDataToNavigationDataFilterTestClass.

Definition at line 40 of file mitkNavigationDataToNavigationDataFilter.h.

Constructor & Destructor Documentation

mitk::NavigationDataToNavigationDataFilter::NavigationDataToNavigationDataFilter ( ) [protected]

Definition at line 21 of file mitkNavigationDataToNavigationDataFilter.cpp.

: mitk::NavigationDataSource()
{
}

mitk::NavigationDataToNavigationDataFilter::~NavigationDataToNavigationDataFilter ( ) [protected, virtual]

Definition at line 27 of file mitkNavigationDataToNavigationDataFilter.cpp.

{
}

Member Function Documentation

void mitk::NavigationDataToNavigationDataFilter::CreateOutputsForAllInputs ( ) [protected]

Create an output for each input.

This Method sets the number of outputs to the number of inputs and creates missing outputs objects.

Warning:: any additional outputs that exist before the method is called are deleted

Definition at line 87 of file mitkNavigationDataToNavigationDataFilter.cpp.

{
  this->SetNumberOfOutputs(this->GetNumberOfInputs());  // create outputs for all inputs
  for (unsigned int idx = 0; idx < this->GetNumberOfOutputs(); ++idx)
    if (this->GetOutput(idx) == NULL)
    {
      DataObjectPointer newOutput = this->MakeOutput(idx);
      this->SetNthOutput(idx, newOutput);
    }
    this->Modified();
}

virtual const char* mitk::NavigationDataToNavigationDataFilter::GetClassName ( ) const [virtual]

Reimplemented from mitk::NavigationDataSource.

Reimplemented in mitk::CameraVisualization, mitk::NavigationDataLandmarkTransformFilter, mitk::NavigationDataObjectVisualizationFilter, mitk::NavigationDataReferenceTransformFilter, mitk::NavigationDataToMessageFilter, mitk::NavigationDataToOpenGLFilter, mitk::NavigationDataTransformFilter, mitk::NavigationDataVisualizationFilter, and NavigationDataToNavigationDataFilterTestClass.

const mitk::NavigationData * mitk::NavigationDataToNavigationDataFilter::GetInput ( void ) const

Get the input of this filter.

Definition at line 49 of file mitkNavigationDataToNavigationDataFilter.cpp.

{
  if (this->GetNumberOfInputs() < 1)
    return NULL;

  return static_cast<const NavigationData*>(this->ProcessObject::GetInput(0));
}

const mitk::NavigationData * mitk::NavigationDataToNavigationDataFilter::GetInput ( unsigned int idx ) const

Get the input with id idx of this filter.

Definition at line 58 of file mitkNavigationDataToNavigationDataFilter.cpp.

{
  if (this->GetNumberOfInputs() < 1)
    return NULL;

  return static_cast<const NavigationData*>(this->ProcessObject::GetInput(idx));
}

const mitk::NavigationData * mitk::NavigationDataToNavigationDataFilter::GetInput ( std::string navDataName ) const

Get the input with name navDataName of this filter.

Definition at line 67 of file mitkNavigationDataToNavigationDataFilter.cpp.

{
  const DataObjectPointerArray& inputs = const_cast<Self*>(this)->GetInputs();
  for (DataObjectPointerArray::const_iterator it = inputs.begin(); it != inputs.end(); ++it)
    if (std::string(navDataName) == (static_cast<NavigationData*>(it->GetPointer()))->GetName())
      return static_cast<NavigationData*>(it->GetPointer());
  return NULL;
}

itk::ProcessObject::DataObjectPointerArraySizeType mitk::NavigationDataToNavigationDataFilter::GetInputIndex ( std::string navDataName )

return the index of the input with name navDataName, throw std::invalid_argument exception if that name was not found

Warning:: if a subclass has inputs that have different data type than mitk::NavigationData, they have to overwrite this method

Definition at line 77 of file mitkNavigationDataToNavigationDataFilter.cpp.

{
  DataObjectPointerArray& outputs = this->GetInputs();
  for (DataObjectPointerArray::size_type i = 0; i < outputs.size(); ++i)
    if (navDataName == (static_cast<NavigationData*>(outputs.at(i).GetPointer()))->GetName())
      return i;
  throw std::invalid_argument("output name does not exist");
}

void mitk::NavigationDataToNavigationDataFilter::SetInput	(	unsigned int	idx,
		const NavigationData *	nd
	)		`[virtual]`

Set input with id idx of this filter.

Warning:: : this will set the number of outputs to the number of inputs, deleting any extra outputs that might have been initialized. Subclasses that have a different number of outputs than inputs must overwrite the SetInput methods. If the last input is set to NULL, the number of inputs will be decreased by one (-> removing the last input). If other inputs are set to NULL, the number of inputs will not change.

Reimplemented in mitk::NavigationDataVisualizationFilter.

Definition at line 38 of file mitkNavigationDataToNavigationDataFilter.cpp.

{
  if ((nd == NULL) && (idx == this->GetNumberOfInputs() - 1)) // if the last input is set to NULL, reduce the number of inputs by one
    this->SetNumberOfInputs(this->GetNumberOfInputs() - 1);
  else
    this->ProcessObject::SetNthInput(idx, const_cast<NavigationData*>(nd));   // Process object is not const-correct so the const_cast is required here

  this->CreateOutputsForAllInputs();
}

void mitk::NavigationDataToNavigationDataFilter::SetInput ( const NavigationData * nd ) [virtual]

Set the input of this filter.

Warning:: : this will set the number of outputs to the number of inputs, deleting any extra outputs that might have been initialized. Subclasses that have a different number of outputs than inputs must overwrite the SetInput methods.

Reimplemented in mitk::NavigationDataVisualizationFilter.

Definition at line 32 of file mitkNavigationDataToNavigationDataFilter.cpp.

{
  this->SetInput(0, nd);
}

The documentation for this class was generated from the following files:
