NavigationDataLandmarkTransformFilter applies a itk-landmark-transformation defined by source and target pointsets. More...

#include <mitkNavigationDataLandmarkTransformFilter.h>

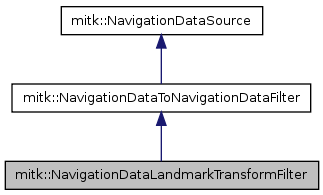

Inheritance diagram for mitk::NavigationDataLandmarkTransformFilter:

[legend]

Collaboration diagram for mitk::NavigationDataLandmarkTransformFilter:

[legend]

List of all members.

Public Types
typedef NavigationDataLandmarkTransformFilter	Self
typedef NavigationDataToNavigationDataFilter	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
typedef std::vector < mitk::ScalarType >	ErrorVector
typedef itk::VersorRigid3DTransform < double >	LandmarkTransformType
Public Member Functions
virtual const char *	GetClassName () const
virtual void	SetSourceLandmarks (mitk::PointSet::Pointer sourcePointSet)
	Set points used as source points for landmark transform.
virtual void	SetTargetLandmarks (mitk::PointSet::Pointer targetPointSet)
	Set points used as target points for landmark transform.
virtual bool	IsInitialized () const
mitk::ScalarType	GetFRE () const
	Returns the Fiducial Registration Error.
mitk::ScalarType	GetFREStdDev () const
	Returns the standard deviation of the Fiducial Registration Error.
mitk::ScalarType	GetRMSError () const
	Returns the Root Mean Square of the registration error.
mitk::ScalarType	GetMinError () const
	Returns the minimum registration error / best fitting landmark distance.
mitk::ScalarType	GetMaxError () const
	Returns the maximum registration error / worst fitting landmark distance.
mitk::ScalarType	GetAbsMaxError () const
	Returns the absolute maximum registration error.
const ErrorVector &	GetErrorVector () const
	Returns a vector with the euclidean distance of each transformed source point to its respective target point.
virtual void	SetUseICPInitialization (bool _arg)
virtual bool	GetUseICPInitialization ()
	If set to true, source and target point correspondences are established with iterative closest point optimization.
virtual void	UseICPInitializationOn ()
	If set to true, source and target point correspondences are established with iterative closest point optimization.
virtual void	UseICPInitializationOff ()
virtual const LandmarkTransformType *	GetLandmarkTransform ()
	If set to true, source and target point correspondences are established with iterative closest point optimization.
Static Public Member Functions
static Pointer	New ()
Protected Types
typedef itk::Image< signed short, 3 >	ImageType
	returns the current landmark transform
typedef itk::LandmarkBasedTransformInitializer < LandmarkTransformType, ImageType, ImageType >	TransformInitializerType
typedef TransformInitializerType::LandmarkPointContainer	LandmarkPointContainer
typedef itk::QuaternionRigidTransform < double >	QuaternionTransformType
Protected Member Functions
	NavigationDataLandmarkTransformFilter ()
	Constructor.
virtual	~NavigationDataLandmarkTransformFilter ()
virtual void	GenerateData ()
	transforms input NDs according to the calculated LandmarkTransform
bool	FindCorrespondentLandmarks (LandmarkPointContainer &sources, const LandmarkPointContainer &targets) const
	perform an iterative closest point matching to find corresponding landmarks that will be used for landmark transform calculation
void	InitializeLandmarkTransform (LandmarkPointContainer &sources, const LandmarkPointContainer &targets)
	initializes the transform using source and target PointSets
void	UpdateLandmarkTransform (const LandmarkPointContainer &sources, const LandmarkPointContainer &targets)
	calculates the transform using source and target PointSets
void	AccumulateStatistics (ErrorVector &vector)
	calculate error metrics for the transforms.
void	PrintSelf (std::ostream &os, itk::Indent indent) const
	print object info to ostream
Protected Attributes
mitk::ScalarType	m_ErrorMean
	Fiducial Registration Error.
mitk::ScalarType	m_ErrorStdDev
	standard deviation of the Fiducial Registration Error
mitk::ScalarType	m_ErrorRMS
	Root Mean Square of the registration error.
mitk::ScalarType	m_ErrorMin
	minimum registration error / best fitting landmark distance
mitk::ScalarType	m_ErrorMax
	maximum registration error / worst fitting landmark distance
mitk::ScalarType	m_ErrorAbsMax
	the absolute maximum registration error
LandmarkPointContainer	m_SourcePoints
	positions of the source points
LandmarkPointContainer	m_TargetPoints
	positions of the target points
TransformInitializerType::Pointer	m_LandmarkTransformInitializer
	landmark based transform initializer
LandmarkTransformType::Pointer	m_LandmarkTransform
	transform calculated from source and target points
QuaternionTransformType::Pointer	m_QuatLandmarkTransform
	transform needed to rotate orientation
QuaternionTransformType::Pointer	m_QuatTransform
	further transform needed to rotate orientation
ErrorVector	m_Errors
	stores the euclidean distance of each transformed source landmark and its respective target landmark
bool	m_UseICPInitialization
	find source <--> target point correspondences with iterative closest point optimization

Detailed Description

NavigationDataLandmarkTransformFilter applies a itk-landmark-transformation defined by source and target pointsets.

Documentation Before executing the filter SetSourceLandmarks and SetTargetLandmarks must be called. Before both source and target landmarks are set, the filter performs an identity transform. If source or target points are changed after calling SetXXXPoints, the corresponding SetXXXPoints method has to be called again to apply the changes. If UseICPInitialization is false (standard value, or set with SetUseICPInitialization(false) or UseICPInitializationOff()) then source landmarks and target landmarks with the same ID must correspondent to each other. (--> source landmark with ID x will be mapped to target landmark with ID x). If you do not know the correspondences, call SetUseICPInitialization(true) or UseICPInitializationOn() to let the filter guess the correspondences during initialization with an iterative closest point search. This is only possible, if at least 6 source and target landmarks are available.

Definition at line 47 of file mitkNavigationDataLandmarkTransformFilter.h.

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::NavigationDataLandmarkTransformFilter::ConstPointer

Reimplemented from mitk::NavigationDataToNavigationDataFilter.

Definition at line 50 of file mitkNavigationDataLandmarkTransformFilter.h.

typedef std::vector<mitk::ScalarType> mitk::NavigationDataLandmarkTransformFilter::ErrorVector

Definition at line 51 of file mitkNavigationDataLandmarkTransformFilter.h.

typedef itk::Image< signed short, 3> mitk::NavigationDataLandmarkTransformFilter::ImageType [protected]

returns the current landmark transform

Definition at line 116 of file mitkNavigationDataLandmarkTransformFilter.h.

typedef TransformInitializerType::LandmarkPointContainer mitk::NavigationDataLandmarkTransformFilter::LandmarkPointContainer [protected]

Definition at line 122 of file mitkNavigationDataLandmarkTransformFilter.h.

typedef itk::VersorRigid3DTransform< double > mitk::NavigationDataLandmarkTransformFilter::LandmarkTransformType

Definition at line 54 of file mitkNavigationDataLandmarkTransformFilter.h.

typedef itk::SmartPointer<Self> mitk::NavigationDataLandmarkTransformFilter::Pointer

Reimplemented from mitk::NavigationDataToNavigationDataFilter.

Definition at line 50 of file mitkNavigationDataLandmarkTransformFilter.h.

typedef itk::QuaternionRigidTransform<double> mitk::NavigationDataLandmarkTransformFilter::QuaternionTransformType [protected]

Definition at line 123 of file mitkNavigationDataLandmarkTransformFilter.h.

typedef NavigationDataLandmarkTransformFilter mitk::NavigationDataLandmarkTransformFilter::Self

Reimplemented from mitk::NavigationDataToNavigationDataFilter.

Definition at line 50 of file mitkNavigationDataLandmarkTransformFilter.h.

typedef NavigationDataToNavigationDataFilter mitk::NavigationDataLandmarkTransformFilter::Superclass

Reimplemented from mitk::NavigationDataToNavigationDataFilter.

Definition at line 50 of file mitkNavigationDataLandmarkTransformFilter.h.

typedef itk::LandmarkBasedTransformInitializer< LandmarkTransformType, ImageType, ImageType > mitk::NavigationDataLandmarkTransformFilter::TransformInitializerType [protected]

Definition at line 121 of file mitkNavigationDataLandmarkTransformFilter.h.

Constructor & Destructor Documentation

mitk::NavigationDataLandmarkTransformFilter::NavigationDataLandmarkTransformFilter ( ) [protected]

Constructor.

Definition at line 29 of file mitkNavigationDataLandmarkTransformFilter.cpp.

References m_LandmarkTransform, m_LandmarkTransformInitializer, m_QuatLandmarkTransform, m_QuatTransform, and New().

                                                                                 : mitk::NavigationDataToNavigationDataFilter(),
m_ErrorMean(-1.0), m_ErrorStdDev(-1.0), m_ErrorRMS(-1.0), m_ErrorMin(-1.0), m_ErrorMax(-1.0), m_ErrorAbsMax(-1.0),
m_SourcePoints(), m_TargetPoints(), m_LandmarkTransformInitializer(NULL), m_LandmarkTransform(NULL),
m_QuatLandmarkTransform(NULL), m_QuatTransform(NULL), m_Errors(), m_UseICPInitialization(false)
{
  m_LandmarkTransform = LandmarkTransformType::New();

  m_LandmarkTransformInitializer = TransformInitializerType::New();
  m_LandmarkTransformInitializer->SetTransform(m_LandmarkTransform);

  //transform to rotate orientation
  m_QuatLandmarkTransform = QuaternionTransformType::New();
  m_QuatTransform = QuaternionTransformType::New();
}

mitk::NavigationDataLandmarkTransformFilter::~NavigationDataLandmarkTransformFilter ( ) [protected, virtual]

Definition at line 45 of file mitkNavigationDataLandmarkTransformFilter.cpp.

{
  m_LandmarkTransform = NULL;
  m_LandmarkTransformInitializer = NULL;
  m_QuatLandmarkTransform = NULL;
  m_QuatTransform = NULL;
}

Member Function Documentation

void mitk::NavigationDataLandmarkTransformFilter::AccumulateStatistics ( ErrorVector & vector ) [protected]

calculate error metrics for the transforms.

bool mitk::NavigationDataLandmarkTransformFilter::FindCorrespondentLandmarks	(	LandmarkPointContainer &	sources,
		const LandmarkPointContainer &	targets
	)		const `[protected]`

perform an iterative closest point matching to find corresponding landmarks that will be used for landmark transform calculation

Documentation Perform ICP optimization to match source landmarks to target landmarks. Landmark containers must contain at least 6 landmarks for the optimization. after ICP, landmark correspondences are established and the source landmarks are sorted, so that corresponding landmarks have the same indices.

Parameters:

[in]	sources	Source landmarks that will be mapped to the target landmarks
[in]	targets	Target landmarks onto which the source landmarks will be mapped
[out]	sources	The sources container will be sorted, so that landmarks have the same index as their corresponding target landmarks

Returns:: true if ICP was successful and sources are sorted , false otherwise

it

Definition at line 287 of file mitkNavigationDataLandmarkTransformFilter.cpp.

References QuadProgPP::dist(), QuadProgPP::max(), and MITK_INFO.

{
  if (sources.size() < 6 || targets.size() < 6)
    return false;
  //throw std::invalid_argument("ICP correspondence finding needs at least 6 landmarks");

  /* lots of type definitions */
  typedef itk::PointSet<mitk::ScalarType, 3> PointSetType;
  //typedef itk::BoundingBox<PointSetType::PointIdentifier, PointSetType::PointDimension> BoundingBoxType;

  typedef itk::EuclideanDistancePointMetric< PointSetType, PointSetType> MetricType;
  //typedef MetricType::TransformType TransformBaseType;
  //typedef MetricType::TransformType::ParametersType ParametersType;
  //typedef TransformBaseType::JacobianType JacobianType;
  //typedef itk::Euler3DTransform< double > TransformType;
  typedef itk::VersorRigid3DTransform< double > TransformType;
  typedef TransformType ParametersType;
  typedef itk::PointSetToPointSetRegistrationMethod< PointSetType, PointSetType > RegistrationType;

  /* copy landmarks to itk pointsets for registration */
  PointSetType::Pointer sourcePointSet = PointSetType::New();
  unsigned int i = 0;
  for (LandmarkPointContainer::const_iterator it = sources.begin(); it != sources.end(); ++it)
  {
    PointSetType::PointType doublePoint;
    mitk::itk2vtk(*it, doublePoint); // copy mitk::ScalarType point into double point as workaround to ITK 3.10 bug
    sourcePointSet->SetPoint(i++, doublePoint );
  }

  i = 0;
  PointSetType::Pointer targetPointSet = PointSetType::New();
  for (LandmarkPointContainer::const_iterator it = targets.begin(); it != targets.end(); ++it)
  {
    PointSetType::PointType doublePoint;
    mitk::itk2vtk(*it, doublePoint); // copy mitk::ScalarType point into double point as workaround to ITK 3.10 bug
    targetPointSet->SetPoint(i++, doublePoint );
  }

  /* get centroid and extends of our pointsets */
  //BoundingBoxType::Pointer sourceBoundingBox = BoundingBoxType::New();
  //sourceBoundingBox->SetPoints(sourcePointSet->GetPoints());
  //sourceBoundingBox->ComputeBoundingBox();
  //BoundingBoxType::Pointer targetBoundingBox = BoundingBoxType::New();
  //targetBoundingBox->SetPoints(targetPointSet->GetPoints());
  //targetBoundingBox->ComputeBoundingBox();


  TransformType::Pointer transform = TransformType::New();
  transform->SetIdentity();
  //transform->SetTranslation(targetBoundingBox->GetCenter() - sourceBoundingBox->GetCenter());

  itk::LevenbergMarquardtOptimizer::Pointer optimizer = itk::LevenbergMarquardtOptimizer::New();
  optimizer->SetUseCostFunctionGradient(false);

  RegistrationType::Pointer registration = RegistrationType::New();

  // Scale the translation components of the Transform in the Optimizer
  itk::LevenbergMarquardtOptimizer::ScalesType scales(transform->GetNumberOfParameters());
  const double translationScale = 5000; //sqrtf(targetBoundingBox->GetDiagonalLength2())  * 1000; // dynamic range of translations
  const double rotationScale = 1.0; // dynamic range of rotations
  scales[0] = 1.0 / rotationScale;
  scales[1] = 1.0 / rotationScale;
  scales[2] = 1.0 / rotationScale;
  scales[3] = 1.0 / translationScale;
  scales[4] = 1.0 / translationScale;
  scales[5] = 1.0 / translationScale;
  //scales.Fill(0.01);
  unsigned long numberOfIterations = 80000;
  double gradientTolerance = 1e-10; // convergence criterion
  double valueTolerance = 1e-10; // convergence criterion
  double epsilonFunction = 1e-10; // convergence criterion
  optimizer->SetScales( scales );
  optimizer->SetNumberOfIterations( numberOfIterations );
  optimizer->SetValueTolerance( valueTolerance );
  optimizer->SetGradientTolerance( gradientTolerance );
  optimizer->SetEpsilonFunction( epsilonFunction );


  registration->SetInitialTransformParameters( transform->GetParameters() );
  //------------------------------------------------------
  // Connect all the components required for Registration
  //------------------------------------------------------
  MetricType::Pointer metric = MetricType::New();

  registration->SetMetric( metric );
  registration->SetOptimizer( optimizer );
  registration->SetTransform( transform );
  registration->SetFixedPointSet( targetPointSet );
  registration->SetMovingPointSet( sourcePointSet );

  try
  {
    //registration->StartRegistration();
    registration->Update();
  }
  catch( itk::ExceptionObject & e )
  {
    MITK_INFO << "Exception caught during ICP optimization: " << e;
    return false;
    //throw e;
  }
  MITK_INFO << "ICP successful: Solution = " << transform->GetParameters() << std::endl;
  MITK_INFO << "Metric value: " << metric->GetValue(transform->GetParameters());

  /* find point correspondences */
  //mitk::PointLocator::Pointer pointLocator = mitk::PointLocator::New();  // <<- use mitk::PointLocator instead of searching manually?
  //pointLocator->SetPoints()
  for (LandmarkPointContainer::const_iterator sourcesIt = sources.begin(); sourcesIt != sources.end(); ++sourcesIt)
  {
  }
  //MetricType::MeasureType closestDistances = metric->GetValue(transform->GetParameters());
  //unsigned int index = 0;
  LandmarkPointContainer sortedSources;
  for (LandmarkPointContainer::const_iterator targetsIt = targets.begin(); targetsIt != targets.end(); ++targetsIt)
  {
    double minDistance = itk::NumericTraits<double>::max();
    LandmarkPointContainer::iterator minDistanceIterator = sources.end();
    for (LandmarkPointContainer::iterator sourcesIt = sources.begin(); sourcesIt != sources.end(); ++sourcesIt)
    {
      TransformInitializerType::LandmarkPointType transformedSource = transform->TransformPoint(*sourcesIt);
      double dist = targetsIt->EuclideanDistanceTo(transformedSource);
      MITK_INFO << "target: " << *targetsIt << ", source: " << *sourcesIt << ", transformed source: " << transformedSource << ", dist: " << dist;
      if (dist < minDistance )
      {
        minDistanceIterator = sourcesIt;
        minDistance = dist;
      }
    }
    if (minDistanceIterator == sources.end())
      return false;
    MITK_INFO << "minimum distance point is: " << *minDistanceIterator << " (dist: " << targetsIt->EuclideanDistanceTo(transform->TransformPoint(*minDistanceIterator)) << ", minDist: " << minDistance << ")";
    sortedSources.push_back(*minDistanceIterator); // this point is assigned
    sources.erase(minDistanceIterator); // erase it from sources to avoid duplicate assigns
  }
  //for (LandmarkPointContainer::const_iterator sortedSourcesIt = sortedSources.begin(); targetsIt != sortedSources.end(); ++targetsIt)
  sources = sortedSources;
  return true;
}

void mitk::NavigationDataLandmarkTransformFilter::GenerateData ( ) [protected, virtual]

transforms input NDs according to the calculated LandmarkTransform

Definition at line 178 of file mitkNavigationDataLandmarkTransformFilter.cpp.

References mitk::NavigationData::GetOrientation(), mitk::NavigationData::GetPosition(), mitk::NavigationData::Graft(), mitk::NavigationData::IsDataValid(), mitk::NavigationData::SetDataValid(), mitk::NavigationData::SetOrientation(), and mitk::NavigationData::SetPosition().

{
  this->CreateOutputsForAllInputs(); // make sure that we have the same number of outputs as inputs

  TransformInitializerType::LandmarkPointType lPointIn, lPointOut;

  /* update outputs with tracking data from tools */
  for (unsigned int i = 0; i < this->GetNumberOfOutputs() ; ++i)
  {
    mitk::NavigationData* output = this->GetOutput(i);
    assert(output);
    const mitk::NavigationData* input = this->GetInput(i);
    assert(input);

    if (input->IsDataValid() == false)
    {
      output->SetDataValid(false);
      continue;
    }
    output->Graft(input); // First, copy all information from input to output

    if (this->IsInitialized() == false) // as long as there is no valid transformation matrix, only graft the outputs
      continue;

    mitk::NavigationData::PositionType tempCoordinate;
    tempCoordinate = input->GetPosition();
    lPointIn[0] = tempCoordinate[0]; // convert navigation data position to transform point
    lPointIn[1] = tempCoordinate[1];
    lPointIn[2] = tempCoordinate[2];

    /* transform position */
    lPointOut = m_LandmarkTransform->TransformPoint(lPointIn); // transform position
    tempCoordinate[0] = lPointOut[0];  // convert back into navigation data position
    tempCoordinate[1] = lPointOut[1];
    tempCoordinate[2] = lPointOut[2];
    output->SetPosition(tempCoordinate); // update output navigation data with new position

    /* transform orientation */
    NavigationData::OrientationType  quatIn = input->GetOrientation();
    vnl_quaternion<double> const vnlQuatIn(quatIn.x(), quatIn.y(), quatIn.z(), quatIn.r());  // convert orientation into vnl quaternion
    m_QuatTransform->SetRotation(vnlQuatIn);  // convert orientation into transform

    m_QuatLandmarkTransform->SetMatrix(m_LandmarkTransform->GetRotationMatrix());  // set rotation from landmark transform
    m_QuatLandmarkTransform->Compose(m_QuatTransform, true); // compose navigation data transform and landmark transform

    vnl_quaternion<double> vnlQuatOut = m_QuatLandmarkTransform->GetRotation();  // convert composed transform back into a quaternion
    NavigationData::OrientationType quatOut(vnlQuatOut[0], vnlQuatOut[1], vnlQuatOut[2], vnlQuatOut[3]); // convert back into navigation data orientation
    output->SetOrientation(quatOut); // update output navigation data with new orientation
    output->SetDataValid(true); // operation was successful, therefore data of output is valid.
  }
}

mitk::ScalarType mitk::NavigationDataLandmarkTransformFilter::GetAbsMaxError ( ) const

Returns the absolute maximum registration error.

Definition at line 139 of file mitkNavigationDataLandmarkTransformFilter.cpp.

{
  return m_ErrorAbsMax;
}

virtual const char* mitk::NavigationDataLandmarkTransformFilter::GetClassName ( ) const [virtual]

Reimplemented from mitk::NavigationDataToNavigationDataFilter.

const mitk::NavigationDataLandmarkTransformFilter::ErrorVector & mitk::NavigationDataLandmarkTransformFilter::GetErrorVector ( ) const

Returns a vector with the euclidean distance of each transformed source point to its respective target point.

Definition at line 281 of file mitkNavigationDataLandmarkTransformFilter.cpp.

{
  return m_Errors;
}

mitk::ScalarType mitk::NavigationDataLandmarkTransformFilter::GetFRE ( ) const

Returns the Fiducial Registration Error.

Definition at line 109 of file mitkNavigationDataLandmarkTransformFilter.cpp.

{
  return m_ErrorMean;
}

mitk::ScalarType mitk::NavigationDataLandmarkTransformFilter::GetFREStdDev ( ) const

Returns the standard deviation of the Fiducial Registration Error.

Definition at line 115 of file mitkNavigationDataLandmarkTransformFilter.cpp.

{
  return m_ErrorStdDev;
}

virtual const LandmarkTransformType* mitk::NavigationDataLandmarkTransformFilter::GetLandmarkTransform ( ) [virtual]

If set to true, source and target point correspondences are established with iterative closest point optimization.

mitk::ScalarType mitk::NavigationDataLandmarkTransformFilter::GetMaxError ( ) const

Returns the maximum registration error / worst fitting landmark distance.

Definition at line 133 of file mitkNavigationDataLandmarkTransformFilter.cpp.

{
  return m_ErrorMax;
}

mitk::ScalarType mitk::NavigationDataLandmarkTransformFilter::GetMinError ( ) const

Returns the minimum registration error / best fitting landmark distance.

Definition at line 127 of file mitkNavigationDataLandmarkTransformFilter.cpp.

{
  return m_ErrorMin;
}

mitk::ScalarType mitk::NavigationDataLandmarkTransformFilter::GetRMSError ( ) const

Returns the Root Mean Square of the registration error.

Definition at line 121 of file mitkNavigationDataLandmarkTransformFilter.cpp.

{
  return m_ErrorRMS;
}

virtual bool mitk::NavigationDataLandmarkTransformFilter::GetUseICPInitialization ( ) [virtual]

If set to true, source and target point correspondences are established with iterative closest point optimization.

void mitk::NavigationDataLandmarkTransformFilter::InitializeLandmarkTransform	(	LandmarkPointContainer &	sources,
		const LandmarkPointContainer &	targets
	)		`[protected]`

initializes the transform using source and target PointSets

if UseICPInitialization is true, FindCorrespondentLandmarks() will be used to sort the source landmarks in order to establish corresponding landmark pairs before the landmark transform is build

Definition at line 54 of file mitkNavigationDataLandmarkTransformFilter.cpp.

{
  if (m_UseICPInitialization == true)
    if (this->FindCorrespondentLandmarks(sources, targets) == false) // determine landmark correspondences with iterative closest point optimization, sort sort landmarks accordingly
    {
      itkExceptionMacro("Landmark correspondence finding failed.");
    }
    this->UpdateLandmarkTransform(sources, targets);
}

bool mitk::NavigationDataLandmarkTransformFilter::IsInitialized ( ) const [virtual]

Definition at line 231 of file mitkNavigationDataLandmarkTransformFilter.cpp.

{
  return (m_SourcePoints.size() >= 3) && (m_TargetPoints.size() >= 3);
}

static Pointer mitk::NavigationDataLandmarkTransformFilter::New ( ) [static]

Referenced by mitkNavigationDataLandmarkTransformFilterTest(), and NavigationDataLandmarkTransformFilter().

void mitk::NavigationDataLandmarkTransformFilter::PrintSelf	(	std::ostream &	os,
		itk::Indent	indent
	)		const `[protected]`

print object info to ostream

Definition at line 237 of file mitkNavigationDataLandmarkTransformFilter.cpp.

{
  Superclass::PrintSelf(os, indent);

  os << indent << this->GetNameOfClass() << ":\n";
  os << indent << m_SourcePoints.size() << " SourcePoints exist: \n";
  itk::Indent nextIndent = indent.GetNextIndent();
  unsigned int i = 0;
  for (LandmarkPointContainer::const_iterator it = m_SourcePoints.begin(); it != m_SourcePoints.end(); ++it)
  {
    os << nextIndent << "Point " << i++ << ": [";
    os << it->GetElement(0);
    for (unsigned int i = 1; i < TransformInitializerType::LandmarkPointType::GetPointDimension(); ++i)
    {
      os << ", " << it->GetElement(i);
    }
    os << "]\n";
  }

  os << indent << m_TargetPoints.size() << " TargetPoints exist: \n";
  i = 0;
  for (LandmarkPointContainer::const_iterator it = m_TargetPoints.begin(); it != m_TargetPoints.end(); ++it)
  {
    os << nextIndent << "Point " << i++ << ": [";
    os << it->GetElement(0);
    for (unsigned int i = 1; i < TransformInitializerType::LandmarkPointType::GetPointDimension(); ++i)
    {
      os << ", " << it->GetElement(i);
    }
    os << "]\n";
  }
  os << indent << "Landmarktransform initialized: " << this->IsInitialized() << "\n";
  if (this->IsInitialized() == true)
    m_LandmarkTransform->Print(os, nextIndent);
  os << indent << "Registration error statistics:\n";
  os << nextIndent << "FRE: " << this->GetFRE() << "\n";
  os << nextIndent << "FRE std.dev.: " << this->GetFREStdDev() << "\n";
  os << nextIndent << "FRE RMS: " << this->GetRMSError() << "\n";
  os << nextIndent << "Minimum registration error: " << this->GetMinError() << "\n";
  os << nextIndent << "Maximum registration error: " << this->GetMaxError() << "\n";
  os << nextIndent << "Absolute Maximum registration error: " << this->GetAbsMaxError() << "\n";
}

void mitk::NavigationDataLandmarkTransformFilter::SetSourceLandmarks ( mitk::PointSet::Pointer sourcePointSet ) [virtual]

Set points used as source points for landmark transform.

Definition at line 65 of file mitkNavigationDataLandmarkTransformFilter.cpp.

{
  m_SourcePoints.clear();
  mitk::PointSet::PointType mitkSourcePoint;
  TransformInitializerType::LandmarkPointType lPoint;

  for (mitk::PointSet::PointsContainer::ConstIterator it = mitkSourcePointSet->GetPointSet()->GetPoints()->Begin();
    it != mitkSourcePointSet->GetPointSet()->GetPoints()->End(); ++it)
  {
    mitk::FillVector3D(lPoint, it->Value().GetElement(0), it->Value().GetElement(1), it->Value().GetElement(2));
    m_SourcePoints.push_back(lPoint);
  }

  if (m_SourcePoints.size() < 3)
  {
    itkExceptionMacro("SourcePointSet must contain at least 3 points");
  }

  if (this->IsInitialized())
    this->InitializeLandmarkTransform(m_SourcePoints, m_TargetPoints);
}

void mitk::NavigationDataLandmarkTransformFilter::SetTargetLandmarks ( mitk::PointSet::Pointer targetPointSet ) [virtual]

Set points used as target points for landmark transform.

Definition at line 88 of file mitkNavigationDataLandmarkTransformFilter.cpp.

{
  m_TargetPoints.clear();
  TransformInitializerType::LandmarkPointType lPoint;
  for (mitk::PointSet::PointsContainer::ConstIterator it = mitkTargetPointSet->GetPointSet()->GetPoints()->Begin();
    it != mitkTargetPointSet->GetPointSet()->GetPoints()->End(); ++it)
  {
    mitk::FillVector3D(lPoint, it->Value().GetElement(0), it->Value().GetElement(1), it->Value().GetElement(2));
    m_TargetPoints.push_back(lPoint);
  }

  if (m_TargetPoints.size() < 3)
  {
    itkExceptionMacro("TargetPointSet must contain at least 3 points");
  }

  if (this->IsInitialized())
    this->InitializeLandmarkTransform(m_SourcePoints, m_TargetPoints);
}

virtual void mitk::NavigationDataLandmarkTransformFilter::SetUseICPInitialization ( bool _arg ) [virtual]

void mitk::NavigationDataLandmarkTransformFilter::UpdateLandmarkTransform	(	const LandmarkPointContainer &	sources,
		const LandmarkPointContainer &	targets
	)		`[protected]`

calculates the transform using source and target PointSets

Definition at line 427 of file mitkNavigationDataLandmarkTransformFilter.cpp.

{
  try
  {
    /* calculate transform from landmarks */
    m_LandmarkTransformInitializer->SetMovingLandmarks(targets);
    m_LandmarkTransformInitializer->SetFixedLandmarks(sources);    // itk registration always maps from fixed object space to moving object space
    m_LandmarkTransform->SetIdentity();
    m_LandmarkTransformInitializer->InitializeTransform();

    /* Calculate error statistics for the transform */
    TransformInitializerType::LandmarkPointType curData;
    m_Errors.clear();
    for (LandmarkPointContainer::size_type index = 0; index < sources.size(); index++)
    {
      curData = m_LandmarkTransform->TransformPoint(sources.at(index));
      m_Errors.push_back(curData.EuclideanDistanceTo(targets.at(index)));
    }
    this->AccumulateStatistics(m_Errors);
    this->Modified();
  }
  catch (std::exception& e)
  {
    m_Errors.clear();
    m_LandmarkTransform->SetIdentity();
    itkExceptionMacro("Initializing landmark-transform failed\n. " << e.what());
  }
}
