mitk::NavigationDataVisualizationFilter Class Reference

NavigationDataVisualizationFilter represents the superclass of all IGT Filters that visualize NavigationData. More...

#include <mitkNavigationDataVisualizationFilter.h>

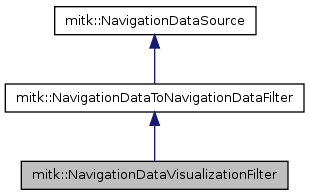

Inheritance diagram for mitk::NavigationDataVisualizationFilter:

Collaboration diagram for mitk::NavigationDataVisualizationFilter:

List of all members.

Public Types
typedef NavigationDataVisualizationFilter	Self
typedef itk::ProcessObject	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
virtual void	SetInput (const NavigationData *nd)
	Set the input of this filter.
virtual void	SetInput (unsigned int idx, const NavigationData *nd)
	Set input with id idx of this filter.
const NavigationData *	GetInput (void)
	Get the input of this filter.
const NavigationData *	GetInput (unsigned int idx)
	Get the input with id idx of this filter.
Protected Member Functions
	NavigationDataVisualizationFilter ()
virtual	~NavigationDataVisualizationFilter ()
virtual void	GenerateData ()=0

---

Detailed Description

NavigationDataVisualizationFilter represents the superclass of all IGT Filters that visualize NavigationData.

Documentation

Definition at line 34 of file mitkNavigationDataVisualizationFilter.h.

---

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::NavigationDataVisualizationFilter::ConstPointer

Reimplemented from mitk::NavigationDataToNavigationDataFilter.

Definition at line 37 of file mitkNavigationDataVisualizationFilter.h.

typedef itk::SmartPointer<Self> mitk::NavigationDataVisualizationFilter::Pointer

Reimplemented from mitk::NavigationDataToNavigationDataFilter.

Definition at line 37 of file mitkNavigationDataVisualizationFilter.h.

typedef NavigationDataVisualizationFilter mitk::NavigationDataVisualizationFilter::Self

Reimplemented from mitk::NavigationDataToNavigationDataFilter.

Definition at line 37 of file mitkNavigationDataVisualizationFilter.h.

typedef itk::ProcessObject mitk::NavigationDataVisualizationFilter::Superclass

Reimplemented from mitk::NavigationDataToNavigationDataFilter.

Definition at line 37 of file mitkNavigationDataVisualizationFilter.h.

---

Constructor & Destructor Documentation

mitk::NavigationDataVisualizationFilter::NavigationDataVisualizationFilter

(

)

[protected]

Definition at line 21 of file mitkNavigationDataVisualizationFilter.cpp.

  {

mitk::NavigationDataVisualizationFilter::~NavigationDataVisualizationFilter

(

)

[protected, virtual]

Definition at line 25 of file mitkNavigationDataVisualizationFilter.cpp.

  {

---

Member Function Documentation

virtual void mitk::NavigationDataVisualizationFilter::GenerateData

(

)

[protected, pure virtual]

virtual const char* mitk::NavigationDataVisualizationFilter::GetClassName

(

)

const [virtual]

Reimplemented from mitk::NavigationDataToNavigationDataFilter.

const NavigationData * mitk::NavigationDataVisualizationFilter::GetInput

(

unsigned int

idx )

Get the input with id idx of this filter.

Documentation

Definition at line 51 of file mitkNavigationDataVisualizationFilter.cpp.

  {
    if (this->GetNumberOfInputs() < 1)
      return NULL;

    return static_cast<const NavigationData*>(this->ProcessObject::GetInput(idx));

const NavigationData * mitk::NavigationDataVisualizationFilter::GetInput

(

void

)

Get the input of this filter.

Documentation

Definition at line 43 of file mitkNavigationDataVisualizationFilter.cpp.

  {
    if (this->GetNumberOfInputs() < 1)
      return NULL;

    return static_cast<const NavigationData*>(this->ProcessObject::GetInput(0));

void mitk::NavigationDataVisualizationFilter::SetInput	(	unsigned int	idx,
		const NavigationData *	nd
	)		[virtual]

Set input with id idx of this filter.

Documentation

Reimplemented from mitk::NavigationDataToNavigationDataFilter.

Definition at line 36 of file mitkNavigationDataVisualizationFilter.cpp.

  {
    // Process object is not const-correct so the const_cast is required here
    this->ProcessObject::SetNthInput(idx, const_cast<NavigationData*>(nd));
    this->CreateOutputsForAllInputs();

void mitk::NavigationDataVisualizationFilter::SetInput

(

const NavigationData *

nd )

[virtual]

Set the input of this filter.

Documentation

Reimplemented from mitk::NavigationDataToNavigationDataFilter.

Definition at line 29 of file mitkNavigationDataVisualizationFilter.cpp.

  {
    // Process object is not const-correct so the const_cast is required here
    this->ProcessObject::SetNthInput(0, const_cast<NavigationData*>(nd));
    this->CreateOutputsForAllInputs();

---

The documentation for this class was generated from the following files:

• mitkNavigationDataVisualizationFilter.h
• mitkNavigationDataVisualizationFilter.cpp
