Provides access to the mitkLevelWindowProperty object and mitkLevelWindow to the current image. More...

#include <mitkLevelWindowManager.h>

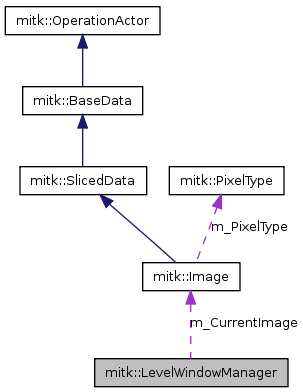

Collaboration diagram for mitk::LevelWindowManager:

Public Types
typedef LevelWindowManager	Self
typedef itk::Object	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
void	SetDataStorage (mitk::DataStorage *ds)
mitk::DataStorage *	GetDataStorage ()
	returns the datastorage
void	SetAutoTopMostImage (bool autoTopMost, const mitk::DataNode *removedNode=NULL)
void	Update (const itk::EventObject &e)
	gets called if a visible property changes
void	SetLevelWindowProperty (LevelWindowProperty::Pointer levelWindowProperty)
void	SetLevelWindow (const mitk::LevelWindow &levelWindow)
	sets new Level/Window values and informs all listeners about changes
const LevelWindow &	GetLevelWindow ()
	returns Level/Window values for the current image
LevelWindowProperty::Pointer	GetLevelWindowProperty ()
	returns the current mitkLevelWindowProperty object from the image that is affected by changes
bool	isAutoTopMost ()
	true if changes on slider or line-edits will affect always the topmost layer image
void	DataStorageChanged (const mitk::DataNode *n=NULL)
	Change notifications from DataStorage.
void	DataStorageRemovedNode (const mitk::DataNode *removedNode=NULL)
	Node removal notifications from DataStorage.
void	OnPropertyModified (const itk::EventObject &e)
	change notifications from mitkLevelWindowProperty
mitk::Image *	GetCurrentImage ()
	return the currently active image
mitk::DataStorage::SetOfObjects::ConstPointer	GetRelevantNodes ()
Static Public Member Functions
static Pointer	New ()
Protected Types
typedef std::map< unsigned long, mitk::BaseProperty::Pointer >	ObserverToPropertyMap
Protected Member Functions
	LevelWindowManager ()
	~LevelWindowManager ()
Protected Attributes
DataStorage::Pointer	m_DataStorage
LevelWindowProperty::Pointer	m_LevelWindowProperty
	pointer to the LevelWindowProperty of the current image
ObserverToPropertyMap	m_PropObserverToNode
	map to hold observer ID�s to every visible property of DataNode�s BaseProperty
ObserverToPropertyMap	m_PropObserverToNode2
	map to hold observer ID�s to every layer property of DataNode�s BaseProperty
bool	m_AutoTopMost
unsigned long	m_ObserverTag
bool	m_IsObserverTagSet
unsigned long	m_PropertyModifiedTag
mitk::Image *	m_CurrentImage
bool	m_IsPropertyModifiedTagSet

Detailed Description

Provides access to the mitkLevelWindowProperty object and mitkLevelWindow to the current image.

Documentation

Changes on Level/Window can be set with SetLevelWindow() and will affect either the topmost layer image, if isAutoTopMost() returns true, or an image which is set by SetLevelWindowProperty(LevelWindowProperty::Pointer levelWindowProperty). Changes on Level/Window, when another image gets active or by SetLevelWindow(const mitk::LevelWindow& levelWindow), will be sent to all listeners by Modified().

DataStorageChanged() listens to the DataStorage for new or removed images. Depending on how m_AutoTopMost is set, the new image becomes active or not. If an image is removed from the DataStorage and m_AutoTopMost is false, there is a check to proof, if the active image is still available. If not, then m_AutoTopMost becomes true.

Definition at line 44 of file mitkLevelWindowManager.h.

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::LevelWindowManager::ConstPointer

Definition at line 48 of file mitkLevelWindowManager.h.

typedef std::map<unsigned long, mitk::BaseProperty::Pointer> mitk::LevelWindowManager::ObserverToPropertyMap [protected]

Definition at line 102 of file mitkLevelWindowManager.h.

typedef itk::SmartPointer<Self> mitk::LevelWindowManager::Pointer

Definition at line 48 of file mitkLevelWindowManager.h.

typedef LevelWindowManager mitk::LevelWindowManager::Self

Definition at line 48 of file mitkLevelWindowManager.h.

typedef itk::Object mitk::LevelWindowManager::Superclass

Definition at line 48 of file mitkLevelWindowManager.h.

Constructor & Destructor Documentation

mitk::LevelWindowManager::LevelWindowManager ( ) [protected]

Definition at line 32 of file mitkLevelWindowManager.cpp.

: m_DataStorage(NULL), m_LevelWindowProperty(NULL), m_AutoTopMost(true),
  m_IsObserverTagSet(false), m_CurrentImage(NULL),m_IsPropertyModifiedTagSet(false)
{
}

mitk::LevelWindowManager::~LevelWindowManager ( ) [protected]

Definition at line 39 of file mitkLevelWindowManager.cpp.

References DataStorageChanged(), and DataStorageRemovedNode().

{
  if (m_DataStorage.IsNotNull())
  {
    m_DataStorage->AddNodeEvent.RemoveListener(MessageDelegate1<LevelWindowManager, const mitk::DataNode*>( this, &LevelWindowManager::DataStorageChanged ));
    m_DataStorage->RemoveNodeEvent.RemoveListener(MessageDelegate1<LevelWindowManager, const mitk::DataNode*>( this, &LevelWindowManager::DataStorageRemovedNode ));
    m_DataStorage = NULL;
  }
  if (m_IsPropertyModifiedTagSet && m_LevelWindowProperty.IsNotNull())
  {
    m_LevelWindowProperty->RemoveObserver(m_PropertyModifiedTag);
    m_IsPropertyModifiedTagSet = false;
  }
  for( std::map<unsigned long, mitk::BaseProperty::Pointer>::iterator iter = m_PropObserverToNode.begin(); iter != m_PropObserverToNode.end(); iter++ ) {
    (*iter).second->RemoveObserver((*iter).first);
  }
  for( std::map<unsigned long, mitk::BaseProperty::Pointer>::iterator iter = m_PropObserverToNode2.begin(); iter != m_PropObserverToNode2.end(); iter++ ) {
    (*iter).second->RemoveObserver((*iter).first);
  }
}

Member Function Documentation

void mitk::LevelWindowManager::DataStorageChanged ( const mitk::DataNode * n = NULL )

Change notifications from DataStorage.

Definition at line 187 of file mitkLevelWindowManager.cpp.

Referenced by SetDataStorage(), and ~LevelWindowManager().

{
  this->DataStorageRemovedNode();
}

void mitk::LevelWindowManager::DataStorageRemovedNode ( const mitk::DataNode * removedNode = NULL )

Node removal notifications from DataStorage.

Definition at line 191 of file mitkLevelWindowManager.cpp.

References mitk::NodePredicateProperty::New(), and Update().

Referenced by SetDataStorage(), and ~LevelWindowManager().

{
  /* remove old observers */
  for (ObserverToPropertyMap::iterator iter = m_PropObserverToNode.begin(); iter != m_PropObserverToNode.end(); iter++ )
    (*iter).second->RemoveObserver((*iter).first);
  m_PropObserverToNode.clear();

  for (ObserverToPropertyMap::iterator iter = m_PropObserverToNode2.begin(); iter != m_PropObserverToNode2.end(); iter++ )
    (*iter).second->RemoveObserver((*iter).first);
  m_PropObserverToNode2.clear();

  if (m_DataStorage.IsNull())
  {
    itkExceptionMacro("DataStorage not set");
  }

  /* listen to changes  in visible property of all images */

  mitk::DataStorage::SetOfObjects::ConstPointer all = this->GetRelevantNodes();
  for (mitk::DataStorage::SetOfObjects::ConstIterator it = all->Begin(); it != all->End(); ++it)
  {
    if (it->Value().IsNull())
      continue;
    /* register listener for changes in visible property */
    itk::ReceptorMemberCommand<LevelWindowManager>::Pointer command = itk::ReceptorMemberCommand<LevelWindowManager>::New();
    command->SetCallbackFunction(this, &LevelWindowManager::Update);
    m_PropObserverToNode[it->Value()->GetProperty("visible")->AddObserver( itk::ModifiedEvent(), command )] = it->Value()->GetProperty("visible");
  }

  /* listen to changes  in layer property of all images */

  for (mitk::DataStorage::SetOfObjects::ConstIterator it = all->Begin(); it != all->End(); ++it)
  {
    if (it->Value().IsNull())
      continue;
    /* register listener for changes in layer property */
    itk::ReceptorMemberCommand<LevelWindowManager>::Pointer command2 = itk::ReceptorMemberCommand<LevelWindowManager>::New();
    command2->SetCallbackFunction(this, &LevelWindowManager::Update);
    m_PropObserverToNode2[it->Value()->GetProperty("layer")->AddObserver( itk::ModifiedEvent(), command2 )] = it->Value()->GetProperty("layer");
  }

  /* search image than belongs to the property */
  if (m_LevelWindowProperty.IsNull())
    SetAutoTopMostImage(true, removedNode);
  else
  {
    mitk::NodePredicateProperty::Pointer p2 = mitk::NodePredicateProperty::New("levelwindow", m_LevelWindowProperty);
    mitk::DataNode* n = m_DataStorage->GetNode(p2);
    if (n == NULL || m_AutoTopMost) // if node was deleted, change our behaviour to AutoTopMost, if AutoTopMost is true change level window to topmost node
      SetAutoTopMostImage(true, removedNode);
   }
}

virtual const char* mitk::LevelWindowManager::GetClassName ( ) const [virtual]

mitk::Image * mitk::LevelWindowManager::GetCurrentImage ( )

return the currently active image

Definition at line 316 of file mitkLevelWindowManager.cpp.

Referenced by QmitkLevelWindowWidgetContextMenu::useAllGreyvaluesFromImage().

{
  return m_CurrentImage;
}

mitk::DataStorage * mitk::LevelWindowManager::GetDataStorage ( )

returns the datastorage

Definition at line 245 of file mitkLevelWindowManager.cpp.

{
  return m_DataStorage.GetPointer();
}

const mitk::LevelWindow & mitk::LevelWindowManager::GetLevelWindow ( )

returns Level/Window values for the current image

Definition at line 167 of file mitkLevelWindowManager.cpp.

Referenced by QmitkLevelWindowWidgetContextMenu::getContextMenu().

{
  if (m_LevelWindowProperty.IsNotNull())
    return m_LevelWindowProperty->GetLevelWindow();
  else
  {
    itkExceptionMacro("No LevelWindow available!");
  }
}

mitk::LevelWindowProperty::Pointer mitk::LevelWindowManager::GetLevelWindowProperty ( )

returns the current mitkLevelWindowProperty object from the image that is affected by changes

Definition at line 160 of file mitkLevelWindowManager.cpp.

Referenced by QmitkLevelWindowWidgetContextMenu::getContextMenu().

{
  return m_LevelWindowProperty;
}

mitk::DataStorage::SetOfObjects::ConstPointer mitk::LevelWindowManager::GetRelevantNodes ( )

returns all nodes in the DataStorage that have the following properties: "visible" == true, "binary" == false, "levelwindow", and DataType == Image

Definition at line 287 of file mitkLevelWindowManager.cpp.

References mitk::NodePredicateAnd::New(), mitk::NodePredicateOr::New(), mitk::NodePredicateDataType::New(), mitk::NodePredicateProperty::New(), and mitk::BoolProperty::New().

Referenced by QmitkLevelWindowWidgetContextMenu::getContextMenu().

{
  if (m_DataStorage.IsNull())
    return mitk::DataStorage::SetOfObjects::ConstPointer(mitk::DataStorage::SetOfObjects::New());  // return empty set

  mitk::BoolProperty::Pointer trueProp = mitk::BoolProperty::New(true);
  mitk::NodePredicateProperty::Pointer notBinary = mitk::NodePredicateProperty::New("binary", mitk::BoolProperty::New(false));
  mitk::NodePredicateProperty::Pointer hasLevelWindow = mitk::NodePredicateProperty::New("levelwindow", NULL);

  mitk::NodePredicateDataType::Pointer isImage = mitk::NodePredicateDataType::New("Image");
  mitk::NodePredicateDataType::Pointer isDImage = mitk::NodePredicateDataType::New("DiffusionImage");
  mitk::NodePredicateDataType::Pointer isTImage = mitk::NodePredicateDataType::New("TensorImage");
  mitk::NodePredicateDataType::Pointer isQImage = mitk::NodePredicateDataType::New("QBallImage");
  mitk::NodePredicateOr::Pointer predicateTypes = mitk::NodePredicateOr::New();
  predicateTypes->AddPredicate(isImage);
  predicateTypes->AddPredicate(isDImage);
  predicateTypes->AddPredicate(isTImage);
  predicateTypes->AddPredicate(isQImage);

  mitk::NodePredicateAnd::Pointer predicate = mitk::NodePredicateAnd::New();
  predicate->AddPredicate(notBinary);
  predicate->AddPredicate(hasLevelWindow);
  predicate->AddPredicate(predicateTypes);

  mitk::DataStorage::SetOfObjects::ConstPointer relevantNodes = m_DataStorage->GetSubset( predicate );
  return relevantNodes;
}

bool mitk::LevelWindowManager::isAutoTopMost ( )

true if changes on slider or line-edits will affect always the topmost layer image

Definition at line 252 of file mitkLevelWindowManager.cpp.

Referenced by QmitkLevelWindowWidgetContextMenu::getContextMenu(), and QmitkLevelWindowWidgetContextMenu::setImage().

{
  return m_AutoTopMost;
}

static Pointer mitk::LevelWindowManager::New ( ) [static]

Referenced by mitkLevelWindowManagerTest(), QmitkLevelWindowWidget::QmitkLevelWindowWidget(), QmitkLineEditLevelWindowWidget::QmitkLineEditLevelWindowWidget(), and QmitkSliderLevelWindowWidget::QmitkSliderLevelWindowWidget().

void mitk::LevelWindowManager::OnPropertyModified ( const itk::EventObject & e )

change notifications from mitkLevelWindowProperty

Definition at line 80 of file mitkLevelWindowManager.cpp.

Referenced by SetLevelWindowProperty().

{
  Modified();
}

void mitk::LevelWindowManager::SetAutoTopMostImage	(	bool	autoTopMost,
		const mitk::DataNode *	removedNode = `NULL`
	)

if autoTopMost == true: sets the topmost layer image to be affected by changes if removedNode != NULL a node was removed from DataStorage

Definition at line 86 of file mitkLevelWindowManager.cpp.

References min.

Referenced by QmitkLevelWindowWidgetContextMenu::setImage().

{
  m_AutoTopMost = autoTopMost;
  if (m_AutoTopMost == false)
    return;

  if (m_IsPropertyModifiedTagSet && m_LevelWindowProperty.IsNotNull())
  {
    m_LevelWindowProperty->RemoveObserver(m_PropertyModifiedTag);
    m_IsPropertyModifiedTagSet = false;
  }
  /* search topmost image */
  if (m_DataStorage.IsNull())
  {
    itkExceptionMacro("DataStorage not set");
  }
  int maxLayer = itk::NumericTraits<int>::min();
  m_LevelWindowProperty = NULL;

  mitk::DataStorage::SetOfObjects::ConstPointer all = this->GetRelevantNodes();
  for (mitk::DataStorage::SetOfObjects::ConstIterator it = all->Begin(); it != all->End(); ++it)
  {
    mitk::DataNode::Pointer node = it->Value();
    if (node.IsNull() || (removedNode != NULL && node == removedNode))
      continue;
    if (node->IsVisible(NULL) == false)
      continue;
    int layer = 0;
    node->GetIntProperty("layer", layer);
    if ( layer < maxLayer )
      continue;
    mitk::LevelWindowProperty::Pointer levelWindowProperty = dynamic_cast<mitk::LevelWindowProperty*>(node->GetProperty("levelwindow"));
    if (levelWindowProperty.IsNull())
      continue;
    m_LevelWindowProperty = levelWindowProperty;
    m_CurrentImage = dynamic_cast<mitk::Image*>(node->GetData());
    maxLayer = layer;
  }
  Modified();
}

void mitk::LevelWindowManager::SetDataStorage ( mitk::DataStorage * ds )

Definition at line 61 of file mitkLevelWindowManager.cpp.

References mitk::DataStorage::AddNodeEvent, DataStorageChanged(), and DataStorageRemovedNode().

{
  if (ds == NULL)
    return;

  /* remove listeners of old DataStorage */
  if (m_DataStorage.IsNotNull())
  {
    m_DataStorage->AddNodeEvent.RemoveListener(MessageDelegate1<LevelWindowManager, const mitk::DataNode*>( this, &LevelWindowManager::DataStorageChanged ));
    m_DataStorage->RemoveNodeEvent.RemoveListener(MessageDelegate1<LevelWindowManager, const mitk::DataNode*>( this, &LevelWindowManager::DataStorageRemovedNode ));
  }
  /* register listener for new DataStorage */
  m_DataStorage = ds;  // register
  m_DataStorage->AddNodeEvent.AddListener(MessageDelegate1<LevelWindowManager, const mitk::DataNode*>( this, &LevelWindowManager::DataStorageChanged ));
  m_DataStorage->RemoveNodeEvent.AddListener(MessageDelegate1<LevelWindowManager, const mitk::DataNode*>( this, &LevelWindowManager::DataStorageRemovedNode ));
  this->DataStorageChanged(); // update us with new DataStorage
}

void mitk::LevelWindowManager::SetLevelWindow ( const mitk::LevelWindow & levelWindow )

sets new Level/Window values and informs all listeners about changes

Definition at line 178 of file mitkLevelWindowManager.cpp.

Referenced by QmitkLevelWindowWidgetContextMenu::changeScaleRange(), QmitkLevelWindowWidgetContextMenu::setDefaultLevelWindow(), QmitkLevelWindowWidgetContextMenu::setDefaultScaleRange(), QmitkLevelWindowWidgetContextMenu::setFixed(), QmitkLevelWindowWidgetContextMenu::setMaximumWindow(), QmitkLevelWindowWidgetContextMenu::setPreset(), and QmitkLevelWindowWidgetContextMenu::useAllGreyvaluesFromImage().

{
  if (m_LevelWindowProperty.IsNotNull())
  {
    m_LevelWindowProperty->SetLevelWindow(levelWindow);
  }
  this->Modified();
}

void mitk::LevelWindowManager::SetLevelWindowProperty ( LevelWindowProperty::Pointer levelWindowProperty )

Documentation Sets an specific LevelWindowProperty, all changes will affect the image belonging to this property.

Sets m_AutoTopMost to false

Definition at line 129 of file mitkLevelWindowManager.cpp.

References mitk::DataNode::GetData(), mitk::NodePredicateProperty::New(), and OnPropertyModified().

Referenced by QmitkLevelWindowWidgetContextMenu::setImage().

{
  if (levelWindowProperty.IsNull())
    return;

  if (m_IsPropertyModifiedTagSet)  // remove listener for old property
  {
    m_LevelWindowProperty->RemoveObserver(m_PropertyModifiedTag);
    m_IsPropertyModifiedTagSet = false;
  }
  m_LevelWindowProperty = levelWindowProperty;

  itk::ReceptorMemberCommand<LevelWindowManager>::Pointer command = itk::ReceptorMemberCommand<LevelWindowManager>::New();  // register listener for new property
  command->SetCallbackFunction(this, &LevelWindowManager::OnPropertyModified);
  m_PropertyModifiedTag = m_LevelWindowProperty->AddObserver( itk::ModifiedEvent(), command );
  m_IsPropertyModifiedTagSet = true;
  m_AutoTopMost = false;

  /* search image than belongs to the property */
  mitk::NodePredicateProperty::Pointer p = mitk::NodePredicateProperty::New("levelwindow", m_LevelWindowProperty);
  mitk::DataNode* n = m_DataStorage->GetNode(p);
  if (n == NULL)
  {
    itkExceptionMacro("No Image in DataStorage that belongs to LevelWindow property " << m_LevelWindowProperty);
  }
  m_CurrentImage = dynamic_cast<mitk::Image*>(n->GetData());
  this->Modified();
}

void mitk::LevelWindowManager::Update ( const itk::EventObject & e )

gets called if a visible property changes

Definition at line 258 of file mitkLevelWindowManager.cpp.

Referenced by DataStorageRemovedNode().

{
  if (m_AutoTopMost)
  {
    SetAutoTopMostImage(true);
    return;
  }
  mitk::DataStorage::SetOfObjects::ConstPointer all = this->GetRelevantNodes();
  for (mitk::DataStorage::SetOfObjects::ConstIterator it = all->Begin(); it != all->End(); ++it)
  {
    mitk::DataNode::Pointer node = it->Value();
    if (node.IsNull())
      continue;
    if (node->IsVisible(NULL) == false)
      continue;
    mitk::LevelWindowProperty::Pointer levelWindowProperty = dynamic_cast<mitk::LevelWindowProperty*>(node->GetProperty("levelwindow"));
    if (levelWindowProperty.IsNull())
      continue;
    m_LevelWindowProperty = levelWindowProperty;
    m_CurrentImage = dynamic_cast<mitk::Image*>(node->GetData());
    if (m_LevelWindowProperty.IsNull() && m_LevelWindowProperty.GetPointer() == levelWindowProperty) // we found our m_LevelWindowProperty
    {
      return;
    }
  }
  Modified();
}
