Base-class of landmark-projectors, which project the target landmarks to create source landmarks. More...

#include <mitkLandmarkProjector.h>

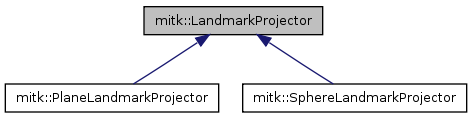

Inheritance diagram for mitk::LandmarkProjector:

Public Types
typedef LandmarkProjector	Self
typedef itk::Object	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
virtual void	SetInterpolatingAbstractTransform (vtkAbstractTransform *anInterpolatingAbstractTransform)
	Set the interpolating (world-space-to-world-space) transform, which uses the landmarks.
virtual vtkAbstractTransform *	GetInterpolatingAbstractTransform () const
	Get the interpolating (world-space-to-world-space) transform, which uses the landmarks.
virtual void	SetFrameGeometry (const mitk::Geometry3D *_arg)
	Set frame geometry within which the interpolation shall occur.
virtual const mitk::Geometry3D *	GetFrameGeometry ()
	Get frame geometry within which the interpolation shall occur.
virtual const mitk::PlaneGeometry *	GetParameterPlane ()
	Get the parameter plane for use in AbstractTransformGeometry::SetPlane.
virtual const mitk::PointSet::DataType::PointsContainer *	GetProjectedLandmarks ()
	Get the projected landmarks.
virtual const mitk::PointSet::DataType::PointsContainer *	GetFinalTargetLandmarks ()
	Get the final target landmarks to use for the interpolating transform.
virtual vtkAbstractTransform *	GetCompleteAbstractTransform () const
	Get the transform from parameter space to world space incorporating the given interpolating transform, which uses the landmarks.
virtual void	ProjectLandmarks (const mitk::PointSet::DataType::PointsContainer *targetLandmarks)=0
Protected Member Functions
	LandmarkProjector ()
virtual	~LandmarkProjector ()
virtual void	ComputeCompleteAbstractTransform ()=0
	Compute the transform from parameter space to world space incorporating the given interpolating transform, which uses the landmarks.
Protected Attributes
vtkAbstractTransform *	m_InterpolatingAbstractTransform
vtkAbstractTransform *	m_CompleteAbstractTransform
mitk::Geometry3D::ConstPointer	m_FrameGeometry
mitk::PlaneGeometry::ConstPointer	m_ParameterPlane
mitk::PointSet::DataType::PointsContainer::Pointer	m_WritableFinalTargetLandmarks
mitk::PointSet::DataType::PointsContainer::ConstPointer	m_FinalTargetLandmarks
mitk::PointSet::DataType::PointsContainer::Pointer	m_ProjectedLandmarks

Detailed Description

Base-class of landmark-projectors, which project the target landmarks to create source landmarks.

Definition at line 37 of file mitkLandmarkProjector.h.

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::LandmarkProjector::ConstPointer

Reimplemented in mitk::PlaneLandmarkProjector, and mitk::SphereLandmarkProjector.

Definition at line 40 of file mitkLandmarkProjector.h.

typedef itk::SmartPointer<Self> mitk::LandmarkProjector::Pointer

Reimplemented in mitk::PlaneLandmarkProjector, and mitk::SphereLandmarkProjector.

Definition at line 40 of file mitkLandmarkProjector.h.

typedef LandmarkProjector mitk::LandmarkProjector::Self

Reimplemented in mitk::PlaneLandmarkProjector, and mitk::SphereLandmarkProjector.

Definition at line 40 of file mitkLandmarkProjector.h.

typedef itk::Object mitk::LandmarkProjector::Superclass

Reimplemented in mitk::PlaneLandmarkProjector, and mitk::SphereLandmarkProjector.

Definition at line 40 of file mitkLandmarkProjector.h.

Constructor & Destructor Documentation

mitk::LandmarkProjector::LandmarkProjector ( ) [protected]

Definition at line 21 of file mitkLandmarkProjector.cpp.

References m_FinalTargetLandmarks, m_ProjectedLandmarks, and m_WritableFinalTargetLandmarks.

  : m_InterpolatingAbstractTransform(NULL), m_CompleteAbstractTransform(NULL), m_FrameGeometry(NULL), m_ParameterPlane(NULL)
{
  m_FinalTargetLandmarks = m_WritableFinalTargetLandmarks = mitk::PointSet::DataType::PointsContainer::New();
  m_ProjectedLandmarks   = mitk::PointSet::DataType::PointsContainer::New();
}

mitk::LandmarkProjector::~LandmarkProjector ( ) [protected, virtual]

Definition at line 28 of file mitkLandmarkProjector.cpp.

{
  if(m_InterpolatingAbstractTransform != NULL)
    m_InterpolatingAbstractTransform->Delete();
}

Member Function Documentation

virtual void mitk::LandmarkProjector::ComputeCompleteAbstractTransform ( ) [protected, pure virtual]

Compute the transform from parameter space to world space incorporating the given interpolating transform, which uses the landmarks.

Called after a new interpolating transform is set via SetInterpolatingAbstractTransform().

See also:: SetInterpolatingAbstractTransform; GetCompleteAbstractTransform

Implemented in mitk::PlaneLandmarkProjector, and mitk::SphereLandmarkProjector.

virtual const char* mitk::LandmarkProjector::GetClassName ( ) const [virtual]

Reimplemented in mitk::PlaneLandmarkProjector, and mitk::SphereLandmarkProjector.

vtkAbstractTransform * mitk::LandmarkProjector::GetCompleteAbstractTransform ( ) const [virtual]

Get the transform from parameter space to world space incorporating the given interpolating transform, which uses the landmarks.

See also:: ComputeCompleteAbstractTransform; SetInterpolatingAbstractTransform

Definition at line 45 of file mitkLandmarkProjector.cpp.

{
  return m_CompleteAbstractTransform;
}

virtual const mitk::PointSet::DataType::PointsContainer* mitk::LandmarkProjector::GetFinalTargetLandmarks ( ) [virtual]

Get the final target landmarks to use for the interpolating transform.

Note:: Valid only after calling ProjectLandmarks.

virtual const mitk::Geometry3D* mitk::LandmarkProjector::GetFrameGeometry ( ) [virtual]

Get frame geometry within which the interpolation shall occur.

Used as a hint, may be ignored depending on the concrete sub-classes.

virtual vtkAbstractTransform* mitk::LandmarkProjector::GetInterpolatingAbstractTransform ( ) const [virtual]

Get the interpolating (world-space-to-world-space) transform, which uses the landmarks.

See also:: GetCompleteAbstractTransform; ComputeCompleteAbstractTransform

virtual const mitk::PlaneGeometry* mitk::LandmarkProjector::GetParameterPlane ( ) [virtual]

Get the parameter plane for use in AbstractTransformGeometry::SetPlane.

virtual const mitk::PointSet::DataType::PointsContainer* mitk::LandmarkProjector::GetProjectedLandmarks ( ) [virtual]

Get the projected landmarks.

Note:: Valid only after calling ProjectLandmarks.

virtual void mitk::LandmarkProjector::ProjectLandmarks ( const mitk::PointSet::DataType::PointsContainer * targetLandmarks ) [pure virtual]

Implemented in mitk::PlaneLandmarkProjector, and mitk::SphereLandmarkProjector.

virtual void mitk::LandmarkProjector::SetFrameGeometry ( const mitk::Geometry3D * _arg ) [virtual]

Set frame geometry within which the interpolation shall occur.

Used as a hint, may be ignored depending on the concrete sub-classes.

Referenced by mitk::LandmarkProjectorBasedCurvedGeometry::SetLandmarkProjector().

void mitk::LandmarkProjector::SetInterpolatingAbstractTransform ( vtkAbstractTransform * anInterpolatingAbstractTransform ) [virtual]

Set the interpolating (world-space-to-world-space) transform, which uses the landmarks.

See also:: GetCompleteAbstractTransform

Definition at line 34 of file mitkLandmarkProjector.cpp.

{
  if(m_InterpolatingAbstractTransform != anInterpolatingAbstractTransform)
  {
    m_InterpolatingAbstractTransform = anInterpolatingAbstractTransform;
    m_InterpolatingAbstractTransform->Register(NULL);
    Modified();
    ComputeCompleteAbstractTransform();
  }
}
