A pseudo-Filter for creating OpenCV images from MITK images with the option of copying data or referencing it. More...

#include <mitkImageToOpenCVImageFilter.h>

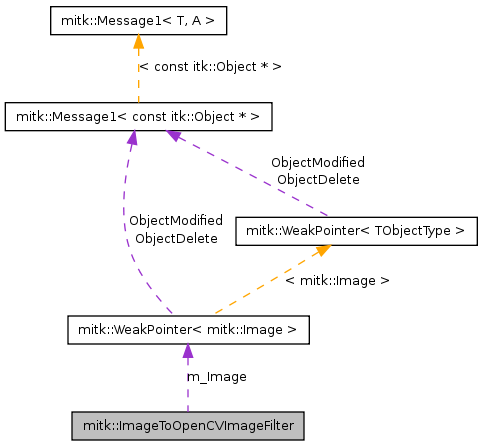

Collaboration diagram for mitk::ImageToOpenCVImageFilter:

Public Types
typedef itk::RGBPixel < unsigned char >	UCRGBPixelType
typedef itk::RGBPixel < unsigned short >	USRGBPixelType
typedef itk::RGBPixel< float >	FloatRGBPixelType
typedef itk::RGBPixel< double >	DoubleRGBPixelType
typedef ImageToOpenCVImageFilter	Self
typedef itk::Object	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
void	SetImage (mitk::Image *_Image)
virtual mitk::Image *	GetImage ()
bool	CheckImage (mitk::Image *image)
IplImage *	GetOpenCVImage ()
Static Public Member Functions
template<typename TPixel , unsigned int VImageDimension>
static mitk::Image::Pointer	ConvertIplToMitkImage (const IplImage *input, bool copyBuffer=true)
static Pointer	New ()
Protected Member Functions
	ImageToOpenCVImageFilter ()
virtual	~ImageToOpenCVImageFilter ()
template<typename TPixel , unsigned int VImageDimension>
void	ItkImageProcessing (itk::Image< TPixel, VImageDimension > *image, int depth)
template<typename TPixel , unsigned int VImageDimension>
void	ItkImageProcessing (itk::Image< itk::RGBPixel< TPixel >, VImageDimension > *image, int depth)
Protected Attributes
mitk::WeakPointer< mitk::Image >	m_Image
IplImage *	m_OpenCVImage

Detailed Description

A pseudo-Filter for creating OpenCV images from MITK images with the option of copying data or referencing it.

Last contributor:

Author:: mueller

Definition at line 40 of file mitkImageToOpenCVImageFilter.h.

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::ImageToOpenCVImageFilter::ConstPointer

Definition at line 51 of file mitkImageToOpenCVImageFilter.h.

typedef itk::RGBPixel< double > mitk::ImageToOpenCVImageFilter::DoubleRGBPixelType

Definition at line 46 of file mitkImageToOpenCVImageFilter.h.

typedef itk::RGBPixel< float > mitk::ImageToOpenCVImageFilter::FloatRGBPixelType

Definition at line 45 of file mitkImageToOpenCVImageFilter.h.

typedef itk::SmartPointer<Self> mitk::ImageToOpenCVImageFilter::Pointer

Definition at line 51 of file mitkImageToOpenCVImageFilter.h.

typedef ImageToOpenCVImageFilter mitk::ImageToOpenCVImageFilter::Self

Definition at line 51 of file mitkImageToOpenCVImageFilter.h.

typedef itk::Object mitk::ImageToOpenCVImageFilter::Superclass

Definition at line 51 of file mitkImageToOpenCVImageFilter.h.

typedef itk::RGBPixel< unsigned char > mitk::ImageToOpenCVImageFilter::UCRGBPixelType

Definition at line 43 of file mitkImageToOpenCVImageFilter.h.

typedef itk::RGBPixel< unsigned short > mitk::ImageToOpenCVImageFilter::USRGBPixelType

Definition at line 44 of file mitkImageToOpenCVImageFilter.h.

Constructor & Destructor Documentation

mitk::ImageToOpenCVImageFilter::ImageToOpenCVImageFilter ( ) [protected]

Definition at line 24 of file mitkImageToOpenCVImageFilter.cpp.

: m_OpenCVImage(0)
{
}

mitk::ImageToOpenCVImageFilter::~ImageToOpenCVImageFilter ( ) [protected, virtual]

Definition at line 29 of file mitkImageToOpenCVImageFilter.cpp.

{
  m_OpenCVImage = 0;
}

Member Function Documentation

bool mitk::ImageToOpenCVImageFilter::CheckImage ( mitk::Image * image )

Definition at line 34 of file mitkImageToOpenCVImageFilter.cpp.

References mitk::Image::GetDimension(), and MITK_WARN.

{
  if(image == 0)
  {
    MITK_WARN << "MITK Image is 0";
    return false;
  }
  if(image->GetDimension() != 2)
  {
    MITK_WARN << "Only 2D Images allowed";
    return false;
  }
  return true;
}

template<typename TPixel , unsigned int VImageDimension>

static mitk::Image::Pointer mitk::ImageToOpenCVImageFilter::ConvertIplToMitkImage	(	const IplImage *	input,
		bool	copyBuffer = `true`
	)		`[static]`

virtual const char* mitk::ImageToOpenCVImageFilter::GetClassName ( ) const [virtual]

virtual mitk::Image* mitk::ImageToOpenCVImageFilter::GetImage ( ) [virtual]

IplImage * mitk::ImageToOpenCVImageFilter::GetOpenCVImage ( )

Get the produced OpenCVImage. ATTENTION: Do not forget to release this image again with cvReleaseImage().

Definition at line 49 of file mitkImageToOpenCVImageFilter.cpp.

References AccessFixedTypeByItk_1, int(), and ItkImageProcessing().

{
  if(!m_OpenCVImage && this->CheckImage( m_Image ) == true )
  {
    // gray image
    if(m_Image->GetPixelType() == typeid(unsigned char))
    {
      AccessFixedTypeByItk_1 ( m_Image.GetPointer(), ItkImageProcessing, unsigned char, 2, IPL_DEPTH_8U );
    }
    else if(m_Image->GetPixelType() == typeid(char))
    {
      AccessFixedTypeByItk_1 ( m_Image.GetPointer(), ItkImageProcessing, char, 2, IPL_DEPTH_8S );
    }
    else if(m_Image->GetPixelType() == typeid(unsigned short))
    {
      AccessFixedTypeByItk_1 ( m_Image.GetPointer(), ItkImageProcessing, unsigned short, 2, IPL_DEPTH_16U );
    }
    else if(m_Image->GetPixelType() == typeid(short))
    {
      AccessFixedTypeByItk_1 ( m_Image.GetPointer(), ItkImageProcessing, short, 2, IPL_DEPTH_16S );
    }
    else if(m_Image->GetPixelType() == typeid(int))
    {
      AccessFixedTypeByItk_1 ( m_Image.GetPointer(), ItkImageProcessing, int, 2, IPL_DEPTH_32S );
    }
    else if(m_Image->GetPixelType() == typeid(float))
    {
      AccessFixedTypeByItk_1 ( m_Image.GetPointer(), ItkImageProcessing, float, 2, IPL_DEPTH_32F );
    }
    else if(m_Image->GetPixelType() == typeid(double))
    {
      AccessFixedTypeByItk_1 ( m_Image.GetPointer(), ItkImageProcessing, double, 2, IPL_DEPTH_64F );
    }

      // rgb image
    else if(m_Image->GetPixelType() == typeid(UCRGBPixelType))
    {
      AccessFixedTypeByItk_1 ( m_Image.GetPointer(), ItkImageProcessing, UCRGBPixelType, 2, IPL_DEPTH_8U  );
    }
    else if(m_Image->GetPixelType() == typeid(USRGBPixelType))
    {
      AccessFixedTypeByItk_1 ( m_Image.GetPointer(), ItkImageProcessing, USRGBPixelType, 2, IPL_DEPTH_16U );
    }
    else if(m_Image->GetPixelType() == typeid(FloatRGBPixelType))
    {
      AccessFixedTypeByItk_1 ( m_Image.GetPointer(), ItkImageProcessing, FloatRGBPixelType, 2, IPL_DEPTH_64F );
    }
    else if(m_Image->GetPixelType() == typeid(DoubleRGBPixelType))
    {
      AccessFixedTypeByItk_1 ( m_Image.GetPointer(), ItkImageProcessing, DoubleRGBPixelType, 2, IPL_DEPTH_64F );
    }

  }
  return m_OpenCVImage;
}

template<typename TPixel , unsigned int VImageDimension>

void mitk::ImageToOpenCVImageFilter::ItkImageProcessing	(	itk::Image< itk::RGBPixel< TPixel >, VImageDimension > *	image,
		int	depth
	)		`[protected]`

Definition at line 102 of file mitkImageToOpenCVImageFilter.h.

  {
    typedef itk::RGBPixel<TPixel> RGBPixelType;
    typedef itk::Image<RGBPixelType, VImageDimension> RGBImageType;
    typedef itk::ImageRegionIterator<RGBImageType> RGBIteratorType;

    RGBIteratorType it(image, image->GetLargestPossibleRegion());

    typename RGBImageType::SizeType size = image->GetLargestPossibleRegion().GetSize();
    // create new opencv image
    m_OpenCVImage = cvCreateImage( cvSize( size[0], size[1] ), depth, 3 );

    unsigned int x = 0,y = 0;
    CvScalar s;
    for ( it.GoToBegin(); !it.IsAtEnd(); ++it )
    {
      s.val[0] = it.Value().GetBlue();
      s.val[1] = it.Value().GetGreen();
      s.val[2] = it.Value().GetRed();

      //MITK_DEBUG << "[" << x << "," << y << "] " << s.val[0] << "(B)," << s.val[1] << "(G)," << s.val[2] << "(R)";

      cvSet2D(m_OpenCVImage,y,x,s);

      ++x;
      // next line found
      if( x == size[0] )
      {
        x = 0;
        ++y;
      }
    }

  }

template<typename TPixel , unsigned int VImageDimension>

void mitk::ImageToOpenCVImageFilter::ItkImageProcessing	(	itk::Image< TPixel, VImageDimension > *	image,
		int	depth
	)		`[protected]`

Definition at line 84 of file mitkImageToOpenCVImageFilter.h.

  {
    typedef itk::Image<TPixel, VImageDimension> ImageType;

    const unsigned int numberOfPixels = m_OpenCVImage->width * m_OpenCVImage->height;
    const unsigned int numberOfBytes = numberOfPixels * sizeof( typename ImageType::PixelType );

    const typename ImageType::PixelType * itkBuffer = image->GetBufferPointer();

    typename ImageType::SizeType size = image->GetLargestPossibleRegion().GetSize();
    // create new opencv image
    m_OpenCVImage = cvCreateImage( cvSize( size[0], size[1] )
      , depth, 1 );

    memcpy( m_OpenCVImage->imageData, itkBuffer, numberOfBytes );
  }

static Pointer mitk::ImageToOpenCVImageFilter::New ( ) [static]

Referenced by mitkImageToOpenCVImageFilterTest().

void mitk::ImageToOpenCVImageFilter::SetImage ( mitk::Image * _Image )

Definition at line 105 of file mitkImageToOpenCVImageFilter.cpp.

{
  if(m_Image == _Image) return;
  m_Image = _Image;
  m_OpenCVImage = 0;
}

Member Data Documentation

mitk::WeakPointer<mitk::Image> mitk::ImageToOpenCVImageFilter::m_Image [protected]

Saves if the filter should copy the data or just reference it

Definition at line 79 of file mitkImageToOpenCVImageFilter.h.

IplImage* mitk::ImageToOpenCVImageFilter::m_OpenCVImage [protected]

Definition at line 80 of file mitkImageToOpenCVImageFilter.h.

The documentation for this class was generated from the following files:
