mitk::DiffusionImage< TPixelType > Class Template Reference

this class encapsulates diffusion volumes (vectorimages not yet supported by mitkImage) More...

#include <mitkDiffusionImage.h>

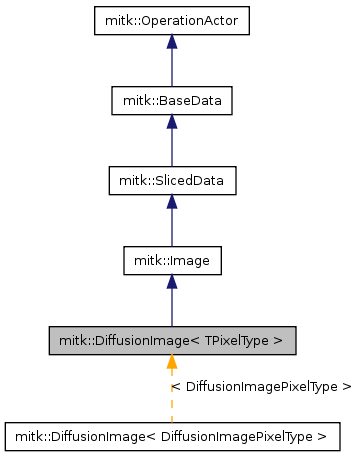

Inheritance diagram for mitk::DiffusionImage< TPixelType >:
Inheritance graph
[legend]

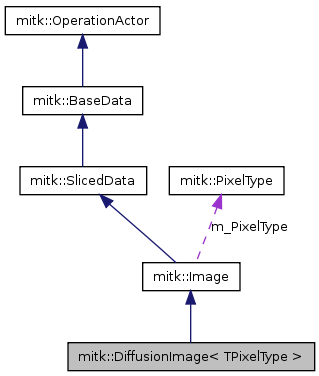

Collaboration diagram for mitk::DiffusionImage< TPixelType >:
Collaboration graph
[legend]

List of all members.

Public Types

typedef TPixelType PixelType
typedef itk::VectorImage
< TPixelType, 3 > 		ImageType
typedef vnl_vector_fixed
< double, 3 > 		GradientDirectionType
typedef itk::VectorContainer
< unsigned int,
GradientDirectionType > 		GradientDirectionContainerType
typedef
itk::VectorImageToImageAdaptor
< TPixelType, 3 > 		AdaptorType
typedef DiffusionImage Self
typedef Image Superclass
typedef itk::SmartPointer< Self > Pointer
typedef itk::SmartPointer
< const Self > 		ConstPointer

Public Member Functions

virtual const char * GetClassName () const
void AverageRedundantGradients (double precision)
GradientDirectionContainerType::Pointer CalcAveragedDirectionSet (double precision)
void CorrectDKFZBrokenGradientScheme (double precision)
ImageType::Pointer GetVectorImage ()
void SetVectorImage (typename ImageType::Pointer image)
void InitializeFromVectorImage ()
void SetDisplayIndexForRendering (int displayIndex)
GradientDirectionContainerType::Pointer GetDirections ()
void SetDirections (GradientDirectionContainerType::Pointer directions)
void SetDirections (const std::vector< itk::Vector< double, 3 > > directions)
virtual float GetB_Value ()
virtual void SetB_Value (float _arg)
bool AreAlike (GradientDirectionType g1, GradientDirectionType g2, double precision)

Static Public Member Functions

static Pointer New ()

Protected Member Functions

 DiffusionImage ()
virtual ~DiffusionImage ()

Protected Attributes

ImageType::Pointer m_VectorImage
GradientDirectionContainerType::Pointer m_Directions
float m_B_Value
AdaptorType::Pointer m_VectorImageAdaptor
int m_DisplayIndex

Detailed Description

template<class TPixelType>
class mitk::DiffusionImage< TPixelType >

this class encapsulates diffusion volumes (vectorimages not yet supported by mitkImage)

Definition at line 34 of file mitkDiffusionImage.h.

Member Typedef Documentation

template<class TPixelType>
typedef itk::VectorImageToImageAdaptor< TPixelType, 3 > mitk::DiffusionImage< TPixelType >::AdaptorType

Definition at line 45 of file mitkDiffusionImage.h.

template<class TPixelType>
typedef itk::SmartPointer<const Self> mitk::DiffusionImage< TPixelType >::ConstPointer

Reimplemented from mitk::Image.

Definition at line 47 of file mitkDiffusionImage.h.

template<class TPixelType>
typedef itk::VectorContainer< unsigned int, GradientDirectionType > mitk::DiffusionImage< TPixelType >::GradientDirectionContainerType

Definition at line 43 of file mitkDiffusionImage.h.

template<class TPixelType>
typedef vnl_vector_fixed< double, 3 > mitk::DiffusionImage< TPixelType >::GradientDirectionType

Definition at line 41 of file mitkDiffusionImage.h.

template<class TPixelType>
typedef itk::VectorImage<TPixelType, 3> mitk::DiffusionImage< TPixelType >::ImageType

Definition at line 40 of file mitkDiffusionImage.h.

template<class TPixelType>
typedef TPixelType mitk::DiffusionImage< TPixelType >::PixelType

Definition at line 38 of file mitkDiffusionImage.h.

template<class TPixelType>
typedef itk::SmartPointer<Self> mitk::DiffusionImage< TPixelType >::Pointer

Reimplemented from mitk::Image.

Definition at line 47 of file mitkDiffusionImage.h.

template<class TPixelType>
typedef DiffusionImage mitk::DiffusionImage< TPixelType >::Self

Reimplemented from mitk::Image.

Definition at line 47 of file mitkDiffusionImage.h.

template<class TPixelType>
typedef Image mitk::DiffusionImage< TPixelType >::Superclass

Reimplemented from mitk::Image.

Definition at line 47 of file mitkDiffusionImage.h.

Constructor & Destructor Documentation

template<typename TPixelType >
mitk::DiffusionImage< TPixelType >::DiffusionImage (  ) [protected]

Definition at line 23 of file mitkDiffusionImage.txx.

: m_VectorImage(0), m_Directions(0), m_B_Value(-1.0), m_VectorImageAdaptor(0)
{
}
template<typename TPixelType >
mitk::DiffusionImage< TPixelType >::~DiffusionImage (  ) [protected, virtual]

Definition at line 29 of file mitkDiffusionImage.txx.

{

}

Member Function Documentation

template<typename TPixelType >
bool mitk::DiffusionImage< TPixelType >::AreAlike ( GradientDirectionType  g1,
GradientDirectionType  g2,
double  precision
)

Definition at line 185 of file mitkDiffusionImage.txx.

{
  GradientDirectionType diff = g1 - g2;
  return diff.two_norm() < precision;
}
template<typename TPixelType >
void mitk::DiffusionImage< TPixelType >::AverageRedundantGradients ( double  precision )

Definition at line 254 of file mitkDiffusionImage.txx.

Referenced by QmitkPreprocessingView::DoAverageGradients().

{

  GradientDirectionContainerType::Pointer newDirs =
      CalcAveragedDirectionSet(precision);

  // if sizes equal, we do not need to do anything in this function
  if(m_Directions->size() == newDirs->size())
    return;

  GradientDirectionContainerType::Pointer oldDirections = m_Directions;
  m_Directions = newDirs;

  // new image
  typename ImageType::Pointer oldImage = m_VectorImage;
  m_VectorImage = ImageType::New();
  m_VectorImage->SetSpacing( oldImage->GetSpacing() );   // Set the image spacing
  m_VectorImage->SetOrigin( oldImage->GetOrigin() );     // Set the image origin
  m_VectorImage->SetDirection( oldImage->GetDirection() );  // Set the image direction
  m_VectorImage->SetLargestPossibleRegion( oldImage->GetLargestPossibleRegion() );
  m_VectorImage->SetVectorLength( m_Directions->size() );
  m_VectorImage->SetBufferedRegion( oldImage->GetLargestPossibleRegion() );
  m_VectorImage->Allocate();

  // average image data that corresponds to identical directions
  itk::ImageRegionIterator< ImageType > newIt(m_VectorImage, m_VectorImage->GetLargestPossibleRegion());
  newIt.GoToBegin();
  itk::ImageRegionIterator< ImageType > oldIt(oldImage, oldImage->GetLargestPossibleRegion());
  oldIt.GoToBegin();

  // initial new value of voxel
  typename ImageType::PixelType newVec;
  newVec.SetSize(m_Directions->size());
  newVec.AllocateElements(m_Directions->size());

  std::vector<std::vector<int> > dirIndices;
  for(GradientDirectionContainerType::ConstIterator gdcitNew = m_Directions->Begin();
    gdcitNew != m_Directions->End(); ++gdcitNew)
  {
    dirIndices.push_back(std::vector<int>(0));
    for(GradientDirectionContainerType::ConstIterator gdcitOld = oldDirections->Begin();
      gdcitOld != oldDirections->End(); ++gdcitOld)
    {
      if(AreAlike(gdcitNew.Value(), gdcitOld.Value(), precision))
      {
        dirIndices[gdcitNew.Index()].push_back(gdcitOld.Index());
      }
    }
  }

  int ind1 = -1;
  while(!newIt.IsAtEnd())
  {

    // progress
    typename ImageType::IndexType ind = newIt.GetIndex();
    ind1 = ind.m_Index[2];

    // init new vector with zeros
    newVec.Fill(0.0);

    // the old voxel value with duplicates
    typename ImageType::PixelType oldVec = oldIt.Get();

    for(unsigned int i=0; i<dirIndices.size(); i++)
    {
      // do the averaging
      int numavg = dirIndices[i].size();
      for(int j=0; j<numavg; j++)
      {
        newVec[i] += oldVec[dirIndices[i].at(j)];
      }
      newVec[i] /= numavg;
    }

    newIt.Set(newVec);

    ++newIt;
    ++oldIt;
  }
}
template<typename TPixelType >
mitk::DiffusionImage< TPixelType >::GradientDirectionContainerType::Pointer mitk::DiffusionImage< TPixelType >::CalcAveragedDirectionSet ( double  precision )

Definition at line 222 of file mitkDiffusionImage.txx.

{
  // save old and construct new direction container
  GradientDirectionContainerType::Pointer newDirections = GradientDirectionContainerType::New();

  // fill new direction container
  for(GradientDirectionContainerType::ConstIterator gdcitOld = m_Directions->Begin();
  gdcitOld != m_Directions->End(); ++gdcitOld)
  {
    // already exists?
    bool found = false;
    for(GradientDirectionContainerType::ConstIterator gdcitNew = newDirections->Begin();
    gdcitNew != newDirections->End(); ++gdcitNew)
    {
      if(AreAlike(gdcitNew.Value(), gdcitOld.Value(), precision))
      {
        found = true;
        break;
      }
    }

    // if not found, add it to new container
    if(!found)
    {
      newDirections->push_back(gdcitOld.Value());
    }
  }

  return newDirections;
}
template<typename TPixelType >
void mitk::DiffusionImage< TPixelType >::CorrectDKFZBrokenGradientScheme ( double  precision )

Definition at line 194 of file mitkDiffusionImage.txx.

References MITK_INFO.

{
  GradientDirectionContainerType::Pointer directionSet = CalcAveragedDirectionSet(precision);
  if(directionSet->size() < 7)
  {
    MITK_INFO << "Too few directions, assuming and correcting DKFZ-bogus sequence details.";

    double v [7][3] =
     {{ 0,         0,         0        },
      {-0.707057,  0,         0.707057 },
      { 0.707057,  0,         0.707057 },
      { 0,         0.707057,  0.707057 },
      { 0,         0.707057, -0.707057 },
      {-0.707057,  0.707057,  0        },
      { 0.707057,  0.707057,  0        } };

    int i=0;
    for(GradientDirectionContainerType::Iterator it = m_Directions->Begin();
    it != m_Directions->End(); ++it)
    {
      it.Value().set(v[i++%7]);
    }

  }
}
template<class TPixelType>
virtual float mitk::DiffusionImage< TPixelType >::GetB_Value (  ) [virtual]

Referenced by mitk::NrrdDiffusionImageWriter< TPixelType >::GenerateData(), QmitkTensorReconstructionView::ItkTensorReconstruction(), QmitkQBallReconstructionView::NumericalQBallReconstruction(), and QmitkQBallReconstructionView::TemplatedAnalyticalQBallReconstruction().

template<class TPixelType>
virtual const char* mitk::DiffusionImage< TPixelType >::GetClassName (  ) const [virtual]

Reimplemented from mitk::Image.

template<class TPixelType>
GradientDirectionContainerType::Pointer mitk::DiffusionImage< TPixelType >::GetDirections (  ) [inline]

Definition at line 69 of file mitkDiffusionImage.h.

Referenced by QmitkPreprocessingView::DoBrainMask(), mitk::NrrdDiffusionImageWriter< TPixelType >::GenerateData(), QmitkTensorReconstructionView::ItkTensorReconstruction(), QmitkQBallReconstructionView::NumericalQBallReconstruction(), and QmitkQBallReconstructionView::TemplatedAnalyticalQBallReconstruction().

    { return m_Directions; }
template<class TPixelType>
ImageType::Pointer mitk::DiffusionImage< TPixelType >::GetVectorImage (  ) [inline]

Definition at line 61 of file mitkDiffusionImage.h.

Referenced by QmitkPreprocessingView::DoBrainMask(), mitk::NrrdDiffusionImageWriter< TPixelType >::GenerateData(), QmitkTensorReconstructionView::ItkTensorReconstruction(), QmitkQBallReconstructionView::NumericalQBallReconstruction(), and QmitkQBallReconstructionView::TemplatedAnalyticalQBallReconstruction().

    { return m_VectorImage; }
template<typename TPixelType >
void mitk::DiffusionImage< TPixelType >::InitializeFromVectorImage (  )

Definition at line 36 of file mitkDiffusionImage.txx.

References MITK_INFO.

Referenced by QmitkTensorReconstructionView::DoTensorsToDWI().

{
  if(!m_VectorImage || !m_Directions || m_B_Value==-1.0)
  {
    MITK_INFO << "DiffusionImage could not be initialized. Set all members first!" << std::endl;
    return;
  }

  // find bzero index
  int firstZeroIndex = -1;
  for(GradientDirectionContainerType::ConstIterator it = m_Directions->Begin();
    it != m_Directions->End(); ++it)
  {
    firstZeroIndex++;
    GradientDirectionType g = it.Value();
    if(g[0] == 0 && g[1] == 0 && g[2] == 0 )
      break;
  }

  typedef itk::Image<TPixelType,3> ImgType;
  typename ImgType::Pointer img = ImgType::New();
  img->SetSpacing( m_VectorImage->GetSpacing() );   // Set the image spacing
  img->SetOrigin( m_VectorImage->GetOrigin() );     // Set the image origin
  img->SetDirection( m_VectorImage->GetDirection() );  // Set the image direction
  img->SetLargestPossibleRegion( m_VectorImage->GetLargestPossibleRegion());
  img->SetBufferedRegion( m_VectorImage->GetLargestPossibleRegion() );
  img->Allocate();

  int vecLength = m_VectorImage->GetVectorLength();
  InitializeByItk( img.GetPointer(), 1, vecLength );

  //for(int i=0; i<vecLength; i++)
  //{
    itk::ImageRegionIterator<ImgType> itw (img, img->GetLargestPossibleRegion() );
    itw = itw.Begin();

    itk::ImageRegionConstIterator<ImageType> itr (m_VectorImage, m_VectorImage->GetLargestPossibleRegion() );
    itr = itr.Begin();

    while(!itr.IsAtEnd())
    {
      itw.Set(itr.Get().GetElement(firstZeroIndex));
      ++itr;
      ++itw;
    }

    // init
    SetImportVolume(img->GetBufferPointer());//, 0, 0, CopyMemory);
    //SetVolume( img->GetBufferPointer(), i );
  //}

  m_DisplayIndex = firstZeroIndex;
  MITK_INFO << "Diffusion-Image successfully initialized.";

}
template<class TPixelType>
static Pointer mitk::DiffusionImage< TPixelType >::New (  ) [static]

Reimplemented from mitk::Image.

Referenced by QmitkTensorReconstructionView::DoTensorsToDWI(), mitk::DiffusionImageSource< TPixelType >::MakeOutput(), mitkFactoryRegistrationTest(), and mitk::DiffusionImage< DiffusionImagePixelType >::SetDirections().

template<class TPixelType>
virtual void mitk::DiffusionImage< TPixelType >::SetB_Value ( float  _arg ) [virtual]

Referenced by QmitkTensorReconstructionView::DoTensorsToDWI().

template<class TPixelType>
void mitk::DiffusionImage< TPixelType >::SetDirections ( GradientDirectionContainerType::Pointer  directions ) [inline]

Definition at line 71 of file mitkDiffusionImage.h.

Referenced by QmitkTensorReconstructionView::DoTensorsToDWI().

    { this->m_Directions = directions; }
template<class TPixelType>
void mitk::DiffusionImage< TPixelType >::SetDirections ( const std::vector< itk::Vector< double, 3 > >  directions ) [inline]

Definition at line 73 of file mitkDiffusionImage.h.

    {
      m_Directions = GradientDirectionContainerType::New();
      for(unsigned int i=0; i<directions.size(); i++)
      {
        m_Directions->InsertElement( i, directions[i].Get_vnl_vector() );
      }
    }
template<typename TPixelType >
void mitk::DiffusionImage< TPixelType >::SetDisplayIndexForRendering ( int  displayIndex )

Definition at line 94 of file mitkDiffusionImage.txx.

Referenced by mitk::DiffusionImageMapper< TPixelType >::GenerateData().

{

  int index = displayIndex;
  int vecLength = m_VectorImage->GetVectorLength();
  index = index > vecLength-1 ? vecLength-1 : index;
  if( m_DisplayIndex != index )
  {
    typedef itk::Image<TPixelType,3> ImgType;
    typename ImgType::Pointer img = ImgType::New();
    CastToItkImage<ImgType>(this, img);

    itk::ImageRegionIterator<ImgType> itw (img, img->GetLargestPossibleRegion() );
    itw = itw.Begin();

    itk::ImageRegionConstIterator<ImageType> itr (m_VectorImage, m_VectorImage->GetLargestPossibleRegion() );
    itr = itr.Begin();

    while(!itr.IsAtEnd())
    {
      itw.Set(itr.Get().GetElement(index));
      ++itr;
      ++itw;
    }
  }

  m_DisplayIndex = index;
}
template<class TPixelType>
void mitk::DiffusionImage< TPixelType >::SetVectorImage ( typename ImageType::Pointer  image ) [inline]

Definition at line 63 of file mitkDiffusionImage.h.

Referenced by QmitkTensorReconstructionView::DoTensorsToDWI().

    { this->m_VectorImage = image; }

Member Data Documentation

template<class TPixelType>
float mitk::DiffusionImage< TPixelType >::m_B_Value [protected]

Definition at line 92 of file mitkDiffusionImage.h.

template<class TPixelType>
GradientDirectionContainerType::Pointer mitk::DiffusionImage< TPixelType >::m_Directions [protected]

Definition at line 91 of file mitkDiffusionImage.h.

Referenced by mitk::DiffusionImage< DiffusionImagePixelType >::GetDirections(), and mitk::DiffusionImage< DiffusionImagePixelType >::SetDirections().

template<class TPixelType>
int mitk::DiffusionImage< TPixelType >::m_DisplayIndex [protected]

Definition at line 94 of file mitkDiffusionImage.h.

template<class TPixelType>
ImageType::Pointer mitk::DiffusionImage< TPixelType >::m_VectorImage [protected]

Definition at line 90 of file mitkDiffusionImage.h.

Referenced by mitk::DiffusionImage< DiffusionImagePixelType >::GetVectorImage(), and mitk::DiffusionImage< DiffusionImagePixelType >::SetVectorImage().

template<class TPixelType>
AdaptorType::Pointer mitk::DiffusionImage< TPixelType >::m_VectorImageAdaptor [protected]

Definition at line 93 of file mitkDiffusionImage.h.

The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Properties Friends Defines
Generated on Tue Oct 19 2010 16:20:19 for mitk by  doxygen 1.7.2
