mitk::AutoCropTool Class Reference [Classes related to InteractiveSegmentation]

Crops selected segmentations. More...

#include <mitkAutoCropTool.h>

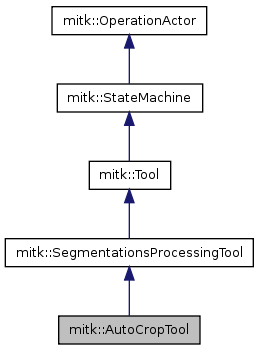

Inheritance diagram for mitk::AutoCropTool:

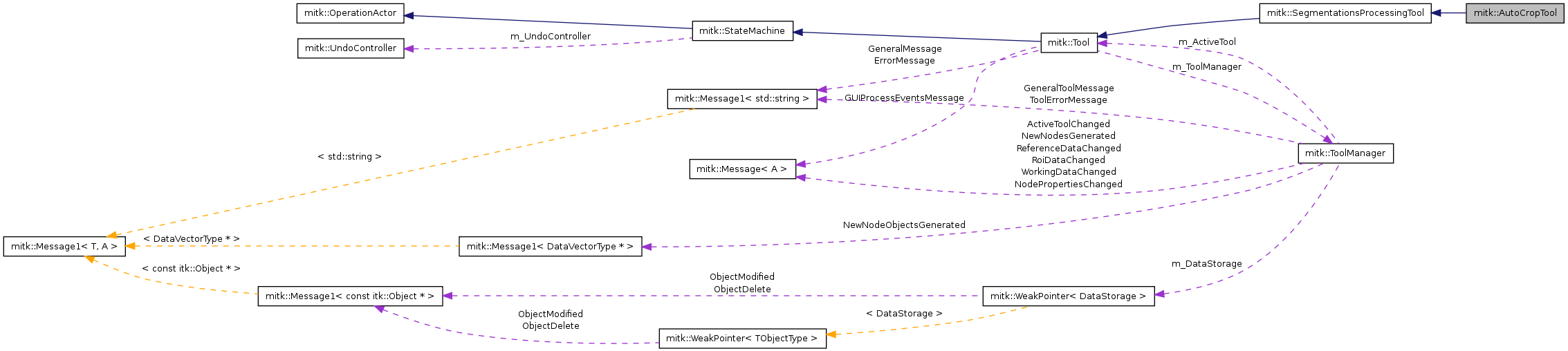

Collaboration diagram for mitk::AutoCropTool:

List of all members.

Public Types
typedef AutoCropTool	Self
typedef SegmentationsProcessingTool	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
virtual const char **	GetXPM () const
	Returns an icon in the XPM format.
virtual const char *	GetName () const
	Returns the name of this tool. Make it short!
Static Public Member Functions
static Pointer	New ()
Protected Member Functions
virtual bool	ProcessOneWorkingData (DataNode *node)
	Subclasses should override this method.
virtual std::string	GetErrorMessage ()
	Describes the error (if one occurred during processing).
	AutoCropTool ()
virtual	~AutoCropTool ()

---

Detailed Description

Crops selected segmentations.

See also:

mitk::Tool

QmitkInteractiveSegmentation

Last contributor: $Author$

Definition at line 37 of file mitkAutoCropTool.h.

---

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::AutoCropTool::ConstPointer

Reimplemented from mitk::SegmentationsProcessingTool.

Definition at line 41 of file mitkAutoCropTool.h.

typedef itk::SmartPointer<Self> mitk::AutoCropTool::Pointer

Reimplemented from mitk::SegmentationsProcessingTool.

Definition at line 41 of file mitkAutoCropTool.h.

typedef AutoCropTool mitk::AutoCropTool::Self

Reimplemented from mitk::SegmentationsProcessingTool.

Definition at line 41 of file mitkAutoCropTool.h.

typedef SegmentationsProcessingTool mitk::AutoCropTool::Superclass

Reimplemented from mitk::SegmentationsProcessingTool.

Definition at line 41 of file mitkAutoCropTool.h.

---

Constructor & Destructor Documentation

mitk::AutoCropTool::AutoCropTool

(

)

[protected]

Definition at line 28 of file mitkAutoCropTool.cpp.

{
}

mitk::AutoCropTool::~AutoCropTool

(

)

[protected, virtual]

Definition at line 32 of file mitkAutoCropTool.cpp.

{
}

---

Member Function Documentation

virtual const char* mitk::AutoCropTool::GetClassName

(

)

const [virtual]

Reimplemented from mitk::SegmentationsProcessingTool.

std::string mitk::AutoCropTool::GetErrorMessage

(

)

[protected, virtual]

Describes the error (if one occurred during processing).

Reimplemented from mitk::SegmentationsProcessingTool.

Definition at line 46 of file mitkAutoCropTool.cpp.

{
  return "Cropping of these nodes failed:";
}

const char * mitk::AutoCropTool::GetName

(

)

const [virtual]

Returns the name of this tool. Make it short!

This name has to fit into some kind of button in most applications, so take some time to think of a good name!

Implements mitk::Tool.

Definition at line 41 of file mitkAutoCropTool.cpp.

{
  return "Crop";
}

const char ** mitk::AutoCropTool::GetXPM

(

)

const [virtual]

Returns an icon in the XPM format.

This icon has to fit into some kind of button in most applications, so make it smaller than 25x25 pixels.

XPM is e.g. supported by The Gimp. But if you open any XPM file in your text editor, you will see that you could also "draw" it with an editor.

Implements mitk::Tool.

Definition at line 36 of file mitkAutoCropTool.cpp.

{
  return mitkAutoCropTool_xpm;
}

static Pointer mitk::AutoCropTool::New

(

)

[static]

bool mitk::AutoCropTool::ProcessOneWorkingData

(

DataNode *

node )

[protected, virtual]

Subclasses should override this method.

See also:

ProcessAllObjects

Reimplemented from mitk::SegmentationsProcessingTool.

Definition at line 51 of file mitkAutoCropTool.cpp.

References mitk::DataNode::GetData(), mitk::AutoCropImageFilter::New(), and mitk::DataNode::SetData().

{
  if (node)
  {
    Image::Pointer image = dynamic_cast<Image*>( node->GetData() );
    if (image.IsNull()) return false;

//     if (image->GetDimension() == 4)
//     {
//       Tool::ErrorMessage.Send("Cropping 3D+t segmentations is not implemented. Sorry. Bug #1281");
//       return false;
//     }

    AutoCropImageFilter::Pointer cropFilter = AutoCropImageFilter::New();
    cropFilter->SetInput( image );
    cropFilter->SetBackgroundValue( 0 );
    try
    {
      cropFilter->Update();

      image = cropFilter->GetOutput();
      if (image.IsNotNull())
      {
        node->SetData( image );
      }
      else
      {
        return false;
      }
    }
    catch(...)
    {
      return false;
    }
  }

  return true;
}

---

The documentation for this class was generated from the following files:

• mitkAutoCropTool.h
• mitkAutoCropTool.cpp
