mitk::SegmentationsProcessingTool Class Reference

Batch processing of all selected segmentations/data. More...

#include <mitkSegmentationsProcessingTool.h>

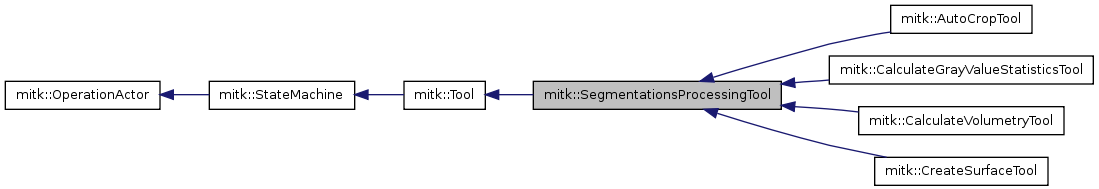

Inheritance diagram for mitk::SegmentationsProcessingTool:

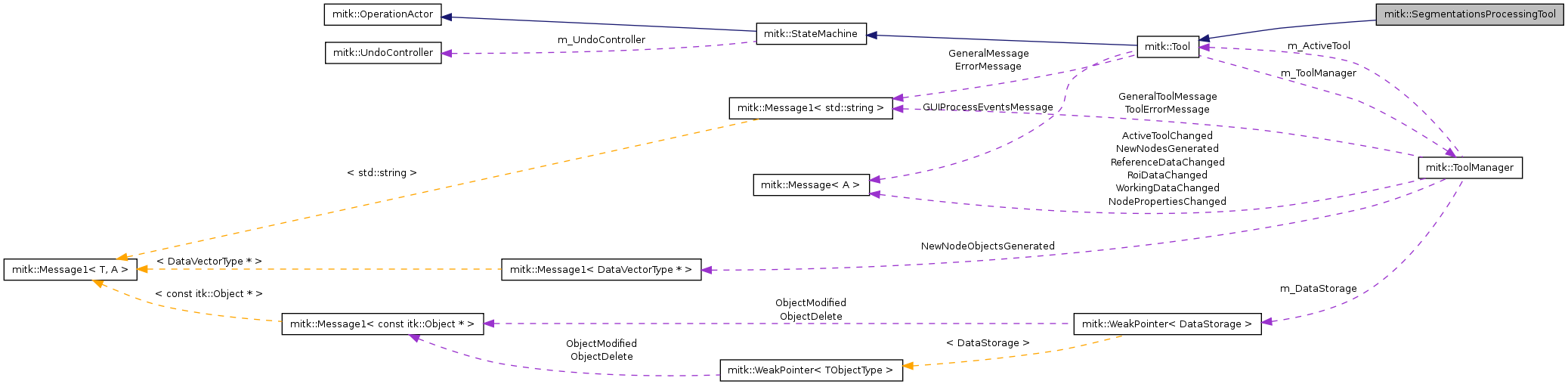

Collaboration diagram for mitk::SegmentationsProcessingTool:

List of all members.

Public Types
typedef SegmentationsProcessingTool	Self
typedef Tool	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
Protected Member Functions
	SegmentationsProcessingTool ()
virtual	~SegmentationsProcessingTool ()
virtual const char *	GetGroup () const
	Name of a group.
virtual void	Activated ()
	Called when the tool gets activated.
virtual void	Deactivated ()
	Called when the tool gets deactivated (unregistered from mitk::GlobalInteraction).
virtual void	ProcessAllObjects ()
	Loop over all working data items.
virtual void	StartProcessingAllData ()
	Subclasses should override this method.
virtual bool	ProcessOneWorkingData (DataNode *node)
	Subclasses should override this method.
virtual void	FinishProcessingAllData ()
	Subclasses should override this method.
virtual void	SendErrorMessageIfAny ()
	Sends an error message if there was an error during processing.
virtual std::string	GetErrorMessage ()
	Describes the error (if one occurred during processing).
Protected Attributes
std::string	m_FailedNodes

---

Detailed Description

Batch processing of all selected segmentations/data.

This class is undocumented. Ask the creator ($Author$) to supply useful comments.

Definition at line 34 of file mitkSegmentationsProcessingTool.h.

---

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::SegmentationsProcessingTool::ConstPointer

Reimplemented from mitk::Tool.

Reimplemented in mitk::AutoCropTool, mitk::CalculateGrayValueStatisticsTool, mitk::CalculateVolumetryTool, and mitk::CreateSurfaceTool.

Definition at line 38 of file mitkSegmentationsProcessingTool.h.

typedef itk::SmartPointer<Self> mitk::SegmentationsProcessingTool::Pointer

Reimplemented from mitk::Tool.

Reimplemented in mitk::AutoCropTool, mitk::CalculateGrayValueStatisticsTool, mitk::CalculateVolumetryTool, and mitk::CreateSurfaceTool.

Definition at line 38 of file mitkSegmentationsProcessingTool.h.

typedef SegmentationsProcessingTool mitk::SegmentationsProcessingTool::Self

Reimplemented from mitk::Tool.

Reimplemented in mitk::AutoCropTool, mitk::CalculateGrayValueStatisticsTool, mitk::CalculateVolumetryTool, and mitk::CreateSurfaceTool.

Definition at line 38 of file mitkSegmentationsProcessingTool.h.

typedef Tool mitk::SegmentationsProcessingTool::Superclass

Reimplemented from mitk::Tool.

Reimplemented in mitk::AutoCropTool, mitk::CalculateGrayValueStatisticsTool, mitk::CalculateVolumetryTool, and mitk::CreateSurfaceTool.

Definition at line 38 of file mitkSegmentationsProcessingTool.h.

---

Constructor & Destructor Documentation

mitk::SegmentationsProcessingTool::SegmentationsProcessingTool

(

)

[protected]

Definition at line 22 of file mitkSegmentationsProcessingTool.cpp.

:Tool("dummy")
{
}

mitk::SegmentationsProcessingTool::~SegmentationsProcessingTool

(

)

[protected, virtual]

Definition at line 27 of file mitkSegmentationsProcessingTool.cpp.

{
}

---

Member Function Documentation

void mitk::SegmentationsProcessingTool::Activated

(

)

[protected, virtual]

Called when the tool gets activated.

Will just call ProcessAllObjects and then deactivate this tool again.

Reimplemented from mitk::Tool.

Definition at line 36 of file mitkSegmentationsProcessingTool.cpp.

{
  ProcessAllObjects();
  m_ToolManager->ActivateTool(-1);
}

void mitk::SegmentationsProcessingTool::Deactivated

(

)

[protected, virtual]

Called when the tool gets deactivated (unregistered from mitk::GlobalInteraction).

Derived tools should call their parents implementation.

Reimplemented from mitk::Tool.

Definition at line 42 of file mitkSegmentationsProcessingTool.cpp.

{
}

void mitk::SegmentationsProcessingTool::FinishProcessingAllData

(

)

[protected, virtual]

Subclasses should override this method.

See also:

ProcessAllObjects

Reimplemented in mitk::CalculateGrayValueStatisticsTool, and mitk::CalculateVolumetryTool.

Definition at line 93 of file mitkSegmentationsProcessingTool.cpp.

Referenced by mitk::CalculateGrayValueStatisticsTool::FinishProcessingAllData().

{
  SendErrorMessageIfAny();
}

virtual const char* mitk::SegmentationsProcessingTool::GetClassName

(

)

const [virtual]

Reimplemented from mitk::Tool.

Reimplemented in mitk::AutoCropTool, mitk::CalculateGrayValueStatisticsTool, mitk::CalculateVolumetryTool, and mitk::CreateSurfaceTool.

std::string mitk::SegmentationsProcessingTool::GetErrorMessage

(

)

[protected, virtual]

Describes the error (if one occurred during processing).

Reimplemented in mitk::AutoCropTool, mitk::CalculateGrayValueStatisticsTool, mitk::CalculateVolumetryTool, and mitk::CreateSurfaceTool.

Definition at line 106 of file mitkSegmentationsProcessingTool.cpp.

{
  return "Processing of these nodes failed:";
}

const char * mitk::SegmentationsProcessingTool::GetGroup

(

)

const [protected, virtual]

Name of a group.

You can group several tools by assigning a group name. Graphical tool selectors might use this information to group tools. (What other reason could there be?)

Reimplemented from mitk::Tool.

Definition at line 31 of file mitkSegmentationsProcessingTool.cpp.

{
  return "segmentationProcessing";
}

void mitk::SegmentationsProcessingTool::ProcessAllObjects

(

)

[protected, virtual]

Loop over all working data items.

Will call the following methods in turn

• StartProcessingAllData
• ProcessOneWorkingData(DataNode*) for each node in the working data list of our tool manager
• FinishProcessingAllData

Subclasses should override these methods as needed and provide meaningful implementations.

Definition at line 46 of file mitkSegmentationsProcessingTool.cpp.

References mitk::ProgressBar::AddStepsToDo(), mitk::ProgressBar::GetInstance(), and mitk::ProgressBar::Progress().

{
  m_FailedNodes.clear();
  StartProcessingAllData();

  ToolManager::DataVectorType nodes = m_ToolManager->GetWorkingData();
  ProgressBar::GetInstance()->AddStepsToDo(nodes.size() + 2);

  // for all selected nodes
  for ( ToolManager::DataVectorType::iterator nodeiter = nodes.begin();
        nodeiter != nodes.end();
        ++nodeiter )
  {
    DataNode::Pointer node = *nodeiter;

    if ( !ProcessOneWorkingData(node) )
    {
      std::string nodeName;
      m_FailedNodes += " '";
      if ( node->GetName( nodeName ) )
      {
        m_FailedNodes += nodeName.c_str();
      }
      else
      {
        m_FailedNodes += "(no name)";
      }
      m_FailedNodes += "'";
    }

    ProgressBar::GetInstance()->Progress();
  }

  FinishProcessingAllData();
  ProgressBar::GetInstance()->Progress(2);

}

bool mitk::SegmentationsProcessingTool::ProcessOneWorkingData

(

DataNode *

node )

[protected, virtual]

Subclasses should override this method.

See also:

ProcessAllObjects

Reimplemented in mitk::AutoCropTool, mitk::CalculateGrayValueStatisticsTool, mitk::CalculateVolumetryTool, and mitk::CreateSurfaceTool.

Definition at line 88 of file mitkSegmentationsProcessingTool.cpp.

{
  return true;
}

void mitk::SegmentationsProcessingTool::SendErrorMessageIfAny

(

)

[protected, virtual]

Sends an error message if there was an error during processing.

Definition at line 98 of file mitkSegmentationsProcessingTool.cpp.

References mitk::Tool::ErrorMessage.

{
  if ( !m_FailedNodes.empty() )
  {
    Tool::ErrorMessage( GetErrorMessage() + m_FailedNodes );
  }
}

void mitk::SegmentationsProcessingTool::StartProcessingAllData

(

)

[protected, virtual]

Subclasses should override this method.

See also:

ProcessAllObjects

Reimplemented in mitk::CalculateGrayValueStatisticsTool.

Definition at line 84 of file mitkSegmentationsProcessingTool.cpp.

{
}

---

Member Data Documentation

std::string mitk::SegmentationsProcessingTool::m_FailedNodes [protected]

Definition at line 96 of file mitkSegmentationsProcessingTool.h.

---

The documentation for this class was generated from the following files:

• mitkSegmentationsProcessingTool.h
• mitkSegmentationsProcessingTool.cpp
