QwtPlotLayout::LayoutData Class Reference

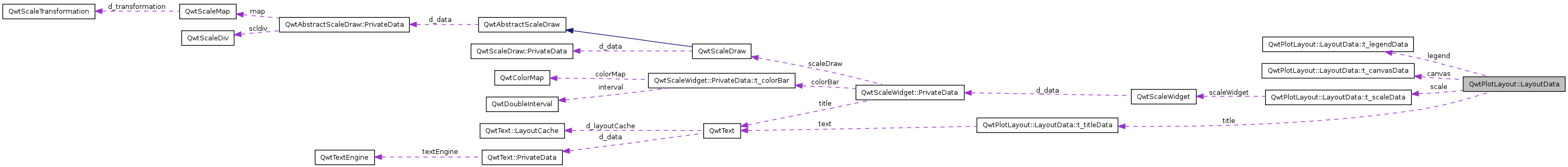

Collaboration diagram for QwtPlotLayout::LayoutData:

List of all members.

Classes
struct	t_canvasData
struct	t_legendData
struct	t_scaleData
struct	t_titleData
Public Member Functions
void	init (const QwtPlot *, const QRect &rect)
Public Attributes
struct QwtPlotLayout::LayoutData::t_legendData	legend
struct QwtPlotLayout::LayoutData::t_titleData	title
struct QwtPlotLayout::LayoutData::t_scaleData	scale [QwtPlot::axisCnt]
struct QwtPlotLayout::LayoutData::t_canvasData	canvas

---

Detailed Description

Definition at line 20 of file qwt_plot_layout.cpp.

---

Member Function Documentation

void QwtPlotLayout::LayoutData::init	(	const QwtPlot *	plot,
		const QRect &	rect
	)

Definition at line 61 of file qwt_plot_layout.cpp.

References QwtPlot::axisCnt, QwtPlot::axisEnabled(), QwtPlot::axisWidget(), QwtPlotLayout::LayoutData::t_scaleData::baseLineOffset, QwtPlot::canvas(), canvas, QwtScaleWidget::dimForLength(), QwtPlotLayout::LayoutData::t_scaleData::dimWithoutTitle, QwtPlotLayout::LayoutData::t_scaleData::end, QwtScaleWidget::endBorderDist(), QwtPlot::ExternalLegend, QwtPlotLayout::LayoutData::t_canvasData::frameWidth, QwtPlotLayout::LayoutData::t_titleData::frameWidth, QwtPlotLayout::LayoutData::t_legendData::frameWidth, QwtAbstractScaleDraw::hasComponent(), QwtLegend::heightForWidth(), QwtPlotLayout::LayoutData::t_legendData::hint, QwtLegend::horizontalScrollBar(), QwtPlotLayout::LayoutData::t_legendData::hScrollBarHeight, int(), QwtText::isEmpty(), QwtPlotLayout::LayoutData::t_scaleData::isEnabled, legend, QwtPlot::legend(), QwtPlotLayout::legendPosition(), QwtAbstractScaleDraw::majTickLength(), QwtScaleWidget::margin(), QwtText::PaintUsingTextFont, QwtPlot::plotLayout(), qwtMin, scale, QwtScaleWidget::scaleDraw(), QwtPlotLayout::LayoutData::t_scaleData::scaleFont, QwtPlotLayout::LayoutData::t_scaleData::scaleWidget, QwtText::setFont(), QwtLegend::sizeHint(), QwtPlotLayout::LayoutData::t_scaleData::start, QwtScaleWidget::startBorderDist(), QwtText::testPaintAttribute(), QwtTextLabel::text(), QwtPlotLayout::LayoutData::t_titleData::text, QwtPlotLayout::LayoutData::t_scaleData::tickOffset, QwtAbstractScaleDraw::Ticks, QwtScaleWidget::title(), title, QwtScaleWidget::titleHeightForWidth(), QwtPlot::titleLabel(), QwtLegend::verticalScrollBar(), and QwtPlotLayout::LayoutData::t_legendData::vScrollBarWidth.

Referenced by QwtPlotLayout::activate().

{
    // legend

    if ( plot->plotLayout()->legendPosition() != QwtPlot::ExternalLegend
        && plot->legend() )
    {
        legend.frameWidth = plot->legend()->frameWidth();
        legend.vScrollBarWidth =
            plot->legend()->verticalScrollBar()->sizeHint().width();
        legend.hScrollBarHeight =
            plot->legend()->horizontalScrollBar()->sizeHint().height();

        const QSize hint = plot->legend()->sizeHint();

        int w = qwtMin(hint.width(), rect.width());
        int h = plot->legend()->heightForWidth(w);
        if ( h == 0 )
            h = hint.height();

        if ( h > rect.height() )
            w += legend.vScrollBarWidth;

        legend.hint = QSize(w, h);
    }

    // title

    title.frameWidth = 0;
    title.text = QwtText();

    if (plot->titleLabel() )
    {
        const QwtTextLabel *label = plot->titleLabel();
        title.text = label->text();
        if ( !(title.text.testPaintAttribute(QwtText::PaintUsingTextFont)) )
            title.text.setFont(label->font());

        title.frameWidth = plot->titleLabel()->frameWidth();
    }

    // scales

    for (int axis = 0; axis < QwtPlot::axisCnt; axis++ )
    {
        if ( plot->axisEnabled(axis) )
        {
            const QwtScaleWidget *scaleWidget = plot->axisWidget(axis);

            scale[axis].isEnabled = true;

            scale[axis].scaleWidget = scaleWidget;

            scale[axis].scaleFont = scaleWidget->font();

            scale[axis].start = scaleWidget->startBorderDist();
            scale[axis].end = scaleWidget->endBorderDist();

            scale[axis].baseLineOffset = scaleWidget->margin();
            scale[axis].tickOffset = scaleWidget->margin();
            if ( scaleWidget->scaleDraw()->hasComponent(
                QwtAbstractScaleDraw::Ticks) )
            {
                scale[axis].tickOffset +=
                    (int)scaleWidget->scaleDraw()->majTickLength();
            }

            scale[axis].dimWithoutTitle = scaleWidget->dimForLength(
                QWIDGETSIZE_MAX, scale[axis].scaleFont);

            if ( !scaleWidget->title().isEmpty() )
            {
                scale[axis].dimWithoutTitle -=
                    scaleWidget->titleHeightForWidth(QWIDGETSIZE_MAX);
            }
        }
        else
        {
            scale[axis].isEnabled = false;
            scale[axis].start = 0;
            scale[axis].end = 0;
            scale[axis].baseLineOffset = 0;
            scale[axis].tickOffset = 0;
            scale[axis].dimWithoutTitle = 0;
        }
    }

    // canvas

    canvas.frameWidth = plot->canvas()->frameWidth();
}

---

Member Data Documentation

struct QwtPlotLayout::LayoutData::t_canvasData QwtPlotLayout::LayoutData::canvas

Referenced by QwtPlotLayout::alignScales(), QwtPlotLayout::expandLineBreaks(), and init().

struct QwtPlotLayout::LayoutData::t_legendData QwtPlotLayout::LayoutData::legend

Referenced by QwtPlotLayout::activate(), QwtPlotLayout::alignLegend(), init(), and QwtPlotLayout::layoutLegend().

struct QwtPlotLayout::LayoutData::t_scaleData QwtPlotLayout::LayoutData::scale[QwtPlot::axisCnt]

Referenced by QwtPlotLayout::activate(), QwtPlotLayout::alignScales(), QwtPlotLayout::expandLineBreaks(), and init().

struct QwtPlotLayout::LayoutData::t_titleData QwtPlotLayout::LayoutData::title

Referenced by QwtPlotLayout::expandLineBreaks(), and init().

---

The documentation for this class was generated from the following file:

• qwt_plot_layout.cpp
