A Widget which contains a scale. More...

#include <qwt_scale_widget.h>

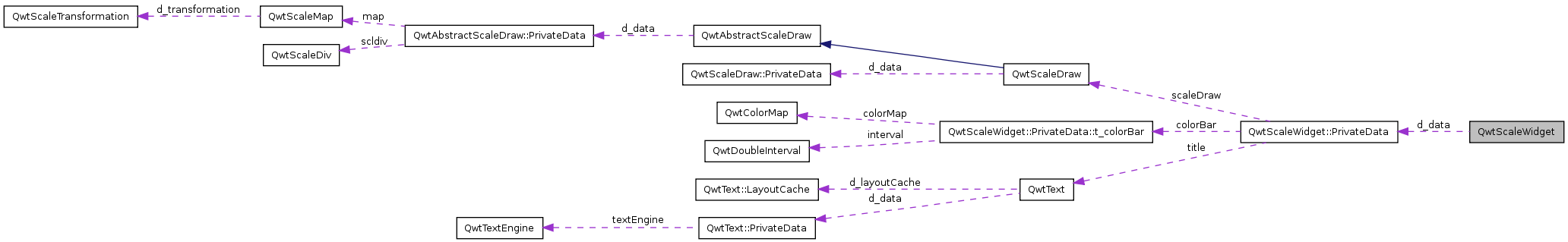

Collaboration diagram for QwtScaleWidget:

Classes
class	PrivateData
Signals
void	scaleDivChanged ()
	Signal emitted, whenever the scale divison changes.
Public Member Functions
	QwtScaleWidget (QWidget *parent=NULL)
	Create a scale with the position QwtScaleWidget::Left.
	QwtScaleWidget (QWidget parent, const char name)
	Create a scale with the position QwtScaleWidget::Left.
	QwtScaleWidget (QwtScaleDraw::Alignment, QWidget *parent=NULL)
	Constructor.
virtual	~QwtScaleWidget ()
	Destructor.
void	setTitle (const QString &title)
void	setTitle (const QwtText &title)
QwtText	title () const
void	setBorderDist (int start, int end)
int	startBorderDist () const
int	endBorderDist () const
void	getBorderDistHint (int &start, int &end) const
	Calculate a hint for the border distances.
void	getMinBorderDist (int &start, int &end) const
void	setMinBorderDist (int start, int end)
void	setMargin (int)
	Specify the margin to the colorBar/base line.
int	margin () const
void	setSpacing (int td)
	Specify the distance between color bar, scale and title.
int	spacing () const
void	setPenWidth (int)
	Specify the width of the scale pen.
int	penWidth () const
void	setScaleDiv (QwtScaleTransformation *, const QwtScaleDiv &sd)
	Assign a scale division.
void	setScaleDraw (QwtScaleDraw *)
const QwtScaleDraw *	scaleDraw () const
QwtScaleDraw *	scaleDraw ()
void	setLabelAlignment (int)
	Change the alignment for the labels.
void	setLabelRotation (double rotation)
	Change the rotation for the labels. See QwtScaleDraw::setLabelRotation().
void	setColorBarEnabled (bool)
bool	isColorBarEnabled () const
void	setColorBarWidth (int)
int	colorBarWidth () const
void	setColorMap (const QwtDoubleInterval &, const QwtColorMap &)
QwtDoubleInterval	colorBarInterval () const
const QwtColorMap &	colorMap () const
virtual QSize	sizeHint () const
virtual QSize	minimumSizeHint () const
int	titleHeightForWidth (int width) const
	Find the height of the title for a given width.
int	dimForLength (int length, const QFont &scaleFont) const
	Find the minimum dimension for a given length. dim is the height, length the width seen in direction of the title.
void	drawColorBar (QPainter *painter, const QRect &rect) const
void	drawTitle (QPainter *painter, QwtScaleDraw::Alignment, const QRect &rect) const
void	setAlignment (QwtScaleDraw::Alignment)
QwtScaleDraw::Alignment	alignment () const
QRect	colorBarRect (const QRect &) const
Protected Member Functions
virtual void	paintEvent (QPaintEvent *e)
	paintEvent
virtual void	resizeEvent (QResizeEvent *e)
	resizeEvent
virtual void	fontChange (const QFont &oldfont)
	Notify a change of the font.
void	draw (QPainter *p) const
	draw the scale
void	scaleChange ()
	Notify a change of the scale.
void	layoutScale (bool update=true)
	Recalculate the scale's geometry and layout based on.

Detailed Description

A Widget which contains a scale.

This Widget can be used to decorate composite widgets with a scale.

Definition at line 34 of file qwt_scale_widget.h.

Constructor & Destructor Documentation

QwtScaleWidget::QwtScaleWidget ( QWidget * parent = NULL ) [explicit]

Create a scale with the position QwtScaleWidget::Left.

Parameters:

parent Parent widget

Definition at line 63 of file qwt_scale_widget.cpp.

References QwtScaleDraw::LeftScale.

                                             :
    QWidget(parent)
{
    initScale(QwtScaleDraw::LeftScale);
}

QwtScaleWidget::QwtScaleWidget	(	QWidget *	parent,
		const char *	name
	)		`[explicit]`

Create a scale with the position QwtScaleWidget::Left.

Parameters:

parent	Parent widget
name	Object name

Definition at line 75 of file qwt_scale_widget.cpp.

References QwtScaleDraw::LeftScale.

                                                               :
    QWidget(parent, name)
{
    initScale(QwtScaleDraw::LeftScale);
}

QwtScaleWidget::QwtScaleWidget	(	QwtScaleDraw::Alignment	align,
		QWidget *	parent = `NULL`
	)		`[explicit]`

Constructor.

Parameters:

align	Alignment.
parent	Parent widget

Definition at line 87 of file qwt_scale_widget.cpp.

                                                     :
    QWidget(parent)
{
    initScale(align);
}

QwtScaleWidget::~QwtScaleWidget ( ) [virtual]

Destructor.

Definition at line 95 of file qwt_scale_widget.cpp.

{
    delete d_data;
}

Member Function Documentation

QwtScaleDraw::Alignment QwtScaleWidget::alignment ( ) const

Returns:: position

See also:: setPosition()

Definition at line 224 of file qwt_scale_widget.cpp.

References QwtScaleDraw::alignment(), QwtScaleDraw::LeftScale, and scaleDraw().

{
    if (!scaleDraw())
        return QwtScaleDraw::LeftScale;

    return scaleDraw()->alignment();
}

QwtDoubleInterval QwtScaleWidget::colorBarInterval ( ) const

Definition at line 908 of file qwt_scale_widget.cpp.

References QwtScaleWidget::PrivateData::colorBar, and QwtScaleWidget::PrivateData::t_colorBar::interval.

{
    return d_data->colorBar.interval;
}

QRect QwtScaleWidget::colorBarRect ( const QRect & rect ) const

Definition at line 499 of file qwt_scale_widget.cpp.

References QwtScaleDraw::alignment(), QwtScaleWidget::PrivateData::borderDist, QwtScaleDraw::BottomScale, QwtScaleWidget::PrivateData::colorBar, QwtScaleDraw::LeftScale, QwtScaleDraw::orientation(), QwtScaleDraw::RightScale, QwtScaleWidget::PrivateData::scaleDraw, QwtScaleWidget::PrivateData::spacing, QwtScaleDraw::TopScale, and QwtScaleWidget::PrivateData::t_colorBar::width.

Referenced by draw(), and QwtPlot::printScale().

{
    QRect cr = rect;

    if ( d_data->scaleDraw->orientation() == Qt::Horizontal )
    {
        cr.setLeft(cr.left() + d_data->borderDist[0]);
        cr.setWidth(cr.width() - d_data->borderDist[1] + 1);
    }
    else
    {
        cr.setTop(cr.top() + d_data->borderDist[0]);
        cr.setHeight(cr.height() - d_data->borderDist[1] + 1);
    }

    switch(d_data->scaleDraw->alignment())
    {
        case QwtScaleDraw::LeftScale:
        {
            cr.setLeft( cr.right() - d_data->spacing
                - d_data->colorBar.width + 1 );
            cr.setWidth(d_data->colorBar.width);
            break;
        }

        case QwtScaleDraw::RightScale:
        {
            cr.setLeft( cr.left() + d_data->spacing );
            cr.setWidth(d_data->colorBar.width);
            break;
        }

        case QwtScaleDraw::BottomScale:
        {
            cr.setTop( cr.top() + d_data->spacing );
            cr.setHeight(d_data->colorBar.width);
            break;
        }

        case QwtScaleDraw::TopScale:
        {
            cr.setTop( cr.bottom() - d_data->spacing
                - d_data->colorBar.width + 1 );
            cr.setHeight(d_data->colorBar.width);
            break;
        }
    }

    return cr;
}

int QwtScaleWidget::colorBarWidth ( ) const

Definition at line 903 of file qwt_scale_widget.cpp.

References QwtScaleWidget::PrivateData::colorBar, and QwtScaleWidget::PrivateData::t_colorBar::width.

Referenced by layoutScale(), and QwtPlot::printScale().

{
    return d_data->colorBar.width;
}

const QwtColorMap & QwtScaleWidget::colorMap ( ) const

Definition at line 925 of file qwt_scale_widget.cpp.

References QwtScaleWidget::PrivateData::colorBar, and QwtScaleWidget::PrivateData::t_colorBar::colorMap.

{
    return *d_data->colorBar.colorMap;
}

int QwtScaleWidget::dimForLength	(	int	length,
		const QFont &	scaleFont
	)		const

Find the minimum dimension for a given length. dim is the height, length the width seen in direction of the title.

Parameters:

length	width for horizontal, height for vertical scales
scaleFont	Font of the scale

Returns:: height for horizontal, width for vertical scales

Definition at line 765 of file qwt_scale_widget.cpp.

References QwtScaleWidget::PrivateData::colorBar, QwtScaleDraw::extent(), QwtScaleWidget::PrivateData::t_colorBar::interval, QwtText::isEmpty(), QwtScaleWidget::PrivateData::t_colorBar::isEnabled, QwtDoubleInterval::isValid(), QwtScaleWidget::PrivateData::margin, QwtScaleWidget::PrivateData::penWidth, QwtScaleWidget::PrivateData::scaleDraw, QwtScaleWidget::PrivateData::spacing, QwtScaleWidget::PrivateData::title, titleHeightForWidth(), and QwtScaleWidget::PrivateData::t_colorBar::width.

Referenced by QwtPlotLayout::LayoutData::init(), and minimumSizeHint().

{
    int dim = d_data->margin;
    dim += d_data->scaleDraw->extent(
        QPen(Qt::black, d_data->penWidth), scaleFont);

    if ( !d_data->title.isEmpty() )
        dim += titleHeightForWidth(length) + d_data->spacing;

    if ( d_data->colorBar.isEnabled && d_data->colorBar.interval.isValid() )
        dim += d_data->colorBar.width + d_data->spacing;

    return dim;
}

void QwtScaleWidget::draw ( QPainter * p ) const [protected]

draw the scale

Definition at line 439 of file qwt_scale_widget.cpp.

Referenced by paintEvent().

{
    painter->save();

    QPen scalePen = painter->pen();
    scalePen.setWidth(d_data->penWidth);
    painter->setPen(scalePen);

#if QT_VERSION < 0x040000
    d_data->scaleDraw->draw(painter, colorGroup());
#else
    d_data->scaleDraw->draw(painter, palette());
#endif
    painter->restore();

    if ( d_data->colorBar.isEnabled && d_data->colorBar.width > 0 &&
        d_data->colorBar.interval.isValid() )
    {
        drawColorBar(painter, colorBarRect(rect()));
    }

    QRect r = rect();
    if ( d_data->scaleDraw->orientation() == Qt::Horizontal )
    {
        r.setLeft(r.left() + d_data->borderDist[0]);
        r.setWidth(r.width() - d_data->borderDist[1]);
    }
    else
    {
        r.setTop(r.top() + d_data->borderDist[0]);
        r.setHeight(r.height() - d_data->borderDist[1]);
    }

    if ( !d_data->title.isEmpty() )
    {
        QRect tr = r;
        switch(d_data->scaleDraw->alignment())
        {
            case QwtScaleDraw::LeftScale:
                tr.setRight( r.right() - d_data->titleOffset );
                break;

            case QwtScaleDraw::RightScale:
                tr.setLeft( r.left() + d_data->titleOffset );
                break;

            case QwtScaleDraw::BottomScale:
                tr.setTop( r.top() + d_data->titleOffset );
                break;

            case QwtScaleDraw::TopScale:
            default:
                tr.setBottom( r.bottom() - d_data->titleOffset );
                break;
        }

        drawTitle(painter, d_data->scaleDraw->alignment(), tr);
    }
}

void QwtScaleWidget::drawColorBar	(	QPainter *	painter,
		const QRect &	rect
	)		const

Definition at line 614 of file qwt_scale_widget.cpp.

References QwtScaleWidget::PrivateData::colorBar, QwtScaleWidget::PrivateData::t_colorBar::colorMap, QwtScaleWidget::PrivateData::t_colorBar::interval, QwtDoubleInterval::isValid(), QwtAbstractScaleDraw::map(), QwtDoubleInterval::normalized(), QwtScaleDraw::orientation(), and QwtScaleWidget::PrivateData::scaleDraw.

Referenced by draw(), and QwtPlot::printScale().

{
    if ( !d_data->colorBar.interval.isValid() )
        return;

    const QwtScaleDraw* sd = d_data->scaleDraw;

    QwtPainter::drawColorBar(painter, *d_data->colorBar.colorMap,
        d_data->colorBar.interval.normalized(), sd->map(),
        sd->orientation(), rect);
}

void QwtScaleWidget::drawTitle	(	QPainter *	painter,
		QwtScaleDraw::Alignment	align,
		const QRect &	rect
	)		const

Rotate and paint a title according to its position into a given rectangle.

Parameters:

painter	Painter
align	Alignment
rect	Bounding rectangle

Definition at line 633 of file qwt_scale_widget.cpp.

References QwtScaleDraw::BottomScale, QwtText::draw(), QwtMetricsMap::layoutToDevice(), QwtScaleDraw::LeftScale, QwtPainter::metricsMap(), QwtText::renderFlags(), QwtPainter::resetMetricsMap(), QwtScaleDraw::RightScale, QwtPainter::setMetricsMap(), QwtText::setRenderFlags(), title(), QwtScaleWidget::PrivateData::title, and QwtScaleDraw::TopScale.

Referenced by draw(), and QwtPlot::printScale().

{
    QRect r;
    double angle;
    int flags = d_data->title.renderFlags() &
        ~(Qt::AlignTop | Qt::AlignBottom | Qt::AlignVCenter);

    switch(align)
    {
        case QwtScaleDraw::LeftScale:
            flags |= Qt::AlignTop;
            angle = -90.0;
            r.setRect(rect.left(), rect.bottom(), rect.height(), rect.width());
            break;
        case QwtScaleDraw::RightScale:
            flags |= Qt::AlignTop;
            angle = 90.0;
            r.setRect(rect.right(), rect.top(), rect.height(), rect.width());
            break;
        case QwtScaleDraw::TopScale:
            flags |= Qt::AlignTop;
            angle = 0.0;
            r = rect;
            break;
        case QwtScaleDraw::BottomScale:
        default:
            flags |= Qt::AlignBottom;
            angle = 0.0;
            r = rect;
            break;
    }

    painter->save();
    painter->setFont(font());
#if QT_VERSION < 0x040000
    painter->setPen(colorGroup().color(QColorGroup::Text));
#else
    painter->setPen(palette().color(QPalette::Text));
#endif

    const QwtMetricsMap metricsMap = QwtPainter::metricsMap();
    QwtPainter::resetMetricsMap();

    r = metricsMap.layoutToDevice(r);

    painter->translate(r.x(), r.y());
    if (angle != 0.0)
        painter->rotate(angle);

    QwtText title = d_data->title;
    title.setRenderFlags(flags);
    title.draw(painter, QRect(0, 0, r.width(), r.height()));

    QwtPainter::setMetricsMap(metricsMap); // restore metrics map

    painter->restore();
}

int QwtScaleWidget::endBorderDist ( ) const

Returns:: end border distance

See also:: setBorderDist()

Definition at line 387 of file qwt_scale_widget.cpp.

References QwtScaleWidget::PrivateData::borderDist.

Referenced by QwtPlot::canvasMap(), QwtPlotLayout::LayoutData::init(), and QwtPlot::print().

{
    return d_data->borderDist[1];
}

void QwtScaleWidget::fontChange ( const QFont & oldFont ) [protected, virtual]

Notify a change of the font.

This virtual function may be overloaded by derived widgets. The default implementation resizes the scale and repaints the widget.

Parameters:

oldFont Previous font

Definition at line 842 of file qwt_scale_widget.cpp.

References layoutScale().

{
    QWidget::fontChange( oldFont );
    layoutScale();
}

void QwtScaleWidget::getBorderDistHint	(	int &	start,
		int &	end
	)		const

Calculate a hint for the border distances.

This member function calculates the distance of the scale's endpoints from the widget borders which is required for the mark labels to fit into the widget. The maximum of this distance an the minimum border distance is returned.

Warning:

The minimum border distance depends on the font.

See also:: setMinBorderDist(), getMinBorderDist(), setBorderDist()

Definition at line 793 of file qwt_scale_widget.cpp.

References QwtScaleDraw::getBorderDistHint(), QwtScaleWidget::PrivateData::minBorderDist, and QwtScaleWidget::PrivateData::scaleDraw.

Referenced by QwtPlotPrintFilter::apply(), layoutScale(), minimumSizeHint(), QwtPlotLayout::minimumSizeHint(), QwtPlot::print(), QwtPlotPrintFilter::reset(), and QwtPlot::updateAxes().

{
    d_data->scaleDraw->getBorderDistHint(font(), start, end);

    if ( start < d_data->minBorderDist[0] )
        start = d_data->minBorderDist[0];

    if ( end < d_data->minBorderDist[1] )
        end = d_data->minBorderDist[1];
}

void QwtScaleWidget::getMinBorderDist	(	int &	start,
		int &	end
	)		const

Get the minimum value for the distances of the scale's endpoints from the widget borders.

See also:: setMinBorderDist(), getBorderDistHint()

Definition at line 826 of file qwt_scale_widget.cpp.

References QwtScaleWidget::PrivateData::minBorderDist.

{
    start = d_data->minBorderDist[0];
    end = d_data->minBorderDist[1];
}

bool QwtScaleWidget::isColorBarEnabled ( ) const

Definition at line 887 of file qwt_scale_widget.cpp.

References QwtScaleWidget::PrivateData::colorBar, and QwtScaleWidget::PrivateData::t_colorBar::isEnabled.

Referenced by QwtPlot::printScale(), setColorBarWidth(), and setColorMap().

{
    return d_data->colorBar.isEnabled;
}

void QwtScaleWidget::layoutScale ( bool update = true ) [protected]

Recalculate the scale's geometry and layout based on.

Definition at line 563 of file qwt_scale_widget.cpp.

Referenced by fontChange(), resizeEvent(), scaleChange(), setAlignment(), setBorderDist(), setColorBarEnabled(), setColorBarWidth(), setColorMap(), setLabelRotation(), setMargin(), setPenWidth(), setScaleDiv(), setScaleDraw(), setSpacing(), and setTitle().

{
    int bd0, bd1;
    getBorderDistHint(bd0, bd1);
    if ( d_data->borderDist[0] > bd0 )
        bd0 = d_data->borderDist[0];
    if ( d_data->borderDist[1] > bd1 )
        bd1 = d_data->borderDist[1];

    int colorBarWidth = 0;
    if ( d_data->colorBar.isEnabled && d_data->colorBar.interval.isValid() )
        colorBarWidth = d_data->colorBar.width + d_data->spacing;

    const QRect r = rect();
    int x, y, length;

    if ( d_data->scaleDraw->orientation() == Qt::Vertical )
    {
        y = r.top() + bd0;
        length = r.height() - (bd0 + bd1);

        if ( d_data->scaleDraw->alignment() == QwtScaleDraw::LeftScale )
            x = r.right() - d_data->margin - colorBarWidth;
        else
            x = r.left() + d_data->margin + colorBarWidth;
    }
    else
    {
        x = r.left() + bd0;
        length = r.width() - (bd0 + bd1);

        if ( d_data->scaleDraw->alignment() == QwtScaleDraw::BottomScale )
            y = r.top() + d_data->margin + colorBarWidth;
        else
            y = r.bottom() - d_data->margin - colorBarWidth;
    }

    d_data->scaleDraw->move(x, y);
    d_data->scaleDraw->setLength(length);

    d_data->titleOffset = d_data->margin + d_data->spacing +
        colorBarWidth +
        d_data->scaleDraw->extent(QPen(Qt::black, d_data->penWidth), font());

    if ( update_geometry )
    {
      updateGeometry();
      update();
    }
}

int QwtScaleWidget::margin ( ) const

Returns:: margin

See also:: setMargin()

Definition at line 396 of file qwt_scale_widget.cpp.

References QwtScaleWidget::PrivateData::margin.

Referenced by QwtPlotLayout::LayoutData::init(), QwtPlotLayout::minimumSizeHint(), QwtPlot::print(), and setMargin().

{
    return d_data->margin;
}

QSize QwtScaleWidget::minimumSizeHint ( ) const [virtual]

Returns:: a minimum size hint

Definition at line 716 of file qwt_scale_widget.cpp.

References QwtScaleWidget::PrivateData::borderDist, dimForLength(), getBorderDistHint(), QwtScaleDraw::minLength(), QwtScaleDraw::orientation(), QwtScaleWidget::PrivateData::penWidth, qwtMax, and QwtScaleWidget::PrivateData::scaleDraw.

Referenced by QwtPlotLayout::minimumSizeHint(), sizeHint(), and QwtPlot::sizeHint().

{
    const Qt::Orientation o = d_data->scaleDraw->orientation();

    // Border Distance cannot be less than the scale borderDistHint
    // Note, the borderDistHint is already included in minHeight/minWidth
    int length = 0;
    int mbd1, mbd2;
    getBorderDistHint(mbd1, mbd2);
    length += qwtMax( 0, d_data->borderDist[0] - mbd1 );
    length += qwtMax( 0, d_data->borderDist[1] - mbd2 );
    length += d_data->scaleDraw->minLength(
        QPen(Qt::black, d_data->penWidth), font());

    int dim = dimForLength(length, font());
    if ( length < dim )
    {
        // compensate for long titles
        length = dim;
        dim = dimForLength(length, font());
    }

    QSize size(length + 2, dim);
    if ( o == Qt::Vertical )
        size.transpose();

    return size;
}

void QwtScaleWidget::paintEvent ( QPaintEvent * e ) [protected, virtual]

paintEvent

Definition at line 421 of file qwt_scale_widget.cpp.

References draw(), and QwtPaintBuffer::painter().

{
    const QRect &ur = e->rect();
    if ( ur.isValid() )
    {
#if QT_VERSION < 0x040000
        QwtPaintBuffer paintBuffer(this, ur);
        draw(paintBuffer.painter());
#else
        QPainter painter(this);
        draw(&painter);
#endif
    }
}

int QwtScaleWidget::penWidth ( ) const

Returns:: Scale pen width

See also:: setPenWidth()

Definition at line 414 of file qwt_scale_widget.cpp.

References QwtScaleWidget::PrivateData::penWidth.

Referenced by QwtPlot::printScale().

{
    return d_data->penWidth;
}

void QwtScaleWidget::resizeEvent ( QResizeEvent * e ) [protected, virtual]

resizeEvent

Definition at line 553 of file qwt_scale_widget.cpp.

References layoutScale().

{
    layoutScale(false);
}

void QwtScaleWidget::scaleChange ( ) [protected]

Notify a change of the scale.

This virtual function can be overloaded by derived classes. The default implementation updates the geometry and repaints the widget.

Definition at line 700 of file qwt_scale_widget.cpp.

References layoutScale().

{
    layoutScale();
}

void QwtScaleWidget::scaleDivChanged ( ) [signal]

Signal emitted, whenever the scale divison changes.

Referenced by setScaleDiv().

const QwtScaleDraw * QwtScaleWidget::scaleDraw ( ) const

scaleDraw of this scale

See also:: setScaleDraw(), QwtScaleDraw::setScaleDraw()

Definition at line 351 of file qwt_scale_widget.cpp.

References QwtScaleWidget::PrivateData::scaleDraw.

Referenced by alignment(), QwtPlot::axisScaleDraw(), QwtPlotLayout::LayoutData::init(), QwtPlotLayout::minimumSizeHint(), QwtPlot::printScale(), and QwtPlot::sizeHint().

{
    return d_data->scaleDraw;
}

QwtScaleDraw * QwtScaleWidget::scaleDraw ( )

scaleDraw of this scale

See also:: QwtScaleDraw::setScaleDraw()

Definition at line 360 of file qwt_scale_widget.cpp.

References QwtScaleWidget::PrivateData::scaleDraw.

{
    return d_data->scaleDraw;
}

void QwtScaleWidget::setAlignment ( QwtScaleDraw::Alignment alignment )

Change the alignment

Parameters:

alignment New alignment

See also:: alignment()

Definition at line 193 of file qwt_scale_widget.cpp.

References layoutScale(), QwtScaleDraw::orientation(), QwtScaleWidget::PrivateData::scaleDraw, and QwtScaleDraw::setAlignment().

{
#if QT_VERSION >= 0x040000
    if ( !testAttribute(Qt::WA_WState_OwnSizePolicy) )
#else
    if ( !testWState( WState_OwnSizePolicy ) )
#endif
    {
        QSizePolicy policy(QSizePolicy::MinimumExpanding,
            QSizePolicy::Fixed);
        if ( d_data->scaleDraw->orientation() == Qt::Vertical )
            policy.transpose();
        setSizePolicy(policy);

#if QT_VERSION >= 0x040000
        setAttribute(Qt::WA_WState_OwnSizePolicy, false);
#else
        clearWState( WState_OwnSizePolicy );
#endif
    }

    if (d_data->scaleDraw)
        d_data->scaleDraw->setAlignment(alignment);
    layoutScale();
}

void QwtScaleWidget::setBorderDist	(	int	dist1,
		int	dist2
	)

Specify distances of the scale's endpoints from the widget's borders. The actual borders will never be less than minimum border distance.

Parameters:

dist1	Left or top Distance
dist2	Right or bottom distance

See also:: borderDist()

Definition at line 240 of file qwt_scale_widget.cpp.

References QwtScaleWidget::PrivateData::borderDist, and layoutScale().

Referenced by QwtPlotPrintFilter::apply(), QwtPlotPrintFilter::reset(), and QwtPlot::updateAxes().

{
    if ( dist1 != d_data->borderDist[0] || dist2 != d_data->borderDist[1] )
    {
        d_data->borderDist[0] = dist1;
        d_data->borderDist[1] = dist2;
        layoutScale();
    }
}

void QwtScaleWidget::setColorBarEnabled ( bool on )

Definition at line 878 of file qwt_scale_widget.cpp.

References QwtScaleWidget::PrivateData::colorBar, QwtScaleWidget::PrivateData::t_colorBar::isEnabled, and layoutScale().

{
    if ( on != d_data->colorBar.isEnabled )
    {
        d_data->colorBar.isEnabled = on;
        layoutScale();
    }
}

void QwtScaleWidget::setColorBarWidth ( int width )

Definition at line 893 of file qwt_scale_widget.cpp.

References QwtScaleWidget::PrivateData::colorBar, isColorBarEnabled(), layoutScale(), and QwtScaleWidget::PrivateData::t_colorBar::width.

{
    if ( width != d_data->colorBar.width )
    {
        d_data->colorBar.width = width;
        if ( isColorBarEnabled() )
            layoutScale();
    }
}

void QwtScaleWidget::setColorMap	(	const QwtDoubleInterval &	interval,
		const QwtColorMap &	colorMap
	)

Definition at line 913 of file qwt_scale_widget.cpp.

References QwtScaleWidget::PrivateData::colorBar, QwtScaleWidget::PrivateData::t_colorBar::colorMap, QwtColorMap::copy(), QwtScaleWidget::PrivateData::t_colorBar::interval, isColorBarEnabled(), and layoutScale().

{
    d_data->colorBar.interval = interval;

    delete d_data->colorBar.colorMap;
    d_data->colorBar.colorMap = colorMap.copy();

    if ( isColorBarEnabled() )
        layoutScale();
}

void QwtScaleWidget::setLabelAlignment ( int alignment )

Change the alignment for the labels.

See also:: QwtScaleDraw::setLabelAlignment(), setLabelRotation()

Definition at line 303 of file qwt_scale_widget.cpp.

{
    d_data->scaleDraw->setLabelAlignment(alignment);
    layoutScale();
}

void QwtScaleWidget::setLabelRotation ( double rotation )

Change the rotation for the labels. See QwtScaleDraw::setLabelRotation().

, rotation Rotation

See also:: QwtScaleDraw::setLabelRotation(), setLabelFlags()

Definition at line 319 of file qwt_scale_widget.cpp.

References layoutScale(), QwtScaleWidget::PrivateData::scaleDraw, and QwtScaleDraw::setLabelRotation().

Referenced by QwtPlot::setAxisLabelRotation().

{
    d_data->scaleDraw->setLabelRotation(rotation);
    layoutScale();
}

void QwtScaleWidget::setMargin ( int margin )

Specify the margin to the colorBar/base line.

Parameters:

margin Margin

See also:: margin()

Definition at line 255 of file qwt_scale_widget.cpp.

References layoutScale(), margin(), QwtScaleWidget::PrivateData::margin, and qwtMax.

Referenced by QwtPlot::print().

{
    margin = qwtMax( 0, margin );
    if ( margin != d_data->margin )
    {
        d_data->margin = margin;
        layoutScale();
    }
}

void QwtScaleWidget::setMinBorderDist	(	int	start,
		int	end
	)

Set a minimum value for the distances of the scale's endpoints from the widget borders. This is useful to avoid that the scales are "jumping", when the tick labels or their positions change often.

Parameters:

start	Minimum for the start border
end	Minimum for the end border

See also:: getMinBorderDist(), getBorderDistHint()

Definition at line 814 of file qwt_scale_widget.cpp.

References QwtScaleWidget::PrivateData::minBorderDist.

{
    d_data->minBorderDist[0] = start;
    d_data->minBorderDist[1] = end;
}

void QwtScaleWidget::setPenWidth ( int width )

Specify the width of the scale pen.

Parameters:

width Pen width

See also:: penWidth()

Definition at line 285 of file qwt_scale_widget.cpp.

References layoutScale(), and QwtScaleWidget::PrivateData::penWidth.

{
    if ( width < 0 )
        width = 0;

    if ( width != d_data->penWidth )
    {
        d_data->penWidth = width;
        layoutScale();
    }
}

void QwtScaleWidget::setScaleDiv	(	QwtScaleTransformation *	transformation,
		const QwtScaleDiv &	scaleDiv
	)

Assign a scale division.

The scale division determines where to set the tick marks.

Parameters:

transformation	Transformation, needed to translate between scale and pixal values
scaleDiv	Scale Division

See also:: For more information about scale divisions, see QwtScaleDiv.

Definition at line 860 of file qwt_scale_widget.cpp.

References layoutScale(), QwtAbstractScaleDraw::map(), QwtAbstractScaleDraw::scaleDiv(), scaleDivChanged(), QwtScaleWidget::PrivateData::scaleDraw, QwtAbstractScaleDraw::setScaleDiv(), QwtAbstractScaleDraw::setTransformation(), QwtScaleMap::transformation(), and QwtScaleTransformation::type().

Referenced by QwtPlot::updateAxes().

{
    QwtScaleDraw *sd = d_data->scaleDraw;
    if (sd->scaleDiv() != scaleDiv ||
        sd->map().transformation()->type() != transformation->type() )
    {
        sd->setTransformation(transformation);
        sd->setScaleDiv(scaleDiv);
        layoutScale();

        emit scaleDivChanged();
    }
    else
        delete transformation;
}

void QwtScaleWidget::setScaleDraw ( QwtScaleDraw * sd )

Set a scale draw sd has to be created with new and will be deleted in ~QwtScaleWidget() or the next call of setScaleDraw().

Parameters:

sd	ScaleDraw object

See also:: scaleDraw()

Definition at line 333 of file qwt_scale_widget.cpp.

References QwtScaleDraw::alignment(), layoutScale(), QwtScaleWidget::PrivateData::scaleDraw, and QwtScaleDraw::setAlignment().

Referenced by QwtPlot::setAxisScaleDraw().

{
    if ( sd == NULL || sd == d_data->scaleDraw )
        return;

    if ( d_data->scaleDraw )
        sd->setAlignment(d_data->scaleDraw->alignment());

    delete d_data->scaleDraw;
    d_data->scaleDraw = sd;

    layoutScale();
}

void QwtScaleWidget::setSpacing ( int spacing )

Specify the distance between color bar, scale and title.

Parameters:

spacing Spacing

See also:: spacing()

Definition at line 270 of file qwt_scale_widget.cpp.

References layoutScale(), qwtMax, spacing(), and QwtScaleWidget::PrivateData::spacing.

{
    spacing = qwtMax( 0, spacing );
    if ( spacing != d_data->spacing )
    {
        d_data->spacing = spacing;
        layoutScale();
    }
}

void QwtScaleWidget::setTitle ( const QString & title )

Give title new text contents

Parameters:

title New title

See also:: title(), setTitle(const QwtText &);

Definition at line 156 of file qwt_scale_widget.cpp.

References layoutScale(), QwtText::setText(), QwtText::text(), title(), and QwtScaleWidget::PrivateData::title.

Referenced by QwtPlotPrintFilter::apply(), QwtPlotPrintFilter::reset(), and QwtPlot::setAxisTitle().

{
    if ( d_data->title.text() != title )
    {
        d_data->title.setText(title);
        layoutScale();
    }
}

void QwtScaleWidget::setTitle ( const QwtText & title )

Give title new text contents

Parameters:

title New title

See also:: title()

Warning:: The title flags are interpreted in direction of the label, AlignTop, AlignBottom can't be set as the title will always be aligned to the scale.

Definition at line 174 of file qwt_scale_widget.cpp.

References layoutScale(), QwtText::renderFlags(), QwtText::setRenderFlags(), QuadProgPP::t(), QwtScaleWidget::PrivateData::title, and title().

{
    QwtText t = title;
    const int flags = title.renderFlags() & ~(Qt::AlignTop | Qt::AlignBottom);
    t.setRenderFlags(flags);

    if (t != d_data->title)
    {
        d_data->title = t;
        layoutScale();
    }
}

QSize QwtScaleWidget::sizeHint ( ) const [virtual]

Returns:: a size hint

Definition at line 708 of file qwt_scale_widget.cpp.

References minimumSizeHint().

{
    return minimumSizeHint();
}

int QwtScaleWidget::spacing ( ) const

Returns:: distance between scale and title

See also:: setMargin()

Definition at line 405 of file qwt_scale_widget.cpp.

References QwtScaleWidget::PrivateData::spacing.

Referenced by QwtPlot::printScale(), and setSpacing().

{
    return d_data->spacing;
}

int QwtScaleWidget::startBorderDist ( ) const

Returns:: start border distance

See also:: setBorderDist()

Definition at line 378 of file qwt_scale_widget.cpp.

References QwtScaleWidget::PrivateData::borderDist.

Referenced by QwtPlot::canvasMap(), QwtPlotLayout::LayoutData::init(), and QwtPlot::print().

{
    return d_data->borderDist[0];
}

QwtText QwtScaleWidget::title ( ) const

Returns:: title

See also:: setTitle()

Definition at line 369 of file qwt_scale_widget.cpp.

References QwtScaleWidget::PrivateData::title.

Referenced by QwtPlotPrintFilter::apply(), QwtPlot::axisTitle(), drawTitle(), QwtPlotLayout::expandLineBreaks(), QwtPlotLayout::LayoutData::init(), and setTitle().

{
    return d_data->title;
}

int QwtScaleWidget::titleHeightForWidth ( int width ) const

Find the height of the title for a given width.

Parameters:

width Width

Returns:: height Height

Definition at line 751 of file qwt_scale_widget.cpp.

References QwtText::heightForWidth(), and QwtScaleWidget::PrivateData::title.

Referenced by dimForLength(), QwtPlotLayout::expandLineBreaks(), and QwtPlotLayout::LayoutData::init().

{
    return d_data->title.heightForWidth(width, font());
}

The documentation for this class was generated from the following files:

QwtScaleWidget Class Reference

Classes

Signals

Public Member Functions

Protected Member Functions

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
