QwtText Class Reference

A class representing a text. More...

#include <qwt_text.h>

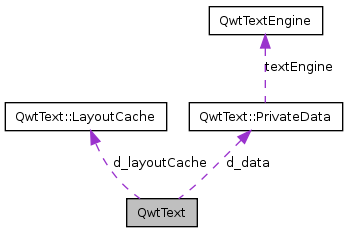

Collaboration diagram for QwtText:

List of all members.

Classes
class	LayoutCache
class	PrivateData
Public Types
enum	TextFormat {   AutoText = 0, PlainText, RichText, MathMLText,   TeXText, OtherFormat = 100 }
	Text format. More...
enum	PaintAttribute { PaintUsingTextFont = 1, PaintUsingTextColor = 2, PaintBackground = 4 }
	Paint Attributes. More...
enum	LayoutAttribute { MinimumLayout = 1 }
	Layout Attributes. More...
Public Member Functions
	QwtText (const QString &=QString::null, TextFormat textFormat=AutoText)
	QwtText (const QwtText &)
	Copy constructor.
	~QwtText ()
	Destructor.
QwtText &	operator= (const QwtText &)
	Assignment operator.
int	operator== (const QwtText &) const
	Relational operator.
int	operator!= (const QwtText &) const
	Relational operator.
void	setText (const QString &, QwtText::TextFormat textFormat=AutoText)
QString	text () const
bool	isNull () const
bool	isEmpty () const
void	setFont (const QFont &)
QFont	font () const
	Return the font.
QFont	usedFont (const QFont &) const
void	setRenderFlags (int flags)
	Change the render flags.
int	renderFlags () const
void	setColor (const QColor &)
QColor	color () const
	Return the pen color, used for painting the text.
QColor	usedColor (const QColor &) const
void	setBackgroundPen (const QPen &)
QPen	backgroundPen () const
void	setBackgroundBrush (const QBrush &)
QBrush	backgroundBrush () const
void	setPaintAttribute (PaintAttribute, bool on=true)
bool	testPaintAttribute (PaintAttribute) const
void	setLayoutAttribute (LayoutAttribute, bool on=true)
bool	testLayoutAttribute (LayoutAttribute) const
int	heightForWidth (int width, const QFont &=QFont()) const
QSize	textSize (const QFont &=QFont()) const
void	draw (QPainter *painter, const QRect &rect) const
Static Public Member Functions
static const QwtTextEngine *	textEngine (const QString &text, QwtText::TextFormat=AutoText)
static const QwtTextEngine *	textEngine (QwtText::TextFormat)
	Find the text engine for a text format.
static void	setTextEngine (QwtText::TextFormat, QwtTextEngine *)

---

Detailed Description

A class representing a text.

A QwtText is a text including a set of attributes how to render it.

• Format
  A text might include control sequences (f.e tags) describing how to render it. Each format (f.e MathML, TeX, Qt Rich Text) has its own set of control sequences, that can be handles by a QwtTextEngine for this format.
• Background
  A text might have a background, defined by a QPen and QBrush to improve its visibility.
• Font
  A text might have an individual font.
• Color
  A text might have an individual color.
• Render Flags
  Flags from Qt::AlignmentFlag and Qt::TextFlag used like in QPainter::drawText.

See also:

QwtTextEngine, QwtTextLabel

Definition at line 51 of file qwt_text.h.

---

Member Enumeration Documentation

enum QwtText::LayoutAttribute

Layout Attributes.

The layout attributes affects some aspects of the layout of the text.

• MinimumLayout
  Layout the text without its margins. This mode is useful if a text needs to be aligned accurately, like the tick labels of a scale. If QwtTextEngine::textMargins is not implemented for the format of the text, MinimumLayout has no effect.

Enumerator:

MinimumLayout

Definition at line 129 of file qwt_text.h.

    {
        MinimumLayout = 1
    };

enum QwtText::PaintAttribute

Paint Attributes.

Font and color and background are optional attributes of a QwtText. The paint attributes hold the information, if they are set.

• PaintUsingTextFont
  The text has an individual font.
• PaintUsingTextColor
  The text has an individual color.
• PaintBackground
  The text has an individual background.

Enumerator:

PaintUsingTextFont
PaintUsingTextColor
PaintBackground

Definition at line 111 of file qwt_text.h.

    {
        PaintUsingTextFont = 1,
        PaintUsingTextColor = 2,
        PaintBackground = 4
    };

enum QwtText::TextFormat

Text format.

The text format defines the QwtTextEngine, that is used to render the text.

• AutoText
  The text format is determined using QwtTextEngine::mightRender for all available text engines in increasing order > PlainText. If none of the text engines can render the text is rendered like PlainText.
• PlainText
  Draw the text as it is, using a QwtPlainTextEngine.
• RichText
  Use the Scribe framework (Qt Rich Text) to render the text.
• MathMLText
  Use a MathML (http://en.wikipedia.org/wiki/MathML) render engine to display the text. The Qwt MathML extension offers such an engine based on the MathML renderer of the Qt solutions package. Unfortunately it is only available for owners of a commercial Qt license.
• TeXText
  Use a TeX (http://en.wikipedia.org/wiki/TeX) render engine to display the text.
• OtherFormat
  The number of text formats can be extended using setTextEngine. Formats >= OtherFormat are not used by Qwt.

See also:

QwtTextEngine, setTextEngine()

Enumerator:

AutoText
PlainText
RichText
MathMLText
TeXText
OtherFormat

Definition at line 85 of file qwt_text.h.

    {
        AutoText = 0,

        PlainText,
        RichText,

        MathMLText,
        TeXText,

        OtherFormat = 100
    };

---

Constructor & Destructor Documentation

QwtText::QwtText	(	const QString &	text = QString::null,
		QwtText::TextFormat	textFormat = AutoText
	)

Constructor

Parameters:

text	Text content
textFormat	Text format

Definition at line 180 of file qwt_text.cpp.

References text(), QwtText::PrivateData::text, textEngine(), and QwtText::PrivateData::textEngine.

{
    d_data = new PrivateData;
    d_data->text = text;
    d_data->textEngine = textEngine(text, textFormat);

    d_layoutCache = new LayoutCache;
}

QwtText::QwtText

(

const QwtText &

other )

Copy constructor.

Definition at line 190 of file qwt_text.cpp.

{
    d_data = new PrivateData;
    *d_data = *other.d_data;

    d_layoutCache = new LayoutCache;
    *d_layoutCache = *other.d_layoutCache;
}

QwtText::~QwtText

(

)

Destructor.

Definition at line 200 of file qwt_text.cpp.

{
    delete d_data;
    delete d_layoutCache;
}

---

Member Function Documentation

QBrush QwtText::backgroundBrush

(

)

const

Returns:

Background brush

See also:

setBackgroundBrush(), backgroundPen()

Definition at line 391 of file qwt_text.cpp.

References QwtText::PrivateData::backgroundBrush.

Referenced by QwtPicker::PickerWidget::updateMask().

{
    return d_data->backgroundBrush;
}

QPen QwtText::backgroundPen

(

)

const

Returns:

Background pen

See also:

setBackgroundPen(), backgroundBrush()

Definition at line 370 of file qwt_text.cpp.

References QwtText::PrivateData::backgroundPen.

{
    return d_data->backgroundPen;
}

QColor QwtText::color

(

)

const

Return the pen color, used for painting the text.

Definition at line 334 of file qwt_text.cpp.

References QwtText::PrivateData::color.

Referenced by QwtPlotPrintFilter::apply(), and setColor().

{
    return d_data->color;
}

void QwtText::draw	(	QPainter *	painter,
		const QRect &	rect
	)		const

Draw a text into a rectangle

Parameters:

painter	Painter
rect	Rectangle

Definition at line 570 of file qwt_text.cpp.

References QwtText::PrivateData::backgroundBrush, QwtText::PrivateData::backgroundPen, QwtText::PrivateData::color, QwtTextEngine::draw(), QwtPainter::drawRect(), font(), QwtText::PrivateData::font, QwtText::PrivateData::layoutAttributes, QwtPainter::metricsMap(), MinimumLayout, QwtText::PrivateData::paintAttributes, PaintBackground, PaintUsingTextColor, PaintUsingTextFont, QwtText::PrivateData::renderFlags, QwtPainter::scaledPen(), QwtMetricsMap::screenToLayoutX(), QwtMetricsMap::screenToLayoutY(), QwtText::PrivateData::text, QwtText::PrivateData::textEngine, and QwtTextEngine::textMargins().

Referenced by QwtLegendItem::drawItem(), QwtScaleDraw::drawLabel(), QwtRoundScaleDraw::drawLabel(), QwtTextLabel::drawText(), QwtScaleWidget::drawTitle(), QwtPicker::drawTracker(), and QwtPlot::printTitle().

{
    if ( d_data->paintAttributes & PaintBackground )
    {
        if ( d_data->backgroundPen != Qt::NoPen ||
            d_data->backgroundBrush != Qt::NoBrush )
        {
            painter->save();
            painter->setPen(QwtPainter::scaledPen(d_data->backgroundPen));
            painter->setBrush(d_data->backgroundBrush);
#if QT_VERSION < 0x040000
            QwtPainter::drawRect(painter, rect);
#else
            const QRect r(rect.x(), rect.y(),
                rect.width() - 1, rect.height() - 1);
            QwtPainter::drawRect(painter, r);
#endif
            painter->restore();
        }
    }

    painter->save();

    if ( d_data->paintAttributes & PaintUsingTextFont )
    {
        painter->setFont(d_data->font);
    }

    if ( d_data->paintAttributes & PaintUsingTextColor )
    {
        if ( d_data->color.isValid() )
            painter->setPen(d_data->color);
    }

    QRect expandedRect = rect;
    if ( d_data->layoutAttributes & MinimumLayout )
    {
#if QT_VERSION < 0x040000
        const QFont font(painter->font());
#else
        // We want to calculate in screen metrics. So
        // we need a font that uses screen metrics

        const QFont font(painter->font(), QApplication::desktop());
#endif

        int left, right, top, bottom;
        d_data->textEngine->textMargins(
            font, d_data->text,
            left, right, top, bottom);

        const QwtMetricsMap map = QwtPainter::metricsMap();
        left = map.screenToLayoutX(left);
        right = map.screenToLayoutX(right);
        top = map.screenToLayoutY(top);
        bottom = map.screenToLayoutY(bottom);

        expandedRect.setTop(rect.top() - top);
        expandedRect.setBottom(rect.bottom() + bottom);
        expandedRect.setLeft(rect.left() - left);
        expandedRect.setRight(rect.right() + right);
    }

    d_data->textEngine->draw(painter, expandedRect,
        d_data->renderFlags, d_data->text);

    painter->restore();
}

QFont QwtText::font

(

)

const

Return the font.

Definition at line 300 of file qwt_text.cpp.

References QwtText::PrivateData::font.

Referenced by QwtPlotPrintFilter::apply(), draw(), heightForWidth(), setFont(), and textSize().

{
    return d_data->font;
}

int QwtText::heightForWidth	(	int	width,
		const QFont &	defaultFont = QFont()
	)		const

Find the height for a given width

Parameters:

defaultFont	Font, used for the calculation if the text has no font
width	Width

Returns:

Calculated height

Definition at line 463 of file qwt_text.cpp.

References font(), QwtTextEngine::heightForWidth(), QwtText::PrivateData::layoutAttributes, QwtMetricsMap::layoutToScreenX(), QwtPainter::metricsMap(), MinimumLayout, QwtText::PrivateData::renderFlags, QwtMetricsMap::screenToLayoutY(), QwtText::PrivateData::text, QwtText::PrivateData::textEngine, QwtTextEngine::textMargins(), and usedFont().

Referenced by QwtPlotLayout::expandLineBreaks(), QwtTextLabel::heightForWidth(), and QwtScaleWidget::titleHeightForWidth().

{
    const QwtMetricsMap map = QwtPainter::metricsMap();
    width = map.layoutToScreenX(width);

#if QT_VERSION < 0x040000
    const QFont font = usedFont(defaultFont);
#else
    // We want to calculate in screen metrics. So
    // we need a font that uses screen metrics

    const QFont font(usedFont(defaultFont), QApplication::desktop());
#endif

    int h = 0;

    if ( d_data->layoutAttributes & MinimumLayout )
    {
        int left, right, top, bottom;
        d_data->textEngine->textMargins(font, d_data->text,
            left, right, top, bottom);

        h = d_data->textEngine->heightForWidth(
            font, d_data->renderFlags, d_data->text,
            width + left + right);

        h -= top + bottom;
    }
    else
    {
        h = d_data->textEngine->heightForWidth(
            font, d_data->renderFlags, d_data->text, width);
    }

    h = map.screenToLayoutY(h);
    return h;
}

bool QwtText::isEmpty

(

)

const [inline]

Returns:

text().isEmpty()

Definition at line 152 of file qwt_text.h.

Referenced by QwtScaleDraw::boundingLabelRect(), QwtScaleWidget::dimForLength(), QwtScaleWidget::draw(), QwtScaleDraw::drawLabel(), QwtRoundScaleDraw::drawLabel(), QwtPicker::drawTracker(), QwtPlotLayout::expandLineBreaks(), QwtRoundScaleDraw::extent(), QwtPlotLayout::LayoutData::init(), QwtScaleDraw::labelRect(), QwtPlot::print(), and QwtPicker::trackerRect().

{ return text().isEmpty(); }

bool QwtText::isNull

(

)

const [inline]

Returns:

text().isNull()

Definition at line 149 of file qwt_text.h.

{ return text().isNull(); }

int QwtText::operator!=

(

const QwtText &

other )

const

Relational operator.

Definition at line 228 of file qwt_text.cpp.

{
   return !(other == *this);
}

QwtText & QwtText::operator=

(

const QwtText &

other )

Assignment operator.

Definition at line 207 of file qwt_text.cpp.

{
    *d_data = *other.d_data;
    *d_layoutCache = *other.d_layoutCache;
    return *this;
}

int QwtText::operator==

(

const QwtText &

other )

const

Relational operator.

Definition at line 215 of file qwt_text.cpp.

References QwtText::PrivateData::backgroundBrush, QwtText::PrivateData::backgroundPen, QwtText::PrivateData::color, QwtText::PrivateData::font, QwtText::PrivateData::paintAttributes, QwtText::PrivateData::renderFlags, QwtText::PrivateData::text, and QwtText::PrivateData::textEngine.

{
    return d_data->renderFlags == other.d_data->renderFlags &&
        d_data->text == other.d_data->text &&
        d_data->font == other.d_data->font &&
        d_data->color == other.d_data->color &&
        d_data->backgroundPen == other.d_data->backgroundPen &&
        d_data->backgroundBrush == other.d_data->backgroundBrush &&
        d_data->paintAttributes == other.d_data->paintAttributes &&
        d_data->textEngine == other.d_data->textEngine;
}

int QwtText::renderFlags

(

)

const

Returns:

Render flags

See also:

setRenderFlags()

Definition at line 281 of file qwt_text.cpp.

References QwtText::PrivateData::renderFlags.

Referenced by QwtScaleWidget::drawTitle(), QwtTextLabel::heightForWidth(), QwtTextLabel::minimumSizeHint(), setRenderFlags(), QwtScaleWidget::setTitle(), and QwtTextLabel::textRect().

{
    return d_data->renderFlags;
}

void QwtText::setBackgroundBrush

(

const QBrush &

brush )

Set the background brush

Parameters:

brush

Background brush

See also:

backgroundBrush(), setBackgroundPen()

Definition at line 381 of file qwt_text.cpp.

References QwtText::PrivateData::backgroundBrush, PaintBackground, and setPaintAttribute().

Referenced by QmitkHistogramWidget::OnSelect().

{
    d_data->backgroundBrush = brush;
    setPaintAttribute(PaintBackground);
}

void QwtText::setBackgroundPen

(

const QPen &

pen )

Set the background pen

Parameters:

pen	Background pen

See also:

backgroundPen(), setBackgroundBrush()

Definition at line 360 of file qwt_text.cpp.

References QwtText::PrivateData::backgroundPen, PaintBackground, and setPaintAttribute().

{
    d_data->backgroundPen = pen;
    setPaintAttribute(PaintBackground);
}

void QwtText::setColor

(

const QColor &

color )

Set the pen color used for painting the text.

Parameters:

color

Color

Note:

Setting the color might have no effect, when the text contains control sequences for setting colors.

Definition at line 327 of file qwt_text.cpp.

References color(), QwtText::PrivateData::color, PaintUsingTextColor, and setPaintAttribute().

Referenced by QwtPlotPrintFilter::apply(), and QwtPlotPrintFilter::reset().

{
    d_data->color = color;
    setPaintAttribute(PaintUsingTextColor);
}

void QwtText::setFont

(

const QFont &

font )

Set the font.

Parameters:

font

Font

Note:

Setting the font might have no effect, when the text contains control sequences for setting fonts.

Definition at line 293 of file qwt_text.cpp.

References font(), QwtText::PrivateData::font, PaintUsingTextFont, and setPaintAttribute().

Referenced by QwtPlotPrintFilter::apply(), QwtPicker::drawTracker(), QwtPlotLayout::LayoutData::init(), QmitkHistogramWidget::OnSelect(), QmitkHistogramWidget::QmitkHistogramWidget(), and QwtPlotPrintFilter::reset().

{
    d_data->font = font;
    setPaintAttribute(PaintUsingTextFont);
}

void QwtText::setLayoutAttribute	(	LayoutAttribute	attribute,
		bool	on = true
	)

Change a layout attribute

Parameters:

attribute	Layout attribute
on	On/Off

See also:

testLayoutAttribute()

Definition at line 434 of file qwt_text.cpp.

References QwtText::PrivateData::layoutAttributes.

Referenced by QwtAbstractScaleDraw::tickLabel().

{
    if ( on )
        d_data->layoutAttributes |= attribute;
    else
        d_data->layoutAttributes &= ~attribute;
}

void QwtText::setPaintAttribute	(	PaintAttribute	attribute,
		bool	on = true
	)

Change a paint attribute

Parameters:

attribute	Paint attribute
on	On/Off

Note:

Used by setFont(), setColor(), setBackgroundPen() and setBackgroundBrush()

See also:

testPaintAttribute()

Definition at line 406 of file qwt_text.cpp.

References QwtText::PrivateData::paintAttributes.

Referenced by setBackgroundBrush(), setBackgroundPen(), setColor(), and setFont().

{
    if ( on )
        d_data->paintAttributes |= attribute;
    else
        d_data->paintAttributes &= ~attribute;
}

void QwtText::setRenderFlags

(

int

renderFlags )

Change the render flags.

The default setting is Qt::AlignCenter

Parameters:

renderFlags

Bitwise OR of the flags used like in QPainter::drawText

See also:

renderFlags(), QwtTextEngine::draw()

Note:

Some renderFlags might have no effect, depending on the text format.

Definition at line 268 of file qwt_text.cpp.

References QwtText::LayoutCache::invalidate(), renderFlags(), and QwtText::PrivateData::renderFlags.

Referenced by QwtScaleWidget::drawTitle(), QwtLegendItem::setText(), QwtScaleWidget::setTitle(), and QwtAbstractScaleDraw::tickLabel().

{
    if ( renderFlags != d_data->renderFlags )
    {
        d_data->renderFlags = renderFlags;
        d_layoutCache->invalidate();
    }
}

void QwtText::setText	(	const QString &	text,
		QwtText::TextFormat	textFormat = AutoText
	)

Assign a new text content

Parameters:

text	Text content
textFormat	Text format

See also:

text()

Definition at line 241 of file qwt_text.cpp.

References QwtText::LayoutCache::invalidate(), text(), QwtText::PrivateData::text, textEngine(), and QwtText::PrivateData::textEngine.

Referenced by QwtTextLabel::setText(), and QwtScaleWidget::setTitle().

{
    d_data->text = text;
    d_data->textEngine = textEngine(text, textFormat);
    d_layoutCache->invalidate();
}

void QwtText::setTextEngine	(	QwtText::TextFormat	format,
		QwtTextEngine *	engine
	)		[static]

Assign/Replace a text engine for a text format

With setTextEngine it is possible to extend Qwt with other types of text formats.

Owner of a commercial Qt license can build the qwtmathml library, that is based on the MathML renderer, that is included in MML Widget component of the Qt solutions package.

For QwtText::PlainText it is not allowed to assign a engine == NULL.

Parameters:

format	Text format
engine	Text engine

See also:

QwtMathMLTextEngine

Warning:

Using QwtText::AutoText does nothing.

Definition at line 687 of file qwt_text.cpp.

References QwtTextEngineDict::setTextEngine().

{
    if ( engineDict == NULL )
        engineDict = new QwtTextEngineDict();

    engineDict->setTextEngine(format, engine);
}

bool QwtText::testLayoutAttribute

(

LayoutAttribute

attribute )

const

Test a layout attribute

Parameters:

attribute

Layout attribute

Returns:

true, if attribute is enabled

See also:

setLayoutAttribute()

Definition at line 450 of file qwt_text.cpp.

References QwtText::PrivateData::layoutAttributes.

{
    return d_data->layoutAttributes | attribute;
}

bool QwtText::testPaintAttribute

(

PaintAttribute

attribute )

const

Test a paint attribute

Parameters:

attribute

Paint attribute

Returns:

true, if attribute is enabled

See also:

setPaintAttribute()

Definition at line 422 of file qwt_text.cpp.

References QwtText::PrivateData::paintAttributes.

Referenced by QwtPlotPrintFilter::apply(), QwtPlotLayout::LayoutData::init(), QwtPlotPrintFilter::reset(), and QwtPicker::PickerWidget::updateMask().

{
    return d_data->paintAttributes & attribute;
}

QString QwtText::text

(

)

const

Return the text.

See also:

setText()

Definition at line 253 of file qwt_text.cpp.

References QwtText::PrivateData::text.

Referenced by QwtPlot::grabProperties(), QwtText(), setText(), and QwtScaleWidget::setTitle().

{
    return d_data->text;
}

const QwtTextEngine * QwtText::textEngine

(

QwtText::TextFormat

format )

[static]

Find the text engine for a text format.

textEngine can be used to find out if a text format is supported. F.e, if one wants to use MathML labels, the MathML renderer from the commercial Qt solutions package might be required, that is not available in Qt Open Source Edition environments.

Parameters:

format

Text format

Returns:

The text engine, or NULL if no engine is available.

Definition at line 707 of file qwt_text.cpp.

References QwtTextEngineDict::textEngine().

{
    if ( engineDict == NULL )
        engineDict = new QwtTextEngineDict();

    return engineDict->textEngine(format);
}

const QwtTextEngine * QwtText::textEngine	(	const QString &	text,
		QwtText::TextFormat	format = AutoText
	)		[static]

Find the text engine for a text format

In case of QwtText::AutoText the first text engine (beside QwtPlainTextEngine) is returned, where QwtTextEngine::mightRender returns true. If there is none QwtPlainTextEngine is returnd.

If no text engine is registered for the format QwtPlainTextEngine is returnd.

Parameters:

text	Text, needed in case of AutoText
format	Text format

Definition at line 652 of file qwt_text.cpp.

References QwtTextEngineDict::textEngine().

Referenced by QwtText(), and setText().

{
    if ( engineDict == NULL )
    {
        /*
          Note: engineDict is allocated, the first time it is used,
                but never deleted, because there is no known last access time.
                So don't be irritated, if it is reported as a memory leak
                from your memory profiler.
         */
        engineDict = new QwtTextEngineDict();
    }

    return engineDict->textEngine(text, format);
}

QSize QwtText::textSize

(

const QFont &

defaultFont = QFont() )

const

Find the height for a given width

Parameters:

defaultFont

Font, used for the calculation if the text has no font

Returns:

Calculated height

Returns the size, that is needed to render text

Parameters:

defaultFont

Font of the text

Returns:

Caluclated size

Definition at line 515 of file qwt_text.cpp.

References QwtText::LayoutCache::font, font(), QwtMetricsMap::isIdentity(), QwtText::PrivateData::layoutAttributes, QwtPainter::metricsMap(), MinimumLayout, QwtText::PrivateData::renderFlags, QwtMetricsMap::screenToLayout(), QwtText::PrivateData::text, QwtText::PrivateData::textEngine, QwtTextEngine::textMargins(), QwtTextEngine::textSize(), QwtText::LayoutCache::textSize, and usedFont().

Referenced by QwtScaleDraw::boundingLabelRect(), QwtScaleDraw::drawLabel(), QwtRoundScaleDraw::drawLabel(), QwtRoundScaleDraw::extent(), QwtScaleDraw::labelRect(), QwtTextLabel::minimumSizeHint(), QwtAbstractScaleDraw::tickLabel(), and QwtPicker::trackerRect().

{
#if QT_VERSION < 0x040000
    const QFont font(usedFont(defaultFont));
#else
    // We want to calculate in screen metrics. So
    // we need a font that uses screen metrics

    const QFont font(usedFont(defaultFont), QApplication::desktop());
#endif

    if ( !d_layoutCache->textSize.isValid()
        || d_layoutCache->font != font )
    {
        d_layoutCache->textSize = d_data->textEngine->textSize(
            font, d_data->renderFlags, d_data->text);
        d_layoutCache->font = font;
    }

    QSize sz = d_layoutCache->textSize;

    const QwtMetricsMap map = QwtPainter::metricsMap();

    if ( d_data->layoutAttributes & MinimumLayout )
    {
        int left, right, top, bottom;
        d_data->textEngine->textMargins(font, d_data->text,
            left, right, top, bottom);
        sz -= QSize(left + right, top + bottom);

#if QT_VERSION >= 0x040000
        if ( !map.isIdentity() )
        {
#ifdef __GNUC__
#endif
            /*
                When printing in high resolution, the tick labels
                of are cut of. We need to find out why, but for
                the moment we add a couple of pixels instead.
             */
            sz += QSize(3, 2);
        }
#endif
    }

    sz = map.screenToLayout(sz);
    return sz;
}

QColor QwtText::usedColor

(

const QColor &

defaultColor )

const

Return the color of the text, if it has one. Otherwise return defaultColor.

Parameters:

defaultColor

Default color

See also:

setColor(), color(), PaintAttributes

Definition at line 346 of file qwt_text.cpp.

References QwtText::PrivateData::color, QwtText::PrivateData::paintAttributes, and PaintUsingTextColor.

{
    if ( d_data->paintAttributes & PaintUsingTextColor )
        return d_data->color;

    return defaultColor;
}

QFont QwtText::usedFont

(

const QFont &

defaultFont )

const

Return the font of the text, if it has one. Otherwise return defaultFont.

Parameters:

defaultFont

Default font

See also:

setFont(), font(), PaintAttributes

Definition at line 312 of file qwt_text.cpp.

References QwtText::PrivateData::font, QwtText::PrivateData::paintAttributes, and PaintUsingTextFont.

Referenced by QwtPicker::drawTracker(), heightForWidth(), and textSize().

{
    if ( d_data->paintAttributes & PaintUsingTextFont )
        return d_data->font;

    return defaultFont;
}

---

The documentation for this class was generated from the following files:

• qwt_text.h
• qwt_text.cpp
