A plot item, that represents a series of points. More...

#include <qwt_plot_curve.h>

Inheritance diagram for QwtPlotCurve:

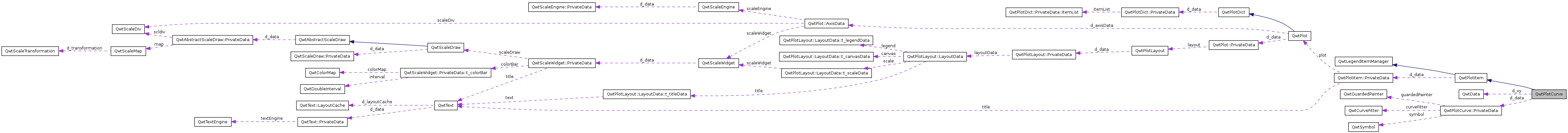

Collaboration diagram for QwtPlotCurve:

Classes
class	PrivateData
Public Types
enum	CurveType { Yfx, Xfy }
enum	CurveStyle { NoCurve, Lines, Sticks, Steps, Dots, UserCurve = 100 }
enum	CurveAttribute { Inverted = 1, Fitted = 2 }
enum	PaintAttribute { PaintFiltered = 1, ClipPolygons = 2 }
Public Member Functions
	QwtPlotCurve ()
	Constructor.
	QwtPlotCurve (const QwtText &title)
	QwtPlotCurve (const QString &title)
virtual	~QwtPlotCurve ()
	Destructor.
virtual int	rtti () const
void	setCurveType (CurveType)
CurveType	curveType () const
void	setPaintAttribute (PaintAttribute, bool on=true)
bool	testPaintAttribute (PaintAttribute) const
	Return the current paint attributes.
void	setRawData (const double x, const double y, int size)
	Initialize the data by pointing to memory blocks which are not managed by QwtPlotCurve.
void	setData (const double xData, const double yData, int size)
void	setData (const QMemArray< double > &xData, const QMemArray< double > &yData)
void	setData (const QMemArray< QwtDoublePoint > &data)
void	setData (const QwtData &data)
int	closestPoint (const QPoint &pos, double *dist=NULL) const
QwtData &	data ()
const QwtData &	data () const
int	dataSize () const
double	x (int i) const
double	y (int i) const
virtual QwtDoubleRect	boundingRect () const
double	minXValue () const
	boundingRect().left()
double	maxXValue () const
	boundingRect().right()
double	minYValue () const
	boundingRect().top()
double	maxYValue () const
	boundingRect().bottom()
void	setCurveAttribute (CurveAttribute, bool on=true)
bool	testCurveAttribute (CurveAttribute) const
void	setPen (const QPen &)
const QPen &	pen () const
	Return the pen used to draw the lines.
void	setBrush (const QBrush &)
	Assign a brush.
const QBrush &	brush () const
	Return the brush used to fill the area between lines and the baseline.
void	setBaseline (double ref)
	Set the value of the baseline.
double	baseline () const
void	setStyle (CurveStyle style)
CurveStyle	style () const
void	setSymbol (const QwtSymbol &s)
	Assign a symbol.
const QwtSymbol &	symbol () const
	Return the current symbol.
void	setCurveFitter (QwtCurveFitter *)
QwtCurveFitter *	curveFitter () const
virtual void	draw (QPainter *p, const QwtScaleMap &xMap, const QwtScaleMap &yMap, const QRect &) const
	Draw the complete curve.
virtual void	draw (QPainter *p, const QwtScaleMap &xMap, const QwtScaleMap &yMap, int from, int to) const
	Draw an interval of the curve.
void	draw (int from, int to) const
	Draw a set of points of a curve.
virtual void	updateLegend (QwtLegend *) const
	Update the widget that represents the curve on the legend.
Protected Member Functions
void	init ()
	Initialize data members.
virtual void	drawCurve (QPainter *p, int style, const QwtScaleMap &xMap, const QwtScaleMap &yMap, int from, int to) const
	Draw the line part (without symbols) of a curve interval.
virtual void	drawSymbols (QPainter *p, const QwtSymbol &, const QwtScaleMap &xMap, const QwtScaleMap &yMap, int from, int to) const
	Draw symbols.
void	drawLines (QPainter *p, const QwtScaleMap &xMap, const QwtScaleMap &yMap, int from, int to) const
	Draw lines.
void	drawSticks (QPainter *p, const QwtScaleMap &xMap, const QwtScaleMap &yMap, int from, int to) const
void	drawDots (QPainter *p, const QwtScaleMap &xMap, const QwtScaleMap &yMap, int from, int to) const
void	drawSteps (QPainter *p, const QwtScaleMap &xMap, const QwtScaleMap &yMap, int from, int to) const
void	fillCurve (QPainter *, const QwtScaleMap &, const QwtScaleMap &, QwtPolygon &) const
void	closePolyline (const QwtScaleMap &, const QwtScaleMap &, QwtPolygon &) const
	Complete a polygon to be a closed polygon including the area between the original polygon and the baseline.

Detailed Description

A plot item, that represents a series of points.

A curve is the representation of a series of points in the x-y plane. It supports different display styles, interpolation ( f.e. spline ) and symbols.

Usage

a) Assign curve properties: When a curve is created, it is configured to draw black solid lines with in Lines style and no symbols. You can change this by calling setPen(), setStyle() and setSymbol().
b) Connect/Assign data.: QwtPlotCurve gets its points using a QwtData object offering a bridge to the real storage of the points ( like QAbstractItemModel ). There are several convenience classes derived from QwtData, that also store the points inside ( like QStandardItemModel ). QwtPlotCurve also offers a couple of variations of setData(), that build QwtData objects from arrays internally.
c) Attach the curve to a plot: See QwtPlotItem::attach()

Example:: see examples/bode

See also:: QwtPlot, QwtData, QwtSymbol, QwtScaleMap

Definition at line 54 of file qwt_plot_curve.h.

Member Enumeration Documentation

enum QwtPlotCurve::CurveAttribute

Attribute for drawing the curve

Fitted ( in combination with the Lines QwtPlotCurve::CurveStyle only )
A QwtCurveFitter tries to interpolate/smooth the curve, before it is painted. Note that curve fitting requires temorary memory for calculating coefficients and additional points. If painting in Fitted mode is slow it might be better to fit the points, before they are passed to QwtPlotCurve.
Inverted
For Steps only. Draws a step function from the right to the left.

See also:: setCurveAttribute(), testCurveAttribute(), curveFitter()

Enumerator:

Inverted
Fitted

Definition at line 134 of file qwt_plot_curve.h.

    {
        Inverted = 1,
        Fitted = 2
    };

enum QwtPlotCurve::CurveStyle

Curve styles.

NoCurve
Don't draw a curve. Note: This doesn't affect the symbols.
Lines
Connect the points with straight lines. The lines might be interpolated depending on the 'Fitted' attribute. Curve fitting can be configured using setCurveFitter().
Sticks
Draw vertical(Yfx) or horizontal(Xfy) sticks from a baseline which is defined by setBaseline().
Steps
Connect the points with a step function. The step function is drawn from the left to the right or vice versa, depending on the 'Inverted' attribute.
Dots
Draw dots at the locations of the data points. Note: This is different from a dotted line (see setPen()), and faster as a curve in NoStyle style and a symbol painting a point.
UserCurve
Styles >= UserCurve are reserved for derived classes of QwtPlotCurve that overload drawCurve() with additional application specific curve types.

See also:: setStyle(), style()

Enumerator:

NoCurve
Lines
Sticks
Steps
Dots
UserCurve

Definition at line 106 of file qwt_plot_curve.h.

    {
        NoCurve,

        Lines,
        Sticks,
        Steps,
        Dots,

        UserCurve = 100
    };

enum QwtPlotCurve::CurveType

Curve type.

Yfx
Draws y as a function of x (the default). The baseline is interpreted as a horizontal line with y = baseline().
Xfy
Draws x as a function of y. The baseline is interpreted as a vertical line with x = baseline().

The baseline is used for aligning the sticks, or filling the curve with a brush.

See also:: setCurveType(), curveType(), baseline() brush()

Enumerator:

Yfx
Xfy

Definition at line 73 of file qwt_plot_curve.h.

    {
        Yfx,
        Xfy
    };

enum QwtPlotCurve::PaintAttribute

Attributes to modify the drawing algorithm.

PaintFiltered
Tries to reduce the data that has to be painted, by sorting out duplicates, or paintings outside the visible area. Might have a notable impact on curves with many close points. Only a couple of very basic filtering algos are implemented.
ClipPolygons
Clip polygons before painting them. In situations, where points are far outside the visible area (f.e when zooming deep) this might be a substantial improvement for the painting performance ( especially on Windows ).

The default is, that no paint attributes are enabled.

See also:: setPaintAttribute(), testPaintAttribute()

Enumerator:

PaintFiltered
ClipPolygons

Definition at line 158 of file qwt_plot_curve.h.

    {
        PaintFiltered = 1,
        ClipPolygons = 2
    };

Constructor & Destructor Documentation

QwtPlotCurve::QwtPlotCurve ( ) [explicit]

Constructor.

Definition at line 225 of file qwt_plot_curve.cpp.

References init().

                          :
    QwtPlotItem(QwtText())
{
    init();
}

QwtPlotCurve::QwtPlotCurve ( const QwtText & title ) [explicit]

Constructor

Parameters:

title Title of the curve

Definition at line 235 of file qwt_plot_curve.cpp.

References init().

                                              :
    QwtPlotItem(title)
{
    init();
}

QwtPlotCurve::QwtPlotCurve ( const QString & title ) [explicit]

Constructor

Parameters:

title Title of the curve

Definition at line 245 of file qwt_plot_curve.cpp.

References init().

                                              :
    QwtPlotItem(QwtText(title))
{
    init();
}

QwtPlotCurve::~QwtPlotCurve ( ) [virtual]

Destructor.

Definition at line 252 of file qwt_plot_curve.cpp.

{
    delete d_xy;
    delete d_data;
}

Member Function Documentation

double QwtPlotCurve::baseline ( ) const

Return the value of the baseline

See also:: setBaseline()

Definition at line 1231 of file qwt_plot_curve.cpp.

References QwtPlotCurve::PrivateData::reference.

{
    return d_data->reference;
}

QwtDoubleRect QwtPlotCurve::boundingRect ( ) const [virtual]

Returns the bounding rectangle of the curve data. If there is no bounding rect, like for empty data the rectangle is invalid.

See also:: QwtData::boundingRect(), QwtDoubleRect::isValid()

Reimplemented from QwtPlotItem.

Definition at line 499 of file qwt_plot_curve.cpp.

References QwtData::boundingRect().

{
    if ( d_xy == NULL )
        return QwtDoubleRect(1.0, 1.0, -2.0, -2.0); // invalid

    return d_xy->boundingRect();
}

const QBrush & QwtPlotCurve::brush ( ) const

Return the brush used to fill the area between lines and the baseline.

See also:: setBrush(), setBaseline(), baseline()

Definition at line 402 of file qwt_plot_curve.cpp.

References QwtPlotCurve::PrivateData::brush.

Referenced by setBrush().

{
    return d_data->brush;
}

void QwtPlotCurve::closePolyline	(	const QwtScaleMap &	xMap,
		const QwtScaleMap &	yMap,
		QwtPolygon &	pa
	)		const `[protected]`

Complete a polygon to be a closed polygon including the area between the original polygon and the baseline.

Parameters:

xMap	X map
yMap	Y map
pa	Polygon to be completed

Definition at line 1123 of file qwt_plot_curve.cpp.

References QwtPlotCurve::PrivateData::curveType, QwtPlotCurve::PrivateData::reference, QwtScaleMap::transform(), and Xfy.

Referenced by fillCurve().

{
    const int sz = pa.size();
    if ( sz < 2 )
        return;

    pa.resize(sz + 2);

    if ( d_data->curveType == QwtPlotCurve::Xfy )
    {
        pa.setPoint(sz,
            xMap.transform(d_data->reference), pa.point(sz - 1).y());
        pa.setPoint(sz + 1,
            xMap.transform(d_data->reference), pa.point(0).y());
    }
    else
    {
        pa.setPoint(sz,
            pa.point(sz - 1).x(), yMap.transform(d_data->reference));
        pa.setPoint(pa.size() - 1,
            pa.point(0).x(), yMap.transform(d_data->reference));
    }
}

int QwtPlotCurve::closestPoint	(	const QPoint &	pos,
		double *	dist = `NULL`
	)		const

Find the closest curve point for a specific position

Parameters:

pos	Position, where to look for the closest curve point
dist	If dist != NULL, closestPoint() returns the distance between the position and the clostest curve point

Returns:: Index of the closest curve point, or -1 if none can be found ( f.e when the curve has no points )

Note:: closestPoint() implements a dumb algorithm, that iterates over all points

Definition at line 1256 of file qwt_plot_curve.cpp.

References QwtPlot::canvasMap(), dataSize(), QwtPlotItem::plot(), qwtSqr(), QuadProgPP::sqrt(), x(), QwtPlotItem::xAxis(), QwtScaleMap::xTransform(), y(), and QwtPlotItem::yAxis().

{
    if ( plot() == NULL || dataSize() <= 0 )
        return -1;

    const QwtScaleMap xMap = plot()->canvasMap(xAxis());
    const QwtScaleMap yMap = plot()->canvasMap(yAxis());

    int index = -1;
    double dmin = 1.0e10;

    for (int i=0; i < dataSize(); i++)
    {
        const double cx = xMap.xTransform(x(i)) - pos.x();
        const double cy = yMap.xTransform(y(i)) - pos.y();

        const double f = qwtSqr(cx) + qwtSqr(cy);
        if (f < dmin)
        {
            index = i;
            dmin = f;
        }
    }
    if ( dist )
        *dist = sqrt(dmin);

    return index;
}

QwtCurveFitter * QwtPlotCurve::curveFitter ( ) const

Get the curve fitter. If curve fitting is disabled NULL is returned.

Returns:: Curve fitter

Definition at line 1074 of file qwt_plot_curve.cpp.

References QwtPlotCurve::PrivateData::curveFitter.

Referenced by setCurveFitter().

{
    return d_data->curveFitter;
}

QwtPlotCurve::CurveType QwtPlotCurve::curveType ( ) const

Return the curve type

See also:: CurveType, setCurveType()

Definition at line 1051 of file qwt_plot_curve.cpp.

References QwtPlotCurve::PrivateData::curveType.

Referenced by setCurveType().

{
    return d_data->curveType;
}

QwtData & QwtPlotCurve::data ( ) [inline]

Returns:: the the curve data

Definition at line 280 of file qwt_plot_curve.h.

{
    return *d_xy;
}

const QwtData & QwtPlotCurve::data ( ) const [inline]

Returns:: the the curve data

Definition at line 286 of file qwt_plot_curve.h.

{
    return *d_xy;
}

int QwtPlotCurve::dataSize ( ) const

Return the size of the data arrays

See also:: setData()

Definition at line 1240 of file qwt_plot_curve.cpp.

References QwtData::size().

Referenced by closestPoint(), draw(), and drawCurve().

{
    return d_xy->size();
}

void QwtPlotCurve::draw	(	QPainter *	painter,
		const QwtScaleMap &	xMap,
		const QwtScaleMap &	yMap,
		const QRect &
	)		const `[virtual]`

Draw the complete curve.

Parameters:

painter	Painter
xMap	Maps x-values into pixel coordinates.
yMap	Maps y-values into pixel coordinates.

See also:: drawCurve(), drawSymbols()

Implements QwtPlotItem.

Definition at line 516 of file qwt_plot_curve.cpp.

Referenced by draw().

{
    draw(painter, xMap, yMap, 0, -1);
}

void QwtPlotCurve::draw	(	QPainter *	painter,
		const QwtScaleMap &	xMap,
		const QwtScaleMap &	yMap,
		int	from,
		int	to
	)		const `[virtual]`

Draw an interval of the curve.

Parameters:

painter	Painter
xMap	maps x-values into pixel coordinates.
yMap	maps y-values into pixel coordinates.
from	index of the first point to be painted
to	index of the last point to be painted. If to < 0 the curve will be painted to its last point.

See also:: drawCurve(), drawSymbols(),

Definition at line 626 of file qwt_plot_curve.cpp.

References dataSize(), drawCurve(), drawSymbols(), QwtSymbol::NoSymbol, QwtPlotCurve::PrivateData::pen, QwtPainter::scaledPen(), QwtSymbol::style(), QwtPlotCurve::PrivateData::style, QwtPlotCurve::PrivateData::symbol, and verifyRange().

{
    if ( !painter || dataSize() <= 0 )
        return;

    if (to < 0)
        to = dataSize() - 1;

    if ( verifyRange(dataSize(), from, to) > 0 )
    {
        painter->save();
        painter->setPen(QwtPainter::scaledPen(d_data->pen));

        /*
          Qt 4.0.0 is slow when drawing lines, but it's even
          slower when the painter has a brush. So we don't
          set the brush before we really need it.
         */

        drawCurve(painter, d_data->style, xMap, yMap, from, to);
        painter->restore();

        if (d_data->symbol->style() != QwtSymbol::NoSymbol)
        {
            painter->save();
            drawSymbols(painter, *d_data->symbol, xMap, yMap, from, to);
            painter->restore();
        }
    }
}

void QwtPlotCurve::draw	(	int	from,
		int	to
	)		const

Draw a set of points of a curve.

When observing an measurement while it is running, new points have to be added to an existing curve. drawCurve can be used to display them avoiding a complete redraw of the canvas.

Setting plot()->canvas()->setAttribute(Qt::WA_PaintOutsidePaintEvent, true); will result in faster painting, if the paint engine of the canvas widget supports this feature.

Parameters:

from	Index of the first point to be painted
to	Index of the last point to be painted. If to < 0 the curve will be painted to its last point.

See also:: drawCurve(), drawSymbols()

Definition at line 540 of file qwt_plot_curve.cpp.

References QwtGuardedPainter::begin(), QwtPlot::canvas(), QwtPlot::canvasMap(), draw(), QwtPlotCurve::PrivateData::guardedPainter, QwtPlotCanvas::paintCache(), QwtPlotCanvas::PaintCached, QwtPlotItem::plot(), QwtPlotCanvas::testPaintAttribute(), QwtPlotItem::xAxis(), and QwtPlotItem::yAxis().

{
    if ( !plot() )
        return;

    QwtPlotCanvas *canvas = plot()->canvas();

#if QT_VERSION >= 0x040000
#if 0
    if ( canvas->paintEngine()->type() == QPaintEngine::OpenGL )
    {
        /*
            OpenGL alway repaint the complete widget.
            So for this operation OpenGL is one of the slowest
            environments.
         */
        canvas->repaint();
        return;
    }
#endif

    if ( !canvas->testAttribute(Qt::WA_WState_InPaintEvent) &&
        !canvas->testAttribute(Qt::WA_PaintOutsidePaintEvent) )
    {
        /*
          We save curve and range in helper and call repaint.
          The helper filters the Paint event, to repeat
          the QwtPlotCurve::draw, but now from inside the paint
          event.
         */

        QwtPlotCurvePaintHelper helper(this, from, to);
        canvas->installEventFilter(&helper);

        const bool noSystemBackground =
            canvas->testAttribute(Qt::WA_NoSystemBackground);
        canvas->setAttribute(Qt::WA_NoSystemBackground, true);
        canvas->repaint();
        canvas->setAttribute(Qt::WA_NoSystemBackground, noSystemBackground);

        return;
    }
#endif

    const QwtScaleMap xMap = plot()->canvasMap(xAxis());
    const QwtScaleMap yMap = plot()->canvasMap(yAxis());

    if ( canvas->testPaintAttribute(QwtPlotCanvas::PaintCached) &&
        canvas->paintCache() && !canvas->paintCache()->isNull() )
    {
        QPainter cachePainter((QPixmap *)canvas->paintCache());
        cachePainter.translate(-canvas->contentsRect().x(),
            -canvas->contentsRect().y());

        draw(&cachePainter, xMap, yMap, from, to);
    }

#if QT_VERSION >= 0x040000
    if ( canvas->testAttribute(Qt::WA_WState_InPaintEvent) )
    {
        QPainter painter(canvas);

        painter.setClipping(true);
        painter.setClipRect(canvas->contentsRect());

        draw(&painter, xMap, yMap, from, to);
    }
    else
#endif
    {
        QPainter *painter = d_data->guardedPainter.begin(canvas);
        draw(painter, xMap, yMap, from, to);
    }
}

void QwtPlotCurve::drawCurve	(	QPainter *	painter,
		int	style,
		const QwtScaleMap &	xMap,
		const QwtScaleMap &	yMap,
		int	from,
		int	to
	)		const `[protected, virtual]`

Draw the line part (without symbols) of a curve interval.

Parameters:

painter	Painter
style	curve style, see QwtPlotCurve::CurveStyle
xMap	x map
yMap	y map
from	index of the first point to be painted
to	index of the last point to be painted

See also:: draw(), drawDots(), drawLines(), drawSteps(), drawSticks()

Definition at line 670 of file qwt_plot_curve.cpp.

References dataSize(), Dots, drawDots(), drawLines(), drawSteps(), drawSticks(), Fitted, Lines, NoCurve, Steps, Sticks, and testCurveAttribute().

Referenced by draw().

{
    switch (style)
    {
        case Lines:
            if ( testCurveAttribute(Fitted) )
            {
                // we always need the complete
                // curve for fitting
                from = 0;
                to = dataSize() - 1;
            }
            drawLines(painter, xMap, yMap, from, to);
            break;
        case Sticks:
            drawSticks(painter, xMap, yMap, from, to);
            break;
        case Steps:
            drawSteps(painter, xMap, yMap, from, to);
            break;
        case Dots:
            drawDots(painter, xMap, yMap, from, to);
            break;
        case NoCurve:
        default:
            break;
    }
}

void QwtPlotCurve::drawDots	(	QPainter *	painter,
		const QwtScaleMap &	xMap,
		const QwtScaleMap &	yMap,
		int	from,
		int	to
	)		const `[protected]`

Draw dots

Parameters:

painter	Painter
xMap	x map
yMap	y map
from	index of the first point to be painted
to	index of the last point to be painted

See also:: draw(), drawCurve(), drawSticks(), drawLines(), drawSteps()

Definition at line 872 of file qwt_plot_curve.cpp.

References QwtPlotCurve::PrivateData::brush, QwtClipper::clipPolygon(), ClipPolygons, QwtPainter::drawPoint(), fillCurve(), QwtPlotCurve::PrivateData::paintAttributes, PaintFiltered, QwtPlotCurve::PrivateData::PixelMatrix::testPixel(), QwtScaleMap::transform(), x(), and y().

Referenced by drawCurve().

{
    const QRect window = painter->window();
    if ( window.isEmpty() )
        return;

    const bool doFill = d_data->brush.style() != Qt::NoBrush;

    QwtPolygon polyline;
    if ( doFill )
        polyline.resize(to - from + 1);

    if ( to > from && d_data->paintAttributes & PaintFiltered )
    {
        if ( doFill )
        {
            QPoint pp( xMap.transform(x(from)), yMap.transform(y(from)) );

            QwtPainter::drawPoint(painter, pp.x(), pp.y());
            polyline.setPoint(0, pp);

            int count = 1;
            for (int i = from + 1; i <= to; i++)
            {
                const QPoint pi(xMap.transform(x(i)), yMap.transform(y(i)));
                if ( pi != pp )
                {
                    QwtPainter::drawPoint(painter, pi.x(), pi.y());

                    polyline.setPoint(count, pi);
                    count++;

                    pp = pi;
                }
            }
            if ( int(polyline.size()) != count )
                polyline.resize(count);
        }
        else
        {
            // if we don't need to fill, we can sort out
            // duplicates independent from the order

            PrivateData::PixelMatrix pixelMatrix(window);

            for (int i = from; i <= to; i++)
            {
                const QPoint p( xMap.transform(x(i)),
                    yMap.transform(y(i)) );

                if ( pixelMatrix.testPixel(p) )
                    QwtPainter::drawPoint(painter, p.x(), p.y());
            }
        }
    }
    else
    {
        for (int i = from; i <= to; i++)
        {
            const int xi = xMap.transform(x(i));
            const int yi = yMap.transform(y(i));
            QwtPainter::drawPoint(painter, xi, yi);

            if ( doFill )
                polyline.setPoint(i - from, xi, yi);
        }
    }

    if ( doFill )
    {
        if ( d_data->paintAttributes & ClipPolygons )
            polyline = QwtClipper::clipPolygon(painter->window(), polyline);

        fillCurve(painter, xMap, yMap, polyline);
    }
}

void QwtPlotCurve::drawLines	(	QPainter *	painter,
		const QwtScaleMap &	xMap,
		const QwtScaleMap &	yMap,
		int	from,
		int	to
	)		const `[protected]`

Draw lines.

If the CurveAttribute Fitted is enabled a QwtCurveFitter tries to interpolate/smooth the curve, before it is painted.

Parameters:

painter	Painter
xMap	x map
yMap	y map
from	index of the first point to be painted
to	index of the last point to be painted

See also:: setCurveAttribute(), setCurveFitter(), draw(), drawLines(), drawDots(), drawSteps(), drawSticks()

Definition at line 716 of file qwt_plot_curve.cpp.

References QwtPlotCurve::PrivateData::attributes, QwtPlotCurve::PrivateData::brush, QwtClipper::clipPolygon(), ClipPolygons, QwtPlotCurve::PrivateData::curveFitter, QwtPainter::drawPolyline(), fillCurve(), QwtCurveFitter::fitCurve(), Fitted, QwtPlotCurve::PrivateData::paintAttributes, PaintFiltered, QwtDoublePoint::setX(), QwtDoublePoint::setY(), QwtScaleMap::transform(), x(), QwtScaleMap::xTransform(), and y().

Referenced by drawCurve().

{
    int size = to - from + 1;
    if ( size <= 0 )
        return;

    QwtPolygon polyline;
    if ( ( d_data->attributes & Fitted ) && d_data->curveFitter )
    {
        // Transform x and y values to window coordinates
        // to avoid a distinction between linear and
        // logarithmic scales.

#if QT_VERSION < 0x040000
        QwtArray<QwtDoublePoint> points(size);
#else
        QPolygonF points(size);
#endif
        for (int i = from; i <= to; i++)
        {
            QwtDoublePoint &p = points[i];
            p.setX( xMap.xTransform(x(i)) );
            p.setY( yMap.xTransform(y(i)) );
        }

        points = d_data->curveFitter->fitCurve(points);
        size = points.size();

        if ( size == 0 )
            return;

        // Round QwtDoublePoints to QPoints
        // When Qwt support for Qt3 has been dropped (Qwt 6.x)
        // we will use a doubles for painting and the following
        // step will be obsolete.

        polyline.resize(size);

        const QwtDoublePoint *p = points.data();
        QPoint *pl = polyline.data();
        if ( d_data->paintAttributes & PaintFiltered )
        {

            QPoint pp(qRound(p[0].x()), qRound(p[0].y()));
            pl[0] = pp;

            int count = 1;
            for (int i = 1; i < size; i++)
            {
                const QPoint pi(qRound(p[i].x()), qRound(p[i].y()));
                if ( pi != pp )
                {
                    pl[count++] = pi;
                    pp = pi;
                }
            }
            if ( count != size )
                polyline.resize(count);
        }
        else
        {
            for ( int i = 0; i < size; i++ )
            {
                pl[i].setX( qRound(p[i].x()) );
                pl[i].setY( qRound(p[i].y()) );
            }
        }
    }
    else
    {
        polyline.resize(size);

        if ( d_data->paintAttributes & PaintFiltered )
        {
            QPoint pp( xMap.transform(x(from)), yMap.transform(y(from)) );
            polyline.setPoint(0, pp);

            int count = 1;
            for (int i = from + 1; i <= to; i++)
            {
                const QPoint pi(xMap.transform(x(i)), yMap.transform(y(i)));
                if ( pi != pp )
                {
                    polyline.setPoint(count, pi);
                    count++;

                    pp = pi;
                }
            }
            if ( count != size )
                polyline.resize(count);
        }
        else
        {
            for (int i = from; i <= to; i++)
            {
                int xi = xMap.transform(x(i));
                int yi = yMap.transform(y(i));

                polyline.setPoint(i - from, xi, yi);
            }
        }
    }

    if ( d_data->paintAttributes & ClipPolygons )
        polyline = QwtClipper::clipPolygon(painter->window(), polyline);

    QwtPainter::drawPolyline(painter, polyline);

    if ( d_data->brush.style() != Qt::NoBrush )
        fillCurve(painter, xMap, yMap, polyline);
}

void QwtPlotCurve::drawSteps	(	QPainter *	painter,
		const QwtScaleMap &	xMap,
		const QwtScaleMap &	yMap,
		int	from,
		int	to
	)		const `[protected]`

Draw step function

The direction of the steps depends on Inverted attribute.

Parameters:

painter	Painter
xMap	x map
yMap	y map
from	index of the first point to be painted
to	index of the last point to be painted

See also:: CurveAttribute, setCurveAttribute(), draw(), drawCurve(), drawDots(), drawLines(), drawSticks()

Definition at line 965 of file qwt_plot_curve.cpp.

References QwtPlotCurve::PrivateData::attributes, QwtPlotCurve::PrivateData::brush, QwtClipper::clipPolygon(), ClipPolygons, QwtPlotCurve::PrivateData::curveType, QwtPainter::drawPolyline(), fillCurve(), Inverted, QwtPlotCurve::PrivateData::paintAttributes, QwtScaleMap::transform(), x(), y(), and Yfx.

Referenced by drawCurve().

{
    QwtPolygon polyline(2 * (to - from) + 1);

    bool inverted = d_data->curveType == Yfx;
    if ( d_data->attributes & Inverted )
        inverted = !inverted;

    int i,ip;
    for (i = from, ip = 0; i <= to; i++, ip += 2)
    {
        const int xi = xMap.transform(x(i));
        const int yi = yMap.transform(y(i));

        if ( ip > 0 )
        {
            if (inverted)
                polyline.setPoint(ip - 1, polyline[ip-2].x(), yi);
            else
                polyline.setPoint(ip - 1, xi, polyline[ip-2].y());
        }

        polyline.setPoint(ip, xi, yi);
    }

    if ( d_data->paintAttributes & ClipPolygons )
        polyline = QwtClipper::clipPolygon(painter->window(), polyline);

    QwtPainter::drawPolyline(painter, polyline);

    if ( d_data->brush.style() != Qt::NoBrush )
        fillCurve(painter, xMap, yMap, polyline);
}

void QwtPlotCurve::drawSticks	(	QPainter *	painter,
		const QwtScaleMap &	xMap,
		const QwtScaleMap &	yMap,
		int	from,
		int	to
	)		const `[protected]`

Draw sticks

Parameters:

painter	Painter
xMap	x map
yMap	y map
from	index of the first point to be painted
to	index of the last point to be painted

See also:: draw(), drawCurve(), drawDots(), drawLines(), drawSteps()

Definition at line 842 of file qwt_plot_curve.cpp.

References QwtPlotCurve::PrivateData::curveType, QwtPainter::drawLine(), QwtPlotCurve::PrivateData::reference, QwtScaleMap::transform(), x(), Xfy, and y().

Referenced by drawCurve().

{
    int x0 = xMap.transform(d_data->reference);
    int y0 = yMap.transform(d_data->reference);

    for (int i = from; i <= to; i++)
    {
        const int xi = xMap.transform(x(i));
        const int yi = yMap.transform(y(i));

        if (d_data->curveType == Xfy)
            QwtPainter::drawLine(painter, x0, yi, xi, yi);
        else
            QwtPainter::drawLine(painter, xi, y0, xi, yi);
    }
}

void QwtPlotCurve::drawSymbols	(	QPainter *	painter,
		const QwtSymbol &	symbol,
		const QwtScaleMap &	xMap,
		const QwtScaleMap &	yMap,
		int	from,
		int	to
	)		const `[protected, virtual]`

Draw symbols.

Parameters:

painter	Painter
symbol	Curve symbol
xMap	x map
yMap	y map
from	index of the first point to be painted
to	index of the last point to be painted

See also:: setSymbol(), draw(), drawCurve()

Definition at line 1160 of file qwt_plot_curve.cpp.

References QwtSymbol::brush(), QwtSymbol::draw(), QwtPainter::metricsMap(), QwtPlotCurve::PrivateData::paintAttributes, PaintFiltered, QwtSymbol::pen(), QwtPainter::scaledPen(), QwtMetricsMap::screenToLayout(), QwtSymbol::size(), QwtPlotCurve::PrivateData::PixelMatrix::testPixel(), QwtScaleMap::transform(), x(), and y().

Referenced by draw().

{
    painter->setBrush(symbol.brush());
    painter->setPen(QwtPainter::scaledPen(symbol.pen()));

    const QwtMetricsMap &metricsMap = QwtPainter::metricsMap();

    QRect rect;
    rect.setSize(metricsMap.screenToLayout(symbol.size()));

    if ( to > from && d_data->paintAttributes & PaintFiltered )
    {
        const QRect window = painter->window();
        if ( window.isEmpty() )
            return;

        PrivateData::PixelMatrix pixelMatrix(window);

        for (int i = from; i <= to; i++)
        {
            const QPoint pi( xMap.transform(x(i)),
                yMap.transform(y(i)) );

            if ( pixelMatrix.testPixel(pi) )
            {
                rect.moveCenter(pi);
                symbol.draw(painter, rect);
            }
        }
    }
    else
    {
        for (int i = from; i <= to; i++)
        {
            const int xi = xMap.transform(x(i));
            const int yi = yMap.transform(y(i));

            rect.moveCenter(QPoint(xi, yi));
            symbol.draw(painter, rect);
        }
    }
}

void QwtPlotCurve::fillCurve	(	QPainter *	painter,
		const QwtScaleMap &	xMap,
		const QwtScaleMap &	yMap,
		QwtPolygon &	pa
	)		const `[protected]`

Fill the area between the curve and the baseline with the curve brush

Parameters:

painter	Painter
xMap	x map
yMap	y map
pa	Polygon

See also:: setBrush(), setBaseline(), setCurveType()

Definition at line 1090 of file qwt_plot_curve.cpp.

References QwtPlotCurve::PrivateData::brush, closePolyline(), QwtPainter::drawPolygon(), and QwtPlotCurve::PrivateData::pen.

Referenced by drawDots(), drawLines(), and drawSteps().

{
    if ( d_data->brush.style() == Qt::NoBrush )
        return;

    closePolyline(xMap, yMap, pa);
    if ( pa.count() <= 2 ) // a line can't be filled
        return;

    QBrush b = d_data->brush;
    if ( !b.color().isValid() )
        b.setColor(d_data->pen.color());

    painter->save();

    painter->setPen(QPen(Qt::NoPen));
    painter->setBrush(b);

    QwtPainter::drawPolygon(painter, pa);

    painter->restore();
}

void QwtPlotCurve::init ( ) [protected]

Initialize data members.

Definition at line 261 of file qwt_plot_curve.cpp.

References QwtPlotItem::AutoScale, QwtPlotItem::Legend, QwtPlotItem::setItemAttribute(), and QwtPlotItem::setZ().

Referenced by QwtPlotCurve().

{
    setItemAttribute(QwtPlotItem::Legend);
    setItemAttribute(QwtPlotItem::AutoScale);

    d_data = new PrivateData;
    d_xy = new QwtPolygonFData(QwtArray<QwtDoublePoint>());

    setZ(20.0);
}

double QwtPlotCurve::maxXValue ( ) const [inline]

boundingRect().right()

Definition at line 202 of file qwt_plot_curve.h.

References QwtPlotItem::boundingRect(), and QwtDoubleRect::right().

{ return boundingRect().right(); }

double QwtPlotCurve::maxYValue ( ) const [inline]

boundingRect().bottom()

Definition at line 206 of file qwt_plot_curve.h.

References QwtDoubleRect::bottom(), and QwtPlotItem::boundingRect().

{ return boundingRect().bottom(); }

double QwtPlotCurve::minXValue ( ) const [inline]

boundingRect().left()

Definition at line 200 of file qwt_plot_curve.h.

References QwtPlotItem::boundingRect(), and QwtDoubleRect::left().

{ return boundingRect().left(); }

double QwtPlotCurve::minYValue ( ) const [inline]

boundingRect().top()

Definition at line 204 of file qwt_plot_curve.h.

References QwtPlotItem::boundingRect(), and QwtDoubleRect::top().

{ return boundingRect().top(); }

const QPen & QwtPlotCurve::pen ( ) const

Return the pen used to draw the lines.

See also:: setPen(), brush()

Definition at line 369 of file qwt_plot_curve.cpp.

References QwtPlotCurve::PrivateData::pen.

Referenced by QwtPlotPrintFilter::apply(), QwtPlotPrintFilter::reset(), setPen(), and updateLegend().

{
    return d_data->pen;
}

int QwtPlotCurve::rtti ( ) const [virtual]

Returns:: QwtPlotItem::Rtti_PlotCurve

Reimplemented from QwtPlotItem.

Definition at line 273 of file qwt_plot_curve.cpp.

References QwtPlotItem::Rtti_PlotCurve.

{
    return QwtPlotItem::Rtti_PlotCurve;
}

void QwtPlotCurve::setBaseline ( double reference )

Set the value of the baseline.

The baseline is needed for filling the curve with a brush or the Sticks drawing style. The default value is 0.0. The interpretation of the baseline depends on the CurveType. With QwtPlotCurve::Yfx, the baseline is interpreted as a horizontal line at y = baseline(), with QwtPlotCurve::Yfy, it is interpreted as a vertical line at x = baseline().

Parameters:

reference baseline

See also:: baseline(), setBrush(), setStyle(), setCurveType()

Definition at line 1218 of file qwt_plot_curve.cpp.

References QwtPlotItem::itemChanged(), and QwtPlotCurve::PrivateData::reference.

{
    if ( d_data->reference != reference )
    {
        d_data->reference = reference;
        itemChanged();
    }
}

void QwtPlotCurve::setBrush ( const QBrush & brush )

Assign a brush.

In case of brush.style() != QBrush::NoBrush and style() != QwtPlotCurve::Sticks the area between the curve and the baseline will be filled.

In case !brush.color().isValid() the area will be filled by pen.color(). The fill algorithm simply connects the first and the last curve point to the baseline. So the curve data has to be sorted (ascending or descending).

Parameters:

brush New brush

See also:: brush(), setBaseline(), baseline()

Definition at line 389 of file qwt_plot_curve.cpp.

References brush(), QwtPlotCurve::PrivateData::brush, and QwtPlotItem::itemChanged().

{
    if ( brush != d_data->brush )
    {
        d_data->brush = brush;
        itemChanged();
    }
}

void QwtPlotCurve::setCurveAttribute	(	CurveAttribute	attribute,
		bool	on = `true`
	)

Specify an attribute for drawing the curve

Parameters:

attribute	Curve attribute
on	On/Off

/sa CurveAttribute, testCurveAttribute(), setCurveFitter()

Definition at line 1010 of file qwt_plot_curve.cpp.

References QwtPlotCurve::PrivateData::attributes, and QwtPlotItem::itemChanged().

{
    if ( bool(d_data->attributes & attribute) == on )
        return;

    if ( on )
        d_data->attributes |= attribute;
    else
        d_data->attributes &= ~attribute;

    itemChanged();
}

void QwtPlotCurve::setCurveFitter ( QwtCurveFitter * curveFitter )

Assign a curve fitter setCurveFitter(NULL) disables curve fitting.

Parameters:

curveFitter Curve fitter

Definition at line 1062 of file qwt_plot_curve.cpp.

References curveFitter(), QwtPlotCurve::PrivateData::curveFitter, and QwtPlotItem::itemChanged().

{
    delete d_data->curveFitter;
    d_data->curveFitter = curveFitter;

    itemChanged();
}

void QwtPlotCurve::setCurveType ( CurveType curveType )

Assign the curve type

Parameters:

curveType Yfx or Xfy

See also:: CurveType, curveType()

Definition at line 1038 of file qwt_plot_curve.cpp.

References curveType(), QwtPlotCurve::PrivateData::curveType, and QwtPlotItem::itemChanged().

{
    if ( d_data->curveType != curveType )
    {
        d_data->curveType = curveType;
        itemChanged();
    }
}

void QwtPlotCurve::setData ( const QMemArray< QwtDoublePoint > & data )

Initialize data with an array of points (explicitly shared).

Parameters:

data Data

Note:: Internally the data is stored in a QwtPolygonFData object

Definition at line 450 of file qwt_plot_curve.cpp.

{
    delete d_xy;
    d_xy = new QwtPolygonFData(data);
    itemChanged();
}

void QwtPlotCurve::setData	(	const QMemArray< double > &	xData,
		const QMemArray< double > &	yData
	)

Initialize data with x- and y-arrays (explicitly shared) ( Builds an QwtArrayData object internally )

Parameters:

xData	x data
yData	y data

Note:: Internally the data is stored in a QwtArrayData object

Definition at line 435 of file qwt_plot_curve.cpp.

References QwtPlotItem::itemChanged().

{
    delete d_xy;
    d_xy = new QwtArrayData(xData, yData);
    itemChanged();
}

void QwtPlotCurve::setData ( const QwtData & data )

Initialize data with a pointer to QwtData.

Parameters:

data Data

See also:: QwtData::copy()

Definition at line 466 of file qwt_plot_curve.cpp.

References QwtData::copy(), and QwtPlotItem::itemChanged().

{
    delete d_xy;
    d_xy = data.copy();
    itemChanged();
}

void QwtPlotCurve::setData	(	const double *	xData,
		const double *	yData,
		int	size
	)

Set data by copying x- and y-values from specified memory blocks. Contrary to setCurveRawData(), this function makes a 'deep copy' of the data.

Parameters:

xData	Pointer to x values
yData	Pointer to y values
size	Size of xData and yData

Note:: Internally the data is stored in a QwtArrayData object

Definition at line 419 of file qwt_plot_curve.cpp.

References QwtPlotItem::itemChanged().

{
    delete d_xy;
    d_xy = new QwtArrayData(xData, yData, size);
    itemChanged();
}

void QwtPlotCurve::setPaintAttribute	(	PaintAttribute	attribute,
		bool	on = `true`
	)

Specify an attribute how to draw the curve

Parameters:

attribute	Paint attribute
on	On/Off /sa PaintAttribute, testPaintAttribute()

Definition at line 285 of file qwt_plot_curve.cpp.

References QwtPlotCurve::PrivateData::paintAttributes.

{
    if ( on )
        d_data->paintAttributes |= attribute;
    else
        d_data->paintAttributes &= ~attribute;
}

void QwtPlotCurve::setPen ( const QPen & pen )

Assign a pen

The width of non cosmetic pens is scaled according to the resolution of the paint device.

Parameters:

pen New pen

See also:: pen(), brush(), QwtPainter::scaledPen()

Definition at line 356 of file qwt_plot_curve.cpp.

References QwtPlotItem::itemChanged(), pen(), and QwtPlotCurve::PrivateData::pen.

Referenced by QwtPlotPrintFilter::apply(), and QwtPlotPrintFilter::reset().

{
    if ( pen != d_data->pen )
    {
        d_data->pen = pen;
        itemChanged();
    }
}

void QwtPlotCurve::setRawData	(	const double *	xData,
		const double *	yData,
		int	size
	)

Initialize the data by pointing to memory blocks which are not managed by QwtPlotCurve.

setRawData is provided for efficiency. It is important to keep the pointers during the lifetime of the underlying QwtCPointerData class.

Parameters:

xData	pointer to x data
yData	pointer to y data
size	size of x and y

Note:: Internally the data is stored in a QwtCPointerData object

Definition at line 486 of file qwt_plot_curve.cpp.

References QwtPlotItem::itemChanged().

{
    delete d_xy;
    d_xy = new QwtCPointerData(xData, yData, size);
    itemChanged();
}

void QwtPlotCurve::setStyle ( CurveStyle style )

Set the curve's drawing style

Parameters:

style Curve style

See also:: CurveStyle, style()

Definition at line 308 of file qwt_plot_curve.cpp.

References QwtPlotItem::itemChanged(), style(), and QwtPlotCurve::PrivateData::style.

{
    if ( style != d_data->style )
    {
        d_data->style = style;
        itemChanged();
    }
}

void QwtPlotCurve::setSymbol ( const QwtSymbol & symbol )

Assign a symbol.

Parameters:

symbol Symbol

See also:: symbol()

Definition at line 331 of file qwt_plot_curve.cpp.

References QwtSymbol::clone(), QwtPlotItem::itemChanged(), and QwtPlotCurve::PrivateData::symbol.

Referenced by QwtPlotPrintFilter::apply(), and QwtPlotPrintFilter::reset().

{
    delete d_data->symbol;
    d_data->symbol = symbol.clone();
    itemChanged();
}

QwtPlotCurve::CurveStyle QwtPlotCurve::style ( ) const

Return the current style

See also:: CurveStyle, setStyle()

Definition at line 321 of file qwt_plot_curve.cpp.

References QwtPlotCurve::PrivateData::style.

Referenced by setStyle(), and updateLegend().

{
    return d_data->style;
}

const QwtSymbol & QwtPlotCurve::symbol ( ) const

Return the current symbol.

See also:: setSymbol()

Definition at line 342 of file qwt_plot_curve.cpp.

References QwtPlotCurve::PrivateData::symbol.

Referenced by QwtPlotPrintFilter::apply(), QwtPlotPrintFilter::reset(), and updateLegend().

{
    return *d_data->symbol;
}

bool QwtPlotCurve::testCurveAttribute ( CurveAttribute attribute ) const

Returns:: true, if attribute is enabled

See also:: CurveAttribute, setCurveAttribute()

Definition at line 1027 of file qwt_plot_curve.cpp.

References QwtPlotCurve::PrivateData::attributes.

Referenced by drawCurve().

{
    return d_data->attributes & attribute;
}

bool QwtPlotCurve::testPaintAttribute ( PaintAttribute attribute ) const

Return the current paint attributes.

See also:: PaintAttribute, setPaintAttribute()

Definition at line 297 of file qwt_plot_curve.cpp.

References QwtPlotCurve::PrivateData::paintAttributes.

{
    return (d_data->paintAttributes & attribute);
}

void QwtPlotCurve::updateLegend ( QwtLegend * legend ) const [virtual]

Update the widget that represents the curve on the legend.

Reimplemented from QwtPlotItem.

Definition at line 1286 of file qwt_plot_curve.cpp.

References QwtLegend::AutoIdentifier, QwtLegend::displayPolicy(), QwtLegend::find(), QwtLegend::FixedIdentifier, QwtLegend::identifierMode(), QwtPlotItem::legendItem(), NoCurve, QwtSymbol::NoSymbol, pen(), QwtLegendItem::setCurvePen(), QwtLegendItem::setIdentifierMode(), QwtLegendItem::setSymbol(), QwtLegendItem::setText(), QwtLegendItem::ShowLine, QwtLegendItem::ShowSymbol, QwtLegendItem::ShowText, style(), symbol(), and QwtPlotItem::title().

{
    if ( !legend )
        return;

    QwtPlotItem::updateLegend(legend);

    QWidget *widget = legend->find(this);
    if ( !widget || !widget->inherits("QwtLegendItem") )
        return;

    QwtLegendItem *legendItem = (QwtLegendItem *)widget;

#if QT_VERSION < 0x040000
    const bool doUpdate = legendItem->isUpdatesEnabled();
#else
    const bool doUpdate = legendItem->updatesEnabled();
#endif
    legendItem->setUpdatesEnabled(false);

    const int policy = legend->displayPolicy();

    if (policy == QwtLegend::FixedIdentifier)
    {
        int mode = legend->identifierMode();

        if (mode & QwtLegendItem::ShowLine)
            legendItem->setCurvePen(pen());

        if (mode & QwtLegendItem::ShowSymbol)
            legendItem->setSymbol(symbol());

        if (mode & QwtLegendItem::ShowText)
            legendItem->setText(title());
        else
            legendItem->setText(QwtText());

        legendItem->setIdentifierMode(mode);
    }
    else if (policy == QwtLegend::AutoIdentifier)
    {
        int mode = 0;

        if (QwtPlotCurve::NoCurve != style())
        {
            legendItem->setCurvePen(pen());
            mode |= QwtLegendItem::ShowLine;
        }
        if (QwtSymbol::NoSymbol != symbol().style())
        {
            legendItem->setSymbol(symbol());
            mode |= QwtLegendItem::ShowSymbol;
        }
        if ( !title().isEmpty() )
        {
            legendItem->setText(title());
            mode |= QwtLegendItem::ShowText;
        }
        else
        {
            legendItem->setText(QwtText());
        }
        legendItem->setIdentifierMode(mode);
    }

    legendItem->setUpdatesEnabled(doUpdate);
    legendItem->update();
}
