QwtData Class Reference

QwtData defines an interface to any type of curve data. More...

#include <qwt_data.h>

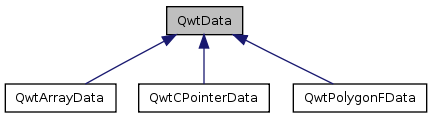

Inheritance diagram for QwtData:

List of all members.

Public Member Functions
	QwtData ()
	Constructor.
virtual	~QwtData ()
	Destructor.
virtual QwtData *	copy () const =0
virtual vcl_size_t	size () const =0
virtual double	x (vcl_size_t i) const =0
virtual double	y (vcl_size_t i) const =0
virtual QwtDoubleRect	boundingRect () const
Protected Member Functions
QwtData &	operator= (const QwtData &)

---

Detailed Description

QwtData defines an interface to any type of curve data.

Classes, derived from QwtData may:

• store the data in almost any type of container
• calculate the data on the fly instead of storing it

Definition at line 47 of file qwt_data.h.

---

Constructor & Destructor Documentation

QwtData::QwtData

(

)

Constructor.

Definition at line 14 of file qwt_data.cpp.

{
}

QwtData::~QwtData

(

)

[virtual]

Destructor.

Definition at line 19 of file qwt_data.cpp.

{
}

---

Member Function Documentation

QwtDoubleRect QwtData::boundingRect

(

)

const [virtual]

Returns the bounding rectangle of the data. If there is no bounding rect, like for empty data the rectangle is invalid: QwtDoubleRect::isValid() == false

Warning:

This is an slow implementation iterating over all points. It is intended to be overloaded by derived classes. In case of auto scaling boundingRect() is called for every replot, so it might be worth to implement a cache, or use x(0), x(size() - 1) for ordered data ...

Reimplemented in QwtArrayData, and QwtCPointerData.

Definition at line 34 of file qwt_data.cpp.

References size(), x(), and y().

Referenced by QwtPlotCurve::boundingRect().

{
    const size_t sz = size();

    if ( sz <= 0 )
        return QwtDoubleRect(1.0, 1.0, -2.0, -2.0); // invalid

    double minX, maxX, minY, maxY;
    minX = maxX = x(0);
    minY = maxY = y(0);

    for ( size_t i = 1; i < sz; i++ )
    {
        const double xv = x(i);
        if ( xv < minX )
            minX = xv;
        if ( xv > maxX )
            maxX = xv;

        const double yv = y(i);
        if ( yv < minY )
            minY = yv;
        if ( yv > maxY )
            maxY = yv;
    }
    return QwtDoubleRect(minX, minY, maxX - minX, maxY - minY);
}

virtual QwtData* QwtData::copy

(

)

const [pure virtual]

Returns:

Pointer to a copy (virtual copy constructor)

Implemented in QwtPolygonFData, QwtArrayData, and QwtCPointerData.

Referenced by QwtPlotCurve::setData().

QwtData& QwtData::operator=

(

const QwtData &

)

[protected]

Assignment operator (virtualized)

virtual vcl_size_t QwtData::size

(

)

const [pure virtual]

Returns:

Size of the data set

Implemented in QwtPolygonFData, QwtArrayData, and QwtCPointerData.

Referenced by boundingRect(), and QwtPlotCurve::dataSize().

virtual double QwtData::x

(

vcl_size_t

i )

const [pure virtual]

Return the x value of data point i

Parameters:

i

Index

Returns:

x X value of data point i

Implemented in QwtPolygonFData, QwtArrayData, and QwtCPointerData.

Referenced by boundingRect(), and QwtPlotCurve::x().

virtual double QwtData::y

(

vcl_size_t

i )

const [pure virtual]

Return the y value of data point i

Parameters:

i

Index

Returns:

y Y value of data point i

Implemented in QwtPolygonFData, QwtArrayData, and QwtCPointerData.

Referenced by boundingRect(), and QwtPlotCurve::y().

---

The documentation for this class was generated from the following files:

• qwt_data.h
• qwt_data.cpp
