An abstract base class for classes containing a scale. More...

#include <qwt_abstract_scale.h>

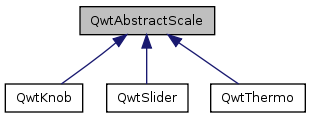

Inheritance diagram for QwtAbstractScale:

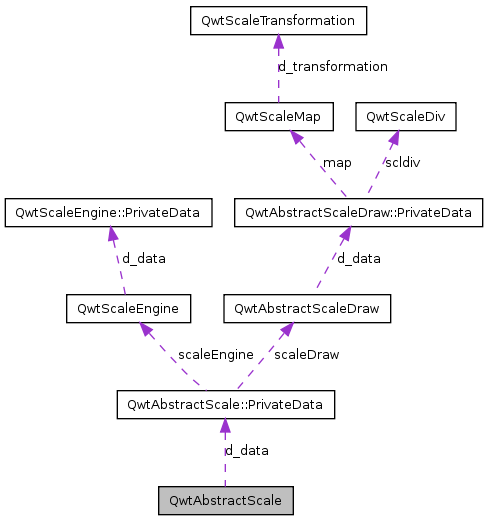

Collaboration diagram for QwtAbstractScale:

Classes
class	PrivateData
Public Member Functions
	QwtAbstractScale ()
virtual	~QwtAbstractScale ()
	Destructor.
void	setScale (double vmin, double vmax, double step=0.0)
	Specify a scale.
void	setScale (const QwtDoubleInterval &, double step=0.0)
	Specify a scale.
void	setScale (const QwtScaleDiv &s)
	Specify a scale.
void	setAutoScale ()
	Advise the widget to control the scale range internally.
bool	autoScale () const
void	setScaleMaxMajor (int ticks)
	Set the maximum number of major tick intervals.
int	scaleMaxMinor () const
void	setScaleMaxMinor (int ticks)
	Set the maximum number of minor tick intervals.
int	scaleMaxMajor () const
void	setScaleEngine (QwtScaleEngine *)
	Set a scale engine.
const QwtScaleEngine *	scaleEngine () const
QwtScaleEngine *	scaleEngine ()
const QwtScaleMap &	scaleMap () const
Protected Member Functions
void	rescale (double vmin, double vmax, double step=0.0)
void	setAbstractScaleDraw (QwtAbstractScaleDraw *)
	Set a scale draw.
const QwtAbstractScaleDraw *	abstractScaleDraw () const
QwtAbstractScaleDraw *	abstractScaleDraw ()
virtual void	scaleChange ()
	Notify changed scale.

Detailed Description

An abstract base class for classes containing a scale.

QwtAbstractScale is used to provide classes with a QwtScaleDraw, and a QwtScaleDiv. The QwtScaleDiv might be set explicitely or calculated by a QwtScaleEngine.

Definition at line 29 of file qwt_abstract_scale.h.

Constructor & Destructor Documentation

QwtAbstractScale::QwtAbstractScale ( )

Constructor

Creates a default QwtScaleDraw and a QwtLinearScaleEngine. Autoscaling is enabled, and the stepSize is initialized by 0.0.

Definition at line 53 of file qwt_abstract_scale.cpp.

References rescale().

{
    d_data = new PrivateData;
    rescale(0.0, 100.0);
}

QwtAbstractScale::~QwtAbstractScale ( ) [virtual]

Destructor.

Definition at line 60 of file qwt_abstract_scale.cpp.

{
    delete d_data;
}

Member Function Documentation

const QwtAbstractScaleDraw * QwtAbstractScale::abstractScaleDraw ( ) const [protected]

Returns:: Scale draw

See also:: setAbstractScaleDraw()

Definition at line 249 of file qwt_abstract_scale.cpp.

References QwtAbstractScale::PrivateData::scaleDraw.

Referenced by QwtThermo::scaleDraw(), QwtSlider::scaleDraw(), and QwtKnob::scaleDraw().

{
    return d_data->scaleDraw;
}

QwtAbstractScaleDraw * QwtAbstractScale::abstractScaleDraw ( ) [protected]

Returns:: Scale draw

See also:: setAbstractScaleDraw()

Definition at line 240 of file qwt_abstract_scale.cpp.

References QwtAbstractScale::PrivateData::scaleDraw.

{
    return d_data->scaleDraw;
}

bool QwtAbstractScale::autoScale ( ) const

Returns:: true if autoscaling is enabled

Definition at line 159 of file qwt_abstract_scale.cpp.

References QwtAbstractScale::PrivateData::autoScale.

Referenced by QwtSlider::rangeChange(), and QwtThermo::setRange().

{
    return d_data->autoScale;
}

void QwtAbstractScale::rescale	(	double	vmin,
		double	vmax,
		double	stepSize = `0.0`
	)		`[protected]`

Recalculate the scale division and update the scale draw.

Parameters:

vmin	Lower limit of the scale interval
vmax	Upper limit of the scale interval
stepSize	Major step size

See also:: scaleChange()

Definition at line 127 of file qwt_abstract_scale.cpp.

References QwtScaleEngine::divideScale(), QwtAbstractScale::PrivateData::maxMajor, QwtAbstractScale::PrivateData::maxMinor, scaleChange(), QwtAbstractScaleDraw::scaleDiv(), QwtAbstractScale::PrivateData::scaleDraw, QwtAbstractScale::PrivateData::scaleEngine, QwtAbstractScaleDraw::setScaleDiv(), QwtAbstractScaleDraw::setTransformation(), and QwtScaleEngine::transformation().

Referenced by QwtAbstractScale(), QwtSlider::rangeChange(), QwtThermo::setRange(), and setScale().

{
    const QwtScaleDiv scaleDiv = d_data->scaleEngine->divideScale(
        vmin, vmax, d_data->maxMajor, d_data->maxMinor, stepSize);

    if ( scaleDiv != d_data->scaleDraw->scaleDiv() )
    {
        d_data->scaleDraw->setTransformation(
            d_data->scaleEngine->transformation());
        d_data->scaleDraw->setScaleDiv(scaleDiv);
        scaleChange();
    }
}

void QwtAbstractScale::scaleChange ( ) [protected, virtual]

Notify changed scale.

Dummy empty implementation, intended to be overloaded by derived classes

Reimplemented in QwtSlider, and QwtThermo.

Definition at line 301 of file qwt_abstract_scale.cpp.

Referenced by rescale(), setAutoScale(), and setScale().

{
}

const QwtScaleEngine * QwtAbstractScale::scaleEngine ( ) const

Returns:: Scale engine

See also:: setScaleEngine()

Definition at line 282 of file qwt_abstract_scale.cpp.

References QwtAbstractScale::PrivateData::scaleEngine.

Referenced by QwtThermo::setRange(), and setScaleEngine().

{
    return d_data->scaleEngine;
}

QwtScaleEngine * QwtAbstractScale::scaleEngine ( )

Returns:: Scale engine

See also:: setScaleEngine()

Definition at line 291 of file qwt_abstract_scale.cpp.

References QwtAbstractScale::PrivateData::scaleEngine.

{
    return d_data->scaleEngine;
}

const QwtScaleMap & QwtAbstractScale::scaleMap ( ) const

Returns:: abstractScaleDraw()->scaleMap()

Definition at line 308 of file qwt_abstract_scale.cpp.

References QwtAbstractScale::PrivateData::scaleDraw, and QwtAbstractScaleDraw::scaleMap().

{
    return d_data->scaleDraw->scaleMap();
}

int QwtAbstractScale::scaleMaxMajor ( ) const

Returns:: Max. number of major tick intervals The default value is 5.

Definition at line 213 of file qwt_abstract_scale.cpp.

References QwtAbstractScale::PrivateData::maxMajor.

{
    return d_data->maxMajor;
}

int QwtAbstractScale::scaleMaxMinor ( ) const

Returns:: Max. number of minor tick intervals The default value is 3.

Definition at line 204 of file qwt_abstract_scale.cpp.

References QwtAbstractScale::PrivateData::maxMinor.

{
    return d_data->maxMinor;
}

void QwtAbstractScale::setAbstractScaleDraw ( QwtAbstractScaleDraw * scaleDraw ) [protected]

Set a scale draw.

scaleDraw has to be created with new and will be deleted in ~QwtAbstractScale or the next call of setAbstractScaleDraw.

Definition at line 224 of file qwt_abstract_scale.cpp.

References QwtAbstractScaleDraw::scaleDiv(), QwtAbstractScale::PrivateData::scaleDraw, and QwtAbstractScaleDraw::setScaleDiv().

Referenced by QwtThermo::setScaleDraw(), QwtSlider::setScaleDraw(), and QwtKnob::setScaleDraw().

{
    if ( scaleDraw == NULL || scaleDraw == d_data->scaleDraw )
        return;

    if ( d_data->scaleDraw != NULL )
        scaleDraw->setScaleDiv(d_data->scaleDraw->scaleDiv());

    delete d_data->scaleDraw;
    d_data->scaleDraw = scaleDraw;
}

void QwtAbstractScale::setAutoScale ( )

Advise the widget to control the scale range internally.

Autoscaling is on by default.

See also:: setScale(), autoScale()

Definition at line 147 of file qwt_abstract_scale.cpp.

References QwtAbstractScale::PrivateData::autoScale, and scaleChange().

{
    if (!d_data->autoScale)
    {
        d_data->autoScale = true;
        scaleChange();
    }
}

void QwtAbstractScale::setScale	(	double	vmin,
		double	vmax,
		double	stepSize = `0.0`
	)

Specify a scale.

Disable autoscaling and define a scale by an interval and a step size

Parameters:

vmin	lower limit of the scale interval
vmax	upper limit of the scale interval
stepSize	major step size

See also:: setAutoScale()

Definition at line 75 of file qwt_abstract_scale.cpp.

References QwtAbstractScale::PrivateData::autoScale, rescale(), and QwtAbstractScale::PrivateData::stepSize.

Referenced by setScale().

{
    d_data->autoScale = false;
    d_data->stepSize = stepSize;

    rescale(vmin, vmax, stepSize);
}

void QwtAbstractScale::setScale ( const QwtScaleDiv & scaleDiv )

Specify a scale.

Disable autoscaling and define a scale by a scale division

Parameters:

scaleDiv Scale division

See also:: setAutoScale()

Definition at line 107 of file qwt_abstract_scale.cpp.

References QwtAbstractScale::PrivateData::autoScale, scaleChange(), QwtAbstractScaleDraw::scaleDiv(), QwtAbstractScale::PrivateData::scaleDraw, and QwtAbstractScaleDraw::setScaleDiv().

{
    d_data->autoScale = false;

    if (scaleDiv != d_data->scaleDraw->scaleDiv())
    {
        d_data->scaleDraw->setScaleDiv(scaleDiv);
        scaleChange();
    }
}

void QwtAbstractScale::setScale	(	const QwtDoubleInterval &	interval,
		double	stepSize = `0.0`
	)

Specify a scale.

Disable autoscaling and define a scale by an interval and a step size

Parameters:

interval	Interval
stepSize	major step size

See also:: setAutoScale()

Definition at line 92 of file qwt_abstract_scale.cpp.

References QwtDoubleInterval::maxValue(), QwtDoubleInterval::minValue(), and setScale().

{
    setScale(interval.minValue(), interval.maxValue(), stepSize);
}

void QwtAbstractScale::setScaleEngine ( QwtScaleEngine * scaleEngine )

Set a scale engine.

The scale engine is responsible for calculating the scale division, and in case of auto scaling how to align the scale.

scaleEngine has to be created with new and will be deleted in ~QwtAbstractScale or the next call of setScaleEngine.

Definition at line 269 of file qwt_abstract_scale.cpp.

References scaleEngine(), and QwtAbstractScale::PrivateData::scaleEngine.

Referenced by QwtThermo::setRange().

{
    if ( scaleEngine != NULL && scaleEngine != d_data->scaleEngine )
    {
        delete d_data->scaleEngine;
        d_data->scaleEngine = scaleEngine;
    }
}

void QwtAbstractScale::setScaleMaxMajor ( int ticks )

Set the maximum number of major tick intervals.

The scale's major ticks are calculated automatically such that the number of major intervals does not exceed ticks. The default value is 5.

Parameters:

ticks maximal number of major ticks.

See also:: QwtAbstractScaleDraw

Definition at line 173 of file qwt_abstract_scale.cpp.

References QwtAbstractScale::PrivateData::maxMajor.

{
    if (ticks != d_data->maxMajor)
    {
        d_data->maxMajor = ticks;
        updateScaleDraw();
    }
}

void QwtAbstractScale::setScaleMaxMinor ( int ticks )

Set the maximum number of minor tick intervals.

The scale's minor ticks are calculated automatically such that the number of minor intervals does not exceed ticks. The default value is 3.

Parameters:

ticks

See also:: QwtAbstractScaleDraw

Definition at line 191 of file qwt_abstract_scale.cpp.

References QwtAbstractScale::PrivateData::maxMinor.

{
    if ( ticks != d_data->maxMinor)
    {
        d_data->maxMinor = ticks;
        updateScaleDraw();
    }
}

The documentation for this class was generated from the following files:
