The Thermometer Widget. More...

#include <qwt_thermo.h>

Inheritance diagram for QwtThermo:

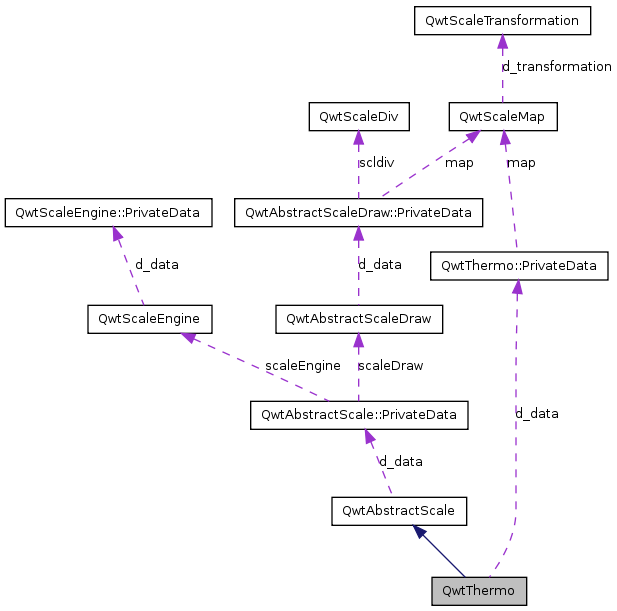

Collaboration diagram for QwtThermo:

Classes
class	PrivateData
Public Types
enum	ScalePos { NoScale, LeftScale, RightScale, TopScale, BottomScale }
Public Slots
void	setValue (double val)
Public Member Functions
	QwtThermo (QWidget *parent=NULL)
	QwtThermo (QWidget parent, const char name)
virtual	~QwtThermo ()
	Destructor.
void	setOrientation (Qt::Orientation o, ScalePos s)
	Set the thermometer orientation and the scale position.
void	setScalePosition (ScalePos s)
	Change the scale position (and thermometer orientation).
ScalePos	scalePosition () const
void	setBorderWidth (int w)
int	borderWidth () const
void	setFillBrush (const QBrush &b)
	Change the brush of the liquid.
const QBrush &	fillBrush () const
void	setFillColor (const QColor &c)
	Change the color of the liquid.
const QColor &	fillColor () const
void	setAlarmBrush (const QBrush &b)
	Specify the liquid brush above the alarm threshold.
const QBrush &	alarmBrush () const
void	setAlarmColor (const QColor &c)
	Specify the liquid color above the alarm threshold.
const QColor &	alarmColor () const
void	setAlarmLevel (double v)
double	alarmLevel () const
void	setAlarmEnabled (bool tf)
	Enable or disable the alarm threshold.
bool	alarmEnabled () const
void	setPipeWidth (int w)
int	pipeWidth () const
void	setMaxValue (double v)
double	maxValue () const
void	setMinValue (double v)
double	minValue () const
double	value () const
void	setRange (double vmin, double vmax, bool lg=false)
	Set the range.
void	setMargin (int m)
	Specify the distance between the pipe's endpoints and the widget's border.
virtual QSize	sizeHint () const
virtual QSize	minimumSizeHint () const
	Return a minimum size hint.
void	setScaleDraw (QwtScaleDraw *)
	Set a scale draw.
const QwtScaleDraw *	scaleDraw () const
Protected Member Functions
void	draw (QPainter *p, const QRect &update_rect)
void	drawThermo (QPainter *p)
void	layoutThermo (bool update=true)
virtual void	scaleChange ()
	Notify a scale change.
virtual void	fontChange (const QFont &oldFont)
	Notify a font change.
virtual void	paintEvent (QPaintEvent *e)
virtual void	resizeEvent (QResizeEvent *e)
	Qt resize event handler.
QwtScaleDraw *	scaleDraw ()
Properties
QBrush	alarmBrush
QColor	alarmColor
	Return the liquid color above the alarm threshold.
bool	alarmEnabled
	Return if the alarm threshold is enabled or disabled.
double	alarmLevel
ScalePos	scalePosition
int	borderWidth
QBrush	fillBrush
QColor	fillColor
double	maxValue
	Return the maximum value.
double	minValue
	Return the minimum value.
int	pipeWidth
double	value
	Return the value.

Detailed Description

The Thermometer Widget.

QwtThermo is a widget which displays a value in an interval. It supports:

a horizontal or vertical layout;
a range;
a scale;
an alarm level.

By default, the scale and range run over the same interval of values. QwtAbstractScale::setScale() changes the interval of the scale and allows easy conversion between physical units.

The example shows how to make the scale indicate in degrees Fahrenheit and to set the value in degrees Kelvin:

#include <qapplication.h>
#include <qwt_thermo.h>

double Kelvin2Fahrenheit(double kelvin)
{
    // see http://en.wikipedia.org/wiki/Kelvin
    return 1.8*kelvin - 459.67;
}

int main(int argc, char **argv)
{
    const double minKelvin = 0.0;
    const double maxKelvin = 500.0;

    QApplication a(argc, argv);
    QwtThermo t;
    t.setRange(minKelvin, maxKelvin);
    t.setScale(Kelvin2Fahrenheit(minKelvin), Kelvin2Fahrenheit(maxKelvin));
    // set the value in Kelvin but the scale displays in Fahrenheit
    // 273.15 Kelvin = 0 Celsius = 32 Fahrenheit
    t.setValue(273.15);
    a.setMainWidget(&t);
    t.show();
    return a.exec();
}

Definition at line 69 of file qwt_thermo.h.

Member Enumeration Documentation

enum QwtThermo::ScalePos

Enumerator:

NoScale
LeftScale
RightScale
TopScale
BottomScale

Definition at line 98 of file qwt_thermo.h.

    {
        NoScale,
        LeftScale,
        RightScale,
        TopScale,
        BottomScale
    };

Constructor & Destructor Documentation

QwtThermo::QwtThermo ( QWidget * parent = NULL ) [explicit]

Constructor

Parameters:

parent Parent widget

Definition at line 64 of file qwt_thermo.cpp.

                                   :
    QWidget(parent)
{
    initThermo();
}

QwtThermo::QwtThermo	(	QWidget *	parent,
		const char *	name
	)		`[explicit]`

Constructor

Parameters:

parent	Parent widget
name	Object name

Definition at line 76 of file qwt_thermo.cpp.

                                                     :
    QWidget(parent, name)
{
    initThermo();
}

QwtThermo::~QwtThermo ( ) [virtual]

Destructor.

Definition at line 105 of file qwt_thermo.cpp.

{
    delete d_data;
}

Member Function Documentation

const QBrush& QwtThermo::alarmBrush ( ) const

const QColor& QwtThermo::alarmColor ( ) const

bool QwtThermo::alarmEnabled ( ) const

double QwtThermo::alarmLevel ( ) const

int QwtThermo::borderWidth ( ) const

void QwtThermo::draw	(	QPainter *	painter,
		const QRect &	rect
	)		`[protected]`

Draw the whole QwtThermo.

Parameters:

painter	Painter
rect	Update rectangle

Definition at line 225 of file qwt_thermo.cpp.

References QwtThermo::PrivateData::borderWidth, QwtAbstractScaleDraw::draw(), drawThermo(), NoScale, scaleDraw(), QwtThermo::PrivateData::scalePos, and QwtThermo::PrivateData::thermoRect.

Referenced by paintEvent().

{
    if ( !d_data->thermoRect.contains(rect) )
    {
        if (d_data->scalePos != NoScale)
        {
#if QT_VERSION < 0x040000
            scaleDraw()->draw(painter, colorGroup());
#else
            scaleDraw()->draw(painter, palette());
#endif
        }

        qDrawShadePanel(painter,
            d_data->thermoRect.x() - d_data->borderWidth,
            d_data->thermoRect.y() - d_data->borderWidth,
            d_data->thermoRect.width() + 2 * d_data->borderWidth,
            d_data->thermoRect.height() + 2 * d_data->borderWidth,
#if QT_VERSION < 0x040000
            colorGroup(),
#else
            palette(),
#endif
            true, d_data->borderWidth, 0);
    }
    drawThermo(painter);
}

void QwtThermo::drawThermo ( QPainter * painter ) [protected]

Redraw the liquid in thermometer pipe.

Parameters:

painter Painter

Definition at line 489 of file qwt_thermo.cpp.

References QwtThermo::PrivateData::alarmBrush, QwtThermo::PrivateData::alarmEnabled, QwtThermo::PrivateData::alarmLevel, QwtThermo::PrivateData::fillBrush, QwtThermo::PrivateData::maxValue, QwtThermo::PrivateData::minValue, QwtThermo::PrivateData::orientation, QwtThermo::PrivateData::thermoRect, and QwtThermo::PrivateData::value.

Referenced by draw().

{
    int alarm  = 0, taval = 0;

    QRect fRect;
    QRect aRect;
    QRect bRect;

    int inverted = ( d_data->maxValue < d_data->minValue );

    //
    //  Determine if value exceeds alarm threshold.
    //  Note: The alarm value is allowed to lie
    //        outside the interval (minValue, maxValue).
    //
    if (d_data->alarmEnabled)
    {
        if (inverted)
        {
            alarm = ((d_data->alarmLevel >= d_data->maxValue)
                 && (d_data->alarmLevel <= d_data->minValue)
                 && (d_data->value >= d_data->alarmLevel));

        }
        else
        {
            alarm = (( d_data->alarmLevel >= d_data->minValue)
                 && (d_data->alarmLevel <= d_data->maxValue)
                 && (d_data->value >= d_data->alarmLevel));
        }
    }

    //
    //  transform values
    //
    int tval = transform(d_data->value);

    if (alarm)
       taval = transform(d_data->alarmLevel);

    //
    //  calculate recangles
    //
    if ( d_data->orientation == Qt::Horizontal )
    {
        if (inverted)
        {
            bRect.setRect(d_data->thermoRect.x(), d_data->thermoRect.y(),
                  tval - d_data->thermoRect.x(),
                  d_data->thermoRect.height());

            if (alarm)
            {
                aRect.setRect(tval, d_data->thermoRect.y(),
                      taval - tval + 1,
                      d_data->thermoRect.height());
                fRect.setRect(taval + 1, d_data->thermoRect.y(),
                      d_data->thermoRect.x() + d_data->thermoRect.width() - (taval + 1),
                      d_data->thermoRect.height());
            }
            else
            {
                fRect.setRect(tval, d_data->thermoRect.y(),
                      d_data->thermoRect.x() + d_data->thermoRect.width() - tval,
                      d_data->thermoRect.height());
            }
        }
        else
        {
            bRect.setRect(tval + 1, d_data->thermoRect.y(),
                  d_data->thermoRect.width() - (tval + 1 - d_data->thermoRect.x()),
                  d_data->thermoRect.height());

            if (alarm)
            {
                aRect.setRect(taval, d_data->thermoRect.y(),
                      tval - taval + 1,
                      d_data->thermoRect.height());
                fRect.setRect(d_data->thermoRect.x(), d_data->thermoRect.y(),
                      taval - d_data->thermoRect.x(),
                      d_data->thermoRect.height());
            }
            else
            {
                fRect.setRect(d_data->thermoRect.x(), d_data->thermoRect.y(),
                      tval - d_data->thermoRect.x() + 1,
                      d_data->thermoRect.height());
            }

        }
    }
    else // Qt::Vertical
    {
        if (tval < d_data->thermoRect.y())
            tval = d_data->thermoRect.y();
        else
        {
            if (tval > d_data->thermoRect.y() + d_data->thermoRect.height())
                tval = d_data->thermoRect.y() + d_data->thermoRect.height();
        }

        if (inverted)
        {
            bRect.setRect(d_data->thermoRect.x(), tval + 1,
            d_data->thermoRect.width(),
            d_data->thermoRect.height() - (tval + 1 - d_data->thermoRect.y()));

            if (alarm)
            {
                aRect.setRect(d_data->thermoRect.x(), taval,
                    d_data->thermoRect.width(),
                    tval - taval + 1);
                fRect.setRect(d_data->thermoRect.x(), d_data->thermoRect.y(),
                    d_data->thermoRect.width(),
                taval - d_data->thermoRect.y());
            }
            else
            {
                fRect.setRect(d_data->thermoRect.x(), d_data->thermoRect.y(),
                    d_data->thermoRect.width(),
                    tval - d_data->thermoRect.y() + 1);
            }
        }
        else
        {
            bRect.setRect(d_data->thermoRect.x(), d_data->thermoRect.y(),
            d_data->thermoRect.width(),
            tval - d_data->thermoRect.y());
            if (alarm)
            {
                aRect.setRect(d_data->thermoRect.x(),tval,
                    d_data->thermoRect.width(),
                    taval - tval + 1);
                fRect.setRect(d_data->thermoRect.x(),taval + 1,
                    d_data->thermoRect.width(),
                    d_data->thermoRect.y() + d_data->thermoRect.height() - (taval + 1));
            }
            else
            {
                fRect.setRect(d_data->thermoRect.x(),tval,
                    d_data->thermoRect.width(),
                d_data->thermoRect.y() + d_data->thermoRect.height() - tval);
            }
        }
    }

    //
    // paint thermometer
    //
    const QColor bgColor =
#if QT_VERSION < 0x040000
        colorGroup().color(QColorGroup::Background);
#else
        palette().color(QPalette::Background);
#endif
    painter->fillRect(bRect, bgColor);

    if (alarm)
       painter->fillRect(aRect, d_data->alarmBrush);

    painter->fillRect(fRect, d_data->fillBrush);
}

const QBrush& QwtThermo::fillBrush ( ) const

const QColor& QwtThermo::fillColor ( ) const

void QwtThermo::fontChange ( const QFont & oldFont ) [protected, virtual]

Notify a font change.

Definition at line 472 of file qwt_thermo.cpp.

References layoutThermo().

{
    QWidget::fontChange( f );
    layoutThermo();
}

void QwtThermo::layoutThermo ( bool update_geometry = true ) [protected]

Recalculate the QwtThermo geometry and layout based on the QwtThermo::rect() and the fonts.

Parameters:

update_geometry notify the layout system and call update to redraw the scale

Definition at line 266 of file qwt_thermo.cpp.

References QwtThermo::PrivateData::borderWidth, QwtScaleDraw::BottomScale, BottomScale, QwtScaleDraw::getBorderDistHint(), QwtScaleDraw::LeftScale, LeftScale, QwtThermo::PrivateData::map, QwtScaleDraw::move(), NoScale, QwtThermo::PrivateData::orientation, qwtMax, QwtScaleDraw::RightScale, RightScale, QwtThermo::PrivateData::scaleDist, scaleDraw(), QwtThermo::PrivateData::scalePos, QwtScaleDraw::setAlignment(), QwtScaleDraw::setLength(), QwtScaleMap::setPaintInterval(), QwtThermo::PrivateData::thermoRect, QwtThermo::PrivateData::thermoWidth, QwtScaleDraw::TopScale, and TopScale.

Referenced by fontChange(), resizeEvent(), scaleChange(), setBorderWidth(), setOrientation(), setPipeWidth(), and setRange().

{
    QRect r = rect();
    int mbd = 0;
    if ( d_data->scalePos != NoScale )
    {
        int d1, d2;
        scaleDraw()->getBorderDistHint(font(), d1, d2);
        mbd = qwtMax(d1, d2);
    }

    if ( d_data->orientation == Qt::Horizontal )
    {
        switch ( d_data->scalePos )
        {
            case TopScale:
            {
                d_data->thermoRect.setRect(
                    r.x() + mbd + d_data->borderWidth,
                    r.y() + r.height()
                    - d_data->thermoWidth - 2*d_data->borderWidth,
                    r.width() - 2*(d_data->borderWidth + mbd),
                    d_data->thermoWidth);
                scaleDraw()->setAlignment(QwtScaleDraw::TopScale);
                scaleDraw()->move( d_data->thermoRect.x(),
                    d_data->thermoRect.y() - d_data->borderWidth
                        - d_data->scaleDist);
                scaleDraw()->setLength(d_data->thermoRect.width());
                break;
            }

            case BottomScale:
            case NoScale: // like Bottom but without scale
            default:   // inconsistent orientation and scale position
                       // Mapping between values and pixels requires
                       // initialization of the scale geometry
            {
                d_data->thermoRect.setRect(
                    r.x() + mbd + d_data->borderWidth,
                    r.y() + d_data->borderWidth,
                    r.width() - 2*(d_data->borderWidth + mbd),
                    d_data->thermoWidth);
                scaleDraw()->setAlignment(QwtScaleDraw::BottomScale);
                scaleDraw()->move(
                    d_data->thermoRect.x(),
                    d_data->thermoRect.y() + d_data->thermoRect.height()
                        + d_data->borderWidth + d_data->scaleDist );
                scaleDraw()->setLength(d_data->thermoRect.width());
                break;
            }
        }
        d_data->map.setPaintInterval(d_data->thermoRect.x(),
            d_data->thermoRect.x() + d_data->thermoRect.width() - 1);
    }
    else // Qt::Vertical
    {
        switch ( d_data->scalePos )
        {
            case RightScale:
            {
                d_data->thermoRect.setRect(
                    r.x() + d_data->borderWidth,
                    r.y() + mbd + d_data->borderWidth,
                    d_data->thermoWidth,
                    r.height() - 2*(d_data->borderWidth + mbd));
                scaleDraw()->setAlignment(QwtScaleDraw::RightScale);
                scaleDraw()->move(
                    d_data->thermoRect.x() + d_data->thermoRect.width()
                        + d_data->borderWidth + d_data->scaleDist,
                    d_data->thermoRect.y());
                scaleDraw()->setLength(d_data->thermoRect.height());
                break;
            }

            case LeftScale:
            case NoScale: // like Left but without scale
            default:   // inconsistent orientation and scale position
                       // Mapping between values and pixels requires
                       // initialization of the scale geometry
            {
                d_data->thermoRect.setRect(
                    r.x() + r.width() - 2*d_data->borderWidth - d_data->thermoWidth,
                    r.y() + mbd + d_data->borderWidth,
                    d_data->thermoWidth,
                    r.height() - 2*(d_data->borderWidth + mbd));
                scaleDraw()->setAlignment(QwtScaleDraw::LeftScale);
                scaleDraw()->move(
                    d_data->thermoRect.x() - d_data->scaleDist
                        - d_data->borderWidth,
                    d_data->thermoRect.y() );
                scaleDraw()->setLength(d_data->thermoRect.height());
                break;
            }
        }
        d_data->map.setPaintInterval(
            d_data->thermoRect.y() + d_data->thermoRect.height() - 1,
            d_data->thermoRect.y());
    }
    if ( update_geometry )
    {
        updateGeometry();
        update();
    }
}

double QwtThermo::maxValue ( ) const

QSize QwtThermo::minimumSizeHint ( ) const [virtual]

Return a minimum size hint.

Warning:: The return value depends on the font and the scale.

See also:: sizeHint()

Definition at line 879 of file qwt_thermo.cpp.

References QwtThermo::PrivateData::borderWidth, QwtScaleDraw::extent(), QwtScaleDraw::minLength(), NoScale, QwtThermo::PrivateData::orientation, QwtThermo::PrivateData::scaleDist, scaleDraw(), QwtThermo::PrivateData::scalePos, and QwtThermo::PrivateData::thermoWidth.

Referenced by sizeHint().

{
    int w = 0, h = 0;

    if ( d_data->scalePos != NoScale )
    {
        const int sdExtent = scaleDraw()->extent( QPen(), font() );
        const int sdLength = scaleDraw()->minLength( QPen(), font() );

        w = sdLength;
        h = d_data->thermoWidth + sdExtent +
            d_data->borderWidth + d_data->scaleDist;

    }
    else // no scale
    {
        w = 200;
        h = d_data->thermoWidth;
    }

    if ( d_data->orientation == Qt::Vertical )
        qSwap(w, h);

    w += 2 * d_data->borderWidth;
    h += 2 * d_data->borderWidth;

    return QSize( w, h );
}

double QwtThermo::minValue ( ) const

void QwtThermo::paintEvent ( QPaintEvent * event ) [protected, virtual]

Qt paint event. event Paint event

Definition at line 203 of file qwt_thermo.cpp.

References draw(), and QwtPaintBuffer::painter().

{
    // Use double-buffering
    const QRect &ur = event->rect();
    if ( ur.isValid() )
    {
#if QT_VERSION < 0x040000
        QwtPaintBuffer paintBuffer(this, ur);
        draw(paintBuffer.painter(), ur);
#else
        QPainter painter(this);
        draw(&painter, ur);
#endif
    }
}

int QwtThermo::pipeWidth ( ) const

void QwtThermo::resizeEvent ( QResizeEvent * e ) [protected, virtual]

Qt resize event handler.

Definition at line 254 of file qwt_thermo.cpp.

References layoutThermo().

{
    layoutThermo( false );
}

void QwtThermo::scaleChange ( ) [protected, virtual]

Notify a scale change.

Reimplemented from QwtAbstractScale.

Definition at line 479 of file qwt_thermo.cpp.

References layoutThermo().

{
    update();
    layoutThermo();
}

QwtScaleDraw * QwtThermo::scaleDraw ( ) [protected]

Returns:: the scale draw of the thermo

See also:: setScaleDraw()

Definition at line 194 of file qwt_thermo.cpp.

References QwtAbstractScale::abstractScaleDraw().

{
    return (QwtScaleDraw *)abstractScaleDraw();
}

const QwtScaleDraw * QwtThermo::scaleDraw ( ) const

Returns:: the scale draw of the thermo

See also:: setScaleDraw()

Definition at line 185 of file qwt_thermo.cpp.

References QwtAbstractScale::abstractScaleDraw().

Referenced by draw(), layoutThermo(), and minimumSizeHint().

{
    return (QwtScaleDraw *)abstractScaleDraw();
}

ScalePos QwtThermo::scalePosition ( ) const

void QwtThermo::setAlarmBrush ( const QBrush & brush )

Specify the liquid brush above the alarm threshold.

Parameters:

brush New brush. The default is solid white.

See also:: alarmBrush()

Definition at line 752 of file qwt_thermo.cpp.

References QwtThermo::PrivateData::alarmBrush.

{
    d_data->alarmBrush = brush;
    update();
}

void QwtThermo::setAlarmColor ( const QColor & c )

Specify the liquid color above the alarm threshold.

Parameters:

c	New color. The default is white.

Definition at line 771 of file qwt_thermo.cpp.

References QwtThermo::PrivateData::alarmBrush.

{
    d_data->alarmBrush.setColor(c);
    update();
}

void QwtThermo::setAlarmEnabled ( bool tf )

Enable or disable the alarm threshold.

Parameters:

tf	true (disabled) or false (enabled)

Definition at line 853 of file qwt_thermo.cpp.

References QwtThermo::PrivateData::alarmEnabled.

{
    d_data->alarmEnabled = tf;
    update();
}

void QwtThermo::setAlarmLevel ( double level )

Specify the alarm threshold.

Parameters:

level Alarm threshold

See also:: alarmLevel()

Definition at line 789 of file qwt_thermo.cpp.

References QwtThermo::PrivateData::alarmEnabled, and QwtThermo::PrivateData::alarmLevel.

{
    d_data->alarmLevel = level;
    d_data->alarmEnabled = 1;
    update();
}

void QwtThermo::setBorderWidth ( int width )

Set the border width of the pipe.

Parameters:

width Border width

See also:: borderWidth()

Definition at line 657 of file qwt_thermo.cpp.

References QwtThermo::PrivateData::borderWidth, layoutThermo(), qwtMin, and QwtThermo::PrivateData::thermoRect.

{
    if ((width >= 0) && (width < (qwtMin(d_data->thermoRect.width(),
        d_data->thermoRect.height()) + d_data->borderWidth) / 2  - 1))
    {
        d_data->borderWidth = width;
        layoutThermo();
    }
}

void QwtThermo::setFillBrush ( const QBrush & brush )

Change the brush of the liquid.

Parameters:

brush New brush. The default brush is solid black.

See also:: fillBrush()

Definition at line 712 of file qwt_thermo.cpp.

References QwtThermo::PrivateData::fillBrush.

{
    d_data->fillBrush = brush;
    update();
}

void QwtThermo::setFillColor ( const QColor & c )

Change the color of the liquid.

Parameters:

c	New color. The default color is black.

See also:: fillColor()

Definition at line 732 of file qwt_thermo.cpp.

References QwtThermo::PrivateData::fillBrush.

{
    d_data->fillBrush.setColor(c);
    update();
}

void QwtThermo::setMargin ( int m )

Specify the distance between the pipe's endpoints and the widget's border.

The margin is used to leave some space for the scale labels. If a large font is used, it is advisable to adjust the margins.

Parameters:

m	New Margin. The default values are 10 for horizontal orientation and 20 for vertical orientation.

Warning:: The margin has no effect if the scale is disabled.; This function is a NOOP because margins are determined automatically.

Definition at line 844 of file qwt_thermo.cpp.

{
}

void QwtThermo::setMaxValue ( double max )

Set the maximum value.

Parameters:

max	Maximum value

See also:: maxValue(), setMinValue()

Definition at line 116 of file qwt_thermo.cpp.

References QwtThermo::PrivateData::minValue, and setRange().

{
    setRange(d_data->minValue, max);
}

void QwtThermo::setMinValue ( double min )

Set the minimum value.

Parameters:

min	Minimum value

See also:: minValue(), setMaxValue()

Definition at line 133 of file qwt_thermo.cpp.

References QwtThermo::PrivateData::maxValue, and setRange().

{
    setRange(min, d_data->maxValue);
}

void QwtThermo::setOrientation	(	Qt::Orientation	o,
		ScalePos	s
	)

Set the thermometer orientation and the scale position.

The scale position NoScale disables the scale.

Parameters:

o	orientation. Possible values are Qt::Horizontal and Qt::Vertical. The default value is Qt::Vertical.
s	Position of the scale. The default value is NoScale.

A valid combination of scale position and orientation is enforced:

a horizontal thermometer can have the scale positions TopScale, BottomScale or NoScale;
a vertical thermometer can have the scale positions LeftScale, RightScale or NoScale;
an invalid scale position will default to NoScale.

See also:: setScalePosition()

Definition at line 389 of file qwt_thermo.cpp.

References BottomScale, layoutThermo(), LeftScale, NoScale, QwtThermo::PrivateData::orientation, RightScale, QwtThermo::PrivateData::scalePos, and TopScale.

Referenced by setScalePosition().

{
    if ( o == d_data->orientation && s == d_data->scalePos )
        return;

    switch(o)
    {
        case Qt::Horizontal:
        {
            if ((s == NoScale) || (s == BottomScale) || (s == TopScale))
                d_data->scalePos = s;
            else
                d_data->scalePos = NoScale;
            break;
        }
        case Qt::Vertical:
        {
            if ((s == NoScale) || (s == LeftScale) || (s == RightScale))
                d_data->scalePos = s;
            else
                d_data->scalePos = NoScale;
            break;
        }
    }

    if ( o != d_data->orientation )
    {
#if QT_VERSION >= 0x040000
        if ( !testAttribute(Qt::WA_WState_OwnSizePolicy) )
#else
        if ( !testWState( WState_OwnSizePolicy ) )
#endif
        {
            QSizePolicy sp = sizePolicy();
            sp.transpose();
            setSizePolicy(sp);

#if QT_VERSION >= 0x040000
            setAttribute(Qt::WA_WState_OwnSizePolicy, false);
#else
            clearWState( WState_OwnSizePolicy );
#endif
        }
    }

    d_data->orientation = o;
    layoutThermo();
}

void QwtThermo::setPipeWidth ( int width )

Change the width of the pipe.

Parameters:

width Width of the pipe

See also:: pipeWidth()

Definition at line 811 of file qwt_thermo.cpp.

References layoutThermo(), and QwtThermo::PrivateData::thermoWidth.

{
    if (width > 0)
    {
        d_data->thermoWidth = width;
        layoutThermo();
    }
}

void QwtThermo::setRange	(	double	vmin,
		double	vmax,
		bool	logarithmic = `false`
	)

Set the range.

Parameters:

vmin	value corresponding lower or left end of the thermometer
vmax	value corresponding to the upper or right end of the thermometer
logarithmic	logarithmic mapping, true or false

Definition at line 682 of file qwt_thermo.cpp.

References QwtAbstractScale::autoScale(), layoutThermo(), QwtThermo::PrivateData::map, QwtThermo::PrivateData::maxValue, QwtThermo::PrivateData::minValue, QwtAbstractScale::rescale(), QwtAbstractScale::scaleEngine(), QwtAbstractScale::setScaleEngine(), QwtScaleMap::setScaleInterval(), and QwtScaleMap::setTransformation().

Referenced by setMaxValue(), and setMinValue().

{
    d_data->minValue = vmin;
    d_data->maxValue = vmax;

    if ( logarithmic )
        setScaleEngine(new QwtLog10ScaleEngine);
    else
        setScaleEngine(new QwtLinearScaleEngine);

    /*
      There are two different maps, one for the scale, the other
      for the values. This is confusing and will be changed
      in the future. TODO ...
     */

    d_data->map.setTransformation(scaleEngine()->transformation());
    d_data->map.setScaleInterval(d_data->minValue, d_data->maxValue);

    if (autoScale())
        rescale(d_data->minValue, d_data->maxValue);

    layoutThermo();
}

void QwtThermo::setScaleDraw ( QwtScaleDraw * scaleDraw )

Set a scale draw.

For changing the labels of the scales, it is necessary to derive from QwtScaleDraw and overload QwtScaleDraw::label().

Parameters:

scaleDraw ScaleDraw object, that has to be created with new and will be deleted in ~QwtThermo or the next call of setScaleDraw().

Definition at line 176 of file qwt_thermo.cpp.

References QwtAbstractScale::setAbstractScaleDraw().

{
    setAbstractScaleDraw(scaleDraw);
}

void QwtThermo::setScalePosition ( ScalePos scalePos )

Change the scale position (and thermometer orientation).

Parameters:

scalePos Position of the scale.

A valid combination of scale position and orientation is enforced:

if the new scale position is LeftScale or RightScale, the scale orientation will become Qt::Vertical;
if the new scale position is BottomScale or TopScale, the scale orientation will become Qt::Horizontal;
if the new scale position is NoScale, the scale orientation will not change.

See also:: setOrientation(), scalePosition()

Definition at line 452 of file qwt_thermo.cpp.

References BottomScale, LeftScale, NoScale, QwtThermo::PrivateData::orientation, RightScale, setOrientation(), and TopScale.

{
    if ((scalePos == BottomScale) || (scalePos == TopScale))
        setOrientation(Qt::Horizontal, scalePos);
    else if ((scalePos == LeftScale) || (scalePos == RightScale))
        setOrientation(Qt::Vertical, scalePos);
    else
        setOrientation(d_data->orientation, NoScale);
}

void QwtThermo::setValue ( double value ) [slot]

Set the current value.

Parameters:

value New Value

See also:: value()

Definition at line 150 of file qwt_thermo.cpp.

References value(), and QwtThermo::PrivateData::value.

{
    if (d_data->value != value)
    {
        d_data->value = value;
        update();
    }
}

QSize QwtThermo::sizeHint ( ) const [virtual]

Returns:: the minimum size hint

See also:: minimumSizeHint()

Definition at line 869 of file qwt_thermo.cpp.

References minimumSizeHint().

{
    return minimumSizeHint();
}

double QwtThermo::value ( ) const

Referenced by setValue().

Property Documentation

const QBrush & QwtThermo::alarmBrush [read, write]

Return the liquid brush above the alarm threshold.

See also:: setAlarmBrush()

Definition at line 75 of file qwt_thermo.h.

const QColor & QwtThermo::alarmColor [read, write]

Return the liquid color above the alarm threshold.

Definition at line 76 of file qwt_thermo.h.

bool QwtThermo::alarmEnabled [read, write]

Return if the alarm threshold is enabled or disabled.

Definition at line 77 of file qwt_thermo.h.

double QwtThermo::alarmLevel [read, write]

Return the alarm threshold.

See also:: setAlarmLevel()

Definition at line 78 of file qwt_thermo.h.

int QwtThermo::borderWidth [read, write]

Return the border width of the thermometer pipe.

See also:: setBorderWidth()

Definition at line 81 of file qwt_thermo.h.

const QBrush & QwtThermo::fillBrush [read, write]

Return the liquid brush.

See also:: setFillBrush()

Definition at line 82 of file qwt_thermo.h.

const QColor & QwtThermo::fillColor [read, write]

Return the liquid color.

See also:: setFillColor()

Definition at line 83 of file qwt_thermo.h.

double QwtThermo::maxValue [read, write]

Return the maximum value.

Definition at line 84 of file qwt_thermo.h.

double QwtThermo::minValue [read, write]

Return the minimum value.

Definition at line 85 of file qwt_thermo.h.

int QwtThermo::pipeWidth [read, write]

Return the width of the pipe.

See also:: setPipeWidth()

Definition at line 86 of file qwt_thermo.h.

QwtThermo::ScalePos QwtThermo::scalePosition [read, write]

Return the scale position.

See also:: setScalePosition()

Definition at line 80 of file qwt_thermo.h.

double QwtThermo::value [read, write]

Return the value.

Definition at line 87 of file qwt_thermo.h.

The documentation for this class was generated from the following files:

QwtThermo Class Reference

Classes

Public Types

Public Slots

Public Member Functions

Protected Member Functions

Properties

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Property Documentation
