The Slider Widget. More...

#include <qwt_slider.h>

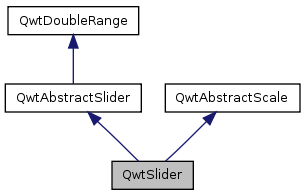

Inheritance diagram for QwtSlider:

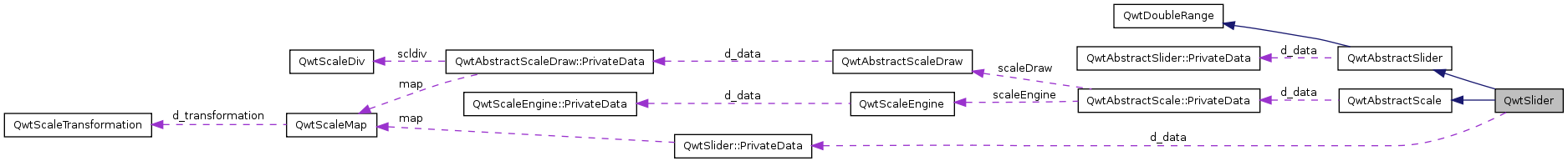

Collaboration diagram for QwtSlider:

Classes
class	PrivateData
Public Types
enum	ScalePos { NoScale, LeftScale, RightScale, TopScale, BottomScale }
enum	BGSTYLE { BgTrough = 0x1, BgSlot = 0x2, BgBoth = BgTrough \| BgSlot }
Public Member Functions
	QwtSlider (QWidget *parent, Qt::Orientation=Qt::Horizontal, ScalePos=NoScale, BGSTYLE bgStyle=BgTrough)
	Constructor.
	QwtSlider (QWidget parent, const char name)
	Constructor.
virtual	~QwtSlider ()
virtual void	setOrientation (Qt::Orientation)
	Set the orientation.
void	setBgStyle (BGSTYLE)
BGSTYLE	bgStyle () const
void	setScalePosition (ScalePos s)
	Change the scale position (and slider orientation).
ScalePos	scalePosition () const
int	thumbLength () const
int	thumbWidth () const
int	borderWidth () const
void	setThumbLength (int l)
	Set the slider's thumb length.
void	setThumbWidth (int w)
	Change the width of the thumb.
void	setBorderWidth (int bw)
	Change the slider's border width.
void	setMargins (int x, int y)
	Set distances between the widget's border and internals.
virtual QSize	sizeHint () const
virtual QSize	minimumSizeHint () const
	Return a minimum size hint.
void	setScaleDraw (QwtScaleDraw *)
	Set a scale draw.
const QwtScaleDraw *	scaleDraw () const
Protected Member Functions
virtual double	getValue (const QPoint &p)
virtual void	getScrollMode (const QPoint &p, int &scrollMode, int &direction)
	Determine scrolling mode and direction.
void	draw (QPainter *p, const QRect &update_rect)
	Draw the QwtSlider.
virtual void	drawSlider (QPainter *p, const QRect &r)
virtual void	drawThumb (QPainter *p, const QRect &, int pos)
virtual void	resizeEvent (QResizeEvent *e)
	Qt resize event.
virtual void	paintEvent (QPaintEvent *e)
virtual void	valueChange ()
	Notify change of value.
virtual void	rangeChange ()
	Notify change of range.
virtual void	scaleChange ()
	Notify changed scale.
virtual void	fontChange (const QFont &oldFont)
	Notify change in font.
void	layoutSlider (bool update=true)
int	xyPosition (double v) const
QwtScaleDraw *	scaleDraw ()
Properties
ScalePos	scalePosition
	Return the scale position.
BGSTYLE	bgStyle
int	thumbLength
int	thumbWidth
int	borderWidth

Detailed Description

The Slider Widget.

QwtSlider is a slider widget which operates on an interval of type double. QwtSlider supports different layouts as well as a scale.

See also:: QwtAbstractSlider and QwtAbstractScale for the descriptions of the inherited members.

Definition at line 34 of file qwt_slider.h.

Member Enumeration Documentation

enum QwtSlider::BGSTYLE

Background style.

See also:: QwtSlider()

Enumerator:

BgTrough
BgSlot
BgBoth

Definition at line 70 of file qwt_slider.h.

    {
        BgTrough = 0x1,
        BgSlot = 0x2,
        BgBoth = BgTrough | BgSlot
    };

enum QwtSlider::ScalePos

Scale position. QwtSlider tries to enforce valid combinations of its orientation and scale position:

Qt::Horizonal combines with NoScale, TopScale and BottomScale
Qt::Vertical combines with NoScale, LeftScale and RightScale

See also:: QwtSlider()

Enumerator:

NoScale
LeftScale
RightScale
TopScale
BottomScale

Definition at line 56 of file qwt_slider.h.

    {
        NoScale,

        LeftScale,
        RightScale,
        TopScale,
        BottomScale
    };

Constructor & Destructor Documentation

QwtSlider::QwtSlider	(	QWidget *	parent,
		Qt::Orientation	orientation = `Qt::Horizontal`,
		ScalePos	scalePos = `NoScale`,
		BGSTYLE	bgStyle = `BgTrough`
	)		`[explicit]`

Constructor.

Parameters:

parent	parent widget
orientation	Orientation of the slider. Can be Qt::Horizontal or Qt::Vertical. Defaults to Qt::Horizontal.
scalePos	Position of the scale. Defaults to QwtSlider::NoScale.
bgStyle	Background style. QwtSlider::BgTrough draws the slider button in a trough, QwtSlider::BgSlot draws a slot underneath the button. An or-combination of both may also be used. The default is QwtSlider::BgTrough.

QwtSlider enforces valid combinations of its orientation and scale position. If the combination is invalid, the scale position will be set to NoScale. Valid combinations are:

Qt::Horizonal with NoScale, TopScale, or BottomScale;
Qt::Vertical with NoScale, LeftScale, or RightScale.

Definition at line 64 of file qwt_slider.cpp.

                                                                      :
    QwtAbstractSlider(orientation, parent)
{
    initSlider(orientation, scalePos, bgStyle);
}

QwtSlider::QwtSlider	(	QWidget *	parent,
		const char *	name
	)		`[explicit]`

Constructor.

Build a horizontal slider with no scale and BgTrough as background style

Parameters:

parent	parent widget
name	Object name

Definition at line 81 of file qwt_slider.cpp.

References BgTrough, and NoScale.

                                                     :
    QwtAbstractSlider(Qt::Horizontal, parent)
{
    setName(name);
    initSlider(Qt::Horizontal, NoScale, BgTrough);
}

QwtSlider::~QwtSlider ( ) [virtual]

Definition at line 161 of file qwt_slider.cpp.

{
    delete d_data;
}

Member Function Documentation

BGSTYLE QwtSlider::bgStyle ( ) const

int QwtSlider::borderWidth ( ) const

void QwtSlider::draw	(	QPainter *	p,
		const QRect &	update_rect
	)		`[protected]`

Draw the QwtSlider.

Definition at line 594 of file qwt_slider.cpp.

References QwtAbstractScaleDraw::draw(), QwtPainter::drawFocusRect(), drawSlider(), NoScale, scaleDraw(), QwtSlider::PrivateData::scalePos, and QwtSlider::PrivateData::sliderRect.

Referenced by paintEvent().

{
    if (d_data->scalePos != NoScale)
    {
#if QT_VERSION < 0x040000
        scaleDraw()->draw(painter, colorGroup());
#else
        scaleDraw()->draw(painter, palette());
#endif
    }

    drawSlider(painter, d_data->sliderRect);

    if ( hasFocus() )
        QwtPainter::drawFocusRect(painter, this, d_data->sliderRect);
}

void QwtSlider::drawSlider	(	QPainter *	painter,
		const QRect &	r
	)		`[protected, virtual]`

Draw the slider into the specified rectangle.

Parameters:

painter	Painter
r	Rectangle

Definition at line 382 of file qwt_slider.cpp.

References BgSlot, QwtSlider::PrivateData::bgStyle, BgTrough, QwtSlider::PrivateData::borderWidth, drawThumb(), QwtAbstractSlider::isValid(), QwtAbstractSlider::orientation(), QwtSlider::PrivateData::thumbLength, QwtDoubleRange::value(), and xyPosition().

Referenced by draw().

{
    QRect cr(r);

    if (d_data->bgStyle & BgTrough)
    {
        qDrawShadePanel(painter, r.x(), r.y(),
            r.width(), r.height(),
#if QT_VERSION < 0x040000
            colorGroup(),
#else
            palette(),
#endif
            true, d_data->borderWidth,0);

        cr.setRect(r.x() + d_data->borderWidth,
            r.y() + d_data->borderWidth,
            r.width() - 2 * d_data->borderWidth,
            r.height() - 2 * d_data->borderWidth);

        painter->fillRect(cr.x(), cr.y(), cr.width(), cr.height(),
#if QT_VERSION < 0x040000
            colorGroup().brush(QColorGroup::Mid)
#else
            palette().brush(QPalette::Mid)
#endif
        );
    }

    if ( d_data->bgStyle & BgSlot)
    {
        int ws = 4;
        int ds = d_data->thumbLength / 2 - 4;
        if ( ds < 1 )
            ds = 1;

        QRect rSlot;
        if (orientation() == Qt::Horizontal)
        {
            if ( cr.height() & 1 )
                ws++;
            rSlot = QRect(cr.x() + ds,
                    cr.y() + (cr.height() - ws) / 2,
                    cr.width() - 2 * ds, ws);
        }
        else
        {
            if ( cr.width() & 1 )
                ws++;
            rSlot = QRect(cr.x() + (cr.width() - ws) / 2,
                    cr.y() + ds,
                    ws, cr.height() - 2 * ds);
        }
        painter->fillRect(rSlot.x(), rSlot.y(), rSlot.width(), rSlot.height(),
#if QT_VERSION < 0x040000
            colorGroup().brush(QColorGroup::Dark)
#else
            palette().brush(QPalette::Dark)
#endif
        );
        qDrawShadePanel(painter, rSlot.x(), rSlot.y(),
            rSlot.width(), rSlot.height(),
#if QT_VERSION < 0x040000
            colorGroup(),
#else
            palette(),
#endif
            true, 1 ,0);

    }

    if ( isValid() )
        drawThumb(painter, cr, xyPosition(value()));
}

void QwtSlider::drawThumb	(	QPainter *	painter,
		const QRect &	sliderRect,
		int	pos
	)		`[protected, virtual]`

Draw the thumb at a position

Parameters:

painter	Painter
sliderRect	Bounding rectangle of the slider
pos	Position of the slider thumb

Definition at line 464 of file qwt_slider.cpp.

References QwtSlider::PrivateData::borderWidth, QwtAbstractSlider::orientation(), and QwtSlider::PrivateData::thumbLength.

Referenced by drawSlider().

{
    pos++; // shade line points one pixel below
    if (orientation() == Qt::Horizontal)
    {
        qDrawShadePanel(painter, pos - d_data->thumbLength / 2,
            sliderRect.y(), d_data->thumbLength, sliderRect.height(),
#if QT_VERSION < 0x040000
            colorGroup(),
#else
            palette(),
#endif
            false, d_data->borderWidth,
#if QT_VERSION < 0x040000
            &colorGroup().brush(QColorGroup::Button)
#else
            &palette().brush(QPalette::Button)
#endif
        );

        qDrawShadeLine(painter, pos, sliderRect.y(),
            pos, sliderRect.y() + sliderRect.height() - 2,
#if QT_VERSION < 0x040000
            colorGroup(),
#else
            palette(),
#endif
            true, 1);
    }
    else // Vertical
    {
        qDrawShadePanel(painter, sliderRect.x(), pos - d_data->thumbLength / 2,
            sliderRect.width(), d_data->thumbLength,
#if QT_VERSION < 0x040000
            colorGroup(),
#else
            palette(),
#endif
            false, d_data->borderWidth,
#if QT_VERSION < 0x040000
            &colorGroup().brush(QColorGroup::Button)
#else
            &palette().brush(QPalette::Button)
#endif
        );

        qDrawShadeLine(painter, sliderRect.x(), pos,
            sliderRect.x() + sliderRect.width() - 2, pos,
#if QT_VERSION < 0x040000
            colorGroup(),
#else
            palette(),
#endif
            true, 1);
    }
}

void QwtSlider::fontChange ( const QFont & oldFont ) [protected, virtual]

Notify change in font.

Definition at line 370 of file qwt_slider.cpp.

References layoutSlider().

{
    QwtAbstractSlider::fontChange( f );
    layoutSlider();
}

void QwtSlider::getScrollMode	(	const QPoint &	p,
		int &	scrollMode,
		int &	direction
	)		`[protected, virtual]`

Determine scrolling mode and direction.

Parameters:

p	point
scrollMode	Scrolling mode
direction	Direction

Implements QwtAbstractSlider.

Definition at line 546 of file qwt_slider.cpp.

References QwtAbstractScaleDraw::map(), QwtAbstractSlider::orientation(), QwtScaleMap::p1(), QwtScaleMap::p2(), scaleDraw(), QwtAbstractSlider::ScrMouse, QwtAbstractSlider::ScrNone, QwtAbstractSlider::ScrPage, QwtSlider::PrivateData::sliderRect, thumbLength(), QwtSlider::PrivateData::thumbLength, QwtDoubleRange::value(), and xyPosition().

{
    if (!d_data->sliderRect.contains(p))
    {
        scrollMode = ScrNone;
        direction = 0;
        return;
    }

    const int pos = ( orientation() == Qt::Horizontal ) ? p.x() : p.y();
    const int markerPos = xyPosition(value());

    if ((pos > markerPos - d_data->thumbLength / 2)
        && (pos < markerPos + d_data->thumbLength / 2))
    {
        scrollMode = ScrMouse;
        direction = 0;
        return;
    }

    scrollMode = ScrPage;
    direction = (pos > markerPos) ? 1 : -1;

    if ( scaleDraw()->map().p1() > scaleDraw()->map().p2() )
        direction = -direction;
}

double QwtSlider::getValue ( const QPoint & pos ) [protected, virtual]

Determine the value corresponding to a specified mouse location.

Parameters:

pos	Mouse position

Implements QwtAbstractSlider.

Definition at line 534 of file qwt_slider.cpp.

References QwtScaleMap::invTransform(), QwtSlider::PrivateData::map, and QwtAbstractSlider::orientation().

{
    return d_data->map.invTransform(
        orientation() == Qt::Horizontal ? pos.x() : pos.y());
}

void QwtSlider::layoutSlider ( bool update_geometry = true ) [protected]

Recalculate the slider's geometry and layout based on the current rect and fonts.

Parameters:

update_geometry notify the layout system and call update to redraw the scale

Definition at line 623 of file qwt_slider.cpp.

Referenced by fontChange(), rangeChange(), resizeEvent(), scaleChange(), setBgStyle(), setBorderWidth(), setMargins(), setOrientation(), setScaleDraw(), setScalePosition(), setThumbLength(), and setThumbWidth().

{
    int sliderWidth = d_data->thumbWidth;
    int sld1 = d_data->thumbLength / 2 - 1;
    int sld2 = d_data->thumbLength / 2 + d_data->thumbLength % 2;
    if ( d_data->bgStyle & BgTrough )
    {
        sliderWidth += 2 * d_data->borderWidth;
        sld1 += d_data->borderWidth;
        sld2 += d_data->borderWidth;
    }

    int scd = 0;
    if ( d_data->scalePos != NoScale )
    {
        int d1, d2;
        scaleDraw()->getBorderDistHint(font(), d1, d2);
        scd = qwtMax(d1, d2);
    }

    int slo = scd - sld1;
    if ( slo < 0 )
        slo = 0;

    int x, y, length;

    const QRect r = rect();
    if (orientation() == Qt::Horizontal)
    {
        switch (d_data->scalePos)
        {
            case TopScale:
            {
                d_data->sliderRect.setRect(
                    r.x() + d_data->xMargin + slo,
                    r.y() + r.height() -
                    d_data->yMargin - sliderWidth,
                    r.width() - 2 * d_data->xMargin - 2 * slo,
                    sliderWidth);

                x = d_data->sliderRect.x() + sld1;
                y = d_data->sliderRect.y() - d_data->scaleDist;

                break;
            }

            case BottomScale:
            {
                d_data->sliderRect.setRect(
                    r.x() + d_data->xMargin + slo,
                    r.y() + d_data->yMargin,
                    r.width() - 2 * d_data->xMargin - 2 * slo,
                    sliderWidth);

                x = d_data->sliderRect.x() + sld1;
                y = d_data->sliderRect.y() + d_data->sliderRect.height()
                    + d_data->scaleDist;

                break;
            }

            case NoScale: // like Bottom, but no scale. See QwtSlider().
            default:   // inconsistent orientation and scale position
            {
                d_data->sliderRect.setRect(
                    r.x() + d_data->xMargin + slo,
                    r.y() + d_data->yMargin,
                    r.width() - 2 * d_data->xMargin - 2 * slo,
                    sliderWidth);

                x = d_data->sliderRect.x() + sld1;
                y = 0;

                break;
            }
        }
        length = d_data->sliderRect.width() - (sld1 + sld2);
    }
    else // if (orientation() == Qt::Vertical
    {
        switch (d_data->scalePos)
        {
            case RightScale:
                d_data->sliderRect.setRect(
                    r.x() + d_data->xMargin,
                    r.y() + d_data->yMargin + slo,
                    sliderWidth,
                    r.height() - 2 * d_data->yMargin - 2 * slo);

                x = d_data->sliderRect.x() + d_data->sliderRect.width()
                    + d_data->scaleDist;
                y = d_data->sliderRect.y() + sld1;

                break;

            case LeftScale:
                d_data->sliderRect.setRect(
                    r.x() + r.width() - sliderWidth - d_data->xMargin,
                    r.y() + d_data->yMargin + slo,
                    sliderWidth,
                    r.height() - 2 * d_data->yMargin - 2 * slo);

                x = d_data->sliderRect.x() - d_data->scaleDist;
                y = d_data->sliderRect.y() + sld1;

                break;

            case NoScale: // like Left, but no scale. See QwtSlider().
            default:   // inconsistent orientation and scale position
                d_data->sliderRect.setRect(
                    r.x() + r.width() - sliderWidth - d_data->xMargin,
                    r.y() + d_data->yMargin + slo,
                    sliderWidth,
                    r.height() - 2 * d_data->yMargin - 2 * slo);

                x = 0;
                y = d_data->sliderRect.y() + sld1;

                break;
        }
        length = d_data->sliderRect.height() - (sld1 + sld2);
    }

    scaleDraw()->move(x, y);
    scaleDraw()->setLength(length);

    d_data->map.setPaintXInterval(scaleDraw()->map().p1(),
        scaleDraw()->map().p2());

    if ( update_geometry )
    {
        d_data->sizeHintCache = QSize(); // invalidate
        updateGeometry();
        update();
    }
}

QSize QwtSlider::minimumSizeHint ( ) const [virtual]

Return a minimum size hint.

Warning:: The return value of QwtSlider::minimumSizeHint() depends on the font and the scale.

Definition at line 854 of file qwt_slider.cpp.

References QwtSlider::PrivateData::bgStyle, BgTrough, QwtSlider::PrivateData::borderWidth, QwtScaleDraw::extent(), QwtScaleDraw::getBorderDistHint(), QwtScaleDraw::minLength(), NoScale, QwtAbstractSlider::orientation(), qwtMax, QwtSlider::PrivateData::scaleDist, scaleDraw(), QwtSlider::PrivateData::scalePos, QwtSlider::PrivateData::sizeHintCache, QwtSlider::PrivateData::thumbLength, QwtSlider::PrivateData::thumbWidth, QwtSlider::PrivateData::xMargin, and QwtSlider::PrivateData::yMargin.

Referenced by sizeHint().

{
    if (!d_data->sizeHintCache.isEmpty())
        return d_data->sizeHintCache;

    int sliderWidth = d_data->thumbWidth;
    if (d_data->bgStyle & BgTrough)
        sliderWidth += 2 * d_data->borderWidth;

    int w = 0, h = 0;
    if (d_data->scalePos != NoScale)
    {
        int d1, d2;
        scaleDraw()->getBorderDistHint(font(), d1, d2);
        int msMbd = qwtMax(d1, d2);

        int mbd = d_data->thumbLength / 2;
        if (d_data->bgStyle & BgTrough)
            mbd += d_data->borderWidth;

        if ( mbd < msMbd )
            mbd = msMbd;

        const int sdExtent = scaleDraw()->extent( QPen(), font() );
        const int sdLength = scaleDraw()->minLength( QPen(), font() );

        h = sliderWidth + sdExtent + d_data->scaleDist;
        w = sdLength - 2 * msMbd + 2 * mbd;
    }
    else  // no scale
    {
        w = 200;
        h = sliderWidth;
    }

    if ( orientation() == Qt::Vertical )
        qSwap(w, h);

    w += 2 * d_data->xMargin;
    h += 2 * d_data->yMargin;

    d_data->sizeHintCache = QSize(w, h);
    return d_data->sizeHintCache;
}

void QwtSlider::paintEvent ( QPaintEvent * event ) [protected, virtual]

Qt paint event

Parameters:

event Paint event

Definition at line 578 of file qwt_slider.cpp.

References draw(), and QwtPaintBuffer::painter().

{
    const QRect &ur = event->rect();
    if ( ur.isValid() )
    {
#if QT_VERSION < 0x040000
        QwtPaintBuffer paintBuffer(this, ur);
        draw(paintBuffer.painter(), ur);
#else
        QPainter painter(this);
        draw(&painter, ur);
#endif
    }
}

void QwtSlider::rangeChange ( ) [protected, virtual]

Notify change of range.

Reimplemented from QwtDoubleRange.

Definition at line 769 of file qwt_slider.cpp.

References QwtAbstractScale::autoScale(), layoutSlider(), QwtSlider::PrivateData::map, QwtDoubleRange::maxValue(), QwtDoubleRange::minValue(), QwtAbstractScale::rescale(), and QwtScaleMap::setScaleInterval().

{
    d_data->map.setScaleInterval(minValue(), maxValue());

    if (autoScale())
        rescale(minValue(), maxValue());

    QwtAbstractSlider::rangeChange();
    layoutSlider();
}

void QwtSlider::resizeEvent ( QResizeEvent * e ) [protected, virtual]

Qt resize event.

Definition at line 612 of file qwt_slider.cpp.

References layoutSlider().

{
    layoutSlider( false );
}

void QwtSlider::scaleChange ( ) [protected, virtual]

Notify changed scale.

Reimplemented from QwtAbstractScale.

Definition at line 363 of file qwt_slider.cpp.

References layoutSlider().

{
    layoutSlider();
}

const QwtScaleDraw * QwtSlider::scaleDraw ( ) const

Returns:: the scale draw of the slider

See also:: setScaleDraw()

Definition at line 348 of file qwt_slider.cpp.

References QwtAbstractScale::abstractScaleDraw().

Referenced by draw(), getScrollMode(), layoutSlider(), minimumSizeHint(), setScaleDraw(), and setScalePosition().

{
    return (QwtScaleDraw *)abstractScaleDraw();
}

QwtScaleDraw * QwtSlider::scaleDraw ( ) [protected]

Returns:: the scale draw of the slider

See also:: setScaleDraw()

Definition at line 357 of file qwt_slider.cpp.

References QwtAbstractScale::abstractScaleDraw().

{
    return (QwtScaleDraw *)abstractScaleDraw();
}

ScalePos QwtSlider::scalePosition ( ) const

void QwtSlider::setBgStyle ( BGSTYLE st )

Set the background style.

Definition at line 803 of file qwt_slider.cpp.

References QwtSlider::PrivateData::bgStyle, and layoutSlider().

{
    d_data->bgStyle = st;
    layoutSlider();
}

void QwtSlider::setBorderWidth ( int bd )

Change the slider's border width.

Parameters:

bd	border width

Definition at line 276 of file qwt_slider.cpp.

References QwtSlider::PrivateData::borderWidth, and layoutSlider().

{
    if ( bd < 0 )
        bd = 0;

    if ( bd != d_data->borderWidth )
    {
        d_data->borderWidth = bd;
        layoutSlider();
    }
}

void QwtSlider::setMargins	(	int	xMargin,
		int	yMargin
	)

Set distances between the widget's border and internals.

Parameters:

xMargin	Horizontal margin
yMargin	Vertical margin

Definition at line 785 of file qwt_slider.cpp.

References layoutSlider(), QwtSlider::PrivateData::xMargin, and QwtSlider::PrivateData::yMargin.

{
    if ( xMargin < 0 )
        xMargin = 0;
    if ( yMargin < 0 )
        yMargin = 0;

    if ( xMargin != d_data->xMargin || yMargin != d_data->yMargin )
    {
        d_data->xMargin = xMargin;
        d_data->yMargin = yMargin;
        layoutSlider();
    }
}

void QwtSlider::setOrientation ( Qt::Orientation o ) [virtual]

Set the orientation.

Parameters:

o	Orientation. Allowed values are Qt::Horizontal and Qt::Vertical.

If the new orientation and the old scale position are an invalid combination, the scale position will be set to QwtSlider::NoScale.

See also:: QwtAbstractSlider::orientation()

Definition at line 174 of file qwt_slider.cpp.

References BottomScale, layoutSlider(), LeftScale, NoScale, QwtAbstractSlider::orientation(), RightScale, QwtSlider::PrivateData::scalePos, and TopScale.

Referenced by setScalePosition().

{
    if ( o == orientation() )
        return;

    if (o == Qt::Horizontal)
    {
        if ((d_data->scalePos == LeftScale) || (d_data->scalePos == RightScale))
            d_data->scalePos = NoScale;
    }
    else // if (o == Qt::Vertical)
    {
        if ((d_data->scalePos == BottomScale) || (d_data->scalePos == TopScale))
            d_data->scalePos = NoScale;
    }

#if QT_VERSION >= 0x040000
    if ( !testAttribute(Qt::WA_WState_OwnSizePolicy) )
#else
    if ( !testWState( WState_OwnSizePolicy ) )
#endif
    {
        QSizePolicy sp = sizePolicy();
        sp.transpose();
        setSizePolicy(sp);

#if QT_VERSION >= 0x040000
        setAttribute(Qt::WA_WState_OwnSizePolicy, false);
#else
        clearWState( WState_OwnSizePolicy );
#endif
    }

    QwtAbstractSlider::setOrientation(o);
    layoutSlider();
}

void QwtSlider::setScaleDraw ( QwtScaleDraw * scaleDraw )

Set a scale draw.

For changing the labels of the scales, it is necessary to derive from QwtScaleDraw and overload QwtScaleDraw::label().

Parameters:

scaleDraw ScaleDraw object, that has to be created with new and will be deleted in ~QwtSlider or the next call of setScaleDraw().

Definition at line 331 of file qwt_slider.cpp.

References QwtScaleDraw::alignment(), layoutSlider(), scaleDraw(), QwtAbstractScale::setAbstractScaleDraw(), and QwtScaleDraw::setAlignment().

{
    const QwtScaleDraw *previousScaleDraw = this->scaleDraw();
    if ( scaleDraw == NULL || scaleDraw == previousScaleDraw )
        return;

    if ( previousScaleDraw )
        scaleDraw->setAlignment(previousScaleDraw->alignment());

    setAbstractScaleDraw(scaleDraw);
    layoutSlider();
}

void QwtSlider::setScalePosition ( ScalePos s )

Change the scale position (and slider orientation).

Parameters:

s	Position of the scale.

A valid combination of scale position and orientation is enforced:

if the new scale position is Left or Right, the scale orientation will become Qt::Vertical;
if the new scale position is Bottom or Top the scale orientation will become Qt::Horizontal;
if the new scale position is QwtSlider::NoScale, the scale orientation will not change.

Definition at line 224 of file qwt_slider.cpp.

References QwtScaleDraw::BottomScale, BottomScale, layoutSlider(), QwtScaleDraw::LeftScale, LeftScale, QwtScaleDraw::RightScale, RightScale, scaleDraw(), QwtSlider::PrivateData::scalePos, QwtScaleDraw::setAlignment(), setOrientation(), QwtScaleDraw::TopScale, and TopScale.

{
    if ( d_data->scalePos == s )
        return;

    d_data->scalePos = s;

    switch(d_data->scalePos)
    {
        case BottomScale:
        {
            setOrientation(Qt::Horizontal);
            scaleDraw()->setAlignment(QwtScaleDraw::BottomScale);
            break;
        }
        case TopScale:
        {
            setOrientation(Qt::Horizontal);
            scaleDraw()->setAlignment(QwtScaleDraw::TopScale);
            break;
        }
        case LeftScale:
        {
            setOrientation(Qt::Vertical);
            scaleDraw()->setAlignment(QwtScaleDraw::LeftScale);
            break;
        }
        case RightScale:
        {
            setOrientation(Qt::Vertical);
            scaleDraw()->setAlignment(QwtScaleDraw::RightScale);
            break;
        }
        default:
        {
            // nothing
        }
    }

    layoutSlider();
}

void QwtSlider::setThumbLength ( int thumbLength )

Set the slider's thumb length.

Parameters:

thumbLength new length

Definition at line 292 of file qwt_slider.cpp.

References layoutSlider(), thumbLength(), and QwtSlider::PrivateData::thumbLength.

{
    if ( thumbLength < 8 )
        thumbLength = 8;

    if ( thumbLength != d_data->thumbLength )
    {
        d_data->thumbLength = thumbLength;
        layoutSlider();
    }
}

void QwtSlider::setThumbWidth ( int w )

Change the width of the thumb.

Parameters:

w new width

Definition at line 308 of file qwt_slider.cpp.

References layoutSlider(), and QwtSlider::PrivateData::thumbWidth.

{
    if ( w < 4 )
        w = 4;

    if ( d_data->thumbWidth != w )
    {
        d_data->thumbWidth = w;
        layoutSlider();
    }
}

QSize QwtSlider::sizeHint ( ) const [virtual]

Returns:: QwtSlider::minimumSizeHint()

Definition at line 844 of file qwt_slider.cpp.

References minimumSizeHint().

{
    return minimumSizeHint();
}

int QwtSlider::thumbLength ( ) const

Referenced by getScrollMode(), and setThumbLength().

int QwtSlider::thumbWidth ( ) const

void QwtSlider::valueChange ( ) [protected, virtual]

Notify change of value.

Reimplemented from QwtAbstractSlider.

Definition at line 761 of file qwt_slider.cpp.

{
    QwtAbstractSlider::valueChange();
    update();
}

int QwtSlider::xyPosition ( double value ) const [protected]

Find the x/y position for a given value v

Parameters:

value Value

Definition at line 525 of file qwt_slider.cpp.

References QwtSlider::PrivateData::map, and QwtScaleMap::transform().

Referenced by drawSlider(), and getScrollMode().

{
    return d_data->map.transform(value);
}

Property Documentation

QwtSlider::BGSTYLE QwtSlider::bgStyle [read, write]

Returns:: the background style.

Definition at line 41 of file qwt_slider.h.

int QwtSlider::borderWidth [read, write]

Returns:: the border width.

Definition at line 44 of file qwt_slider.h.

QwtSlider::ScalePos QwtSlider::scalePosition [read, write]

Return the scale position.

Definition at line 40 of file qwt_slider.h.

int QwtSlider::thumbLength [read, write]

Returns:: the thumb length.

Definition at line 42 of file qwt_slider.h.

int QwtSlider::thumbWidth [read, write]

Returns:: the thumb width.

Definition at line 43 of file qwt_slider.h.

The documentation for this class was generated from the following files:

QwtSlider Class Reference

Classes

Public Types

Public Member Functions

Protected Member Functions

Properties

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Property Documentation
