#include <QmitkSimpleMeasurement.h>

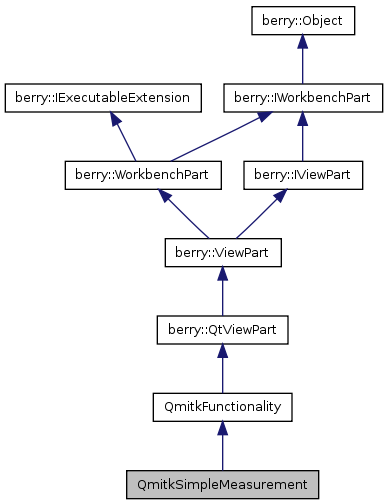

Inheritance diagram for QmitkSimpleMeasurement:

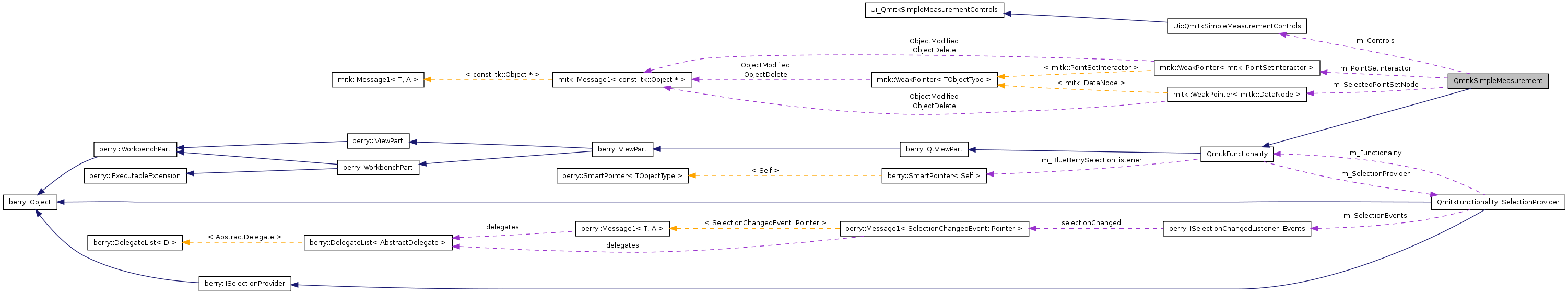

Collaboration diagram for QmitkSimpleMeasurement:

Public Member Functions
virtual	~QmitkSimpleMeasurement ()
virtual void	Activated ()
virtual void	Deactivated ()
virtual bool	IsExclusiveFunctionality () const
virtual void	OnSelectionChanged (std::vector< mitk::DataNode * > nodes)
virtual void	NodeRemoved (const mitk::DataNode *node)
Protected Slots
void	AddDistanceSimpleMeasurement ()
void	AddAngleSimpleMeasurement ()
void	AddPathSimpleMeasurement ()
Protected Member Functions
void	CreateQtPartControl (QWidget *parent)
Protected Attributes
Ui::QmitkSimpleMeasurementControls *	m_Controls
mitk::WeakPointer < mitk::PointSetInteractor >	m_PointSetInteractor
mitk::WeakPointer< mitk::DataNode >	m_SelectedPointSetNode
std::vector< mitk::DataNode * >	m_CreatedPointSetNodes

Detailed Description

mm

SimpleMeasurement Allows to measure distances, angles, etc.

See also:: QmitkFunctionality

Definition at line 44 of file QmitkSimpleMeasurement.h.

Constructor & Destructor Documentation

QmitkSimpleMeasurement::~QmitkSimpleMeasurement ( ) [virtual]

Definition at line 40 of file QmitkSimpleMeasurement.cpp.

{
}

Member Function Documentation

void QmitkSimpleMeasurement::Activated ( ) [virtual]

Only called when IsExclusiveFunctionality() returns true.

See also:: IsExclusiveFunctionality()

Reimplemented from QmitkFunctionality.

Definition at line 44 of file QmitkSimpleMeasurement.cpp.

References QmitkFunctionality::GetDataManagerSelection(), and OnSelectionChanged().

{
  std::vector<mitk::DataNode*> selection = this->GetDataManagerSelection();
  this->OnSelectionChanged( selection );
}

void QmitkSimpleMeasurement::AddAngleSimpleMeasurement ( ) [protected, slot]

Definition at line 77 of file QmitkSimpleMeasurement.cpp.

References QmitkFunctionality::FireNodesSelected(), QmitkFunctionality::GetDataStorage(), m_CreatedPointSetNodes, mitk::StringProperty::New(), mitk::BoolProperty::New(), mitk::DataNode::New(), mitk::PointSet::New(), and OnSelectionChanged().

Referenced by CreateQtPartControl().

{
  mitk::PointSet::Pointer pointSet = mitk::PointSet::New();

  mitk::DataNode::Pointer _CurrentPointSetNode = mitk::DataNode::New();
  _CurrentPointSetNode->SetData(pointSet);
  _CurrentPointSetNode->SetProperty("show contour", mitk::BoolProperty::New(true));
  _CurrentPointSetNode->SetProperty("name", mitk::StringProperty::New("angle"));
  _CurrentPointSetNode->SetProperty("show angles", mitk::BoolProperty::New(true));

  // add to ds and remember as created
  this->GetDataStorage()->Add(_CurrentPointSetNode);
  m_CreatedPointSetNodes.push_back( _CurrentPointSetNode );

  // make new selection
  std::vector<mitk::DataNode*> selection;
  selection.push_back( _CurrentPointSetNode );
  this->FireNodesSelected( selection );
  this->OnSelectionChanged( selection );
}

void QmitkSimpleMeasurement::AddDistanceSimpleMeasurement ( ) [protected, slot]

Definition at line 56 of file QmitkSimpleMeasurement.cpp.

References QmitkFunctionality::FireNodesSelected(), QmitkFunctionality::GetDataStorage(), m_CreatedPointSetNodes, mitk::StringProperty::New(), mitk::BoolProperty::New(), mitk::DataNode::New(), mitk::PointSet::New(), and OnSelectionChanged().

Referenced by CreateQtPartControl().

{
  mitk::PointSet::Pointer pointSet = mitk::PointSet::New();

  mitk::DataNode::Pointer _CurrentPointSetNode = mitk::DataNode::New();
  _CurrentPointSetNode->SetData(pointSet);
  _CurrentPointSetNode->SetProperty("show contour", mitk::BoolProperty::New(true));
  _CurrentPointSetNode->SetProperty("name", mitk::StringProperty::New("distance"));
  _CurrentPointSetNode->SetProperty("show distances", mitk::BoolProperty::New(true));

  // add to ds and remember as created
  this->GetDataStorage()->Add(_CurrentPointSetNode);
  m_CreatedPointSetNodes.push_back( _CurrentPointSetNode );

  // make new selection
  std::vector<mitk::DataNode*> selection;
  selection.push_back( _CurrentPointSetNode );
  this->FireNodesSelected( selection );
  this->OnSelectionChanged( selection );
}

void QmitkSimpleMeasurement::AddPathSimpleMeasurement ( ) [protected, slot]

Definition at line 98 of file QmitkSimpleMeasurement.cpp.

References QmitkFunctionality::FireNodesSelected(), QmitkFunctionality::GetDataStorage(), m_CreatedPointSetNodes, mitk::StringProperty::New(), mitk::BoolProperty::New(), mitk::DataNode::New(), mitk::PointSet::New(), and OnSelectionChanged().

Referenced by CreateQtPartControl().

{
  mitk::PointSet::Pointer pointSet = mitk::PointSet::New();

  mitk::DataNode::Pointer _CurrentPointSetNode = mitk::DataNode::New();
  _CurrentPointSetNode->SetData(pointSet);
  _CurrentPointSetNode->SetProperty("show contour", mitk::BoolProperty::New(true));
  _CurrentPointSetNode->SetProperty("name", mitk::StringProperty::New("path"));
  _CurrentPointSetNode->SetProperty("show distances", mitk::BoolProperty::New(true));
  _CurrentPointSetNode->SetProperty("show angles", mitk::BoolProperty::New(true));

  // add to ds and remember as created
  this->GetDataStorage()->Add(_CurrentPointSetNode);
  m_CreatedPointSetNodes.push_back( _CurrentPointSetNode );

  // make new selection
  std::vector<mitk::DataNode*> selection;
  selection.push_back( _CurrentPointSetNode );
  this->FireNodesSelected( selection );
  this->OnSelectionChanged( selection );
}

void QmitkSimpleMeasurement::CreateQtPartControl ( QWidget * parent ) [protected, virtual]

Implements berry::QtViewPart.

Definition at line 120 of file QmitkSimpleMeasurement.cpp.

References AddAngleSimpleMeasurement(), AddDistanceSimpleMeasurement(), AddPathSimpleMeasurement(), m_Controls, Ui_QmitkSimpleMeasurementControls::pbAngle, Ui_QmitkSimpleMeasurementControls::pbDistance, Ui_QmitkSimpleMeasurementControls::pbPath, and Ui_QmitkSimpleMeasurementControls::setupUi().

{
  m_Controls = new Ui::QmitkSimpleMeasurementControls;
  m_Controls->setupUi(parent);

  connect( (QObject*)(m_Controls->pbDistance), SIGNAL(clicked()),(QObject*) this, SLOT(AddDistanceSimpleMeasurement()) );
  connect( (QObject*)(m_Controls->pbAngle), SIGNAL(clicked()),(QObject*) this, SLOT(AddAngleSimpleMeasurement()) );
  connect( (QObject*)(m_Controls->pbPath), SIGNAL(clicked()),(QObject*) this, SLOT(AddPathSimpleMeasurement()) );
}

void QmitkSimpleMeasurement::Deactivated ( ) [virtual]

Only called when IsExclusiveFunctionality() returns true.

See also:: IsExclusiveFunctionality()

Reimplemented from QmitkFunctionality.

Definition at line 50 of file QmitkSimpleMeasurement.cpp.

References OnSelectionChanged().

{
  std::vector<mitk::DataNode*> selection;
  this->OnSelectionChanged( selection );
}

bool QmitkSimpleMeasurement::IsExclusiveFunctionality ( ) const [virtual]

Some functionalities need to add special interactors, removes the crosshair from the stdmultiwidget, etc. In this case the functionality has to tidy up when changing to another functionality which also wants to change the "default configuration". In the old Qt3-based version of MITK, two functionalities could never be opened at the same time so that the methods Activated() and Deactivated() were the right place for the functionalitites to add/remove their interactors, etc. This is still true for the new MITK Workbench, but as there can be several functionalities visible at the same time, the behaviour concerning when Activated() and Deactivated() are called has changed:

1. Activated() and Deactivated() are only called if IsExclusiveFunctionality() returns true

2. If only one standalone functionality is or becomes visible, Activated() will be called on that functionality

3. If two or more standalone functionalities are visible, Activated() will be called on the functionality that receives focus, Deactivated() will be called on the one that looses focus, gets hidden or closed

As a consequence of 1. if you overwrite IsExclusiveFunctionality() and let it return false, you signalize the MITK Workbench that this functionality does nothing to the "default configuration" and can easily be visible while other functionalities are also visible.

By default the method returns true.

Returns:: true if this functionality is meant to work as a standalone view, false otherwise

Reimplemented from QmitkFunctionality.

Definition at line 181 of file QmitkSimpleMeasurement.cpp.

{
  return true;
}

void QmitkSimpleMeasurement::NodeRemoved ( const mitk::DataNode * node ) [virtual]

Called when a DataStorage Remove event was thrown. May be reimplemented by deriving classes.

Reimplemented from QmitkFunctionality.

Definition at line 186 of file QmitkSimpleMeasurement.cpp.

References m_CreatedPointSetNodes.

{
  // remove a node if it is destroyed from our created array
  std::vector<mitk::DataNode*>::iterator it = std::find( m_CreatedPointSetNodes.begin()
    , m_CreatedPointSetNodes.end(), node);
  if(it != m_CreatedPointSetNodes.end())
    m_CreatedPointSetNodes.erase(it);
}

void QmitkSimpleMeasurement::OnSelectionChanged ( std::vector< mitk::DataNode * > nodes ) [virtual]

Called when the selection in the workbench changed

Reimplemented from QmitkFunctionality.

Definition at line 130 of file QmitkSimpleMeasurement.cpp.

References mitk::DataNode::GetData(), mitk::GlobalInteraction::GetInstance(), mitk::DataNode::GetName(), QmitkFunctionality::IsActivated(), mitk::WeakPointer< TObjectType >::IsNotNull(), m_Controls, m_CreatedPointSetNodes, m_PointSetInteractor, m_SelectedPointSetNode, mitk::PointSetInteractor::New(), Ui_QmitkSimpleMeasurementControls::selectedPointSet, and mitk::DataNode::SetColor().

Referenced by Activated(), AddAngleSimpleMeasurement(), AddDistanceSimpleMeasurement(), AddPathSimpleMeasurement(), and Deactivated().

{
  mitk::DataNode* selectedNode = 0;
  if(nodes.size() > 0)
    selectedNode = nodes.front();

  mitk::PointSet* pointSet = 0;
  if(selectedNode)
    pointSet = dynamic_cast<mitk::PointSet*> ( selectedNode->GetData() );

  // something else was selected. remove old interactor
  if (m_PointSetInteractor.IsNotNull())
  {
    mitk::GlobalInteraction::GetInstance()->RemoveInteractor(m_PointSetInteractor);
  }

  bool pointsetCreatedByThis = false;

  // only go further if a pointset was selected
  if(pointSet)
  {
    // see if this pointset was created by us
    std::vector<mitk::DataNode*>::iterator it = std::find( m_CreatedPointSetNodes.begin()
      , m_CreatedPointSetNodes.end(), selectedNode);
    if(it != m_CreatedPointSetNodes.end())
     pointsetCreatedByThis = true;
  }

  // do nothing if it was not created by us or it is no pointset node or we are not activated
  if(pointsetCreatedByThis && this->IsActivated())
  {
    // otherwise: set text and add interactor for the pointset
    m_Controls->selectedPointSet->setText( QString::fromStdString(selectedNode->GetName()) );
    mitk::PointSetInteractor::Pointer newPointSetInteractor
      = mitk::PointSetInteractor::New("pointsetinteractor", selectedNode);
    mitk::GlobalInteraction::GetInstance()->AddInteractor(newPointSetInteractor);
    m_PointSetInteractor = newPointSetInteractor;
    float green[] = { 0, 255, 0 };
    float red[] = { 255, 0, 0 };
    selectedNode->SetColor(green);
    if(m_SelectedPointSetNode.IsNotNull())
      m_SelectedPointSetNode->SetColor(red);
    m_SelectedPointSetNode = selectedNode;
  }
  else
  {
    // revert text
    m_Controls->selectedPointSet->setText( "None" );
  }
}
