Rendering in MITK by means of the QT-VTK widget

This page describes the MITK rendering mechanism switching to the QTVTK widget. MITK releases with version > 0.8 use this new rendering pipeline. Several changes in contrast to the established old rendering pipeline are explained in the following.

VTK Rendering Pipeline

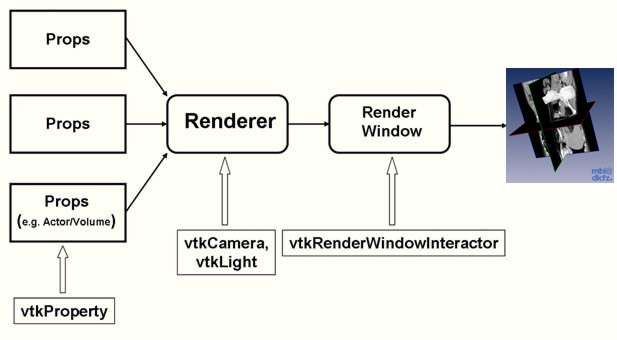

Rendering in VTK

• In VTK, the vtkRenderWindow coordinates the rendering process. Several vtkRenderers may be associated to one vtkRenderWindow.
• All visible objects, which can exist in a rendered scene (2D and 3D scene), inherit from vtkProp.
• A vtkPropAssembly is an assembly of several vtkProps, which appears like one single vtkProp.
• MITK uses a new interface class, the "vtkMitkRenderProp", which is inherited from vtkProp. Similar to a vtkPropAssembly, all MITK rendering stuff is performed via this interface class.
• Thus, the MITK rendering process is completely integrated into the VTK rendering pipeline. From VTK point of view, MITK renders like a custom vtkProp object.

More information about the VTK rendering pipeline can be found at http://www.vtk.org and in the several VTK books.

MITK Rendering Pipeline

In contrast to the former MITK rendering pipeline, the new process is tightly connected to VTK, which makes it straight forward and simple. In consequence, several MITK classes have been dropped out:

• Qmitk::SelectableGLWidget and all inheritors
• mitk::RenderWindow
• mitk::VtkRenderWindow and all inheritors
• mitk::OpenGLRenderer
• mitk::SimpleTextRendering

Instead, we use the above mentioned "vtkMitkRenderProp" in conjunction with a new mitk::VtkPropRenderer for integration into the VTK pipeline. Also, the QmitkRenderWindow does not inherit from mitk::RenderWindow, but from the QVTKWidget, which is provided by VTK.

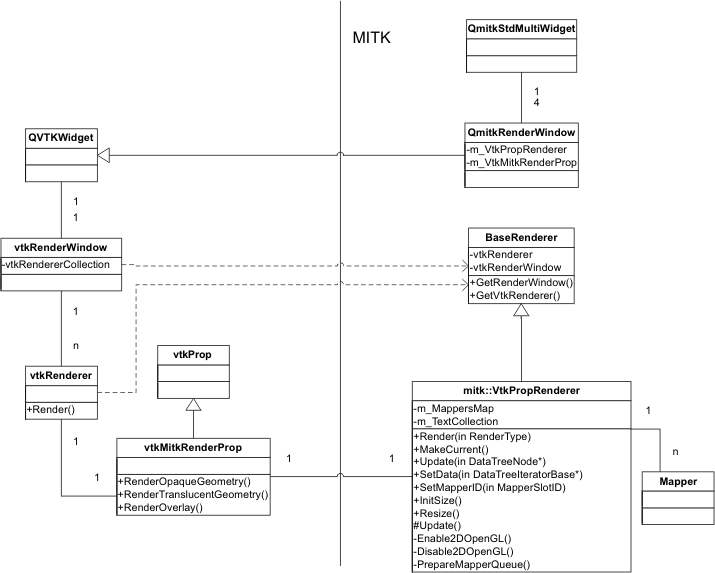

The main classes of the MITK rendering process can be illustrated like this:

Rendering in MITK

A render request to the vtkRenderWindow does not only update the VTK pipeline, but also the MITK pipeline. However, the mitk::RenderingManager still coordinates the rendering update behaviour. Update requests should be sent to the RenderingManager, which then, if needed, will request an update of the overall vtkRenderWindow. The vtkRenderWindow then starts to call the Render() function of all vtkRenderers, which are associated to the vtkRenderWindow. Currently, MITK uses specific vtkRenderers (outside the standard MITK rendering pipeline) for purposes, like displaying a gradient background (mitk::GradientBackground), displaying video sources (QmitkVideoBackround and mitk::VideoSource), or displaying a (department) logo (mitk::ManufacturerLogo), etc. Despite these specific renderers, a kind of "SceneRenderer" is member of each QmitkRenderWindow. This vtkRenderer is associated with the custom vtkMitkRenderProp and is responsible for the MITK rendering.

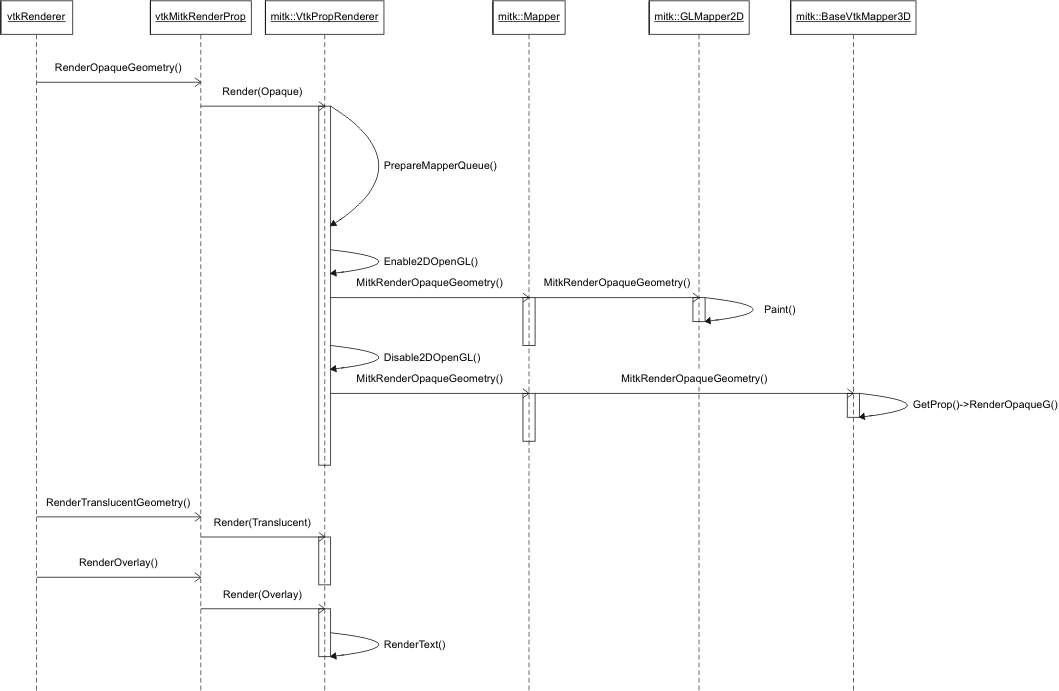

A sequence diagramm, which illustrates the actions after calling the Render() function of the MITK-Scene vtkRenderer is shown below:

Sequence overview MITK scene rendering

User Guide: Changes in programming of rendering related stuff

• Within a functionality the vtkRenderWindow can be accessed like this: vtkRenderWindow* vtkRenWin = m_MultiWidget->mitkWidget4->GetRenderWindow();
• Within a functionality the mitkBaseRenderer can be accessed like this: mitk::BaseRenderer* renderer = mitk::BaseRenderer::GetInstance(m_MultiWidget->mitkWidget4->GetRenderWindow());
• An update request of the overall QmitkStdMultiWidget can be performed with: m_MultiWidget->RequestUpdate();
• An update of the overall QmitkStdMultiWidget can be forced with: m_MultiWidget->ForceImmediateUpdate();
• A single QmitkRenderWindow update request can be done like this: mitk::RenderingManager::GetInstance()->RequestUpdate(m_MultiWidget->mitkWidget4->GetRenderWindow());
• A single QmitkRenderWindow update can be forced like this: mitk::RenderingManager::GetInstance()->ForceImmediateUpdate(m_MultiWidget->mitkWidget4->GetRenderWindow());
• Getting a BaseRenderer by the widget name can be done like this: mitk::BaseRenderer::GetByName("mitkWidget1");

Setting up a distinct Rendering-Pipeline

It is sometimes desired to have one (or more) QmitkRenderWindows that are managed totally independent of the 'usual' renderwindows defined by the QmitkStdMultiWidget. This may include the data that is rendered as well as possible interactions. In order to achieve this, a set of objects is needed:

• mitk::RenderingManager -> Manages the rendering
• mitk::DataStorage -> Manages the data that is rendered
• mitk::GlobalInteraction -> Manages all interaction
• QmitkRenderWindow -> Actually visualizes the data

The actual setup, respectively the connection, of these classes is rather simple:

// create a new instance of mitk::RenderingManager
mitk::RenderingManager::Pointer renderingManager = mitk::RenderingManager::New();

// create new instances of DataStorage and GlobalInteraction
mitk::DataStorage::Pointer dataStorage = mitk::DataStorage::New();
mitk::GlobalInteraction::Pointer globalInteraction = mitk::GlobalInteraction::New();

// add both to the RenderingManager
renderingManager->SetDataStorage( dataStorage );
renderingManager->SetGlobalInteraction( globalInteraction );

// now create a new QmitkRenderWindow with this renderingManager as parameter
QmitkRenderWindow* renderWindow = new QmitkRenderWindow( parent, "name", renderer, renderingManager );

That is basically all you need to setup your own rendering pipeline. Obviously you have to add all data you want to render to your new DataStorage. If you want to interact with this renderwindow, you will also have to add additional Interactors/Listeners.

Note:

• Dynamic casts of a mitk::BaseRenderer class to an OpenGLRenderer (or now, to an VtkPropRenderer) should be avoided. The "MITK Scene" vtkRenderer and the vtkRenderWindow as well, are therefore now included in the mitk::BaseRenderer.
