This class is a slightly changed reimplementation of the NavigationDataPlayer which does not care about timestamps and just outputs the navigationdatas in their sequential order. More...

#include <mitkNavigationDataSequentialPlayer.h>

Inheritance diagram for mitk::NavigationDataSequentialPlayer:

[legend]

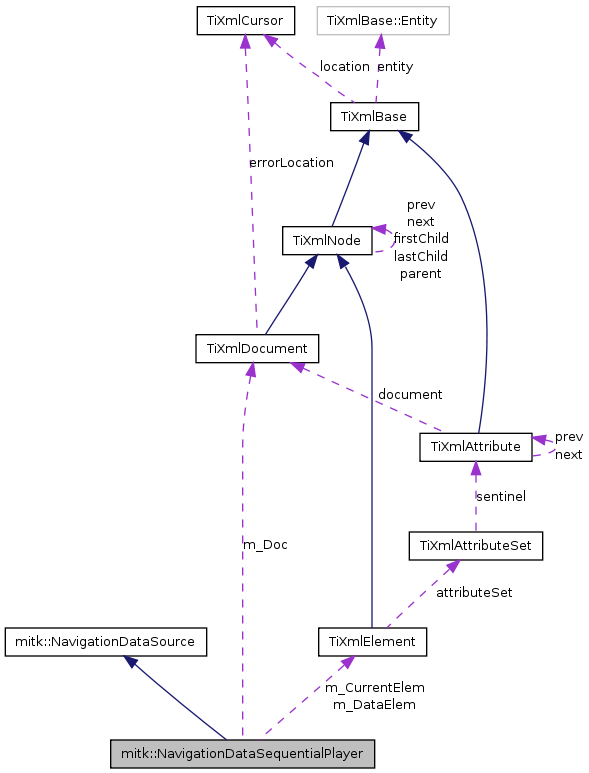

Collaboration diagram for mitk::NavigationDataSequentialPlayer:

[legend]

List of all members.

Public Member Functions
	mitkClassMacro (NavigationDataSequentialPlayer, NavigationDataSource)
void	SetFileName (const std::string &_FileName)
	sets the file name and path (if XMLString is set, this is neglected)
virtual const char *	GetFileName () const
	returns the file name and path
void	SetXMLString (const std::string &_XMLString)
	sets a xml string (by this, the xml string is not read from file)
virtual const char *	GetXMLString () const
	returns the current xml string
virtual void	SetRepeat (bool _arg)
virtual bool	GetRepeat ()
virtual unsigned int	GetNumberOfSnapshots ()
void	GoToSnapshot (int i)
virtual void	UpdateOutputInformation ()
	Used for pipeline update just to tell the pipeline that we always have to update.
Static Public Member Functions
static Pointer	New ()
Protected Member Functions
	NavigationDataSequentialPlayer ()
virtual	~NavigationDataSequentialPlayer ()
void	ReinitXML ()
mitk::NavigationData::Pointer	ReadVersion1 ()
virtual void	GenerateData ()
Protected Attributes
std::string	m_FileName
std::string	m_XMLString
TiXmlDocument *	m_Doc
TiXmlElement *	m_DataElem
TiXmlElement *	m_CurrentElem
bool	m_Repeat
unsigned int	m_NumberOfSnapshots
int	m_LastGoTo

Detailed Description

This class is a slightly changed reimplementation of the NavigationDataPlayer which does not care about timestamps and just outputs the navigationdatas in their sequential order.

Documentation

Definition at line 36 of file mitkNavigationDataSequentialPlayer.h.

Constructor & Destructor Documentation

mitk::NavigationDataSequentialPlayer::NavigationDataSequentialPlayer ( ) [protected]

Definition at line 27 of file mitkNavigationDataSequentialPlayer.cpp.

  : m_Doc(new TiXmlDocument)
  , m_DataElem(0)
  , m_CurrentElem(0)
  , m_Repeat(false)
  , m_NumberOfSnapshots(0)
  , m_LastGoTo(0)
{
}

mitk::NavigationDataSequentialPlayer::~NavigationDataSequentialPlayer ( ) [protected, virtual]

Definition at line 38 of file mitkNavigationDataSequentialPlayer.cpp.

{
  delete m_Doc;
}

Member Function Documentation

void mitk::NavigationDataSequentialPlayer::GenerateData ( ) [protected, virtual]

do the work here

Definition at line 146 of file mitkNavigationDataSequentialPlayer.cpp.

References mitk::NavigationData::Graft(), and mitk::NavigationData::SetDataValid().

{
  assert(m_DataElem);

  // very important: go through the tools (there could be more then one)
  mitk::NavigationData::Pointer tmp;
  for (unsigned int index = 0; index < this->GetNumberOfOutputs(); index++)
  {
    // go to the first element
    if(!m_CurrentElem)
      m_CurrentElem = m_DataElem->FirstChildElement("ND");
    // go to the next element
    else
      m_CurrentElem = m_CurrentElem->NextSiblingElement();

    // if repeat is on: go back to the first element (prior calls delivered NULL
    // elem)
    if(!m_CurrentElem && m_Repeat)
      m_CurrentElem = m_DataElem->FirstChildElement("ND");

    mitk::NavigationData* output = this->GetOutput(index);
    tmp = this->ReadVersion1();
    if(tmp.IsNotNull())
      output->Graft(tmp);
    else // no valid output
      output->SetDataValid(false);
  }
}

virtual const char* mitk::NavigationDataSequentialPlayer::GetFileName ( ) const [virtual]

returns the file name and path

virtual unsigned int mitk::NavigationDataSequentialPlayer::GetNumberOfSnapshots ( ) [virtual]

Returns:: the number of navigation data snapshots available in the file

virtual bool mitk::NavigationDataSequentialPlayer::GetRepeat ( ) [virtual]

set if the data player should repeat the outputs

virtual const char* mitk::NavigationDataSequentialPlayer::GetXMLString ( ) const [virtual]

returns the current xml string

void mitk::NavigationDataSequentialPlayer::GoToSnapshot ( int i )

advance the output to the i-th snapshot e.g. if you want to have the NavData of snapshot 17 then you can call GoToSnapshot(17). index begins at 1! you can then also go back to snapshot 1 with GoToSnapshot(1)

Definition at line 85 of file mitkNavigationDataSequentialPlayer.cpp.

References MITK_WARN.

{
  assert(m_DataElem);

  int numOfUpdateCalls = 0;

  // i.e. number of snapshots 10
  // goto(7), m_LastGoTo=3 => numOfUpdateCalls = 4
  if(m_LastGoTo <= i)
    numOfUpdateCalls = i - m_LastGoTo;
  // goto(4), m_LastGoTo=7 => numOfUpdateCalls = 7
  else
  {
    if(!m_Repeat)
    {
      MITK_WARN << "cannot go back to snapshot " << i << " because the "
          << this->GetNameOfClass() << " is configured to not repeat the"
          << " navigation data";

    }
    else
    {
      numOfUpdateCalls = (m_NumberOfSnapshots - m_LastGoTo) + i;
    }
  }

  for(int j=0; j<numOfUpdateCalls; ++j)
    this->Update();

  m_LastGoTo = i;
}

mitk::NavigationDataSequentialPlayer::mitkClassMacro	(	NavigationDataSequentialPlayer	,
		NavigationDataSource
	)

static Pointer mitk::NavigationDataSequentialPlayer::New ( ) [static]

mitk::NavigationData::Pointer mitk::NavigationDataSequentialPlayer::ReadVersion1 ( ) [protected]

Definition at line 175 of file mitkNavigationDataSequentialPlayer.cpp.

References matrix(), mitk::NavigationData::New(), TiXmlElement::QueryDoubleAttribute(), TiXmlElement::QueryFloatAttribute(), and TiXmlElement::QueryIntAttribute().

{
  mitk::NavigationData::Pointer nd = mitk::NavigationData::New();
  mitk::NavigationData::PositionType position;
  mitk::NavigationData::OrientationType orientation(0.0,0.0,0.0,0.0);
  mitk::NavigationData::TimeStampType timestamp = -1;
  mitk::NavigationData::CovarianceMatrixType matrix;

  bool hasPosition = true;
  bool hasOrientation = true;
  bool dataValid = false;

  position.Fill(0.0);
  matrix.SetIdentity();

  TiXmlElement* elem = m_CurrentElem;

  if(!elem)
    return NULL;

  //check here if EOF (the query don't change the timestamp value which should always be > 0)
  elem->QueryDoubleAttribute("Time",&timestamp);
  if (timestamp == -1)
  {
    return NULL;  //the calling method should check the return value if it is valid/not NULL
  }

  elem->QueryFloatAttribute("X", &position[0]);
  elem->QueryFloatAttribute("Y", &position[1]);
  elem->QueryFloatAttribute("Z", &position[2]);

  elem->QueryFloatAttribute("QX", &orientation[0]);
  elem->QueryFloatAttribute("QY", &orientation[1]);
  elem->QueryFloatAttribute("QZ", &orientation[2]);
  elem->QueryFloatAttribute("QR", &orientation[3]);

  elem->QueryFloatAttribute("C00", &matrix[0][0]);
  elem->QueryFloatAttribute("C01", &matrix[0][1]);
  elem->QueryFloatAttribute("C02", &matrix[0][2]);
  elem->QueryFloatAttribute("C03", &matrix[0][3]);
  elem->QueryFloatAttribute("C04", &matrix[0][4]);
  elem->QueryFloatAttribute("C05", &matrix[0][5]);
  elem->QueryFloatAttribute("C10", &matrix[1][0]);
  elem->QueryFloatAttribute("C11", &matrix[1][1]);
  elem->QueryFloatAttribute("C12", &matrix[1][2]);
  elem->QueryFloatAttribute("C13", &matrix[1][3]);
  elem->QueryFloatAttribute("C14", &matrix[1][4]);
  elem->QueryFloatAttribute("C15", &matrix[1][5]);

  int tmpval = 0;
  elem->QueryIntAttribute("Valid", &tmpval);
  if (tmpval == 0)
    dataValid = false;
  else
    dataValid = true;

  tmpval = 0;
  elem->QueryIntAttribute("hO", &tmpval);
  if (tmpval == 0)
    hasOrientation = false;
  else
    hasOrientation = true;

  tmpval = 0;
  elem->QueryIntAttribute("hP", &tmpval);
  if (tmpval == 0)
    hasPosition = false;
  else
    hasPosition = true;

  nd->SetTimeStamp(timestamp);
  nd->SetPosition(position);
  nd->SetOrientation(orientation);
  nd->SetCovErrorMatrix(matrix);
  nd->SetDataValid(dataValid);
  nd->SetHasOrientation(hasOrientation);
  nd->SetHasPosition(hasPosition);

  //delete elem;
  return nd;
}

void mitk::NavigationDataSequentialPlayer::ReinitXML ( ) [protected]

Definition at line 43 of file mitkNavigationDataSequentialPlayer.cpp.

References TiXmlNode::FirstChildElement(), MITK_WARN, mitk::NavigationData::New(), and TiXmlNode::NextSiblingElement().

{
  m_DataElem = m_Doc->FirstChildElement("Data");
  int toolcount;
  if(!m_DataElem)
    MITK_WARN << "Data element not found";
  else
  {
    m_DataElem->QueryIntAttribute("ToolCount", &toolcount);
    this->SetNumberOfOutputs(toolcount);

    mitk::NavigationData::Pointer emptyNd = mitk::NavigationData::New();
    mitk::NavigationData::PositionType position;
    mitk::NavigationData::OrientationType orientation(0.0,0.0,0.0,0.0);
    position.Fill(0.0);

    emptyNd->SetPosition(position);
    emptyNd->SetOrientation(orientation);
    emptyNd->SetDataValid(false);

    mitk::NavigationData::Pointer tmp;
    for (unsigned int index = 0; index < this->GetNumberOfOutputs(); index++)
    {
      tmp = mitk::NavigationData::New();
      tmp->Graft(emptyNd);
      this->SetNthOutput(index, tmp);
    }

    // find out _NumberOfSnapshots
    m_NumberOfSnapshots = 0;
    TiXmlElement* nextND = m_DataElem->FirstChildElement("ND");
    while(nextND)
    {
      ++m_NumberOfSnapshots;
      nextND = nextND->NextSiblingElement("ND");
    }
    // e.g. 12 nd found and 2 tools used => number of snapshots is 12:2=6
    m_NumberOfSnapshots = m_NumberOfSnapshots/toolcount;

  }
}

void mitk::NavigationDataSequentialPlayer::SetFileName ( const std::string & _FileName )

sets the file name and path (if XMLString is set, this is neglected)

Definition at line 118 of file mitkNavigationDataSequentialPlayer.cpp.

{
  m_FileName = _FileName;

  if(!m_Doc->LoadFile(m_FileName))
  {
    this->SetNumberOfOutputs(0);
    std::ostringstream s;
    s << "File " << _FileName << " could not be loaded";
    throw std::invalid_argument(s.str());
  }
  else
    this->ReinitXML();

  this->Modified();
}

virtual void mitk::NavigationDataSequentialPlayer::SetRepeat ( bool _arg ) [virtual]

set to true if the data player should repeat the outputs

void mitk::NavigationDataSequentialPlayer::SetXMLString ( const std::string & _XMLString )

sets a xml string (by this, the xml string is not read from file)

Definition at line 136 of file mitkNavigationDataSequentialPlayer.cpp.

{
  m_XMLString = _XMLString;

  m_Doc->Parse( m_XMLString.c_str() );
  this->ReinitXML();

  this->Modified();
}

void mitk::NavigationDataSequentialPlayer::UpdateOutputInformation ( ) [virtual]

Used for pipeline update just to tell the pipeline that we always have to update.

Definition at line 257 of file mitkNavigationDataSequentialPlayer.cpp.

{
  this->Modified();  // make sure that we need to be updated
  Superclass::UpdateOutputInformation();
}

Member Data Documentation

TiXmlElement* mitk::NavigationDataSequentialPlayer::m_CurrentElem [protected]

Definition at line 104 of file mitkNavigationDataSequentialPlayer.h.

TiXmlElement* mitk::NavigationDataSequentialPlayer::m_DataElem [protected]

Definition at line 103 of file mitkNavigationDataSequentialPlayer.h.

TiXmlDocument* mitk::NavigationDataSequentialPlayer::m_Doc [protected]

Definition at line 102 of file mitkNavigationDataSequentialPlayer.h.

std::string mitk::NavigationDataSequentialPlayer::m_FileName [protected]

Definition at line 100 of file mitkNavigationDataSequentialPlayer.h.

int mitk::NavigationDataSequentialPlayer::m_LastGoTo [protected]

Definition at line 107 of file mitkNavigationDataSequentialPlayer.h.

unsigned int mitk::NavigationDataSequentialPlayer::m_NumberOfSnapshots [protected]

Definition at line 106 of file mitkNavigationDataSequentialPlayer.h.

bool mitk::NavigationDataSequentialPlayer::m_Repeat [protected]

Definition at line 105 of file mitkNavigationDataSequentialPlayer.h.

std::string mitk::NavigationDataSequentialPlayer::m_XMLString [protected]

Definition at line 101 of file mitkNavigationDataSequentialPlayer.h.

The documentation for this class was generated from the following files:
