mitk::NavigationDataDisplacementFilter Class Reference

NavigationDataDisplacementFilter adds an offset to navigation data objects. More...

#include <mitkNavigationDataDisplacementFilter.h>

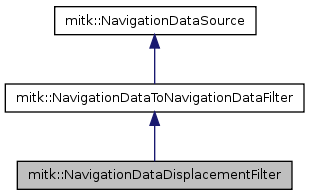

Inheritance diagram for mitk::NavigationDataDisplacementFilter:

Collaboration diagram for mitk::NavigationDataDisplacementFilter:

List of all members.

Public Member Functions
	mitkClassMacro (NavigationDataDisplacementFilter, NavigationDataToNavigationDataFilter)
	mitkSetVectorMacro (Offset, mitk::Vector3D)
	Get Offset parameter.
	mitkGetVectorMacro (Offset, mitk::Vector3D)
	Set Offset parameter.
virtual void	SetParameters (const mitk::PropertyList *p)
	Set all filter parameters (Offset) as the PropertyList p.
mitk::PropertyList::ConstPointer	GetParameters () const
	Get all filter parameters (offset) as a PropertyList.
Static Public Member Functions
static Pointer	New ()
Protected Member Functions
	NavigationDataDisplacementFilter ()
virtual	~NavigationDataDisplacementFilter ()
virtual void	GenerateData ()
	filter execute method
Protected Attributes
mitk::Vector3D	m_Offset
	offset that is added to all inputs

---

Detailed Description

NavigationDataDisplacementFilter adds an offset to navigation data objects.

Documentation Example class that shows how to write a navigation filter. This filter adds a offset that can be specified as a parameter to each input navigation data.

Definition at line 34 of file mitkNavigationDataDisplacementFilter.h.

---

Constructor & Destructor Documentation

mitk::NavigationDataDisplacementFilter::NavigationDataDisplacementFilter

(

)

[protected]

Definition at line 22 of file mitkNavigationDataDisplacementFilter.cpp.

References m_Offset.

: mitk::NavigationDataToNavigationDataFilter()
{
  m_Offset[0] = 0.0;
  m_Offset[1] = 0.0;
  m_Offset[2] = 0.0;
}

mitk::NavigationDataDisplacementFilter::~NavigationDataDisplacementFilter

(

)

[protected, virtual]

Definition at line 31 of file mitkNavigationDataDisplacementFilter.cpp.

{
}

---

Member Function Documentation

void mitk::NavigationDataDisplacementFilter::GenerateData

(

)

[protected, virtual]

filter execute method

Documentation adds the offset m_Offset to all inputs

Definition at line 36 of file mitkNavigationDataDisplacementFilter.cpp.

References mitk::NavigationData::GetPosition(), mitk::NavigationData::Graft(), mitk::NavigationData::IsDataValid(), mitk::NavigationData::SetDataValid(), and mitk::NavigationData::SetPosition().

{
  /* update outputs with tracking data from tools */
  for (unsigned int i = 0; i < this->GetNumberOfOutputs() ; ++i)
  {
    mitk::NavigationData* output = this->GetOutput(i);
    assert(output);
    const mitk::NavigationData* input = this->GetInput(i);
    assert(input);

    if (input->IsDataValid() == false)
    {
      output->SetDataValid(false);
      continue;
    }
    output->Graft(input); // First, copy all information from input to output
    output->SetPosition(input->GetPosition() + m_Offset);  // Then change the member(s): add offset to position of navigation data
    output->SetDataValid(true); // operation was successful, therefore data of output is valid.
    // don't change anything else here
  }
}

mitk::PropertyList::ConstPointer mitk::NavigationDataDisplacementFilter::GetParameters

(

)

const [virtual]

Get all filter parameters (offset) as a PropertyList.

This method returns a PropertyList containing the following properties (name : data type):

• "NavigationDataDisplacementFilter_Offset" : mitk::Vector3DProperty The returned PropertyList must be assigned to a SmartPointer immediately, or else it will get destroyed.

Reimplemented from mitk::NavigationDataSource.

Definition at line 69 of file mitkNavigationDataDisplacementFilter.cpp.

References mitk::Vector3DProperty::New(), and mitk::PropertyList::New().

{
  mitk::PropertyList::Pointer p = mitk::PropertyList::New();
  p->SetProperty("NavigationDataDisplacementFilter_Offset", mitk::Vector3DProperty::New(this->GetOffset()));  // store Offset parameter
  return mitk::PropertyList::ConstPointer(p);
}

mitk::NavigationDataDisplacementFilter::mitkClassMacro	(	NavigationDataDisplacementFilter	,
		NavigationDataToNavigationDataFilter
	)

mitk::NavigationDataDisplacementFilter::mitkGetVectorMacro	(	Offset	,
		mitk::Vector3D
	)

Set Offset parameter.

mitk::NavigationDataDisplacementFilter::mitkSetVectorMacro	(	Offset	,
		mitk::Vector3D
	)

Get Offset parameter.

static Pointer mitk::NavigationDataDisplacementFilter::New

(

)

[static]

Referenced by main(), mitkNavigationDataDisplacementFilterTest(), and QmitkIGTExampleView::OnTestNavigation().

void mitk::NavigationDataDisplacementFilter::SetParameters

(

const mitk::PropertyList *

p )

[virtual]

Set all filter parameters (Offset) as the PropertyList p.

This method reads the following properties from the PropertyList (name : data type):

• "NavigationDataDisplacementFilter_Offset" : mitk::Vector3DProperty

Reimplemented from mitk::NavigationDataSource.

Definition at line 59 of file mitkNavigationDataDisplacementFilter.cpp.

References mitk::PropertyList::GetPropertyValue().

{
  if (p == NULL)
    return;
  mitk::Vector3D v;
  if (p->GetPropertyValue<mitk::Vector3D>("NavigationDataDisplacementFilter_Offset", v) == true)  // search for Offset parameter
    this->SetOffset(v);   // apply if found;
}

---

Member Data Documentation

mitk::Vector3D mitk::NavigationDataDisplacementFilter::m_Offset [protected]

offset that is added to all inputs

Definition at line 73 of file mitkNavigationDataDisplacementFilter.h.

Referenced by NavigationDataDisplacementFilter().

---

The documentation for this class was generated from the following files:

• mitkNavigationDataDisplacementFilter.h
• mitkNavigationDataDisplacementFilter.cpp
