#include <mitkDataStorageSelection.h>

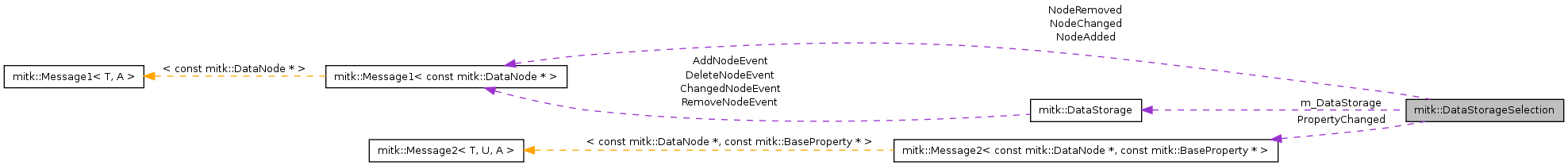

Collaboration diagram for mitk::DataStorageSelection:

Public Types
typedef std::vector < mitk::DataNode * >	Nodes
typedef Message1< const mitk::DataNode * >	DataNodeEvent
typedef DataStorageSelection	Self
typedef itk::Object	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
virtual	~DataStorageSelection ()
mitk::DataStorage::Pointer	GetDataStorage () const
mitk::NodePredicateBase::Pointer	GetPredicate () const
unsigned int	GetSize () const
mitk::DataNode::Pointer	GetNode (unsigned int index) const
mitk::DataNode::Pointer	GetNode () const
std::vector< mitk::DataNode * >	GetNodes () const
bool	DoesAutoAddNodes () const
DataStorageSelection &	operator= (mitk::DataNode *node)
DataStorageSelection &	operator= (mitk::DataNode::Pointer node)
virtual void	SetDataStorage (mitk::DataStorage *_DataStorage)
virtual void	SetPredicate (mitk::NodePredicateBase *_Predicate)
virtual void	AddNode (const mitk::DataNode *node)
virtual void	RemoveNode (const mitk::DataNode *node)
virtual void	RemoveAllNodes ()
virtual void	ObjectChanged (const itk::Object *caller, const itk::EventObject &event)
Static Public Member Functions
static Pointer	New (DataStorage *_arga, bool _argb)
static Pointer	New (DataStorage _arga, NodePredicateBase _argb, bool _argc)
Public Attributes
DataNodeEvent	NodeChanged
DataNodeEvent	NodeAdded
DataNodeEvent	NodeRemoved
Message2< const mitk::DataNode , const mitk::BaseProperty >	PropertyChanged
Protected Member Functions
	DataStorageSelection (mitk::DataStorage *_DataStorage, bool _AutoAddNodes)
	DataStorageSelection (mitk::DataStorage _DataStorage, mitk::NodePredicateBase _Predicate, bool _AutoAddNodes)
mitk::DataNode::Pointer	FindNode (const mitk::BaseProperty *prop) const
mitk::DataNode::Pointer	FindNode (const mitk::PropertyList *propList) const
void	Reset ()
void	RemoveListener (mitk::DataNode *node)
void	AddListener (mitk::DataNode *node)
Protected Attributes
mitk::DataStorage *	m_DataStorage
unsigned int	m_DataStorageDeletedTag
mitk::NodePredicateBase::Pointer	m_Predicate
std::vector< mitk::DataNode * >	m_Nodes
std::map< mitk::DataNode *, unsigned long >	m_NodeModifiedObserverTags
	Maps a node to a modified observer tag.
std::map< mitk::PropertyList *, unsigned long >	m_PropertyListModifiedObserverTags
	Maps a propertylist to a modified observer tag.
std::map< mitk::PropertyList *, unsigned long >	m_PropertyListDeletedObserverTags
	Maps a propertylist to a delete observer tag.
std::map< mitk::BaseProperty *, unsigned long >	m_PropertyModifiedObserverTags
	Maps a property to a modified observer tag.
std::map< mitk::BaseProperty *, unsigned long >	m_PropertyDeletedObserverTags
	Maps a property to a delete observer tag.
bool	m_SelfCall
bool	m_AutoAddNodes

Detailed Description

Definition at line 33 of file mitkDataStorageSelection.h.

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::DataStorageSelection::ConstPointer

Definition at line 44 of file mitkDataStorageSelection.h.

typedef Message1<const mitk::DataNode*> mitk::DataStorageSelection::DataNodeEvent

Definition at line 37 of file mitkDataStorageSelection.h.

typedef std::vector<mitk::DataNode*> mitk::DataStorageSelection::Nodes

Definition at line 36 of file mitkDataStorageSelection.h.

typedef itk::SmartPointer<Self> mitk::DataStorageSelection::Pointer

Definition at line 44 of file mitkDataStorageSelection.h.

typedef DataStorageSelection mitk::DataStorageSelection::Self

Definition at line 44 of file mitkDataStorageSelection.h.

typedef itk::Object mitk::DataStorageSelection::Superclass

Definition at line 44 of file mitkDataStorageSelection.h.

Constructor & Destructor Documentation

mitk::DataStorageSelection::DataStorageSelection	(	mitk::DataStorage *	_DataStorage,
		bool	_AutoAddNodes
	)		`[protected]`

Definition at line 21 of file mitkDataStorageSelection.cpp.

mitk::DataStorageSelection::DataStorageSelection	(	mitk::DataStorage *	_DataStorage,
		mitk::NodePredicateBase *	_Predicate,
		bool	_AutoAddNodes
	)		`[protected]`

Definition at line 27 of file mitkDataStorageSelection.cpp.

    : m_DataStorage(0), m_Predicate(0), m_SelfCall(false), m_AutoAddNodes(_AutoAddNodes)
  {
    this->SetDataStorage(_DataStorage);
  }

  DataStorageSelection::DataStorageSelection(mitk::DataStorage* _DataStorage
                                                           , mitk::NodePredicateBase* _Predicate

mitk::DataStorageSelection::~DataStorageSelection ( ) [virtual]

Definition at line 35 of file mitkDataStorageSelection.cpp.

    : m_DataStorage(0), m_Predicate(_Predicate), m_SelfCall(false), m_AutoAddNodes(_AutoAddNodes)
  {
    this->SetDataStorage(_DataStorage);
  }

Member Function Documentation

void mitk::DataStorageSelection::AddListener ( mitk::DataNode * node ) [protected]

Adds listeners for modified/delete event, for the propertylists modified/delete and for the modified/delete event of each property and stores listener tags

Definition at line 333 of file mitkDataStorageSelection.cpp.

  {
    // node listener
    itk::MemberCommand<DataStorageSelection>::Pointer ObjectChangedCommand
      = itk::MemberCommand<DataStorageSelection>::New();
    ObjectChangedCommand->SetCallbackFunction(this, &DataStorageSelection::ObjectChanged);

    m_NodeModifiedObserverTags[node] = node->AddObserver(itk::ModifiedEvent()
      , ObjectChangedCommand);

    // create propertylist listener
    mitk::PropertyList* propList = node->GetPropertyList();
    m_PropertyListModifiedObserverTags[propList] = propList
      ->AddObserver(itk::ModifiedEvent(), ObjectChangedCommand);
    m_PropertyListDeletedObserverTags[propList] = propList
      ->AddObserver(itk::DeleteEvent(), ObjectChangedCommand);

    mitk::BaseProperty* prop = 0;
    // do the same for each property
    for(mitk::PropertyList::PropertyMap::const_iterator it=propList->GetMap()->begin()
      ; it!=propList->GetMap()->end()
      ; ++it)
    {
      prop = it->second.first;
      m_PropertyModifiedObserverTags[prop] = prop->AddObserver(itk::ModifiedEvent()

void mitk::DataStorageSelection::AddNode ( const mitk::DataNode * node ) [virtual]

Add a node (if not already there)

Definition at line 144 of file mitkDataStorageSelection.cpp.

  {
    // garantuee no recursions when a new node event is thrown
    if(m_SelfCall)
      return;

    // if we have a predicate, check node against predicate first
    if(m_Predicate.IsNotNull() && !m_Predicate->CheckNode(node))
      return;

    // no duplicates
    if(std::find(m_Nodes.begin(), m_Nodes.end(), node) != m_Nodes.end())
      return;

    mitk::DataNode* nonConstNode = const_cast<mitk::DataNode*>(node);
    // add listener
    this->AddListener(nonConstNode);

    // add node

bool mitk::DataStorageSelection::DoesAutoAddNodes ( ) const

See also:: m_AutoAddNodes

Definition at line 72 of file mitkDataStorageSelection.cpp.

References m_Nodes.

  {
    return m_Nodes;
  }

mitk::DataNode::Pointer mitk::DataStorageSelection::FindNode ( const mitk::BaseProperty * prop ) const [protected]

Find a node in the list by the given prop

Definition at line 246 of file mitkDataStorageSelection.cpp.

  {
    mitk::DataNode* node = 0;
    for(Nodes::const_iterator it=m_Nodes.begin(); it!=m_Nodes.end(); ++it)
    {
      for(mitk::PropertyList::PropertyMap::const_iterator it2
        = (*it)->GetPropertyList()->GetMap()->begin()
        ; it2 != (*it)->GetPropertyList()->GetMap()->end(); ++it2)
      {
        if(it2->second.first == prop)
        {
          node = *it;
          break;

mitk::DataNode::Pointer mitk::DataStorageSelection::FindNode ( const mitk::PropertyList * propList ) const [protected]

Find a node in the list by the given proplist

Definition at line 265 of file mitkDataStorageSelection.cpp.

  {
    mitk::DataNode* node = 0;
    for(Nodes::const_iterator it=m_Nodes.begin(); it!=m_Nodes.end(); ++it)
    {
      if((*it)->GetPropertyList() == propList)
      {
        node = *it;

virtual const char* mitk::DataStorageSelection::GetClassName ( ) const [virtual]

mitk::DataStorage::Pointer mitk::DataStorageSelection::GetDataStorage ( ) const

Get the DataStorage.

Definition at line 41 of file mitkDataStorageSelection.cpp.

References SetDataStorage().

  {
    // kick datastorage and all nodes and all listeners
    this->SetDataStorage(0);
  }

mitk::DataNode::Pointer mitk::DataStorageSelection::GetNode ( ) const

Returns the first node, same as calling GetNode(0)

Definition at line 56 of file mitkDataStorageSelection.cpp.

References m_Nodes.

Referenced by GetNode().

  {
    return m_Nodes.size();
  }

mitk::DataNode::Pointer mitk::DataStorageSelection::GetNode ( unsigned int index ) const

Get node at a specific model index.

Definition at line 61 of file mitkDataStorageSelection.cpp.

References GetNode().

  {
    return this->GetNode(0);
  }

std::vector< mitk::DataNode * > mitk::DataStorageSelection::GetNodes ( ) const

Returns a copy of the node-vector

Definition at line 66 of file mitkDataStorageSelection.cpp.

References m_Nodes.

  {
    return (index < m_Nodes.size())? m_Nodes.at(index): 0;
  }

mitk::NodePredicateBase::Pointer mitk::DataStorageSelection::GetPredicate ( ) const

Get the predicate.

Definition at line 46 of file mitkDataStorageSelection.cpp.

References m_DataStorage.

  {
    return m_DataStorage;
  }

unsigned int mitk::DataStorageSelection::GetSize ( ) const

Returns the size of this selection

Definition at line 51 of file mitkDataStorageSelection.cpp.

References m_Predicate.

  {
    return m_Predicate;
  }

static Pointer mitk::DataStorageSelection::New	(	DataStorage *	_arga,
		bool	_argb
	)		`[inline, static]`

Definition at line 46 of file mitkDataStorageSelection.h.

Referenced by QmitkMeasurement::CreateQtPartControl(), and QmitkBasicImageProcessing::CreateQtPartControl().

:
      DataStorageSelection(mitk::DataStorage* _DataStorage, bool _AutoAddNodes);

static Pointer mitk::DataStorageSelection::New	(	DataStorage *	_arga,
		NodePredicateBase *	_argb,
		bool	_argc
	)		`[inline, static]`

Definition at line 47 of file mitkDataStorageSelection.h.

:
      DataStorageSelection(mitk::DataStorage* _DataStorage, bool _AutoAddNodes);

void mitk::DataStorageSelection::ObjectChanged	(	const itk::Object *	caller,
		const itk::EventObject &	event
	)		`[virtual]`

Called whenever an itk Object this class holds gets deleted or modified

Definition at line 206 of file mitkDataStorageSelection.cpp.

  {
    if(m_SelfCall)
      return;

    const itk::DeleteEvent* delEvent = 0;
    const itk::ModifiedEvent* modifiedEvent = dynamic_cast<const itk::ModifiedEvent*>(&event);
    if(!modifiedEvent)
      delEvent = dynamic_cast<const itk::DeleteEvent*>(&event);

    const mitk::BaseProperty* prop = 0;
    const mitk::PropertyList* propList = 0;
    const mitk::DataNode* node = dynamic_cast<const mitk::DataNode*>(caller);
    if(!node)
    {
      if((prop = dynamic_cast<const mitk::BaseProperty*>(caller)))
      {
        node = this->FindNode(prop);
      }
      else if((propList = dynamic_cast<const mitk::PropertyList*>(caller)))
      {
        node = this->FindNode(propList);
      }
      else if(dynamic_cast<const mitk::DataStorage*>(caller))
      {
        this->SetDataStorage(0);
      }
    }

    if(prop && node)
    {
      PropertyChanged.Send(node, prop);
    }

DataStorageSelection & mitk::DataStorageSelection::operator= ( mitk::DataNode * node )

Removes all nodes, sets node as new first element

Definition at line 77 of file mitkDataStorageSelection.cpp.

References m_AutoAddNodes.

  {
    return m_AutoAddNodes;
  }

  DataStorageSelection& DataStorageSelection::operator=(mitk::DataNode* node)

DataStorageSelection & mitk::DataStorageSelection::operator= ( mitk::DataNode::Pointer node )

Removes all nodes, sets node as new first element

Definition at line 84 of file mitkDataStorageSelection.cpp.

void mitk::DataStorageSelection::RemoveAllNodes ( ) [virtual]

Removes a node

Definition at line 193 of file mitkDataStorageSelection.cpp.

  {
    // remove all nodes now (dont use iterators because removing elements
    // would invalidate the iterator)
    // start at the last element: first in, last out
    unsigned int i = m_Nodes.size();
    while(!m_Nodes.empty())

void mitk::DataStorageSelection::RemoveListener ( mitk::DataNode * node ) [protected]

If a node is already in this list, all listeners will be removed

Definition at line 306 of file mitkDataStorageSelection.cpp.

  {
    // remove node listener
    node->RemoveObserver(m_NodeModifiedObserverTags[node]);
    m_NodeModifiedObserverTags.erase(node);

    // remove propertylist listener
    mitk::PropertyList* propList = node->GetPropertyList();
    propList->RemoveObserver(m_PropertyListModifiedObserverTags[propList]);
    m_PropertyListModifiedObserverTags.erase(propList);
    propList->RemoveObserver(m_PropertyListDeletedObserverTags[propList]);
    m_PropertyListDeletedObserverTags.erase(propList);

    mitk::BaseProperty* prop = 0;
    // do the same for each property
    for(mitk::PropertyList::PropertyMap::const_iterator it=propList->GetMap()->begin()
      ; it!=propList->GetMap()->end()
      ; ++it)
    {
      prop = it->second.first;
      prop->RemoveObserver(m_PropertyModifiedObserverTags[prop]);

void mitk::DataStorageSelection::RemoveNode ( const mitk::DataNode * node ) [virtual]

Removes a node

Definition at line 170 of file mitkDataStorageSelection.cpp.

  {
    if(m_SelfCall)
      return;

    // find corresponding node
    std::vector<mitk::DataNode*>::iterator nodeIt
      = std::find(m_Nodes.begin(), m_Nodes.end(), node);

    if(nodeIt == m_Nodes.end())
      return;

    mitk::DataNode* nonConstNode = const_cast<mitk::DataNode*>(node);
    // add listener
    this->RemoveListener(nonConstNode);

    // remove node

void mitk::DataStorageSelection::Reset ( ) [protected]

Removes all nodes and fill the vector again

Definition at line 279 of file mitkDataStorageSelection.cpp.

  {
    this->RemoveAllNodes();
    // the whole reset depends on the fact if a data storage is set or not
    if(m_DataStorage)
    {
      mitk::DataStorage::SetOfObjects::ConstPointer _NodeSet = 0;
      if(m_AutoAddNodes && m_Predicate.IsNotNull())
        // get subset
        _NodeSet = m_DataStorage->GetSubset(m_Predicate);
      // if predicate is NULL, select all nodes
      else if(m_AutoAddNodes)
      {
        _NodeSet = m_DataStorage->GetAll();
      }
      else
        return;
      // finally add all nodes to the model
      for(mitk::DataStorage::SetOfObjects::const_iterator it=_NodeSet->begin(); it!=_NodeSet->end()
        ; it++)
      {

void mitk::DataStorageSelection::SetDataStorage ( mitk::DataStorage * _DataStorage ) [virtual]

Sets the DataStorage.

Definition at line 90 of file mitkDataStorageSelection.cpp.

Referenced by GetDataStorage().

  {
    *this = node.GetPointer();
    return *this;
  }

  void DataStorageSelection::SetDataStorage(mitk::DataStorage* _DataStorage)
  {
    // only proceed if we have a new datastorage
    if(m_DataStorage != _DataStorage)
    {
      // if a data storage was set before remove old event listeners
      if(m_DataStorage != 0)
      {
        if(m_AutoAddNodes)
          this->m_DataStorage->AddNodeEvent.RemoveListener( mitk::MessageDelegate1<DataStorageSelection
          , const mitk::DataNode*>( this, &DataStorageSelection::AddNode ) );

        this->m_DataStorage->RemoveNodeEvent.RemoveListener( mitk::MessageDelegate1<DataStorageSelection
          , const mitk::DataNode*>( this, &DataStorageSelection::RemoveNode ) );

        m_DataStorage->RemoveObserver(m_DataStorageDeletedTag);
        m_DataStorageDeletedTag = 0;
      }

      // set new data storage
      m_DataStorage = _DataStorage;

      // if new storage is not 0 subscribe for events
      if(m_DataStorage != 0)
      {
        // subscribe for node added/removed events
        if(m_AutoAddNodes)
          this->m_DataStorage->AddNodeEvent.AddListener( mitk::MessageDelegate1<DataStorageSelection
          , const mitk::DataNode*>( this, &DataStorageSelection::AddNode ) );

        this->m_DataStorage->RemoveNodeEvent.AddListener( mitk::MessageDelegate1<DataStorageSelection
          , const mitk::DataNode*>( this, &DataStorageSelection::RemoveNode ) );

        itk::MemberCommand<DataStorageSelection>::Pointer ObjectChangedCommand
          = itk::MemberCommand<DataStorageSelection>::New();
        ObjectChangedCommand->SetCallbackFunction(this, &DataStorageSelection::ObjectChanged);

        m_DataStorageDeletedTag = m_DataStorage->AddObserver(itk::DeleteEvent(), ObjectChangedCommand);

void mitk::DataStorageSelection::SetPredicate ( mitk::NodePredicateBase * _Predicate ) [virtual]

Sets the predicate. QmitkDataStorageTableModel is owner of the predicate!

Definition at line 134 of file mitkDataStorageSelection.cpp.

  {
    // ensure that a new predicate is set in order to avoid unnecessary changed events
    if(m_Predicate != _Predicate)

Member Data Documentation

bool mitk::DataStorageSelection::m_AutoAddNodes [protected]

Saves if new nodes are automatically added to this selection

Definition at line 186 of file mitkDataStorageSelection.h.

Referenced by operator=().

mitk::DataStorage* mitk::DataStorageSelection::m_DataStorage [protected]

Pointer to the DataStorage from which the nodes are selected

Definition at line 145 of file mitkDataStorageSelection.h.

Referenced by GetPredicate().

unsigned int mitk::DataStorageSelection::m_DataStorageDeletedTag [protected]

DeleteTag for the DataStorage

Definition at line 149 of file mitkDataStorageSelection.h.

std::map<mitk::DataNode*, unsigned long> mitk::DataStorageSelection::m_NodeModifiedObserverTags [protected]

Maps a node to a modified observer tag.

Definition at line 162 of file mitkDataStorageSelection.h.

std::vector<mitk::DataNode*> mitk::DataStorageSelection::m_Nodes [protected]

Holds all selected Nodes.

Definition at line 158 of file mitkDataStorageSelection.h.

Referenced by DoesAutoAddNodes(), GetNode(), and GetNodes().

mitk::NodePredicateBase::Pointer mitk::DataStorageSelection::m_Predicate [protected]

Holds the predicate that defines this SubSet of Nodes. If m_Predicate is NULL all Nodes will be selected.

Definition at line 154 of file mitkDataStorageSelection.h.

Referenced by GetSize().

std::map<mitk::BaseProperty*, unsigned long> mitk::DataStorageSelection::m_PropertyDeletedObserverTags [protected]

Maps a property to a delete observer tag.

Definition at line 178 of file mitkDataStorageSelection.h.

std::map<mitk::PropertyList*, unsigned long> mitk::DataStorageSelection::m_PropertyListDeletedObserverTags [protected]

Maps a propertylist to a delete observer tag.

Definition at line 170 of file mitkDataStorageSelection.h.

std::map<mitk::PropertyList*, unsigned long> mitk::DataStorageSelection::m_PropertyListModifiedObserverTags [protected]

Maps a propertylist to a modified observer tag.

Definition at line 166 of file mitkDataStorageSelection.h.

std::map<mitk::BaseProperty*, unsigned long> mitk::DataStorageSelection::m_PropertyModifiedObserverTags [protected]

Maps a property to a modified observer tag.

Definition at line 174 of file mitkDataStorageSelection.h.

bool mitk::DataStorageSelection::m_SelfCall [protected]

If set to true no event processing will be performed

Definition at line 182 of file mitkDataStorageSelection.h.

DataNodeEvent mitk::DataStorageSelection::NodeAdded

Definition at line 40 of file mitkDataStorageSelection.h.

DataNodeEvent mitk::DataStorageSelection::NodeChanged

Definition at line 39 of file mitkDataStorageSelection.h.

DataNodeEvent mitk::DataStorageSelection::NodeRemoved

Definition at line 41 of file mitkDataStorageSelection.h.

Message2<const mitk::DataNode*, const mitk::BaseProperty*> mitk::DataStorageSelection::PropertyChanged

Definition at line 42 of file mitkDataStorageSelection.h.

The documentation for this class was generated from the following files:

mitk::DataStorageSelection Class Reference

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
