mitk::ContourSetVtkMapper3D Class Reference [Mapper Classes]

Vtk-based mapper for mitk::Contour. More...

#include <mitkContourSetVtkMapper3D.h>

Inheritance diagram for mitk::ContourSetVtkMapper3D:

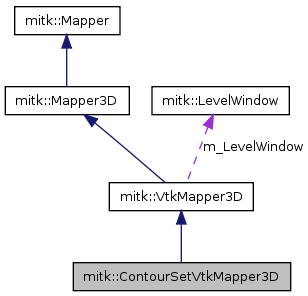

Collaboration diagram for mitk::ContourSetVtkMapper3D:

List of all members.

Public Types
typedef ContourSetVtkMapper3D	Self
typedef VtkMapper3D	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
virtual const mitk::ContourSet *	GetInput ()
virtual vtkProp *	GetVtkProp (mitk::BaseRenderer *renderer)
Static Public Member Functions
static Pointer	New ()
Protected Member Functions
	ContourSetVtkMapper3D ()
virtual	~ContourSetVtkMapper3D ()
virtual void	GenerateData (mitk::BaseRenderer *renderer)
	Generate the data needed for rendering into renderer.
Protected Attributes
vtkPolyDataMapper *	m_VtkPolyDataMapper
vtkTubeFilter *	m_TubeFilter
vtkPolyData *	m_ContourSet
vtkActor *	m_Actor

---

Detailed Description

Vtk-based mapper for mitk::Contour.

Definition at line 40 of file mitkContourSetVtkMapper3D.h.

---

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::ContourSetVtkMapper3D::ConstPointer

Reimplemented from mitk::VtkMapper3D.

Definition at line 44 of file mitkContourSetVtkMapper3D.h.

typedef itk::SmartPointer<Self> mitk::ContourSetVtkMapper3D::Pointer

Reimplemented from mitk::VtkMapper3D.

Definition at line 44 of file mitkContourSetVtkMapper3D.h.

typedef ContourSetVtkMapper3D mitk::ContourSetVtkMapper3D::Self

Reimplemented from mitk::VtkMapper3D.

Definition at line 44 of file mitkContourSetVtkMapper3D.h.

typedef VtkMapper3D mitk::ContourSetVtkMapper3D::Superclass

Reimplemented from mitk::VtkMapper3D.

Definition at line 44 of file mitkContourSetVtkMapper3D.h.

---

Constructor & Destructor Documentation

mitk::ContourSetVtkMapper3D::ContourSetVtkMapper3D

(

)

[protected]

Definition at line 46 of file mitkContourSetVtkMapper3D.cpp.

References m_Actor, m_ContourSet, m_TubeFilter, m_VtkPolyDataMapper, and New().

{
  m_VtkPolyDataMapper = vtkPolyDataMapper::New();
  m_Actor = vtkActor::New();
  m_Actor->SetMapper(m_VtkPolyDataMapper);

  m_ContourSet = vtkPolyData::New();
  m_TubeFilter = vtkTubeFilter::New();
}

mitk::ContourSetVtkMapper3D::~ContourSetVtkMapper3D

(

)

[protected, virtual]

Definition at line 56 of file mitkContourSetVtkMapper3D.cpp.

{
  if( m_VtkPolyDataMapper )
    m_VtkPolyDataMapper->Delete();;

  if( m_TubeFilter )
    m_TubeFilter->Delete();;

  if( m_ContourSet )
    m_ContourSet->Delete();;

  if( m_Actor )
    m_Actor->Delete();;
}

---

Member Function Documentation

void mitk::ContourSetVtkMapper3D::GenerateData

(

mitk::BaseRenderer *

renderer )

[protected, virtual]

Generate the data needed for rendering into renderer.

Reimplemented from mitk::Mapper.

Definition at line 76 of file mitkContourSetVtkMapper3D.cpp.

References mitk::Contour::GetClosed(), mitk::Contour::GetContourPath(), mitk::ContourSet::GetContours(), mitk::BaseRenderer::GetDisplayGeometryUpdateTime(), and mitk::Contour::GetPoints().

{
  if(IsVisible(renderer)==false)
  {
    m_Actor->VisibilityOff();
    return;
  }
  m_Actor->VisibilityOn();

  mitk::ContourSet::Pointer input  = const_cast<mitk::ContourSet*>(this->GetInput());

  if ( renderer->GetDisplayGeometryUpdateTime() > this->GetInput()->GetMTime() )
  {
    m_ContourSet = vtkPolyData::New();

    vtkPoints *points = vtkPoints::New();
    vtkCellArray *lines = vtkCellArray::New();

    mitk::ContourSet::Pointer input =  const_cast<mitk::ContourSet*>(this->GetInput());
    mitk::ContourSet::ContourVectorType contourVec = input->GetContours();
    mitk::ContourSet::ContourIterator contourIt = contourVec.begin();

    vtkIdType firstPointIndex= 0, lastPointIndex=0;

    vtkIdType ptIndex = 0;
    while ( contourIt != contourVec.end() )
    {
      mitk::Contour* nextContour = (mitk::Contour*) (*contourIt).second;
      Contour::InputType idx = nextContour->GetContourPath()->StartOfInput();


      Contour::InputType end = nextContour->GetContourPath()->EndOfInput();
      if (end > 50000) end = 0;

      mitk::Contour::PointsContainerPointer contourPoints = nextContour->GetPoints();
      mitk::Contour::PointsContainerIterator pointsIt = contourPoints->Begin();
      unsigned int counter = 0;

      firstPointIndex=ptIndex;
      while ( pointsIt != contourPoints->End() )
      {
        if (counter %2 == 0)
        {
          Contour::BoundingBoxType::PointType point;
          point = pointsIt.Value();
          points->InsertPoint(ptIndex, point[0],point[1],point[2]);
          if (ptIndex > firstPointIndex)
          {
            int cell[2] = {ptIndex-1,ptIndex};
            lines->InsertNextCell((vtkIdType)2,(vtkIdType*) cell);
          }
          lastPointIndex=ptIndex;
          ptIndex++;
        }
        pointsIt++;
        idx+=1;
      }

      if (nextContour->GetClosed())
      {
        int cell[2] = {lastPointIndex,firstPointIndex};
        lines->InsertNextCell((vtkIdType)2,(vtkIdType*) cell);
      }
      contourIt++;
    }

    m_ContourSet->SetPoints(points);
    m_ContourSet->SetLines(lines);
    m_ContourSet->Update();

    m_TubeFilter->SetInput(m_ContourSet);
    m_TubeFilter->SetRadius(1);
    m_TubeFilter->Update();
    m_VtkPolyDataMapper->SetInput(m_TubeFilter->GetOutput());

    vtkFloatingPointType rgba[4]={0.0f,1.0f,0.0f,0.6f};

    m_Actor->GetProperty()->SetColor(rgba);
    m_Actor->SetMapper(m_VtkPolyDataMapper);
  }

  SetVtkMapperImmediateModeRendering(m_VtkPolyDataMapper);
}

virtual const char* mitk::ContourSetVtkMapper3D::GetClassName

(

)

const [virtual]

Reimplemented from mitk::VtkMapper3D.

const mitk::ContourSet * mitk::ContourSetVtkMapper3D::GetInput

(

void

)

[virtual]

Definition at line 160 of file mitkContourSetVtkMapper3D.cpp.

{
  return static_cast<const mitk::ContourSet* > ( GetData() );
}

vtkProp * mitk::ContourSetVtkMapper3D::GetVtkProp

(

mitk::BaseRenderer *

renderer )

[virtual]

Implements mitk::VtkMapper3D.

Definition at line 71 of file mitkContourSetVtkMapper3D.cpp.

{
  return m_Actor;
}

static Pointer mitk::ContourSetVtkMapper3D::New

(

)

[static]

Referenced by ContourSetVtkMapper3D(), mitk::CoreExtObjectFactory::CreateMapper(), and mitkDataNodeExtTestClass::TestMapperSetting().

---

Member Data Documentation

vtkActor* mitk::ContourSetVtkMapper3D::m_Actor [protected]

Definition at line 64 of file mitkContourSetVtkMapper3D.h.

Referenced by ContourSetVtkMapper3D().

vtkPolyData* mitk::ContourSetVtkMapper3D::m_ContourSet [protected]

Definition at line 63 of file mitkContourSetVtkMapper3D.h.

Referenced by ContourSetVtkMapper3D().

vtkTubeFilter* mitk::ContourSetVtkMapper3D::m_TubeFilter [protected]

Definition at line 61 of file mitkContourSetVtkMapper3D.h.

Referenced by ContourSetVtkMapper3D().

vtkPolyDataMapper* mitk::ContourSetVtkMapper3D::m_VtkPolyDataMapper [protected]

Definition at line 60 of file mitkContourSetVtkMapper3D.h.

Referenced by ContourSetVtkMapper3D().

---

The documentation for this class was generated from the following files:

• mitkContourSetVtkMapper3D.h
• mitkContourSetVtkMapper3D.cpp
