The QxtScheduleView provides an iCal like view to plan events. More...

#include <qxtscheduleview.h>

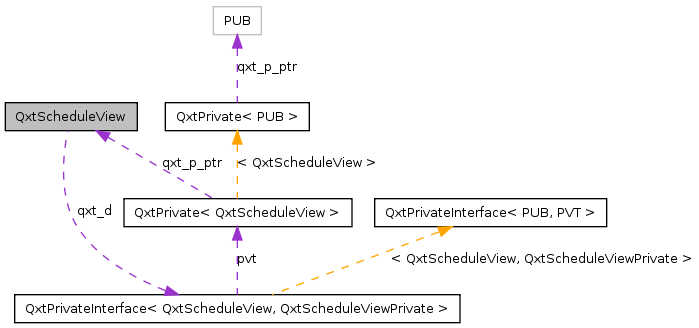

Collaboration diagram for QxtScheduleView:

Public Types
enum	ViewMode { MinuteView, HourView, DayView, CustomView }
Public Slots
void	dataChanged (const QModelIndex &topLeft, const QModelIndex &bottomRight)
void	updateGeometries ()
void	zoomIn ()
void	zoomOut ()
Signals
void	itemMoved (int rows, int cols, QModelIndex index)
void	indexSelected (QModelIndex index)
void	indexDoubleClicked (QModelIndex index)
void	contextMenuRequested (QModelIndex index)
void	newZoomDepth (const int newDepthInSeconds)
void	viewModeChanged (const int newViewMode)
Public Member Functions
	QxtScheduleView (QWidget *parent=0)
void	setModel (QAbstractItemModel *model)
QAbstractItemModel *	model () const
void	setViewMode (const QxtScheduleView::ViewMode mode)
QxtScheduleView::ViewMode	viewMode () const
void	setDateRange (const QDate &fromDate, const QDate &toDate)
void	setTimeRange (const QDateTime &fromDateTime, const QDateTime &toTime)
QxtScheduleItemDelegate *	delegate () const
void	setItemDelegate (QxtScheduleItemDelegate *delegate)
void	setZoomStepWidth (const int zoomWidth, const Qxt::Timeunit unit=Qxt::Second)
void	setCurrentZoomDepth (const int depth, const Qxt::Timeunit unit=Qxt::Second)
int	currentZoomDepth (const Qxt::Timeunit unit=Qxt::Second)
QPoint	mapFromViewport (const QPoint &point) const
QPoint	mapToViewport (const QPoint &point) const
QModelIndex	indexAt (const QPoint &pt)
void	raiseItem (const QModelIndex &index)
void	handleItemConcurrency (const QModelIndex &index)
QModelIndex	currentIndex ()
int	rows () const
int	cols () const
Protected Slots
virtual void	rowsAboutToBeRemoved (const QModelIndex &parent, int start, int end)
virtual void	rowsAboutToBeInserted (const QModelIndex &parent, int start, int end)
virtual void	rowsRemoved (const QModelIndex &parent, int start, int end)
virtual void	rowsInserted (const QModelIndex &parent, int start, int end)
Protected Member Functions
virtual int	timePerColumn () const
virtual void	adjustRangeToViewMode (QDateTime startTime, QDateTime endTime) const
virtual void	scrollContentsBy (int dx, int dy)
virtual void	paintEvent (QPaintEvent *e)
virtual void	mouseMoveEvent (QMouseEvent *e)
virtual void	mousePressEvent (QMouseEvent *e)
virtual void	mouseReleaseEvent (QMouseEvent *e)
virtual void	mouseDoubleClickEvent (QMouseEvent *e)
virtual void	resizeEvent (QResizeEvent *e)
virtual void	wheelEvent (QWheelEvent *e)
Friends
class	QxtScheduleViewPrivate
class	QxtScheduleInternalItem
class	QxtScheduleViewHeaderModel

Detailed Description

The QxtScheduleView provides an iCal like view to plan events.

QxtScheduleView is a item based View,inspired by iCal, that makes it possible to visualize event planning.
It's time based and can show the events in different modes:

DayMode : Every column in the view shows one day
HourMode : Every column in the view shows one hour
MinuteMode : Every column in the view shows one minute>

In addition you can adjust how much time every cell represents in the view. The default value is 900 seconds or 15 minutes and DayMode.

Definition at line 53 of file qxtscheduleview.h.

Member Enumeration Documentation

enum QxtScheduleView::ViewMode

Enumerator:

MinuteView
HourView
DayView
CustomView

Definition at line 63 of file qxtscheduleview.h.

    {
        MinuteView,
        HourView,
        DayView,
        CustomView
    };

Constructor & Destructor Documentation

QxtScheduleView::QxtScheduleView ( QWidget * parent = 0 )

Definition at line 61 of file qxtscheduleview.cpp.

References DayView, QXT_INIT_PRIVATE, and updateGeometries().

        : QAbstractScrollArea(parent)
{
    QXT_INIT_PRIVATE(QxtScheduleView);

    /*standart values are 15 minutes per cell and 69 rows == 1 Day*/
    qxt_d().m_currentZoomDepth = 15 * 60;
    qxt_d().m_currentViewMode  = DayView;
    qxt_d().m_startUnixTime = 0;
    qxt_d().m_endUnixTime = 0;
    qxt_d().delegate = qxt_d().defaultDelegate = new QxtScheduleItemDelegate(this);

    qxt_d().m_vHeader = new QxtScheduleHeaderWidget(Qt::Vertical, this);
    connect(qxt_d().m_vHeader, SIGNAL(geometriesChanged()), this, SLOT(updateGeometries()));
    qxt_d().m_vHeader->hide();

    qxt_d().m_hHeader = new QxtScheduleHeaderWidget(Qt::Horizontal, this);
    connect(qxt_d().m_hHeader, SIGNAL(geometriesChanged()), this, SLOT(updateGeometries()));
    qxt_d().m_hHeader->hide();

}

Member Function Documentation

void QxtScheduleView::adjustRangeToViewMode	(	QDateTime *	startTime,
		QDateTime *	endTime
	)		const `[protected, virtual]`

reimplement this to support custom view modes This function has to adjust the given start and end time to the current view mode: For example, the DayMode always adjust to time 0:00:00am for startTime and 11:59:59pm for endTime

Definition at line 694 of file qxtscheduleview.cpp.

References DayView, HourView, and MinuteView.

Referenced by setTimeRange().

{
    switch (qxt_d().m_currentViewMode)
    {
    case DayView:
        startTime->setTime(QTime(0, 0));
        endTime  ->setTime(QTime(23, 59, 59));
        break;
    case HourView:
        startTime->setTime(QTime(startTime->time().hour(), 0));
        endTime  ->setTime(QTime(endTime->time().hour(), 59, 59));
        break;
    case MinuteView:
        startTime->setTime(QTime(startTime->time().hour(), startTime->time().minute(), 0));
        endTime  ->setTime(QTime(endTime->time().hour(), endTime->time().minute(), 59));
        break;
    default:
        Q_ASSERT(false);
    }
}

int QxtScheduleView::cols ( ) const

returns the current column count of the view

Definition at line 648 of file qxtscheduleview.cpp.

References model(), and timePerColumn().

Referenced by mouseMoveEvent(), QxtScheduleViewHeaderModel::setDataSource(), and updateGeometries().

{
    if (!model())
        return 0;

    int cols = 0;
    int timeToShow = qxt_d().m_endUnixTime - qxt_d().m_startUnixTime + 1 ;
    int timePerCol = timePerColumn();

    Q_ASSERT(timeToShow % timePerCol == 0);
    cols = (timeToShow / timePerCol);

    return cols;
}

void QxtScheduleView::contextMenuRequested ( QModelIndex index ) [signal]

Referenced by mousePressEvent().

QModelIndex QxtScheduleView::currentIndex ( )

returns the current selected index

Definition at line 872 of file qxtscheduleview.cpp.

{
    QModelIndex currIndex;
    if (qxt_d().m_currentItem)
        currIndex = qxt_d().m_currentItem->modelIndex();
    return currIndex;

}

int QxtScheduleView::currentZoomDepth ( const Qxt::Timeunit unit = Qxt::Second )

returns the current zoom depth

Definition at line 299 of file qxtscheduleview.cpp.

References Qxt::Hour, Qxt::Minute, and Qxt::Second.

Referenced by QxtScheduleInternalItem::rows(), QxtScheduleInternalItem::setRowsUsed(), and QxtScheduleInternalItem::startTableOffset().

{
    switch (unit)
    {
    case Qxt::Second:
    {
        return qxt_d().m_currentZoomDepth;
    }
    break;
    case Qxt::Minute:
    {
        return qxt_d().m_currentZoomDepth / 60;
    }
    break;
    case Qxt::Hour:
    {
        return qxt_d().m_currentZoomDepth / 60 / 60;
    }
    break;
    default:
        qWarning() << "This Timeunit is not implemented yet you can use Second,Minute,Hour returning seconds";
        return qxt_d().m_currentZoomDepth;
        break;
    }
}

void QxtScheduleView::dataChanged	(	const QModelIndex &	topLeft,
		const QModelIndex &	bottomRight
	)		`[slot]`

Definition at line 743 of file qxtscheduleview.cpp.

References QxtScheduleInternalItem::m_geometries, mapToViewport(), model(), QxtScheduleInternalItem::rows(), QxtScheduleInternalItem::setDirty(), QxtScheduleInternalItem::setGeometry(), and QxtScheduleInternalItem::startTableOffset().

Referenced by setModel().

{
    for (int iLoop = topLeft.row(); iLoop <= bottomRight.row();iLoop++)
    {
        QModelIndex index = model()->index(iLoop, 0);
        QxtScheduleInternalItem * item = qxt_d().itemForModelIndex(index);
        if (item)
        {
            int startOffset = item->startTableOffset();
            int endIndex = item->startTableOffset() + item->rows() - 1;

            if (item->m_geometries.count() > 0)
            {
                int oldStartOffset = qxt_d().pointToOffset(mapToViewport(item->m_geometries[0].topLeft()));
                int oldEndOffset = qxt_d().pointToOffset(mapToViewport(item->m_geometries[item->m_geometries.size()-1].bottomRight()));
                qxt_d().handleItemConcurrency(oldStartOffset, oldEndOffset);
            }

            /*that maybe will set a empty geometry thats okay because the item maybe out of bounds of the view */
            item->setGeometry(qxt_d().calculateRangeGeometries(startOffset, endIndex));
            /*force item cache update even if the geometry is the same*/
            item->setDirty();

            qxt_d().handleItemConcurrency(startOffset, endIndex);


            viewport()->update();
        }
    }
}

QxtScheduleItemDelegate * QxtScheduleView::delegate ( ) const

returns the current used delegate

Definition at line 148 of file qxtscheduleview.cpp.

Referenced by setItemDelegate().

{
    return qxt_d().delegate;
}

void QxtScheduleView::handleItemConcurrency ( const QModelIndex & index )

triggers the view to relayout the items that are concurrent to index

Definition at line 777 of file qxtscheduleview.cpp.

{
    QxtScheduleInternalItem *item = qxt_d().itemForModelIndex(index);
    if (item)
        qxt_d().handleItemConcurrency(item);
}

QModelIndex QxtScheduleView::indexAt ( const QPoint & pt )

void QxtScheduleView::indexDoubleClicked ( QModelIndex index ) [signal]

Referenced by mouseDoubleClickEvent().

void QxtScheduleView::indexSelected ( QModelIndex index ) [signal]

Referenced by mousePressEvent(), and rowsRemoved().

void QxtScheduleView::itemMoved	(	int	rows,
		int	cols,
		QModelIndex	index
	)		`[signal]`

QPoint QxtScheduleView::mapFromViewport ( const QPoint & point ) const

Definition at line 715 of file qxtscheduleview.cpp.

Referenced by mouseDoubleClickEvent(), mouseMoveEvent(), and mousePressEvent().

{
    return point + QPoint(qxt_d().m_hHeader->offset(), qxt_d().m_vHeader->offset());
}

QPoint QxtScheduleView::mapToViewport ( const QPoint & point ) const

Definition at line 720 of file qxtscheduleview.cpp.

Referenced by dataChanged().

{
    return point - QPoint(qxt_d().m_hHeader->offset(), qxt_d().m_vHeader->offset());
}

QAbstractItemModel * QxtScheduleView::model ( ) const

Definition at line 120 of file qxtscheduleview.cpp.

Referenced by cols(), dataChanged(), QxtScheduleInternalItem::modelIndex(), mouseReleaseEvent(), paintEvent(), QxtScheduleViewPrivate::reloadItemsFromModel(), rows(), rowsAboutToBeInserted(), rowsInserted(), setCurrentZoomDepth(), QxtScheduleInternalItem::setData(), and setModel().

{
    return qxt_d().m_Model;
}

void QxtScheduleView::mouseDoubleClickEvent ( QMouseEvent * e ) [protected, virtual]

Definition at line 528 of file qxtscheduleview.cpp.

References indexDoubleClicked(), and mapFromViewport().

{
    qxt_d().m_currentItem  = qxt_d().internalItemAt(mapFromViewport(e->pos()));
    if (qxt_d().m_currentItem)
    {
        emit indexDoubleClicked(qxt_d().m_currentItem->modelIndex());
    }
}

void QxtScheduleView::mouseMoveEvent ( QMouseEvent * e ) [protected, virtual]

Definition at line 451 of file qxtscheduleview.cpp.

References cols(), mapFromViewport(), and rows().

{
    if (qxt_d().m_selectedItem)
    {
        int currentMousePosTableOffset = qxt_d().pointToOffset((e->pos()));

        if (currentMousePosTableOffset != qxt_d().m_lastMousePosOffset)
        {
            if (currentMousePosTableOffset >= 0)
            {
                /*i cannot use the model data here because all changes are committed to the model only when the move ends*/
                int startTableOffset = qxt_d().m_selectedItem->visualStartTableOffset();
                int endTableOffset = -1;

                /*i simply use the shape to check if we have a move or a resize. Because we enter this codepath the shape gets not changed*/
                if (this->viewport()->cursor().shape() == Qt::SizeVerCursor)
                {
                    QVector<QRect> geo = qxt_d().m_selectedItem->geometry();
                    QRect rect = geo[geo.size()-1];
                    endTableOffset = currentMousePosTableOffset;
                }
                else
                {
                    /*well the duration is the same for a move*/
                    //qint32 difference = qxt_d().rowsTo(qxt_d().m_lastMousePosIndex,currentMousePos);  // tableCellToUnixTime(currentMousePos) -  tableCellToUnixTime(this->m_lastMousePosIndex);
                    int difference = currentMousePosTableOffset - qxt_d().m_lastMousePosOffset;
                    //qDebug()<<"Difference Rows: "<<difference;

                    startTableOffset =  startTableOffset + difference;
                    endTableOffset = startTableOffset + qxt_d().m_selectedItem->rows() - 1;
                }
                if (startTableOffset >= 0 && endTableOffset >= startTableOffset && endTableOffset < (rows()*cols()))
                {
                    QVector< QRect > newGeometry = qxt_d().calculateRangeGeometries(startTableOffset, endTableOffset);

                    int oldStartOffset = qxt_d().m_selectedItem->visualStartTableOffset();
                    int newStartOffset = qxt_d().m_selectedItem->visualEndTableOffset();

                    qxt_d().m_selectedItem->setGeometry(newGeometry);
                    qxt_d().m_selectedItem->setDirty();
                    qxt_d().m_lastMousePosOffset = currentMousePosTableOffset;
#if 1
                    if (newGeometry.size() > 0)
                    {
                        int start = qxt_d().m_selectedItem->visualStartTableOffset();
                        int end   = qxt_d().m_selectedItem->visualEndTableOffset();
                        qxt_d().handleItemConcurrency(oldStartOffset, newStartOffset);
                        qxt_d().handleItemConcurrency(start, end);
                    }
#endif

                }
            }
        }
        return;
    }
    else
    {
        /*change the cursor to show the resize arrow*/
        QPoint translatedPos = mapFromViewport(e->pos());
        QxtScheduleInternalItem * it = qxt_d().internalItemAt(translatedPos);
        if (it)
        {
            QVector<QRect> geo = it->geometry();
            QRect rect = geo[geo.size()-1];
            if (rect.contains(translatedPos) && (translatedPos.y() >= rect.bottom() - 5 &&  translatedPos.y() <= rect.bottom()))
            {
                this->viewport()->setCursor(Qt::SizeVerCursor);
                return;
            }
        }

        if (this->viewport()->cursor().shape() != Qt::ArrowCursor)
            this->viewport()->setCursor(Qt::ArrowCursor);
    }
}

void QxtScheduleView::mousePressEvent ( QMouseEvent * e ) [protected, virtual]

Definition at line 537 of file qxtscheduleview.cpp.

References contextMenuRequested(), indexSelected(), mapFromViewport(), and raiseItem().

{
    qxt_d().m_currentItem  = qxt_d().internalItemAt(mapFromViewport(e->pos()));

    if (qxt_d().m_currentItem)
    {
        emit indexSelected(qxt_d().m_currentItem->modelIndex());
    }
    else
        emit indexSelected(QModelIndex());

    if (e->button() == Qt::RightButton)
    {
        if (qxt_d().m_currentItem)
            emit contextMenuRequested(qxt_d().m_currentItem->modelIndex());
    }
    else
    {
        qxt_d().m_lastMousePosOffset = qxt_d().pointToOffset(e->pos());
        if (qxt_d().m_lastMousePosOffset >= 0)
        {
            qxt_d().m_selectedItem = qxt_d().m_currentItem;


            if (qxt_d().m_selectedItem)
            {
                qDebug() << "Selected Item:" << qxt_d().m_selectedItem->m_iModelRow;
                raiseItem(qxt_d().m_selectedItem->modelIndex());
                qxt_d().m_selectedItem->startMove();
                qxt_d().scrollTimer.start(100);
            }
            else
                qxt_d().m_lastMousePosOffset = -1;
        }
    }


}

void QxtScheduleView::mouseReleaseEvent ( QMouseEvent * e ) [protected, virtual]

Definition at line 576 of file qxtscheduleview.cpp.

References Qxt::ItemDurationRole, Qxt::ItemStartTimeRole, and model().

{
    qxt_d().scrollTimer.stop();
    if (qxt_d().m_selectedItem)
    {
        int oldStartTableOffset = qxt_d().m_selectedItem->startTableOffset();
        int oldEndTableOffset = oldStartTableOffset + qxt_d().m_selectedItem->rows() - 1 ;


        QVector<QRect> geo = qxt_d().m_selectedItem->geometry();
        QRect rect = geo[geo.size()-1];

        int newStartTableOffset = qxt_d().m_selectedItem->visualStartTableOffset();
        int newEndTableOffset   = qxt_d().m_selectedItem->visualEndTableOffset();

        qxt_d().m_selectedItem->stopMove();

        QVariant newStartUnixTime;
        QVariant newDuration;

        newStartUnixTime = qxt_d().offsetToUnixTime(newStartTableOffset);
        model()->setData(qxt_d().m_selectedItem->modelIndex(), newStartUnixTime, Qxt::ItemStartTimeRole);
        newDuration = qxt_d().offsetToUnixTime(newEndTableOffset, true) - newStartUnixTime.toInt();
        model()->setData(qxt_d().m_selectedItem->modelIndex(), newDuration, Qxt::ItemDurationRole);

        qxt_d().m_selectedItem = NULL;
        qxt_d().m_lastMousePosOffset = -1;

        /*only call for the old geometry the dataChanged slot will call it for the new position*/
        qxt_d().handleItemConcurrency(oldStartTableOffset, oldEndTableOffset);
        //qxt_d().handleItemConcurrency(newStartIndex,newEndIndex);

        //viewport()->update();

    }
}

void QxtScheduleView::newZoomDepth ( const int newDepthInSeconds ) [signal]

Referenced by setCurrentZoomDepth().

void QxtScheduleView::paintEvent ( QPaintEvent * e ) [protected, virtual]

Definition at line 345 of file qxtscheduleview.cpp.

References QxtScheduleInternalItem::isDirty, QxtStyleOptionScheduleViewItem::itemGeometries, QxtStyleOptionScheduleViewItem::itemHeaderHeight, QxtStyleOptionScheduleViewItem::itemPaintCache, QxtScheduleInternalItem::m_cachedParts, QxtScheduleInternalItem::m_geometries, QxtStyleOptionScheduleViewItem::maxSubItemHeight, model(), QxtScheduleInternalItem::modelIndex(), QxtStyleOptionScheduleViewItem::roundCornersRadius, QxtScheduleInternalItem::setDirty(), and QxtStyleOptionScheduleViewItem::translate.

{
    if (model())
    {
        /*paint the grid*/

        int iNumRows = qxt_d().m_vHeader->count();
        qDebug() << "Painting rows " << iNumRows;

        int xRowEnd = qxt_d().m_hHeader->sectionViewportPosition(qxt_d().m_hHeader->count() - 1) + qxt_d().m_hHeader->sectionSize(qxt_d().m_hHeader->count() - 1);
        QPainter painter(viewport());


        painter.save();
        painter.setPen(QColor(220, 220, 220));

        bool thinLine;
        thinLine = false;
        for (int iLoop = 0; iLoop < iNumRows; iLoop += 2)
        {
            painter.drawLine(0 , qxt_d().m_vHeader->sectionViewportPosition(iLoop), xRowEnd, qxt_d().m_vHeader->sectionViewportPosition(iLoop));
        }

        int iNumCols = qxt_d().m_hHeader->count();
        int iYColEnd = qxt_d().m_vHeader->sectionViewportPosition(qxt_d().m_vHeader->count() - 1) + qxt_d().m_vHeader->sectionSize(qxt_d().m_vHeader->count() - 1);

        for (int iLoop = 0; iLoop < iNumCols ; iLoop++)
        {
            painter.drawLine(qxt_d().m_hHeader->sectionViewportPosition(iLoop), 0, qxt_d().m_hHeader->sectionViewportPosition(iLoop), iYColEnd);
        }

        painter.restore();

        QListIterator<QxtScheduleInternalItem *> itemIterator(qxt_d().m_Items);
        while (itemIterator.hasNext())
        {
            QxtScheduleInternalItem * currItem = itemIterator.next();
            QxtStyleOptionScheduleViewItem style;

            //@BUG use the correct section here or find a way to forbit section resizing
            style.roundCornersRadius = qxt_d().m_vHeader->sectionSize(1) / 2;
            style.itemHeaderHeight   = qxt_d().m_vHeader->sectionSize(1);
            style.maxSubItemHeight   = qxt_d().m_vHeader->sectionSize(1);

            if (currItem->isDirty)
                currItem->m_cachedParts.clear();

            style.itemGeometries = currItem->m_geometries;
            style.itemPaintCache = &currItem->m_cachedParts;
            style.translate = QPoint(-qxt_d().m_hHeader->offset(), -qxt_d().m_vHeader->offset());
            painter.save();
            qxt_d().delegate->paint(&painter, style, currItem->modelIndex());
            painter.restore();
            currItem->setDirty(false);
        }

        painter.end();
    }
}

void QxtScheduleView::raiseItem ( const QModelIndex & index )

raises the item belonging to index

Definition at line 728 of file qxtscheduleview.cpp.

Referenced by mousePressEvent().

{
    QxtScheduleInternalItem *item = qxt_d().itemForModelIndex(index);
    if (item)
    {
        int iItemIndex  = -1;
        if ((iItemIndex = qxt_d().m_Items.indexOf(item)) >= 0)
        {
            qxt_d().m_Items.takeAt(iItemIndex);
            qxt_d().m_Items.append(item);
            viewport()->update();
        }
    }
}

void QxtScheduleView::resizeEvent ( QResizeEvent * e ) [protected, virtual]

Definition at line 785 of file qxtscheduleview.cpp.

References updateGeometries().

{
    updateGeometries();
}

int QxtScheduleView::rows ( ) const

returns the current row count of the view

Definition at line 631 of file qxtscheduleview.cpp.

References model(), and timePerColumn().

Referenced by mouseMoveEvent(), QxtScheduleViewPrivate::offsetToUnixTime(), QxtScheduleViewPrivate::offsetToVisualColumn(), QxtScheduleViewPrivate::offsetToVisualRow(), QxtScheduleViewHeaderModel::setDataSource(), QxtScheduleViewPrivate::unixTimeToOffset(), and updateGeometries().

{
    if (!model())
        return 0;

    int timePerCol = timePerColumn();

    Q_ASSERT(timePerCol % qxt_d().m_currentZoomDepth == 0);
    int iNeededRows = timePerCol / qxt_d().m_currentZoomDepth;

    return iNeededRows;

}

void QxtScheduleView::rowsAboutToBeInserted	(	const QModelIndex &	parent,
		int	start,
		int	end
	)		`[protected, virtual, slot]`

Definition at line 853 of file qxtscheduleview.cpp.

References QxtScheduleInternalItem::m_iModelRow, and model().

Referenced by setModel().

{
    /*for now we care only about toplevel items*/
    if (!parent.isValid())
    {
        int iDifference = end - start;
        for (int iLoop = 0; iLoop < qxt_d().m_Items.count();iLoop++)
        {
            QxtScheduleInternalItem * item = qxt_d().m_Items[iLoop];
            if (item)
                if (item->m_iModelRow >= start && item->m_iModelRow < model()->rowCount())
                    item->m_iModelRow += iDifference + 1;
        }
    }
}

void QxtScheduleView::rowsAboutToBeRemoved	(	const QModelIndex &	parent,
		int	start,
		int	end
	)		`[protected, virtual, slot]`

Definition at line 844 of file qxtscheduleview.cpp.

Referenced by setModel().

{
    Q_UNUSED(parent);
    Q_UNUSED(start);
    Q_UNUSED(end);
    /*for now we care only about toplevel items*/
    return;
}

void QxtScheduleView::rowsInserted	(	const QModelIndex &	parent,
		int	start,
		int	end
	)		`[protected, virtual, slot]`

Definition at line 826 of file qxtscheduleview.cpp.

References model(), and QxtScheduleInternalItem.

Referenced by setModel().

{
    /*for now we care only about toplevel items*/
    if (!parent.isValid())
    {
        for (int iLoop = start; iLoop <= end;iLoop++)
        {
            /*now create the items*/
            QxtScheduleInternalItem *currentItem = new QxtScheduleInternalItem(this, model()->index(iLoop, 0));
            qxt_d().m_Items.append(currentItem);
            connect(currentItem, SIGNAL(geometryChanged(QxtScheduleInternalItem*, QVector<QRect>)), &qxt_d(), SLOT(itemGeometryChanged(QxtScheduleInternalItem * , QVector< QRect >)));
            qxt_d().handleItemConcurrency(currentItem);
        }
    }

    viewport()->update();
}

void QxtScheduleView::rowsRemoved	(	const QModelIndex &	parent,
		int	start,
		int	end
	)		`[protected, virtual, slot]`

Fix Me's:: write correct code here

Definition at line 791 of file qxtscheduleview.cpp.

References indexSelected(), and QxtScheduleInternalItem::m_iModelRow.

Referenced by setModel().

{
    return qxt_d().reloadItemsFromModel();
    /*for now we care only about toplevel items*/
    if (!parent.isValid())
    {
        for (int iLoop = 0; iLoop < qxt_d().m_Items.count();iLoop++)
        {
            QxtScheduleInternalItem *item = qxt_d().m_Items.at(iLoop);
            if (item)
            {
                if (item->m_iModelRow >= start && item->m_iModelRow <= end)
                {
                    qxt_d().m_Items.takeAt(iLoop);
                    if (item == qxt_d().m_currentItem)
                    {
                        qxt_d().m_currentItem  = 0;
                        emit indexSelected(QModelIndex());
                    }
                    delete item;
                    continue;
                }
                if (item->m_iModelRow > end)
                {
                    int iDifference = end - start + 1;
                    item->m_iModelRow -= iDifference;
                }
            }
        }
    }
}

void QxtScheduleView::scrollContentsBy	(	int	dx,
		int	dy
	)		`[protected, virtual]`

Definition at line 444 of file qxtscheduleview.cpp.

{
    qxt_d().m_vHeader->setOffset(qxt_d().m_vHeader->offset() - dy);
    qxt_d().m_hHeader->setOffset(qxt_d().m_hHeader->offset() - dx);
    QAbstractScrollArea::scrollContentsBy(dx, dy);
}

void QxtScheduleView::setCurrentZoomDepth	(	const int	depth,
		const Qxt::Timeunit	unit = `Qxt::Second`
	)

changes the current zoom depth The current zoom depth in QxtScheduleView defines how many time one cell holds in the view. If the new depth does not fit in the view the next possible value is used. If no possible value can be found nothing changes. Normally this is used only to initialize the view, later you want to use zoomIn and zoomOut

Parameters:

int	depth
Qxt::Timeunit	unit

See also:: zoomIn() zoomOut() setCurrentZoomDepth()

Definition at line 230 of file qxtscheduleview.cpp.

References Qxt::Hour, Qxt::Minute, model(), newZoomDepth(), Qxt::Second, timePerColumn(), and updateGeometries().

Referenced by setViewMode(), zoomIn(), and zoomOut().

{
    int newZoomDepth = 900;

    //a zoom depth of 0 is invalid
    if (depth == 0)
        return;

    switch (unit)
    {
    case Qxt::Second:
    {
        newZoomDepth = depth;
    }
    break;
    case Qxt::Minute:
    {
        newZoomDepth = depth * 60;
    }
    break;
    case Qxt::Hour:
    {
        newZoomDepth = depth * 60 * 60;
    }
    break;
    default:
        qWarning() << "This Timeunit is not implemented yet you can use Second,Minute,Hour using standart 15 minutes";
        break;
    }

    //now we have to align the currentZoomDepth to the viewMode
    int timePerCol = timePerColumn();

    newZoomDepth = newZoomDepth >  timePerCol ? timePerCol : newZoomDepth;
    newZoomDepth = newZoomDepth <=     0      ?     1      : newZoomDepth;

    while (timePerCol % newZoomDepth)
    {
        if (depth > qxt_d().m_currentZoomDepth)
        {
            newZoomDepth++;
            if (newZoomDepth >= timePerCol)
                return;
        }

        else
        {
            newZoomDepth--;
            if (newZoomDepth <= 1)
                return;
        }
    }

    qDebug() << "Zoomed, old zoom depth: " << qxt_d().m_currentZoomDepth << " new zoom depth: " << newZoomDepth;

    qxt_d().m_currentZoomDepth = newZoomDepth;
    emit this->newZoomDepth(newZoomDepth);

    /*reinit the view*/
    if (model())
    {
        updateGeometries();
        qxt_d().reloadItemsFromModel();
    }
}

void QxtScheduleView::setDateRange	(	const QDate &	fromDate,
		const QDate &	toDate
	)

sets the timerange This function will set a Timerange from fromDate 00:00am to toDate 23:59pm

Definition at line 885 of file qxtscheduleview.cpp.

References setTimeRange().

{
    Q_UNUSED(fromDate);
    Q_UNUSED(toDate);

    QDateTime startTime = QDateTime(fromDate, QTime(0, 0, 0));
    QDateTime endTime =  QDateTime(toDate, QTime(23, 59, 59));
    setTimeRange(startTime, endTime);
}

void QxtScheduleView::setItemDelegate ( QxtScheduleItemDelegate * delegate )

Sets the item delegate for this view and its model to delegate. This is useful if you want complete control over the editing and display of items. Any existing delegate will be removed, but not deleted. QxtScheduleView does not take ownership of delegate. Passing a 0 pointer will restore the view to use the default delegate. You should not share the same instance of a delegate between views. Doing so can cause incorrect or unintuitive behavior.

Definition at line 159 of file qxtscheduleview.cpp.

References delegate().

{
    if(!delegate)
        qxt_d().delegate = qxt_d().defaultDelegate;
    else
        qxt_d().delegate = delegate;

    //the delegate changed repaint everything
    viewport()->update();
}

void QxtScheduleView::setModel ( QAbstractItemModel * model )

sets the model for QxtScheduleView

Parameters:

model

Definition at line 88 of file qxtscheduleview.cpp.

References dataChanged(), model(), rowsAboutToBeInserted(), rowsAboutToBeRemoved(), rowsInserted(), and rowsRemoved().

{
    if (qxt_d().m_Model)
    {
        /*delete all cached items*/
        qDeleteAll(qxt_d().m_Items.begin(), qxt_d().m_Items.end());
        qxt_d().m_Items.clear();

        /*disconnect all signals*/
        disconnect(qxt_d().m_Model, SIGNAL(dataChanged(const QModelIndex &, const QModelIndex &)), this, SLOT(dataChanged(const QModelIndex &, const QModelIndex &)));
        disconnect(qxt_d().m_Model, SIGNAL(rowsAboutToBeInserted(const QModelIndex &, int, int)), this, SLOT(rowsAboutToBeInserted(const QModelIndex &, int , int)));
        disconnect(qxt_d().m_Model, SIGNAL(rowsInserted(const QModelIndex &, int, int)), this, SLOT(rowsInserted(const QModelIndex &, int , int)));
        disconnect(qxt_d().m_Model, SIGNAL(rowsAboutToBeRemoved(const QModelIndex &, int, int)), this, SLOT(rowsAboutToBeRemoved(const QModelIndex &, int , int)));
        disconnect(qxt_d().m_Model, SIGNAL(rowsRemoved(const QModelIndex &, int, int)), this, SLOT(rowsRemoved(const QModelIndex &, int , int)));

        /*don't delete the model maybe someone else will use it*/
        qxt_d().m_Model = 0;
    }

    if (model != 0)
    {
        /*initialize the new model*/
        qxt_d().m_Model = model;
        connect(model, SIGNAL(dataChanged(const QModelIndex &, const  QModelIndex &)), this, SLOT(dataChanged(const QModelIndex &, const QModelIndex &)));
        connect(model, SIGNAL(rowsAboutToBeInserted(const QModelIndex &, int, int)), this, SLOT(rowsAboutToBeInserted(const QModelIndex &, int , int)));
        connect(model, SIGNAL(rowsInserted(const QModelIndex &, int, int)), this, SLOT(rowsInserted(const QModelIndex &, int , int)));
        connect(model, SIGNAL(rowsAboutToBeRemoved(const QModelIndex &, int, int)), this, SLOT(rowsAboutToBeRemoved(const QModelIndex &, int , int)));
        connect(model, SIGNAL(rowsRemoved(const QModelIndex &, int, int)), this, SLOT(rowsRemoved(const QModelIndex &, int , int)));
    }
    qxt_d().init();
}

void QxtScheduleView::setTimeRange	(	const QDateTime &	fromDateTime,
		const QDateTime &	toDateTime
	)

sets the timerange This function will set the passed timerange, but may adjust it to the current viewmode. e.g You cannot start at 1:30am in a DayMode, this gets adjusted to 00:00am

Definition at line 900 of file qxtscheduleview.cpp.

References adjustRangeToViewMode().

Referenced by setDateRange().

{
    QDateTime startTime = fromDateTime;
    QDateTime endTime = toDateTime;

    //adjust the timeranges to fit in the view
    adjustRangeToViewMode(&startTime, &endTime);
    qxt_d().m_startUnixTime = startTime.toTime_t();
    qxt_d().m_endUnixTime = endTime.toTime_t();
}

void QxtScheduleView::setViewMode ( const QxtScheduleView::ViewMode mode )

changes the current ViewMode The QxtScheduleView supports some different viewmodes. A viewmode defines how much time a column holds. It is also possible to define custom viewmodes. To do that you have to set the currentView mode to Custom and reimplement timePerColumn

Parameters:

QxtScheduleView::ViewMode mode the new ViewMode

See also:: timePerColumn(); viewMode()

Definition at line 136 of file qxtscheduleview.cpp.

References setCurrentZoomDepth().

{
    qxt_d().m_currentViewMode = mode;

    //this will calculate the correct alignment
    //@BUG this may not work because the currentZoomDepth may not fit into the new viewMode
    setCurrentZoomDepth(qxt_d().m_currentZoomDepth);
}

void QxtScheduleView::setZoomStepWidth	(	const int	zoomWidth,
		const Qxt::Timeunit	unit = `Qxt::Second`
	)

changes the current Zoom step width Changes the current Zoom step width. Zooming in QxtScheduleView means to change the amount of time one cell holds. For example 5 Minutes. The zoom step width defines how many time is added / removed from the cell when zooming the view.

Parameters:

int	zoomWidth the new zoom step width
Qxt::Timeunit	unit the unit of the new step width (Minutes , Seconds , Hours)

See also:: zoomIn() zoomOut() setCurrentZoomDepth()

Definition at line 192 of file qxtscheduleview.cpp.

References Qxt::Hour, Qxt::Minute, and Qxt::Second.

{
    switch (unit)
    {
    case Qxt::Second:
    {
        qxt_d().m_zoomStepWidth = zoomWidth;
    }
    break;
    case Qxt::Minute:
    {
        qxt_d().m_zoomStepWidth = zoomWidth * 60;
    }
    break;
    case Qxt::Hour:
    {
        qxt_d().m_zoomStepWidth = zoomWidth * 60 * 60;
    }
    break;
    default:
        qWarning() << "This Timeunit is not implemented yet you can use Second,Minute,Hour using standart 15 minutes";
        qxt_d().m_zoomStepWidth = 900;
        break;
    }
}

int QxtScheduleView::timePerColumn ( ) const [protected, virtual]

reimplement this to support custom view modes

Returns:: the time per column in seconds

Definition at line 667 of file qxtscheduleview.cpp.

References DayView, HourView, and MinuteView.

Referenced by cols(), rows(), and setCurrentZoomDepth().

{
    int timePerColumn = 0;

    switch (qxt_d().m_currentViewMode)
    {
    case DayView:
        timePerColumn = 24 * 60 * 60;
        break;
    case HourView:
        timePerColumn = 60 * 60;
        break;
    case MinuteView:
        timePerColumn = 60;
        break;
    default:
        Q_ASSERT(false);
    }

    return timePerColumn;
}

void QxtScheduleView::updateGeometries ( ) [slot]

Definition at line 405 of file qxtscheduleview.cpp.

References cols(), and rows().

Referenced by QxtScheduleViewPrivate::init(), QxtScheduleView(), resizeEvent(), and setCurrentZoomDepth().

{
    this->setViewportMargins(qxt_d().m_vHeader->sizeHint().width() + 1, qxt_d().m_hHeader->sizeHint().height() + 1, 0, 0);


    verticalScrollBar()->setRange(0, qxt_d().m_vHeader->count()*qxt_d().m_vHeader->defaultSectionSize() - viewport()->height());
    verticalScrollBar()->setSingleStep(qxt_d().m_vHeader->defaultSectionSize());
    verticalScrollBar()->setPageStep(qxt_d().m_vHeader->defaultSectionSize());

    int left = 2;
    int top = qxt_d().m_hHeader->sizeHint().height() + 2;
    int width = qxt_d().m_vHeader->sizeHint().width();
    int height = viewport()->height();
    qxt_d().m_vHeader->setGeometry(left, top, width, height);

    left = left + width;
    top = 1;
    width = viewport()->width();
    height = qxt_d().m_hHeader->sizeHint().height();

    qxt_d().m_hHeader->setGeometry(left, top, width, height);
    qxt_d().m_hHeader->setDefaultSectionSize(viewport()->width() / 5);

    for (int iLoop = 0; iLoop < qxt_d().m_hHeader->count(); iLoop++)
        qxt_d().m_hHeader->resizeSection(iLoop, viewport()->width() / 5);
    qxt_d().m_hHeader->setResizeMode(QHeaderView::Fixed);


    horizontalScrollBar()->setRange(0, (qxt_d().m_hHeader->count() * qxt_d().m_hHeader->defaultSectionSize() - viewport()->width()));
    horizontalScrollBar()->setSingleStep(qxt_d().m_hHeader->defaultSectionSize());
    horizontalScrollBar()->setPageStep(qxt_d().m_hHeader->defaultSectionSize());


    qxt_d().m_vHeader->show();
    qxt_d().m_hHeader->show();
    qxt_d().handleItemConcurrency(0, this->rows() * this->cols() - 1);
    viewport()->update();
}

QxtScheduleView::ViewMode QxtScheduleView::viewMode ( ) const

returns the current ViewMode

Returns:: QxtScheduleView::ViewMode

See also:: setViewMode()

Definition at line 176 of file qxtscheduleview.cpp.

{
    return (ViewMode)qxt_d().m_currentViewMode;
}

void QxtScheduleView::viewModeChanged ( const int newViewMode ) [signal]

void QxtScheduleView::wheelEvent ( QWheelEvent * e ) [protected, virtual]

Definition at line 613 of file qxtscheduleview.cpp.

References zoomIn(), and zoomOut().

{
    /*time scrolling when pressing ctrl while using the mouse wheel*/
    if (e->modifiers() & Qt::ControlModifier)
    {
        if (e->delta() < 0)
            zoomOut();
        else
            zoomIn();

    }
    else
        QAbstractScrollArea::wheelEvent(e);
}

void QxtScheduleView::zoomIn ( ) [slot]

zooms one step in

See also:: zoomOut() setCurrentZoomDepth() setZoomStepWidth()

Definition at line 330 of file qxtscheduleview.cpp.

References setCurrentZoomDepth().

Referenced by wheelEvent().

{
    setCurrentZoomDepth(qxt_d().m_currentZoomDepth - qxt_d().m_zoomStepWidth);
}

void QxtScheduleView::zoomOut ( ) [slot]

zooms one step out

See also:: zoomIn() setCurrentZoomDepth() setZoomStepWidth()

Definition at line 340 of file qxtscheduleview.cpp.

References setCurrentZoomDepth().

Referenced by wheelEvent().

{
    setCurrentZoomDepth(qxt_d().m_currentZoomDepth + qxt_d().m_zoomStepWidth);
}

Friends And Related Function Documentation

friend class QxtScheduleInternalItem [friend]

Definition at line 57 of file qxtscheduleview.h.

Referenced by rowsInserted().

friend class QxtScheduleViewHeaderModel [friend]

Definition at line 59 of file qxtscheduleview.h.

friend class QxtScheduleViewPrivate [friend]

Definition at line 57 of file qxtscheduleview.h.

The documentation for this class was generated from the following files:

QxtScheduleView Class Reference [QxtGui]

Public Types

Public Slots

Signals

Public Member Functions

Protected Slots

Protected Member Functions

Friends

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

QxtScheduleView Class Reference
[QxtGui]
