A class for drawing round scales. More...

#include <qwt_round_scale_draw.h>

Inheritance diagram for QwtRoundScaleDraw:

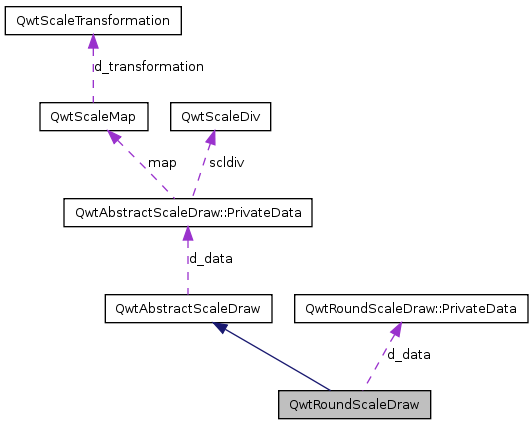

Collaboration diagram for QwtRoundScaleDraw:

Classes
class	PrivateData
Public Member Functions
	QwtRoundScaleDraw ()
	Constructor.
	QwtRoundScaleDraw (const QwtRoundScaleDraw &)
	Copy constructor.
virtual	~QwtRoundScaleDraw ()
	Destructor.
QwtRoundScaleDraw &	operator= (const QwtRoundScaleDraw &other)
	Assignment operator.
void	setRadius (int radius)
int	radius () const
void	moveCenter (int x, int y)
	Move the center of the scale draw, leaving the radius unchanged.
void	moveCenter (const QPoint &)
QPoint	center () const
	Get the center of the scale.
void	setAngleRange (double angle1, double angle2)
	Adjust the baseline circle segment for round scales.
virtual int	extent (const QPen &, const QFont &) const
Protected Member Functions
virtual void	drawTick (QPainter *p, double val, int len) const
virtual void	drawBackbone (QPainter *p) const
virtual void	drawLabel (QPainter *p, double val) const

Detailed Description

A class for drawing round scales.

QwtRoundScaleDraw can be used to draw round scales. The circle segment can be adjusted by QwtRoundScaleDraw::setAngleRange(). The geometry of the scale can be specified with QwtRoundScaleDraw::moveCenter() and QwtRoundScaleDraw::setRadius().

After a scale division has been specified as a QwtScaleDiv object using QwtAbstractScaleDraw::setScaleDiv(const QwtScaleDiv &s), the scale can be drawn with the QwtAbstractScaleDraw::draw() member.

Definition at line 32 of file qwt_round_scale_draw.h.

Constructor & Destructor Documentation

QwtRoundScaleDraw::QwtRoundScaleDraw ( )

Constructor.

The range of the scale is initialized to [0, 100], The center is set to (50, 50) with a radius of 50. The angle range is set to [-135, 135].

Definition at line 46 of file qwt_round_scale_draw.cpp.

References QwtRoundScaleDraw::PrivateData::endAngle, QwtAbstractScaleDraw::scaleMap(), QwtScaleMap::setPaintInterval(), setRadius(), and QwtRoundScaleDraw::PrivateData::startAngle.

{
    d_data = new QwtRoundScaleDraw::PrivateData;

    setRadius(50);
    scaleMap().setPaintInterval(d_data->startAngle, d_data->endAngle);
}

QwtRoundScaleDraw::QwtRoundScaleDraw ( const QwtRoundScaleDraw & other )

Copy constructor.

Definition at line 55 of file qwt_round_scale_draw.cpp.

                                                                  :
    QwtAbstractScaleDraw(other)
{
    d_data = new QwtRoundScaleDraw::PrivateData(*other.d_data);
}

QwtRoundScaleDraw::~QwtRoundScaleDraw ( ) [virtual]

Destructor.

Definition at line 63 of file qwt_round_scale_draw.cpp.

{
    delete d_data;
}

Member Function Documentation

QPoint QwtRoundScaleDraw::center ( ) const

Get the center of the scale.

Definition at line 113 of file qwt_round_scale_draw.cpp.

References QwtRoundScaleDraw::PrivateData::center.

Referenced by moveCenter().

{
    return d_data->center;
}

void QwtRoundScaleDraw::drawBackbone ( QPainter * painter ) const [protected, virtual]

Draws the baseline of the scale

Parameters:

painter Painter

See also:: drawTick(), drawLabel()

Implements QwtAbstractScaleDraw.

Definition at line 239 of file qwt_round_scale_draw.cpp.

References QwtRoundScaleDraw::PrivateData::center, QwtAbstractScaleDraw::map(), qwtMax, qwtMin, QwtRoundScaleDraw::PrivateData::radius, and radius().

{
    const int a1 = qRound(qwtMin(map().p1(), map().p2()) - 90 * 16);
    const int a2 = qRound(qwtMax(map().p1(), map().p2()) - 90 * 16);

    const int radius = d_data->radius;
    const int x = d_data->center.x() - radius;
    const int y = d_data->center.y() - radius;

    painter->drawArc(x, y, 2 * radius, 2 * radius,
        -a2, a2 - a1 + 1);           // counterclockwise
}

void QwtRoundScaleDraw::drawLabel	(	QPainter *	painter,
		double	value
	)		const `[protected, virtual]`

Draws the label for a major scale tick

Parameters:

painter	Painter
value	Value

See also:: drawTick(), drawBackbone()

Implements QwtAbstractScaleDraw.

Definition at line 160 of file qwt_round_scale_draw.cpp.

{
    const QwtText label = tickLabel(painter->font(), value);
    if ( label.isEmpty() )
        return;

    const int tval = map().transform(value);
    if ((tval > d_data->startAngle + 359 * 16)
        || (tval < d_data->startAngle - 359 * 16))
    {
       return;
    }

    double radius = d_data->radius;
    if ( hasComponent(QwtAbstractScaleDraw::Ticks) ||
        hasComponent(QwtAbstractScaleDraw::Backbone) )
    {
        radius += spacing();
    }

    if ( hasComponent(QwtAbstractScaleDraw::Ticks) )
        radius += majTickLength();

    const QSize sz = label.textSize(painter->font());
    const double arc = tval / 16.0 / 360.0 * 2 * M_PI;

    const int x = d_data->center.x() +
        qRound((radius + sz.width() / 2.0) * sin(arc));
    const int y = d_data->center.y() -
        qRound( (radius + sz.height() / 2.0) * cos(arc));

    const QRect r(x - sz.width() / 2, y - sz.height() / 2,
        sz.width(), sz.height() );
    label.draw(painter, r);
}

void QwtRoundScaleDraw::drawTick	(	QPainter *	painter,
		double	value,
		int	len
	)		const `[protected, virtual]`

Draw a tick

Parameters:

painter	Painter
value	Value of the tick
len	Lenght of the tick

See also:: drawBackbone(), drawLabel()

Implements QwtAbstractScaleDraw.

Definition at line 205 of file qwt_round_scale_draw.cpp.

References QwtRoundScaleDraw::PrivateData::center, QwtPainter::drawLine(), M_PI, QwtAbstractScaleDraw::map(), QwtRoundScaleDraw::PrivateData::radius, radius(), QwtRoundScaleDraw::PrivateData::startAngle, and QwtScaleMap::transform().

{
    if ( len <= 0 )
        return;

    const int tval = map().transform(value);

    const int cx = d_data->center.x();
    const int cy = d_data->center.y();
    const int radius = d_data->radius;

    if ((tval <= d_data->startAngle + 359 * 16)
        || (tval >= d_data->startAngle - 359 * 16))
    {
        const double arc = double(tval) / 16.0 * M_PI / 180.0;

        const double sinArc = sin(arc);
        const double cosArc = cos(arc);

        const int x1 = qRound( cx + radius * sinArc );
        const int x2 = qRound( cx + (radius + len) * sinArc );
        const int y1 = qRound( cy - radius * cosArc );
        const int y2 = qRound( cy - (radius + len) * cosArc );

        QwtPainter::drawLine(painter, x1, y1, x2, y2);
    }
}

int QwtRoundScaleDraw::extent	(	const QPen &	pen,
		const QFont &	font
	)		const `[virtual]`

Calculate the extent of the scale

The extent is the distcance between the baseline to the outermost pixel of the scale draw. radius() + extent() is an upper limit for the radius of the bounding circle.

Parameters:

pen	Pen that is used for painting backbone and ticks
font	Font used for painting the labels

See also:: setMinimumExtent(), minimumExtent()

Warning:: The implemented algo is not too smart and calculates only an upper limit, that might be a few pixels too large

Implements QwtAbstractScaleDraw.

Definition at line 267 of file qwt_round_scale_draw.cpp.

Referenced by QwtKnob::minimumSizeHint(), QwtDial::minimumSizeHint(), QwtDial::scaleContentsRect(), and QwtDial::sizeHint().

{
    int d = 0;

    if ( hasComponent(QwtAbstractScaleDraw::Labels) )
    {
        const QwtScaleDiv &sd = scaleDiv();
        const QwtValueList &ticks = sd.ticks(QwtScaleDiv::MajorTick);
        for (uint i = 0; i < (uint)ticks.count(); i++)
        {
            const double value = ticks[i];
            if ( !sd.contains(value) )
                continue;

            const QwtText label = tickLabel(font, value);
            if ( label.isEmpty() )
                continue;

            const int tval = map().transform(value);
            if ((tval < d_data->startAngle + 360 * 16)
                && (tval > d_data->startAngle - 360 * 16))
            {
                const double arc = tval / 16.0 / 360.0 * 2 * M_PI;

                const QSize sz = label.textSize(font);
                const double off = qwtMax(sz.width(), sz.height());

                double x = off * sin(arc);
                double y = off * cos(arc);

                const int dist = (int)ceil(sqrt(x * x + y * y) + 1 );
                if ( dist > d )
                    d = dist;
            }
        }
    }

    if ( hasComponent(QwtAbstractScaleDraw::Ticks) )
    {
        d += majTickLength();
    }

    if ( hasComponent(QwtAbstractScaleDraw::Backbone) )
    {
        const int pw = qwtMax( 1, pen.width() );  // penwidth can be zero
        d += pw;
    }

    if ( hasComponent(QwtAbstractScaleDraw::Labels) &&
        ( hasComponent(QwtAbstractScaleDraw::Ticks) ||
            hasComponent(QwtAbstractScaleDraw::Backbone) ) )
    {
        d += spacing();
    }

    d = qwtMax(d, minimumExtent());

    return d;
}

void QwtRoundScaleDraw::moveCenter ( const QPoint & center )

Move the center of the scale draw, leaving the radius unchanged

Parameters:

center New center

See also:: setRadius()

Definition at line 107 of file qwt_round_scale_draw.cpp.

References center(), and QwtRoundScaleDraw::PrivateData::center.

{
    d_data->center = center;
}

void QwtRoundScaleDraw::moveCenter	(	int	x,
		int	y
	)		`[inline]`

Move the center of the scale draw, leaving the radius unchanged.

Definition at line 64 of file qwt_round_scale_draw.h.

Referenced by QwtDial::drawScale().

{
    moveCenter(QPoint(x, y));
}

QwtRoundScaleDraw & QwtRoundScaleDraw::operator= ( const QwtRoundScaleDraw & other )

Assignment operator.

Definition at line 69 of file qwt_round_scale_draw.cpp.

{
    *(QwtAbstractScaleDraw*)this = (const QwtAbstractScaleDraw &)other;
    *d_data = *other.d_data;
    return *this;
}

int QwtRoundScaleDraw::radius ( ) const

Get the radius

Radius is the radius of the backbone without ticks and labels.

See also:: setRadius(), extent()

Definition at line 96 of file qwt_round_scale_draw.cpp.

References QwtRoundScaleDraw::PrivateData::radius.

Referenced by drawBackbone(), drawLabel(), drawTick(), and setRadius().

{
    return d_data->radius;
}

void QwtRoundScaleDraw::setAngleRange	(	double	angle1,
		double	angle2
	)

Adjust the baseline circle segment for round scales.

The baseline will be drawn from min(angle1,angle2) to max(angle1, angle2). The default setting is [ -135, 135 ]. An angle of 0 degrees corresponds to the 12 o'clock position, and positive angles count in a clockwise direction.

Parameters:

angle1
angle2	boundaries of the angle interval in degrees.

Warning:

The angle range is limited to [-360, 360] degrees. Angles exceeding this range will be clipped.
For angles more than 359 degrees above or below min(angle1, angle2), scale marks will not be drawn.
If you need a counterclockwise scale, use QwtScaleDiv::setRange

Definition at line 135 of file qwt_round_scale_draw.cpp.

References QwtRoundScaleDraw::PrivateData::endAngle, qwtLim(), QwtAbstractScaleDraw::scaleMap(), QwtScaleMap::setPaintInterval(), and QwtRoundScaleDraw::PrivateData::startAngle.

Referenced by QwtDial::drawScale(), and QwtKnob::setTotalAngle().

{
    angle1 = qwtLim(angle1, -360.0, 360.0);
    angle2 = qwtLim(angle2, -360.0, 360.0);

    d_data->startAngle = qRound(angle1 * 16.0);
    d_data->endAngle = qRound(angle2 * 16.0);

    if (d_data->startAngle == d_data->endAngle)
    {
        d_data->startAngle -= 1;
        d_data->endAngle += 1;
    }

    scaleMap().setPaintInterval(d_data->startAngle, d_data->endAngle);
}

void QwtRoundScaleDraw::setRadius ( int radius )

Change of radius the scale

Radius is the radius of the backbone without ticks and labels.

Parameters:

radius New Radius

See also:: moveCenter()

Definition at line 84 of file qwt_round_scale_draw.cpp.

References radius(), and QwtRoundScaleDraw::PrivateData::radius.

Referenced by QwtDial::drawScale(), and QwtRoundScaleDraw().

{
    d_data->radius = radius;
}

The documentation for this class was generated from the following files:
