A class which draws a coordinate grid. More...

#include <qwt_plot_grid.h>

Inheritance diagram for QwtPlotGrid:

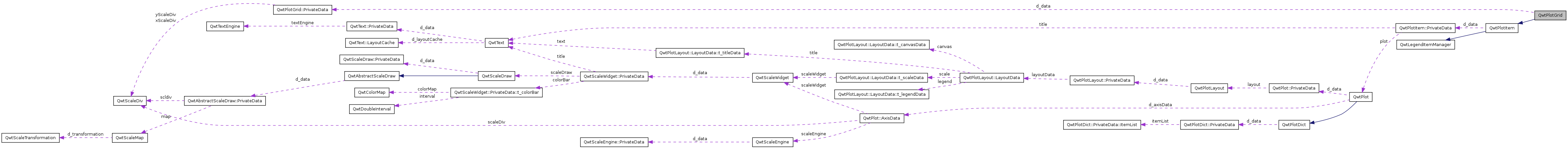

Collaboration diagram for QwtPlotGrid:

Classes
class	PrivateData
Public Member Functions
	QwtPlotGrid ()
	Enables major grid, disables minor grid.
virtual	~QwtPlotGrid ()
	Destructor.
virtual int	rtti () const
void	enableX (bool tf)
	Enable or disable vertical gridlines.
bool	xEnabled () const
void	enableY (bool tf)
	Enable or disable horizontal gridlines.
bool	yEnabled () const
void	enableXMin (bool tf)
	Enable or disable minor vertical gridlines.
bool	xMinEnabled () const
void	enableYMin (bool tf)
	Enable or disable minor horizontal gridlines.
bool	yMinEnabled () const
void	setXDiv (const QwtScaleDiv &sx)
const QwtScaleDiv &	xScaleDiv () const
void	setYDiv (const QwtScaleDiv &sy)
const QwtScaleDiv &	yScaleDiv () const
void	setPen (const QPen &p)
void	setMajPen (const QPen &p)
const QPen &	majPen () const
void	setMinPen (const QPen &p)
const QPen &	minPen () const
virtual void	draw (QPainter *p, const QwtScaleMap &xMap, const QwtScaleMap &yMap, const QRect &rect) const
	Draw the grid.
virtual void	updateScaleDiv (const QwtScaleDiv &xMap, const QwtScaleDiv &yMap)

Detailed Description

A class which draws a coordinate grid.

The QwtPlotGrid class can be used to draw a coordinate grid. A coordinate grid consists of major and minor vertical and horizontal gridlines. The locations of the gridlines are determined by the X and Y scale divisions which can be assigned with setXDiv() and setYDiv(). The draw() member draws the grid within a bounding rectangle.

Definition at line 34 of file qwt_plot_grid.h.

Constructor & Destructor Documentation

QwtPlotGrid::QwtPlotGrid ( ) [explicit]

Enables major grid, disables minor grid.

Definition at line 42 of file qwt_plot_grid.cpp.

References QwtPlotItem::setZ().

                        :
    QwtPlotItem(QwtText("Grid"))
{
    d_data = new PrivateData;
    setZ(10.0);
}

QwtPlotGrid::~QwtPlotGrid ( ) [virtual]

Destructor.

Definition at line 50 of file qwt_plot_grid.cpp.

{
    delete d_data;
}

Member Function Documentation

void QwtPlotGrid::draw	(	QPainter *	painter,
		const QwtScaleMap &	xMap,
		const QwtScaleMap &	yMap,
		const QRect &	canvasRect
	)		const `[virtual]`

Draw the grid.

The grid is drawn into the bounding rectangle such that gridlines begin and end at the rectangle's borders. The X and Y maps are used to map the scale divisions into the drawing region screen.

Parameters:

painter	Painter
xMap	X axis map
yMap	Y axis
canvasRect	Contents rect of the plot canvas

Implements QwtPlotItem.

Definition at line 214 of file qwt_plot_grid.cpp.

References QwtScaleDiv::MajorTick, QwtPlotGrid::PrivateData::majPen, QwtScaleDiv::MediumTick, QwtScaleDiv::MinorTick, QwtPlotGrid::PrivateData::minPen, QwtPainter::scaledPen(), QwtScaleDiv::ticks(), QwtPlotGrid::PrivateData::xEnabled, QwtPlotGrid::PrivateData::xMinEnabled, QwtPlotGrid::PrivateData::xScaleDiv, QwtPlotGrid::PrivateData::yEnabled, QwtPlotGrid::PrivateData::yMinEnabled, and QwtPlotGrid::PrivateData::yScaleDiv.

{
    //  draw minor gridlines
    painter->setPen(QwtPainter::scaledPen(d_data->minPen));

    if (d_data->xEnabled && d_data->xMinEnabled)
    {
        drawLines(painter, canvasRect, Qt::Vertical, xMap,
            d_data->xScaleDiv.ticks(QwtScaleDiv::MinorTick));
        drawLines(painter, canvasRect, Qt::Vertical, xMap,
            d_data->xScaleDiv.ticks(QwtScaleDiv::MediumTick));
    }

    if (d_data->yEnabled && d_data->yMinEnabled)
    {
        drawLines(painter, canvasRect, Qt::Horizontal, yMap,
            d_data->yScaleDiv.ticks(QwtScaleDiv::MinorTick));
        drawLines(painter, canvasRect, Qt::Horizontal, yMap,
            d_data->yScaleDiv.ticks(QwtScaleDiv::MediumTick));
    }

    //  draw major gridlines
    painter->setPen(QwtPainter::scaledPen(d_data->majPen));

    if (d_data->xEnabled)
    {
        drawLines(painter, canvasRect, Qt::Vertical, xMap,
            d_data->xScaleDiv.ticks(QwtScaleDiv::MajorTick));
    }

    if (d_data->yEnabled)
    {
        drawLines(painter, canvasRect, Qt::Horizontal, yMap,
            d_data->yScaleDiv.ticks(QwtScaleDiv::MajorTick));
    }
}

void QwtPlotGrid::enableX ( bool tf )

Enable or disable vertical gridlines.

Parameters:

tf	Enable (true) or disable

See also:: Minor gridlines can be enabled or disabled with enableXMin()

Definition at line 68 of file qwt_plot_grid.cpp.

References QwtPlotItem::itemChanged(), and QwtPlotGrid::PrivateData::xEnabled.

{
    if ( d_data->xEnabled != tf )
    {
        d_data->xEnabled = tf;
        itemChanged();
    }
}

void QwtPlotGrid::enableXMin ( bool tf )

Enable or disable minor vertical gridlines.

Parameters:

tf	Enable (true) or disable

See also:: enableX()

Definition at line 96 of file qwt_plot_grid.cpp.

References QwtPlotItem::itemChanged(), and QwtPlotGrid::PrivateData::xMinEnabled.

Referenced by QmitkHistogramWidget::QmitkHistogramWidget().

{
    if ( d_data->xMinEnabled != tf )
    {
        d_data->xMinEnabled = tf;
        itemChanged();
    }
}

void QwtPlotGrid::enableY ( bool tf )

Enable or disable horizontal gridlines.

Parameters:

tf	Enable (true) or disable

See also:: Minor gridlines can be enabled or disabled with enableYMin()

Definition at line 82 of file qwt_plot_grid.cpp.

References QwtPlotItem::itemChanged(), and QwtPlotGrid::PrivateData::yEnabled.

{
    if ( d_data->yEnabled != tf )
    {
        d_data->yEnabled = tf;
        itemChanged();
    }
}

void QwtPlotGrid::enableYMin ( bool tf )

Enable or disable minor horizontal gridlines.

Parameters:

tf	Enable (true) or disable

See also:: enableY()

Definition at line 110 of file qwt_plot_grid.cpp.

References QwtPlotItem::itemChanged(), and QwtPlotGrid::PrivateData::yMinEnabled.

Referenced by QmitkHistogramWidget::QmitkHistogramWidget().

{
    if ( d_data->yMinEnabled != tf )
    {
        d_data->yMinEnabled = tf;
        itemChanged();
    }
}

const QPen & QwtPlotGrid::majPen ( ) const

Returns:: the pen for the major gridlines

See also:: setMajPen(), setMinPen(), setPen()

Definition at line 282 of file qwt_plot_grid.cpp.

References QwtPlotGrid::PrivateData::majPen.

Referenced by QwtPlotPrintFilter::apply(), and QwtPlotPrintFilter::reset().

{
    return d_data->majPen;
}

const QPen & QwtPlotGrid::minPen ( ) const

Returns:: the pen for the minor gridlines

See also:: setMinPen(), setMajPen(), setPen()

Definition at line 291 of file qwt_plot_grid.cpp.

References QwtPlotGrid::PrivateData::minPen.

Referenced by QwtPlotPrintFilter::apply(), and QwtPlotPrintFilter::reset().

{
    return d_data->minPen;
}

int QwtPlotGrid::rtti ( ) const [virtual]

Returns:: QwtPlotItem::Rtti_PlotGrid

Reimplemented from QwtPlotItem.

Definition at line 56 of file qwt_plot_grid.cpp.

References QwtPlotItem::Rtti_PlotGrid.

{
    return QwtPlotItem::Rtti_PlotGrid;
}

void QwtPlotGrid::setMajPen ( const QPen & pen )

Assign a pen for the major gridlines

The width of non cosmetic pens is scaled according to the resolution of the paint device.

Parameters:

pen Pen

See also:: majPen(), setMinPen(), setPen(), QwtPainter::scaledPen()

Definition at line 175 of file qwt_plot_grid.cpp.

References QwtPlotItem::itemChanged(), and QwtPlotGrid::PrivateData::majPen.

Referenced by QwtPlotPrintFilter::apply(), QmitkHistogramWidget::QmitkHistogramWidget(), and QwtPlotPrintFilter::reset().

{
    if ( d_data->majPen != pen )
    {
        d_data->majPen = pen;
        itemChanged();
    }
}

void QwtPlotGrid::setMinPen ( const QPen & pen )

Assign a pen for the minor gridlines

The width of non cosmetic pens is scaled according to the resolution of the paint device.

Parameters:

pen Pen

See also:: minPen(), setMajPen(), setPen(), QwtPainter::scaledPen()

Definition at line 193 of file qwt_plot_grid.cpp.

References QwtPlotItem::itemChanged(), and QwtPlotGrid::PrivateData::minPen.

Referenced by QwtPlotPrintFilter::apply(), QmitkHistogramWidget::QmitkHistogramWidget(), and QwtPlotPrintFilter::reset().

{
    if ( d_data->minPen != pen )
    {
        d_data->minPen = pen;
        itemChanged();
    }
}

void QwtPlotGrid::setPen ( const QPen & pen )

Assign a pen for both major and minor gridlines

The width of non cosmetic pens is scaled according to the resolution of the paint device.

Parameters:

pen Pen

See also:: setMajPen(), setMinPen(), QwtPainter::scaledPen()

Definition at line 156 of file qwt_plot_grid.cpp.

References QwtPlotItem::itemChanged(), QwtPlotGrid::PrivateData::majPen, and QwtPlotGrid::PrivateData::minPen.

{
    if ( d_data->majPen != pen || d_data->minPen != pen )
    {
        d_data->majPen = pen;
        d_data->minPen = pen;
        itemChanged();
    }
}

void QwtPlotGrid::setXDiv ( const QwtScaleDiv & scaleDiv )

Assign an x axis scale division

Parameters:

scaleDiv Scale division

Definition at line 124 of file qwt_plot_grid.cpp.

References QwtPlotItem::itemChanged(), and QwtPlotGrid::PrivateData::xScaleDiv.

Referenced by updateScaleDiv().

{
    if ( d_data->xScaleDiv != scaleDiv )
    {
        d_data->xScaleDiv = scaleDiv;
        itemChanged();
    }
}

void QwtPlotGrid::setYDiv ( const QwtScaleDiv & scaleDiv )

Assign a y axis division

Parameters:

scaleDiv Scale division

Definition at line 138 of file qwt_plot_grid.cpp.

References QwtPlotItem::itemChanged(), and QwtPlotGrid::PrivateData::yScaleDiv.

Referenced by updateScaleDiv().

{
    if ( d_data->yScaleDiv != scaleDiv )
    {
        d_data->yScaleDiv = scaleDiv;
        itemChanged();
    }
}

void QwtPlotGrid::updateScaleDiv	(	const QwtScaleDiv &	xScaleDiv,
		const QwtScaleDiv &	yScaleDiv
	)		`[virtual]`

Update the grid to changes of the axes scale division

Parameters:

xScaleDiv	Scale division of the x-axis
yScaleDiv	Scale division of the y-axis

See also:: QwtPlot::updateAxes()

Reimplemented from QwtPlotItem.

Definition at line 353 of file qwt_plot_grid.cpp.

References setXDiv(), and setYDiv().

{
    setXDiv(xScaleDiv);
    setYDiv(yScaleDiv);
}

bool QwtPlotGrid::xEnabled ( ) const

Returns:: true if vertical gridlines are enabled

See also:: enableX()

Definition at line 300 of file qwt_plot_grid.cpp.

References QwtPlotGrid::PrivateData::xEnabled.

{
    return d_data->xEnabled;
}

bool QwtPlotGrid::xMinEnabled ( ) const

Returns:: true if minor vertical gridlines are enabled

See also:: enableXMin()

Definition at line 309 of file qwt_plot_grid.cpp.

References QwtPlotGrid::PrivateData::xMinEnabled.

{
    return d_data->xMinEnabled;
}

const QwtScaleDiv & QwtPlotGrid::xScaleDiv ( ) const

Returns:: the scale division of the x axis

Definition at line 334 of file qwt_plot_grid.cpp.

References QwtPlotGrid::PrivateData::xScaleDiv.

{
    return d_data->xScaleDiv;
}

bool QwtPlotGrid::yEnabled ( ) const

Returns:: true if horizontal gridlines are enabled

See also:: enableY()

Definition at line 318 of file qwt_plot_grid.cpp.

References QwtPlotGrid::PrivateData::yEnabled.

{
    return d_data->yEnabled;
}

bool QwtPlotGrid::yMinEnabled ( ) const

Returns:: true if minor horizontal gridlines are enabled

See also:: enableYMin()

Definition at line 327 of file qwt_plot_grid.cpp.

References QwtPlotGrid::PrivateData::yMinEnabled.

{
    return d_data->yMinEnabled;
}

const QwtScaleDiv & QwtPlotGrid::yScaleDiv ( ) const

Returns:: the scale division of the y axis

Definition at line 340 of file qwt_plot_grid.cpp.

References QwtPlotGrid::PrivateData::yScaleDiv.

{
    return d_data->yScaleDiv;
}
