An analog clock. More...

#include <qwt_analog_clock.h>

Inheritance diagram for QwtAnalogClock:

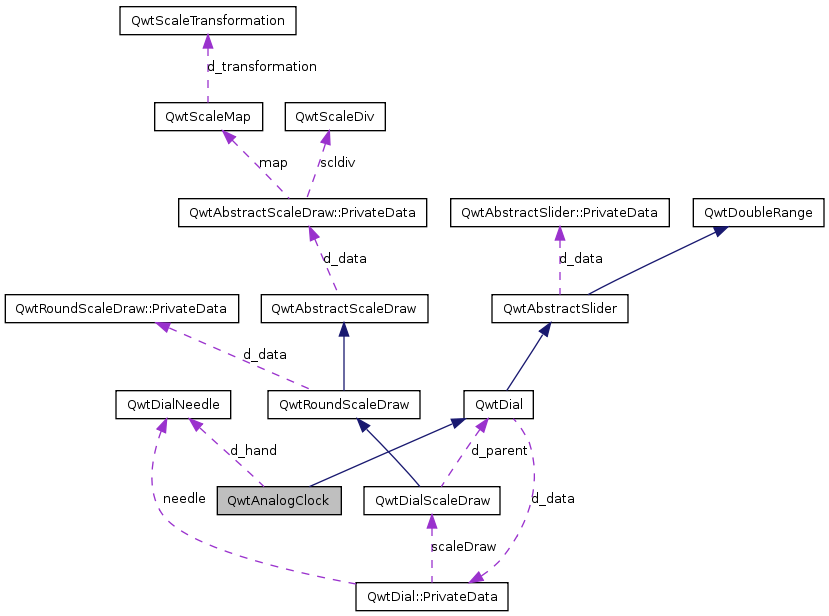

Collaboration diagram for QwtAnalogClock:

Public Types
enum	Hand { SecondHand, MinuteHand, HourHand, NHands }
Public Slots
void	setCurrentTime ()
	Set the current time.
void	setTime (const QTime &=QTime::currentTime())
Public Member Functions
	QwtAnalogClock (QWidget *parent=NULL)
	QwtAnalogClock (QWidget parent, const char name)
virtual	~QwtAnalogClock ()
	Destructor.
virtual void	setHand (Hand, QwtDialNeedle *)
const QwtDialNeedle *	hand (Hand) const
QwtDialNeedle *	hand (Hand)
Protected Member Functions
virtual QwtText	scaleLabel (double) const
virtual void	drawNeedle (QPainter *, const QPoint &, int radius, double direction, QPalette::ColorGroup) const
	Draw the needle.
virtual void	drawHand (QPainter *, Hand, const QPoint &, int radius, double direction, QPalette::ColorGroup) const

Detailed Description

An analog clock.

Example

#include <qwt_analog_clock.h>

  QwtAnalogClock *clock = new QwtAnalogClock(...);
  clock->scaleDraw()->setPenWidth(3);
  clock->setLineWidth(6);
  clock->setFrameShadow(QwtDial::Sunken);
  clock->setTime();

  // update the clock every second
  QTimer *timer = new QTimer(clock);
  timer->connect(timer, SIGNAL(timeout()), clock, SLOT(setCurrentTime()));
  timer->start(1000);

Qwt is missing a set of good looking hands. Contributions are very welcome.

Note:: The examples/dials example shows how to use QwtAnalogClock.

Definition at line 45 of file qwt_analog_clock.h.

Member Enumeration Documentation

enum QwtAnalogClock::Hand

Hand type

See also:: setHand(), hand()

Enumerator:

SecondHand
MinuteHand
HourHand
NHands

Definition at line 26 of file qwt_analog_clock.h.

                               : public QwtDial

Constructor & Destructor Documentation

QwtAnalogClock::QwtAnalogClock ( QWidget * parent = NULL ) [explicit]

Constructor

Parameters:

parent Parent widget

Definition at line 16 of file qwt_analog_clock.cpp.

                                             :
    QwtDial(parent)
{
    initClock();
}

QwtAnalogClock::QwtAnalogClock	(	QWidget *	parent,
		const char *	name
	)		`[explicit]`

Constructor

Parameters:

parent	Parent widget
name	Object name

Definition at line 28 of file qwt_analog_clock.cpp.

                                                               :
    QwtDial(parent, name)
{
    initClock();
}

QwtAnalogClock::~QwtAnalogClock ( ) [virtual]

Destructor.

Definition at line 82 of file qwt_analog_clock.cpp.

References NHands.

{
    for ( int i = 0; i < NHands; i++ )
        delete d_hand[i];
}

Member Function Documentation

void QwtAnalogClock::drawHand	(	QPainter *	painter,
		Hand	hd,
		const QPoint &	center,
		int	radius,
		double	direction,
		QPalette::ColorGroup	cg
	)		const `[protected, virtual]`

Draw a clock hand

Parameters:

painter	Painter
hd	Specify the type of hand
center	Center of the clock
radius	Maximum length for the hands
direction	Direction of the hand in degrees, counter clockwise
cg	ColorGroup

Definition at line 229 of file qwt_analog_clock.cpp.

References QwtDialNeedle::draw(), hand(), HourHand, and QwtDial::needle().

Referenced by drawNeedle().

{
    const QwtDialNeedle *needle = hand(hd);
    if ( needle )
    {
        if ( hd == HourHand )
            radius = qRound(0.8 * radius);

        needle->draw(painter, center, radius, direction, cg);
    }
}

void QwtAnalogClock::drawNeedle	(	QPainter *	painter,
		const QPoint &	center,
		int	radius,
		double	direction,
		QPalette::ColorGroup	cg
	)		const `[protected, virtual]`

Draw the needle.

A clock has no single needle but three hands instead. drawNeedle translates value() into directions for the hands and calls drawHand().

Parameters:

painter	Painter
center	Center of the clock
radius	Maximum length for the hands
direction	Dummy, not used.
cg	ColorGroup

See also:: drawHand()

Reimplemented from QwtDial.

Definition at line 191 of file qwt_analog_clock.cpp.

References QwtDial::Clockwise, QwtDial::direction(), drawHand(), hand(), HourHand, int(), QwtAbstractSlider::isValid(), MinuteHand, NHands, QwtDial::origin(), SecondHand, and QwtDoubleRange::value().

{
    if ( isValid() )
    {
        const double hours = value() / (60.0 * 60.0);
        const double minutes = (value() - (int)hours * 60.0 * 60.0) / 60.0;
        const double seconds = value() - (int)hours * 60.0 * 60.0
            - (int)minutes * 60.0;

        double angle[NHands];
        angle[HourHand] = 360.0 * hours / 12.0;
        angle[MinuteHand] = 360.0 * minutes / 60.0;
        angle[SecondHand] = 360.0 * seconds / 60.0;

        for ( int hand = 0; hand < NHands; hand++ )
        {
            double d = angle[hand];
            if ( direction() == Clockwise )
                d = 360.0 - d;

            d -= origin();

            drawHand(painter, (Hand)hand, center, radius, d, cg);
        }
    }
}

QwtDialNeedle * QwtAnalogClock::hand ( Hand hd )

Returns:: Clock hand

Parameters:

hd	Specifies the type of hand

See also:: setHand()

Definition at line 118 of file qwt_analog_clock.cpp.

{
    if ( hd < 0 || hd >= NHands )
        return NULL;

    return d_hand[hd];
}

const QwtDialNeedle * QwtAnalogClock::hand ( Hand hd ) const

Returns:: Clock hand

Parameters:

hd	Specifies the type of hand

See also:: setHand()

Definition at line 131 of file qwt_analog_clock.cpp.

Referenced by drawHand(), drawNeedle(), and setHand().

{
    return ((QwtAnalogClock *)this)->hand(hd);
}

QwtText QwtAnalogClock::scaleLabel ( double value ) const [protected, virtual]

Find the scale label for a given value

Parameters:

value Value

Returns:: Label

Reimplemented from QwtDial.

Definition at line 168 of file qwt_analog_clock.cpp.

{
    if ( value == 0.0 )
        value = 60.0 * 60.0 * 12.0;

    return QString::number(int(value / (60.0 * 60.0)));
}

void QwtAnalogClock::setCurrentTime ( ) [slot]

Set the current time.

This is the same as QwtAnalogClock::setTime(), but Qt < 3.0 can't handle default parameters for slots.

Definition at line 142 of file qwt_analog_clock.cpp.

References setTime().

{
    setTime(QTime::currentTime());
}

void QwtAnalogClock::setHand	(	Hand	hand,
		QwtDialNeedle *	needle
	)		`[virtual]`

Set a clockhand

Parameters:

hand	Specifies the type of hand
needle	Hand

See also:: hand()

Definition at line 104 of file qwt_analog_clock.cpp.

References hand(), and QwtDial::needle().

{
    if ( hand >= 0 || hand < NHands )
    {
        delete d_hand[hand];
        d_hand[hand] = needle;
    }
}

void QwtAnalogClock::setTime ( const QTime & time = QTime::currentTime() ) [slot]

Set a time

Parameters:

time	Time to display

Definition at line 151 of file qwt_analog_clock.cpp.

References QwtAbstractSlider::setValid(), and QwtAbstractSlider::setValue().

Referenced by setCurrentTime().

{
    if ( time.isValid() )
    {
        setValue((time.hour() % 12) * 60.0 * 60.0
            + time.minute() * 60.0 + time.second());
    }
    else
        setValid(false);
}

The documentation for this class was generated from the following files:
