QmitkMITKSurfaceMaterialEditorView Class Reference [Functionalities]

QmitkMITKSurfaceMaterialEditorView. More...

#include <QmitkMITKSurfaceMaterialEditorView.h>

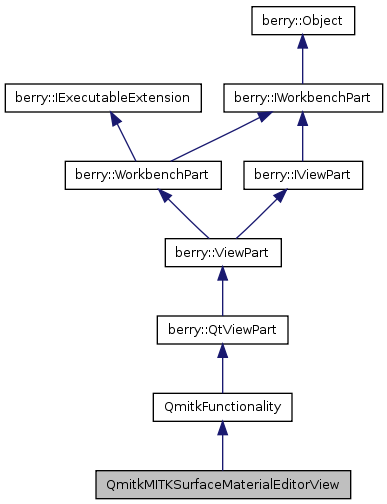

Inheritance diagram for QmitkMITKSurfaceMaterialEditorView:

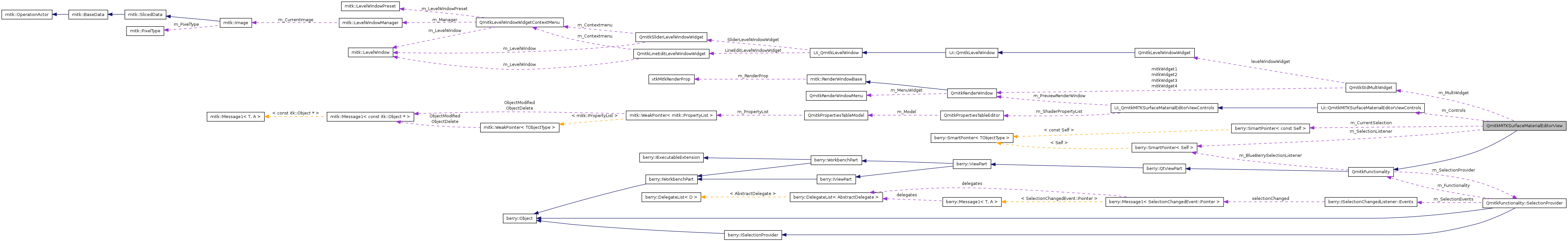

Collaboration diagram for QmitkMITKSurfaceMaterialEditorView:

List of all members.

Public Member Functions
	QmitkMITKSurfaceMaterialEditorView ()
virtual	~QmitkMITKSurfaceMaterialEditorView ()
virtual void	CreateQtPartControl (QWidget *parent)
virtual void	CreateConnections ()
	Creation of the connections of main and control widget.
virtual void	Activated ()
	Called when the functionality is activated.
virtual void	Deactivated ()
virtual void	StdMultiWidgetAvailable (QmitkStdMultiWidget &stdMultiWidget)
virtual void	StdMultiWidgetNotAvailable ()
virtual void	OnSelectionChanged (std::vector< mitk::DataNode * > nodes)
Static Public Attributes
static const std::string	VIEW_ID = "org.mitk.views.mitksurfacematerialeditor"
Protected Slots
void	SurfaceSelected ()
Protected Attributes
Ui::QmitkMITKSurfaceMaterialEditorViewControls *	m_Controls
QmitkStdMultiWidget *	m_MultiWidget

---

Detailed Description

QmitkMITKSurfaceMaterialEditorView.

See also:

QmitkFunctionality

Definition at line 54 of file QmitkMITKSurfaceMaterialEditorView.h.

---

Constructor & Destructor Documentation

QmitkMITKSurfaceMaterialEditorView::QmitkMITKSurfaceMaterialEditorView

(

)

Definition at line 60 of file QmitkMITKSurfaceMaterialEditorView.cpp.

References mitk::ShaderRepository::GetGlobalShaderRepository().

: QmitkFunctionality(),
  m_Controls(NULL),
  m_MultiWidget(NULL)
{
  fixedProperties.push_back( "shader" );
  fixedProperties.push_back( "material.representation" );
  fixedProperties.push_back( "color" );
  fixedProperties.push_back( "opacity" );
  fixedProperties.push_back( "material.wireframeLineWidth" );

  fixedProperties.push_back( "material.ambientCoefficient" );
  fixedProperties.push_back( "material.diffuseCoefficient" );
  fixedProperties.push_back( "material.ambientColor" );
  fixedProperties.push_back( "material.diffuseColor" );
  fixedProperties.push_back( "material.specularColor" );
  fixedProperties.push_back( "material.specularCoefficient" );
  fixedProperties.push_back( "material.specularPower" );
  fixedProperties.push_back( "material.interpolation" );

  shaderProperties.push_back( "shader" );
  shaderProperties.push_back( "material.representation" );
  shaderProperties.push_back( "color" );
  shaderProperties.push_back( "opacity" );
  shaderProperties.push_back( "material.wireframeLineWidth" );

  observerAllocated = false;


  mitk::ShaderRepository::GetGlobalShaderRepository();
}

QmitkMITKSurfaceMaterialEditorView::~QmitkMITKSurfaceMaterialEditorView

(

)

[virtual]

Definition at line 92 of file QmitkMITKSurfaceMaterialEditorView.cpp.

{
}

---

Member Function Documentation

void QmitkMITKSurfaceMaterialEditorView::Activated

(

)

[virtual]

Called when the functionality is activated.

Reimplemented from QmitkFunctionality.

Definition at line 267 of file QmitkMITKSurfaceMaterialEditorView.cpp.

{
  QmitkFunctionality::Activated();
}

void QmitkMITKSurfaceMaterialEditorView::CreateConnections

(

)

[virtual]

Creation of the connections of main and control widget.

Definition at line 263 of file QmitkMITKSurfaceMaterialEditorView.cpp.

Referenced by CreateQtPartControl().

{
}

void QmitkMITKSurfaceMaterialEditorView::CreateQtPartControl

(

QWidget *

parent )

[virtual]

Implements berry::QtViewPart.

Definition at line 238 of file QmitkMITKSurfaceMaterialEditorView.cpp.

References CreateConnections(), m_Controls, and Ui_QmitkMITKSurfaceMaterialEditorViewControls::setupUi().

{
  if (!m_Controls)
  {
    // create GUI widgets
    m_Controls = new Ui::QmitkMITKSurfaceMaterialEditorViewControls;
    m_Controls->setupUi(parent);
    this->CreateConnections();

    InitPreviewWindow();
    RefreshPropertiesList();

  }
}

void QmitkMITKSurfaceMaterialEditorView::Deactivated

(

)

[virtual]

Only called when IsExclusiveFunctionality() returns true.

See also:

IsExclusiveFunctionality()

Reimplemented from QmitkFunctionality.

Definition at line 272 of file QmitkMITKSurfaceMaterialEditorView.cpp.

{
  QmitkFunctionality::Deactivated();
}

void QmitkMITKSurfaceMaterialEditorView::OnSelectionChanged

(

std::vector< mitk::DataNode * >

)

[virtual]

Called when the selection in the workbench changed

Reimplemented from QmitkFunctionality.

Definition at line 278 of file QmitkMITKSurfaceMaterialEditorView.cpp.

References MITK_INFO, and SurfaceSelected().

{
  if(!nodes.empty())
  {
    m_SelectedDataNode = nodes.at(0);
    MITK_INFO << "Node '" << m_SelectedDataNode->GetName() << "' selected";
    SurfaceSelected();
  }
}

void QmitkMITKSurfaceMaterialEditorView::StdMultiWidgetAvailable

(

QmitkStdMultiWidget &

stdMultiWidget )

[virtual]

Called when a StdMultiWidget is available. Should not be used anymore, see GetActiveStdMultiWidget()

See also:

GetActiveStdMultiWidget()

Reimplemented from QmitkFunctionality.

Definition at line 253 of file QmitkMITKSurfaceMaterialEditorView.cpp.

References m_MultiWidget.

{
  m_MultiWidget = &stdMultiWidget;
}

void QmitkMITKSurfaceMaterialEditorView::StdMultiWidgetNotAvailable

(

)

[virtual]

Called when no StdMultiWidget is available anymore. Should not be used anymore, see GetActiveStdMultiWidget()

See also:

GetActiveStdMultiWidget()

Reimplemented from QmitkFunctionality.

Definition at line 258 of file QmitkMITKSurfaceMaterialEditorView.cpp.

References m_MultiWidget.

{
  m_MultiWidget = NULL;
}

void QmitkMITKSurfaceMaterialEditorView::SurfaceSelected

(

)

[protected, slot]

Definition at line 288 of file QmitkMITKSurfaceMaterialEditorView.cpp.

Referenced by OnSelectionChanged().

{
  postRefresh();
}

---

Member Data Documentation

Ui::QmitkMITKSurfaceMaterialEditorViewControls* QmitkMITKSurfaceMaterialEditorView::m_Controls [protected]

Definition at line 87 of file QmitkMITKSurfaceMaterialEditorView.h.

Referenced by CreateQtPartControl().

QmitkStdMultiWidget* QmitkMITKSurfaceMaterialEditorView::m_MultiWidget [protected]

Definition at line 89 of file QmitkMITKSurfaceMaterialEditorView.h.

Referenced by StdMultiWidgetAvailable(), and StdMultiWidgetNotAvailable().

const std::string QmitkMITKSurfaceMaterialEditorView::VIEW_ID = "org.mitk.views.mitksurfacematerialeditor" [static]

Definition at line 62 of file QmitkMITKSurfaceMaterialEditorView.h.

---

The documentation for this class was generated from the following files:

• QmitkMITKSurfaceMaterialEditorView.h
• QmitkMITKSurfaceMaterialEditorView.cpp
