QmitkToolGUI Class Reference

Base class for GUIs belonging to mitk::Tool classes. More...

#include <QmitkToolGUI.h>

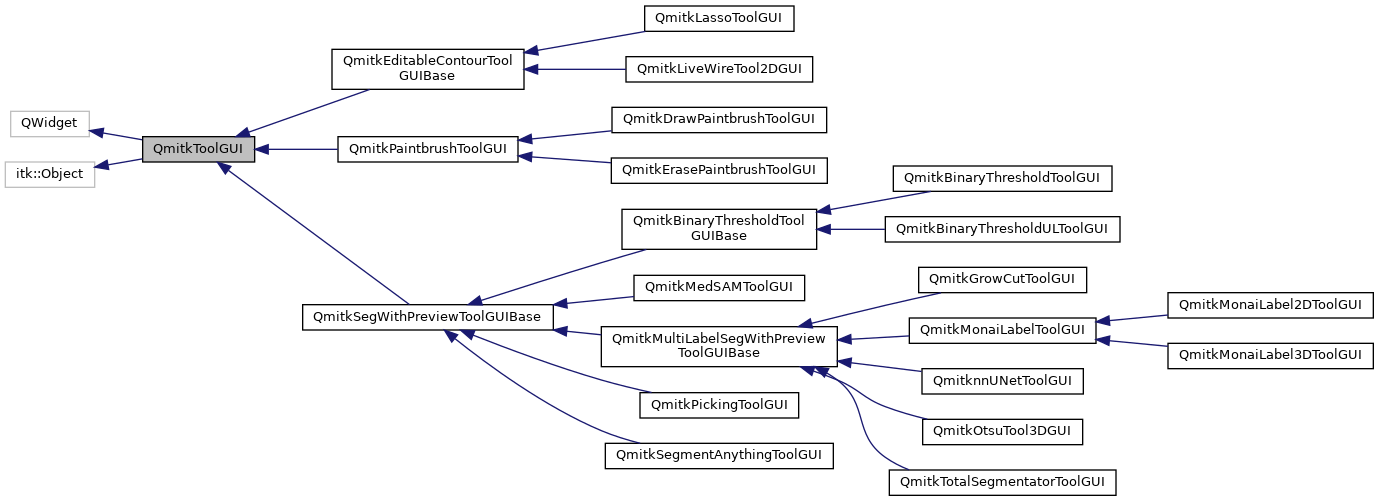

Inheritance diagram for QmitkToolGUI:

Collaboration diagram for QmitkToolGUI:

Signals
void	NewToolAssociated (mitk::Tool *)

Public Member Functions
	mitkClassMacroItkParent (QmitkToolGUI, itk::Object)
void	SetTool (mitk::Tool *tool)
void	Register () const override
void	UnRegister () const ITK_NOEXCEPT ITK_OVERRIDE
void	SetReferenceCount (int) override
	~QmitkToolGUI () override

Protected Member Functions
	QmitkToolGUI ()=default
virtual void	BusyStateChanged (bool)

Protected Attributes
mitk::Tool::Pointer	m_Tool

Detailed Description

Base class for GUIs belonging to mitk::Tool classes.

Created through ITK object factory. TODO May be changed to a toolkit specific way later?

Last contributor: $Author$

Definition at line 32 of file QmitkToolGUI.h.

Constructor & Destructor Documentation

~QmitkToolGUI()

QmitkToolGUI::~QmitkToolGUI ( )

override

QmitkToolGUI()

QmitkToolGUI::QmitkToolGUI ( )

protecteddefault

Member Function Documentation

BusyStateChanged()

virtual void QmitkToolGUI::BusyStateChanged ( bool  )

inlineprotectedvirtual

Reimplemented in QmitkBinaryThresholdToolGUIBase, and QmitkSegWithPreviewToolGUIBase.

Definition at line 56 of file QmitkToolGUI.h.

mitkClassMacroItkParent()

QmitkToolGUI::mitkClassMacroItkParent	(	QmitkToolGUI	,
		itk::Object
	)

NewToolAssociated

void QmitkToolGUI::NewToolAssociated ( mitk::Tool *  )

signal

Register()

void QmitkToolGUI::Register ( ) const

override

SetReferenceCount()

void QmitkToolGUI::SetReferenceCount ( int  )

override

SetTool()

void QmitkToolGUI::SetTool

(

mitk::Tool *

tool

)

UnRegister()

void QmitkToolGUI::UnRegister

(

)

const

Member Data Documentation

m_Tool

mitk::Tool::Pointer QmitkToolGUI::m_Tool

protected

Definition at line 54 of file QmitkToolGUI.h.

---

The documentation for this class was generated from the following file:

• QmitkToolGUI.h
