The vtkQtChartLegendManager class builds a chart legend from the chart series layers. More...

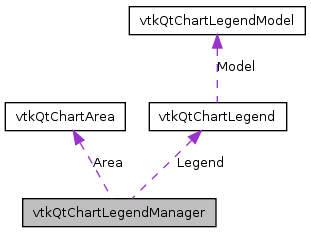

Collaboration diagram for vtkQtChartLegendManager:

Public Slots
void	insertLayer (int index, vtkQtChartLayer *chart)
	Inserts a chart layer at the given index.
void	removeLayer (int index, vtkQtChartLayer *chart)
	Removes the specified chart layer from the list.
void	setLayerVisible (vtkQtChartLayer *chart, bool visible)
	Sets the visibility for the series in the given chart layer.
Public Member Functions
	vtkQtChartLegendManager (QObject *parent=0)
	Creates a chart legend manager instance.
virtual	~vtkQtChartLegendManager ()
Setup Methods
void	setChartArea (vtkQtChartArea *area)
	Sets the chart area that holds the chart series layers.
void	setChartLegend (vtkQtChartLegend *legend)
	Sets the chart legend to manage.

Detailed Description

The vtkQtChartLegendManager class builds a chart legend from the chart series layers.

Definition at line 43 of file vtkQtChartLegendManager.h.

Constructor & Destructor Documentation

vtkQtChartLegendManager::vtkQtChartLegendManager ( QObject * parent = 0 )

Creates a chart legend manager instance.

Parameters:

parent The parent object.

virtual vtkQtChartLegendManager::~vtkQtChartLegendManager ( ) [virtual]

void vtkQtChartLegendManager::insertLayer	(	int	index,
		vtkQtChartLayer *	chart
	)		`[slot]`

Inserts a chart layer at the given index.

Parameters:

index	The index of the layer.
chart	The chart layer that was inserted.

void vtkQtChartLegendManager::removeLayer	(	int	index,
		vtkQtChartLayer *	chart
	)		`[slot]`

Removes the specified chart layer from the list.

Parameters:

index	The index of the layer.
chart	The chart layer that will be removed.

void vtkQtChartLegendManager::setChartArea ( vtkQtChartArea * area )

Sets the chart area that holds the chart series layers.

Parameters:

area	The new chart area.

void vtkQtChartLegendManager::setChartLegend ( vtkQtChartLegend * legend )

Sets the chart legend to manage.

Parameters:

legend The new chart legend.

void vtkQtChartLegendManager::setLayerVisible	(	vtkQtChartLayer *	chart,
		bool	visible
	)		`[slot]`

Sets the visibility for the series in the given chart layer.

Parameters:

chart	The chart layer.
visible	True if the layer series should be visible.

The documentation for this class was generated from the following file:
