vtkQtChartColorStyleGenerator Class Reference

The vtkQtChartColorStyleGenerator class generates series drawing options using color and pen style. More...

#include <vtkQtChartColorStyleGenerator.h>

Inheritance diagram for vtkQtChartColorStyleGenerator:

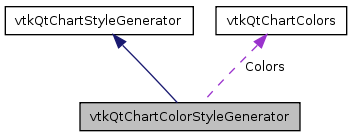

Collaboration diagram for vtkQtChartColorStyleGenerator:

List of all members.

Public Member Functions
	vtkQtChartColorStyleGenerator (QObject *parent=0, vtkQtChartColors::ColorScheme scheme=vtkQtChartColors::Spectrum)
	Creates a color/style generator.
virtual	~vtkQtChartColorStyleGenerator ()
vtkQtChartStyleGenerator Methods
virtual QBrush	getSeriesBrush (int index) const
	Gets the brush for the specified series index.
virtual QPen	getSeriesPen (int index) const
	Gets the pen for the specified series index.
Color Methods
vtkQtChartColors *	getColors ()
	Gets the list of colors.
const vtkQtChartColors *	getColors () const
	Gets the list of colors.
Pen Style Methods
int	getNumberOfStyles () const
	Gets the number of pen styles in the style list.
Qt::PenStyle	getPenStyle (int index) const
	Gets a pen style from the pen styles list.
void	setPenStyle (int index, Qt::PenStyle style)
	Sets the pen style for the given index.
void	clearPenStyles ()
	Clears the list of pen styles.
void	addPenStyle (Qt::PenStyle style)
	Adds a pen style to the list of pen styles.
void	insertPenStyle (int index, Qt::PenStyle style)
	Inserts a new pen style into the list of pen styles.
void	removePenStyle (int index)
	Removes the pen style for the given index.

---

Detailed Description

The vtkQtChartColorStyleGenerator class generates series drawing options using color and pen style.

Definition at line 38 of file vtkQtChartColorStyleGenerator.h.

---

Constructor & Destructor Documentation

vtkQtChartColorStyleGenerator::vtkQtChartColorStyleGenerator	(	QObject *	parent = 0,
		vtkQtChartColors::ColorScheme	scheme = vtkQtChartColors::Spectrum
	)

Creates a color/style generator.

Parameters:

parent	The parent object.
scheme	The initial color scheme.

virtual vtkQtChartColorStyleGenerator::~vtkQtChartColorStyleGenerator

(

)

[virtual]

---

Member Function Documentation

void vtkQtChartColorStyleGenerator::addPenStyle

(

Qt::PenStyle

style )

Adds a pen style to the list of pen styles.

Parameters:

style

The new pen style to add.

void vtkQtChartColorStyleGenerator::clearPenStyles

(

)

Clears the list of pen styles.

vtkQtChartColors* vtkQtChartColorStyleGenerator::getColors

(

)

[inline]

Gets the list of colors.

Returns:

A pointer to the list of colors.

Definition at line 84 of file vtkQtChartColorStyleGenerator.h.

{return this->Colors;}

const vtkQtChartColors* vtkQtChartColorStyleGenerator::getColors

(

)

const [inline]

Gets the list of colors.

Returns:

A pointer to the list of colors.

Definition at line 90 of file vtkQtChartColorStyleGenerator.h.

{return this->Colors;}

int vtkQtChartColorStyleGenerator::getNumberOfStyles

(

)

const

Gets the number of pen styles in the style list.

Returns:

The number of pen styles in the style list.

Qt::PenStyle vtkQtChartColorStyleGenerator::getPenStyle

(

int

index )

const

Gets a pen style from the pen styles list.

This method provides access to the list of styles. If the index is out of range, a default style will be returned.

Parameters:

index

The list index for the style.

Returns:

The pen style for the given index.

See also:

vtkQtChartStyleGenerator::getSeriesPen(int)

virtual QBrush vtkQtChartColorStyleGenerator::getSeriesBrush

(

int

index )

const [virtual]

Gets the brush for the specified series index.

If the index is greater than the internal color list, the index will be wrapped around repeating the colors.

Parameters:

index

The series index.

Returns:

The brush for the specified series index.

Implements vtkQtChartStyleGenerator.

virtual QPen vtkQtChartColorStyleGenerator::getSeriesPen

(

int

index )

const [virtual]

Gets the pen for the specified series index.

If the index is greater than the internal color list, the index will be wrapped around repeating the colors. The repeated colors will have the next pen style in the list.

Parameters:

index

The series index.

Returns:

The pen for the specified series index.

Implements vtkQtChartStyleGenerator.

void vtkQtChartColorStyleGenerator::insertPenStyle	(	int	index,
		Qt::PenStyle	style
	)

Inserts a new pen style into the list of pen styles.

Parameters:

index	Where to insert the new pen style.
style	The new pen style to insert.

void vtkQtChartColorStyleGenerator::removePenStyle

(

int

index )

Removes the pen style for the given index.

Parameters:

index

Which pen style to remove from the list.

void vtkQtChartColorStyleGenerator::setPenStyle	(	int	index,
		Qt::PenStyle	style
	)

Sets the pen style for the given index.

This method does nothing if the index is out of range.

Parameters:

index	Which pen style to modify.
style	The new pen style.

---

The documentation for this class was generated from the following file:

• vtkQtChartColorStyleGenerator.h
