mitk::VtkVolumeTimeSeriesReader Class Reference [IO Classes]

Reader to read a series of volume files in Vtk-format. More...

#include <mitkVtkVolumeTimeSeriesReader.h>

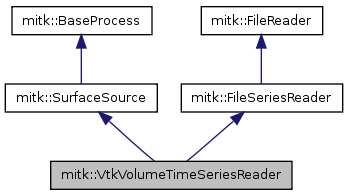

Inheritance diagram for mitk::VtkVolumeTimeSeriesReader:

Collaboration diagram for mitk::VtkVolumeTimeSeriesReader:

List of all members.

Public Types
typedef VtkVolumeTimeSeriesReader	Self
typedef FileReader	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
virtual void	SetFileName (const char *_arg)
	Specify the file to load.
virtual const char *	GetFileName () const
	Get the specified the file to load.
virtual void	SetFilePrefix (const char *_arg)
	Specify file prefix for the file(s) to load.
virtual const char *	GetFilePrefix () const
	Get the specified file prefix for the file(s) to load.
virtual void	SetFilePattern (const char *_arg)
	Specified file pattern for the file(s) to load. The sprintf format used to build filename from FilePrefix and number.
virtual const char *	GetFilePattern () const
	Get the specified file pattern for the file(s) to load. The sprintf format used to build filename from FilePrefix and number.
Static Public Member Functions
static Pointer	New ()
static bool	CanReadFile (const std::string filename, const std::string filePrefix, const std::string filePattern)
Protected Member Functions
virtual void	GenerateData ()
	VtkVolumeTimeSeriesReader ()
	~VtkVolumeTimeSeriesReader ()
Protected Attributes
itk::TimeStamp	m_ReadHeaderTime

---

Detailed Description

Reader to read a series of volume files in Vtk-format.

Definition at line 32 of file mitkVtkVolumeTimeSeriesReader.h.

---

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::VtkVolumeTimeSeriesReader::ConstPointer

Reimplemented from mitk::FileSeriesReader.

Definition at line 35 of file mitkVtkVolumeTimeSeriesReader.h.

typedef itk::SmartPointer<Self> mitk::VtkVolumeTimeSeriesReader::Pointer

Reimplemented from mitk::FileSeriesReader.

Definition at line 35 of file mitkVtkVolumeTimeSeriesReader.h.

typedef VtkVolumeTimeSeriesReader mitk::VtkVolumeTimeSeriesReader::Self

Reimplemented from mitk::FileSeriesReader.

Definition at line 35 of file mitkVtkVolumeTimeSeriesReader.h.

typedef FileReader mitk::VtkVolumeTimeSeriesReader::Superclass

Reimplemented from mitk::FileSeriesReader.

Definition at line 35 of file mitkVtkVolumeTimeSeriesReader.h.

---

Constructor & Destructor Documentation

mitk::VtkVolumeTimeSeriesReader::VtkVolumeTimeSeriesReader

(

)

[protected]

Definition at line 76 of file mitkVtkVolumeTimeSeriesReader.cpp.

{}

mitk::VtkVolumeTimeSeriesReader::~VtkVolumeTimeSeriesReader

(

)

[protected]

Definition at line 79 of file mitkVtkVolumeTimeSeriesReader.cpp.

{}

---

Member Function Documentation

bool mitk::VtkVolumeTimeSeriesReader::CanReadFile	(	const std::string	filename,
		const std::string	filePrefix,
		const std::string	filePattern
	)		[static]

Definition at line 56 of file mitkVtkVolumeTimeSeriesReader.cpp.

{
  if( filePattern != "" && filePrefix != "" )
    return false;

  bool extensionFound = false;
  std::string::size_type VTKPos = filePattern.rfind(".vtk");
  if ((VTKPos != std::string::npos) && (VTKPos == filePattern.length() - 4))
    extensionFound = true;

  VTKPos = filePattern.rfind(".VTK");
  if ((VTKPos != std::string::npos) && (VTKPos == filePattern.length() - 4))
    extensionFound = true;

  if( !extensionFound )
    return false;

  return true;
}

void mitk::VtkVolumeTimeSeriesReader::GenerateData

(

)

[protected, virtual]

Definition at line 24 of file mitkVtkVolumeTimeSeriesReader.cpp.

References mitk::FileSeriesReader::GenerateFileList(), mitk::SurfaceSource::GetOutput(), mitk::FileSeriesReader::m_FilePattern, mitk::FileSeriesReader::m_FilePrefix, mitk::FileSeriesReader::m_MatchedFileNames, MITK_INFO, and New().

{
  if ( !this->GenerateFileList() )
  {
    itkWarningMacro( << "Sorry, file list could not be determined..." );
    return ;
  }

  mitk::Surface::Pointer output = this->GetOutput();
  MITK_INFO << "prefix: "<< m_FilePrefix << ", pattern: " <<m_FilePattern << std::endl;
  output->Expand(m_MatchedFileNames.size());
  for ( unsigned int i = 0 ; i < m_MatchedFileNames.size(); ++i )
  {
    std::string fileName = m_MatchedFileNames[i];
    MITK_INFO << "Loading " << fileName << " as vtk..." << std::endl;

    VtkSurfaceReader::Pointer vtkReader = VtkSurfaceReader::New();
    vtkReader->SetFileName( fileName.c_str() );
    vtkReader->Update();

    if ( vtkReader->GetOutput() != NULL )
    {
      output->SetVtkPolyData( vtkReader->GetOutput()->GetVtkPolyData(), i );
    }
    else
    {
      itkWarningMacro(<< "vtkPolyDataReader returned NULL while reading " << fileName << ". Trying to continue with empty vtkPolyData...");
      output->SetVtkPolyData( vtkPolyData::New(), i );
    }
  }
}

virtual const char* mitk::VtkVolumeTimeSeriesReader::GetClassName

(

)

const [virtual]

Reimplemented from mitk::FileSeriesReader.

virtual const char* mitk::VtkVolumeTimeSeriesReader::GetFileName

(

)

const [virtual]

Get the specified the file to load.

Either the FileName or FilePrefix plus FilePattern are used to read.

Implements mitk::FileReader.

virtual const char* mitk::VtkVolumeTimeSeriesReader::GetFilePattern

(

)

const [virtual]

Get the specified file pattern for the file(s) to load. The sprintf format used to build filename from FilePrefix and number.

You should specify either a FileName or FilePrefix. Use FilePrefix if the data is stored in multiple files.

Implements mitk::FileReader.

virtual const char* mitk::VtkVolumeTimeSeriesReader::GetFilePrefix

(

)

const [virtual]

Get the specified file prefix for the file(s) to load.

You should specify either a FileName or FilePrefix. Use FilePrefix if the data is stored in multiple files.

Implements mitk::FileReader.

static Pointer mitk::VtkVolumeTimeSeriesReader::New

(

)

[static]

Method for creation through the object factory.

Reimplemented from mitk::SurfaceSource.

Referenced by GenerateData().

virtual void mitk::VtkVolumeTimeSeriesReader::SetFileName

(

const char *

aFileName )

[virtual]

Specify the file to load.

Either the FileName or FilePrefix plus FilePattern are used to read.

Implements mitk::FileReader.

virtual void mitk::VtkVolumeTimeSeriesReader::SetFilePattern

(

const char *

aFilePattern )

[virtual]

Specified file pattern for the file(s) to load. The sprintf format used to build filename from FilePrefix and number.

You should specify either a FileName or FilePrefix. Use FilePrefix if the data is stored in multiple files.

Implements mitk::FileReader.

virtual void mitk::VtkVolumeTimeSeriesReader::SetFilePrefix

(

const char *

aFilePrefix )

[virtual]

Specify file prefix for the file(s) to load.

You should specify either a FileName or FilePrefix. Use FilePrefix if the data is stored in multiple files.

Implements mitk::FileReader.

---

Member Data Documentation

itk::TimeStamp mitk::VtkVolumeTimeSeriesReader::m_ReadHeaderTime [protected]

Definition at line 60 of file mitkVtkVolumeTimeSeriesReader.h.

---

The documentation for this class was generated from the following files:

• mitkVtkVolumeTimeSeriesReader.h
• mitkVtkVolumeTimeSeriesReader.cpp
