Vtk-based mapper for Splines. More...

#include <mitkSplineVtkMapper3D.h>

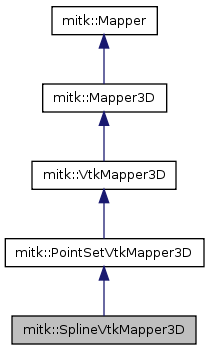

Inheritance diagram for mitk::SplineVtkMapper3D:

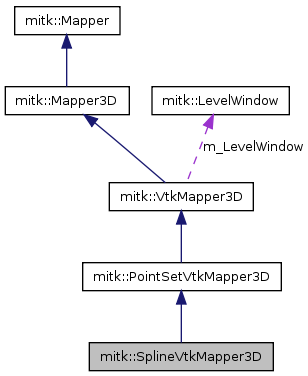

Collaboration diagram for mitk::SplineVtkMapper3D:

Public Types
typedef SplineVtkMapper3D	Self
typedef PointSetVtkMapper3D	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
virtual vtkProp *	GetVtkProp (mitk::BaseRenderer *renderer)
virtual void	UpdateVtkTransform (mitk::BaseRenderer *renderer)
	Set the vtkTransform of the m_Prop3D for the current time step of renderer.
bool	SplinesAreAvailable ()
vtkPolyData *	GetSplinesPolyData ()
vtkActor *	GetSplinesActor ()
unsigned long	GetLastUpdateTime () const
virtual void	UpdateSpline ()
virtual void	SetSplineResolution (unsigned int _arg)
virtual unsigned int	GetSplineResolution ()
Static Public Member Functions
static Pointer	New ()
Protected Member Functions
	SplineVtkMapper3D ()
virtual	~SplineVtkMapper3D ()
virtual void	GenerateData ()
	Generate the data needed for rendering (independent of a specific renderer)
virtual void	GenerateData (mitk::BaseRenderer *renderer)
	Generate the data needed for rendering into renderer.
virtual void	ApplyProperties ()
Protected Attributes
vtkActor *	m_SplinesActor
vtkPropAssembly *	m_SplineAssembly
bool	m_SplinesAvailable
bool	m_SplinesAddedToAssembly
unsigned int	m_SplineResolution
itk::TimeStamp	m_SplineUpdateTime

Detailed Description

Vtk-based mapper for Splines.

properties looked for: "line width" = with of the spline

Definition at line 43 of file mitkSplineVtkMapper3D.h.

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::SplineVtkMapper3D::ConstPointer

Reimplemented from mitk::PointSetVtkMapper3D.

Definition at line 47 of file mitkSplineVtkMapper3D.h.

typedef itk::SmartPointer<Self> mitk::SplineVtkMapper3D::Pointer

Reimplemented from mitk::PointSetVtkMapper3D.

Definition at line 47 of file mitkSplineVtkMapper3D.h.

typedef SplineVtkMapper3D mitk::SplineVtkMapper3D::Self

Reimplemented from mitk::PointSetVtkMapper3D.

Definition at line 47 of file mitkSplineVtkMapper3D.h.

typedef PointSetVtkMapper3D mitk::SplineVtkMapper3D::Superclass

Reimplemented from mitk::PointSetVtkMapper3D.

Definition at line 47 of file mitkSplineVtkMapper3D.h.

Constructor & Destructor Documentation

mitk::SplineVtkMapper3D::SplineVtkMapper3D ( ) [protected]

Definition at line 35 of file mitkSplineVtkMapper3D.cpp.

References m_SplineAssembly, m_SplineResolution, m_SplinesActor, and New().

: m_SplinesAvailable (false), m_SplinesAddedToAssembly(false)
{
  m_SplinesActor = vtkActor::New();
  m_SplineAssembly = vtkPropAssembly::New();
  m_SplineResolution = 500;
}

mitk::SplineVtkMapper3D::~SplineVtkMapper3D ( ) [protected, virtual]

Definition at line 44 of file mitkSplineVtkMapper3D.cpp.

{
  m_SplinesActor->Delete();
  m_SplineAssembly->Delete();
}

Member Function Documentation

void mitk::SplineVtkMapper3D::ApplyProperties ( ) [protected, virtual]

Definition at line 119 of file mitkSplineVtkMapper3D.cpp.

{
  //vtk changed the type of rgba during releases. Due to that, the following convert is done
  vtkFloatingPointType rgba[ 4 ] = {1.0f, 1.0f, 1.0f, 1.0f};//white

  //getting the color from DataNode
  float temprgba[4];
  this->GetDataNode()->GetColor( &temprgba[0], NULL );
  //convert to rgba, what ever type it has!
  rgba[0] = temprgba[0];    rgba[1] = temprgba[1];    rgba[2] = temprgba[2];    rgba[3] = temprgba[3];
  //finaly set the color inside the actor
  m_SplinesActor->GetProperty()->SetColor( rgba );

  float lineWidth;
  if (dynamic_cast<mitk::FloatProperty *>(this->GetDataNode()->GetProperty("line width")) == NULL)
    lineWidth = 1.0;
  else
    lineWidth = dynamic_cast<mitk::FloatProperty *>(this->GetDataNode()->GetProperty("line width"))->GetValue();
  m_SplinesActor->GetProperty()->SetLineWidth(lineWidth);

  m_SplineUpdateTime.Modified();
}

void mitk::SplineVtkMapper3D::GenerateData ( ) [protected, virtual]

Generate the data needed for rendering (independent of a specific renderer)

Reimplemented from mitk::PointSetVtkMapper3D.

Definition at line 65 of file mitkSplineVtkMapper3D.cpp.

{
  Superclass::GenerateData();

  // only update spline if UpdateSpline has not been called from
  // external, e.g. by the SplineMapper2D. But call it the first time when m_SplineUpdateTime = 0 and m_LastUpdateTime = 0.
  if ( m_SplineUpdateTime < m_LastUpdateTime || m_SplineUpdateTime == 0)
  {
    this->UpdateSpline();
    this->ApplyProperties();
  }

  if ( m_SplinesAvailable )
  {
    if ( ! m_SplinesAddedToAssembly )
    {
      m_SplineAssembly->AddPart( m_SplinesActor );
      m_SplinesAddedToAssembly = true;
    }
  }
  else
  {
    if ( m_SplinesAddedToAssembly )
    {
      m_SplineAssembly->RemovePart( m_SplinesActor );
      m_SplinesAddedToAssembly = false;
    }
  }
}

void mitk::SplineVtkMapper3D::GenerateData ( mitk::BaseRenderer * renderer ) [protected, virtual]

Generate the data needed for rendering into renderer.

Reimplemented from mitk::PointSetVtkMapper3D.

Definition at line 96 of file mitkSplineVtkMapper3D.cpp.

{
  if ( IsVisible( renderer ) == false )
  {
    m_SplinesActor->VisibilityOff();
    m_SplineAssembly->VisibilityOff();
  }
  else
  {
    m_SplinesActor->VisibilityOn();
    m_SplineAssembly->VisibilityOn();

    //remove the PointsAssembly if it was added in superclass. No need to display points and spline!
    if(m_SplineAssembly->GetParts()->IsItemPresent(m_PointsAssembly))
      m_SplineAssembly->RemovePart(m_PointsAssembly);
  }
  //if the properties have been changed, then refresh the properties
  if ( (m_SplineUpdateTime < this->m_DataNode->GetPropertyList()->GetMTime() ) ||
       (m_SplineUpdateTime < this->m_DataNode->GetPropertyList(renderer)->GetMTime() ) )
    this->ApplyProperties();
}

virtual const char* mitk::SplineVtkMapper3D::GetClassName ( ) const [virtual]

Reimplemented from mitk::PointSetVtkMapper3D.

unsigned long mitk::SplineVtkMapper3D::GetLastUpdateTime ( ) const

Definition at line 165 of file mitkSplineVtkMapper3D.cpp.

{
  return m_LastUpdateTime.GetMTime();
}

virtual unsigned int mitk::SplineVtkMapper3D::GetSplineResolution ( ) [virtual]

vtkActor * mitk::SplineVtkMapper3D::GetSplinesActor ( )

Definition at line 157 of file mitkSplineVtkMapper3D.cpp.

{
  if ( m_SplinesAvailable )
    return m_SplinesActor;
  else
    return vtkActor::New();
}

vtkPolyData * mitk::SplineVtkMapper3D::GetSplinesPolyData ( )

Definition at line 149 of file mitkSplineVtkMapper3D.cpp.

{
  if ( m_SplinesAvailable )
    return ( dynamic_cast<vtkPolyDataMapper*>( m_SplinesActor->GetMapper() ) )->GetInput();
  else
    return NULL;
}

vtkProp * mitk::SplineVtkMapper3D::GetVtkProp ( mitk::BaseRenderer * renderer ) [virtual]

Reimplemented from mitk::PointSetVtkMapper3D.

Definition at line 51 of file mitkSplineVtkMapper3D.cpp.

{
  return m_SplineAssembly;
}

static Pointer mitk::SplineVtkMapper3D::New ( ) [static]

Reimplemented from mitk::PointSetVtkMapper3D.

Referenced by SplineVtkMapper3D(), and mitkDataNodeExtTestClass::TestMapperSetting().

virtual void mitk::SplineVtkMapper3D::SetSplineResolution ( unsigned int _arg ) [virtual]

bool mitk::SplineVtkMapper3D::SplinesAreAvailable ( )

Definition at line 143 of file mitkSplineVtkMapper3D.cpp.

{
  return m_SplinesAvailable;
}

void mitk::SplineVtkMapper3D::UpdateSpline ( ) [virtual]

Definition at line 170 of file mitkSplineVtkMapper3D.cpp.

References mitk::PointSet::GetSize(), and QuadProgPP::t().

{
  mitk::PointSet::Pointer input = const_cast<mitk::PointSet*>( this->GetInput( ) );
//  input->Update();//already done in superclass

  // Number of points on the spline
  unsigned int numberOfOutputPoints = m_SplineResolution;
  unsigned int numberOfInputPoints = input->GetSize();


  if ( numberOfInputPoints >= 2 )
  {
    m_SplinesAvailable = true;
    vtkCardinalSpline* splineX = vtkCardinalSpline::New();
    vtkCardinalSpline* splineY = vtkCardinalSpline::New();
    vtkCardinalSpline* splineZ = vtkCardinalSpline::New();
    unsigned int index = 0;
    mitk::PointSet::DataType::PointsContainer::Pointer pointsContainer = input->GetPointSet()->GetPoints();
    for ( mitk::PointSet::DataType::PointsContainer::Iterator it = pointsContainer->Begin(); it != pointsContainer->End(); ++it, ++index )
    //for ( unsigned int i = 0 ; i < numberOfInputPoints; ++i )
    {
      mitk::PointSet::PointType point = it->Value();
      splineX->AddPoint( index, point[ 0 ] );
      splineY->AddPoint( index, point[ 1 ] );
      splineZ->AddPoint( index, point[ 2 ] );
    }
    vtkPoints* points = vtkPoints::New();
    vtkPolyData* profileData = vtkPolyData::New();


    // Interpolate x, y and z by using the three spline filters and
    // create new points
    double t = 0.0f;
    for ( unsigned int i = 0; i < numberOfOutputPoints; ++i )
    {
      t = ( ( ( ( double ) numberOfInputPoints ) - 1.0f ) / ( ( ( double ) numberOfOutputPoints ) - 1.0f ) ) * ( ( double ) i );
      points->InsertPoint( i, splineX->Evaluate( t ), splineY->Evaluate( t ), splineZ->Evaluate( t ) ) ;
    }

    // Create the polyline.
    vtkCellArray* lines = vtkCellArray::New();
    lines->InsertNextCell( numberOfOutputPoints );
    for ( unsigned int i = 0; i < numberOfOutputPoints; ++i )
      lines->InsertCellPoint( i );

    profileData->SetPoints( points );
    profileData->SetLines( lines );

    // Add thickness to the resulting line.
    //vtkTubeFilter* profileTubes = vtkTubeFilter::New();
    //profileTubes->SetNumberOfSides(8);
    //profileTubes->SetInput(profileData);
    //profileTubes->SetRadius(.005);

    vtkPolyDataMapper* profileMapper = vtkPolyDataMapper::New();
    profileMapper->SetInput( profileData );

    m_SplinesActor->SetMapper( profileMapper );
  }
  else
  {
    m_SplinesAvailable = false;
  }
  m_SplineUpdateTime.Modified();
}

void mitk::SplineVtkMapper3D::UpdateVtkTransform ( mitk::BaseRenderer * renderer ) [virtual]

Set the vtkTransform of the m_Prop3D for the current time step of renderer.

Called by mitk::VtkPropRenderer::Update before rendering

Reimplemented from mitk::PointSetVtkMapper3D.

Definition at line 56 of file mitkSplineVtkMapper3D.cpp.

{
  vtkLinearTransform * vtktransform =
    this->GetDataNode()->GetVtkTransform(this->GetTimestep());

  m_SplinesActor->SetUserTransform(vtktransform);
}
