Vtk-based mapper for PointList. More...

#include <mitkMeshVtkMapper3D.h>

Inheritance diagram for mitk::MeshVtkMapper3D:

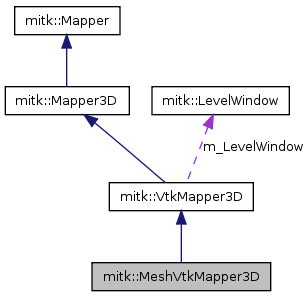

Collaboration diagram for mitk::MeshVtkMapper3D:

Public Types
typedef MeshVtkMapper3D	Self
typedef VtkMapper3D	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
Public Member Functions
virtual const char *	GetClassName () const
virtual const mitk::Mesh *	GetInput ()
virtual vtkProp *	GetVtkProp (mitk::BaseRenderer *renderer)
virtual void	UpdateVtkTransform (mitk::BaseRenderer *renderer)
	Set the vtkTransform of the m_Prop3D for the current time step of renderer.
Static Public Member Functions
static Pointer	New ()
Protected Member Functions
	MeshVtkMapper3D ()
virtual	~MeshVtkMapper3D ()
virtual void	GenerateData ()
	Generate the data needed for rendering (independent of a specific renderer)
virtual void	GenerateData (mitk::BaseRenderer *renderer)
	Generate the data needed for rendering into renderer.
virtual void	ResetMapper (BaseRenderer *renderer)
Protected Attributes
vtkPropAssembly *	m_PropAssembly
vtkActor *	m_SpheresActor
vtkActor *	m_ContourActor
vtkPolyDataMapper *	m_ContourMapper
vtkPolyDataMapper *	m_SpheresMapper
vtkPolyDataMapper *	m_TextVtkPolyDataMapper
vtkAppendPolyData *	m_Spheres
vtkPolyData *	m_Contour

Detailed Description

Vtk-based mapper for PointList.

Definition at line 54 of file mitkMeshVtkMapper3D.h.

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::MeshVtkMapper3D::ConstPointer

Reimplemented from mitk::VtkMapper3D.

Definition at line 58 of file mitkMeshVtkMapper3D.h.

typedef itk::SmartPointer<Self> mitk::MeshVtkMapper3D::Pointer

Reimplemented from mitk::VtkMapper3D.

Definition at line 58 of file mitkMeshVtkMapper3D.h.

typedef MeshVtkMapper3D mitk::MeshVtkMapper3D::Self

Reimplemented from mitk::VtkMapper3D.

Definition at line 58 of file mitkMeshVtkMapper3D.h.

typedef VtkMapper3D mitk::MeshVtkMapper3D::Superclass

Reimplemented from mitk::VtkMapper3D.

Definition at line 58 of file mitkMeshVtkMapper3D.h.

Constructor & Destructor Documentation

mitk::MeshVtkMapper3D::MeshVtkMapper3D ( ) [protected]

Definition at line 58 of file mitkMeshVtkMapper3D.cpp.

References m_Contour, m_ContourActor, m_ContourMapper, m_PropAssembly, m_Spheres, m_SpheresActor, m_SpheresMapper, and New().

: m_PropAssembly(NULL)
{
  m_Spheres = vtkAppendPolyData::New();
  m_Contour = vtkPolyData::New();

  m_SpheresActor = vtkActor::New();
  m_SpheresMapper = vtkPolyDataMapper::New();
  m_SpheresActor->SetMapper(m_SpheresMapper);

  m_ContourActor = vtkActor::New();
  m_ContourMapper = vtkPolyDataMapper::New();
  m_ContourActor->SetMapper(m_ContourMapper);
  m_ContourActor->GetProperty()->SetAmbient(1.0);

  m_PropAssembly = vtkPropAssembly::New();

  // a vtkPropAssembly is not a sub-class of vtkProp3D, so
  // we cannot use m_Prop3D.
}

mitk::MeshVtkMapper3D::~MeshVtkMapper3D ( ) [protected, virtual]

Definition at line 79 of file mitkMeshVtkMapper3D.cpp.

{
  m_ContourActor->Delete();
  m_SpheresActor->Delete();
  m_ContourMapper->Delete();
  m_SpheresMapper->Delete();
  m_PropAssembly->Delete();
  m_Spheres->Delete();
  m_Contour->Delete();
}

Member Function Documentation

void mitk::MeshVtkMapper3D::GenerateData ( ) [protected, virtual]

Generate the data needed for rendering (independent of a specific renderer)

!define a new ColorProp to be able to pass alpha value

Reimplemented from mitk::Mapper.

Definition at line 90 of file mitkMeshVtkMapper3D.cpp.

References mitk::Mesh::GetMesh(), and mitk::GenericProperty< T >::GetValue().

{
  m_PropAssembly->VisibilityOn();

  if(m_PropAssembly->GetParts()->IsItemPresent(m_SpheresActor))
    m_PropAssembly->RemovePart(m_SpheresActor);
  if(m_PropAssembly->GetParts()->IsItemPresent(m_ContourActor))
    m_PropAssembly->RemovePart(m_ContourActor);

  m_Spheres->RemoveAllInputs();
  m_Contour->Initialize();

  mitk::Mesh::Pointer input  = const_cast<mitk::Mesh*>(this->GetInput());
  input->Update();

  mitk::Mesh::DataType::Pointer itkMesh = input->GetMesh( this->GetTimestep() );

  if ( itkMesh.GetPointer() == NULL)
  {
    m_PropAssembly->VisibilityOff();
    return;
  }


  mitk::Mesh::PointsContainer::Iterator i;

  int j;

  float floatRgba[4] = {1.0f,1.0f,1.0f,1.0f};
  vtkFloatingPointType doubleRgba[4]={1.0f,1.0f,1.0f,1.0f};
  mitk::Color tmpColor;

  // check for color prop and use it for rendering if it exists
  m_DataNode->GetColor(floatRgba, NULL);

  if (dynamic_cast<mitk::ColorProperty*>(this->GetDataNode()->GetProperty("unselectedcolor")) != NULL)
  {
    tmpColor = dynamic_cast<mitk::ColorProperty *>(this->GetDataNode()->GetProperty("unselectedcolor"))->GetValue();
    floatRgba[0] = tmpColor[0];
    floatRgba[1] = tmpColor[1];
    floatRgba[2] = tmpColor[2];
    floatRgba[3] = 1.0f;
    doubleRgba[0] = floatRgba[0];
    doubleRgba[1] = floatRgba[1];
    doubleRgba[2] = floatRgba[2];
    doubleRgba[3] = floatRgba[3];
  }

  if(itkMesh->GetNumberOfPoints()>0)
  {
    // build m_Spheres->GetOutput() vtkPolyData
    float pointSize = 2.0;
    mitk::FloatProperty::Pointer pointSizeProp = dynamic_cast<mitk::FloatProperty *>(this->GetDataNode()->GetProperty("pointsize"));
    if (pointSizeProp.IsNotNull())
      pointSize = pointSizeProp->GetValue();

    for (j=0, i=itkMesh->GetPoints()->Begin(); i!=itkMesh->GetPoints()->End() ; i++,j++)
    {
      vtkSphereSource *sphere = vtkSphereSource::New();

      sphere->SetRadius(pointSize);
      sphere->SetCenter(i.Value()[0],i.Value()[1],i.Value()[2]);

      m_Spheres->AddInput(sphere->GetOutput());
      sphere->Delete();
    }

    // setup mapper, actor and add to assembly
    m_SpheresMapper->SetInput(m_Spheres->GetOutput());
    m_SpheresActor->GetProperty()->SetColor(doubleRgba);
    m_PropAssembly->AddPart(m_SpheresActor);
  }

  if(itkMesh->GetNumberOfCells()>0)
  {
    // build m_Contour vtkPolyData
#ifdef VCL_VC60
    itkExceptionMacro(<<"MeshVtkMapper3D currently not working for MS Visual C++ 6.0, because MeshUtils are currently not supported.");
#else
    m_Contour = MeshUtil<mitk::Mesh::MeshType>::MeshToPolyData(itkMesh.GetPointer(), false, false, 0, NULL, m_Contour);
#endif

    if(m_Contour->GetNumberOfCells()>0)
    {
      // setup mapper, actor and add to assembly
      m_ContourMapper->SetInput(m_Contour);
      bool wireframe=true;
      GetDataNode()->GetVisibility(wireframe, NULL, "wireframe");
      if(wireframe)
        m_ContourActor->GetProperty()->SetRepresentationToWireframe();
      else
        m_ContourActor->GetProperty()->SetRepresentationToSurface();
      m_ContourActor->GetProperty()->SetColor(doubleRgba);
      m_PropAssembly->AddPart(m_ContourActor);
    }
  }
}

void mitk::MeshVtkMapper3D::GenerateData ( mitk::BaseRenderer * renderer ) [protected, virtual]

Generate the data needed for rendering into renderer.

Reimplemented from mitk::Mapper.

Definition at line 189 of file mitkMeshVtkMapper3D.cpp.

{
  SetVtkMapperImmediateModeRendering(m_ContourMapper);
  SetVtkMapperImmediateModeRendering(m_SpheresMapper);

  if(IsVisible(renderer)==false)
  {
    m_SpheresActor->VisibilityOff();
    m_ContourActor->VisibilityOff();
    return;
  }

  bool makeContour = false;
  this->GetDataNode()->GetBoolProperty("show contour", makeContour);

  if (makeContour)
  {
    m_ContourActor->VisibilityOn();
  }
  else
  {
    m_ContourActor->VisibilityOff();
  }

  bool showPoints = true;
  this->GetDataNode()->GetBoolProperty("show points", showPoints);
  if(showPoints)
  {
    m_SpheresActor->VisibilityOn();
  }
  else
  {
    m_SpheresActor->VisibilityOff();
  }
}

virtual const char* mitk::MeshVtkMapper3D::GetClassName ( ) const [virtual]

Reimplemented from mitk::VtkMapper3D.

const mitk::Mesh * mitk::MeshVtkMapper3D::GetInput ( void ) [virtual]

Definition at line 39 of file mitkMeshVtkMapper3D.cpp.

References mitk::Mapper::GetData().

{
  return static_cast<const mitk::Mesh * > ( GetData() );
}

vtkProp * mitk::MeshVtkMapper3D::GetVtkProp ( mitk::BaseRenderer * renderer ) [virtual]

Implements mitk::VtkMapper3D.

Definition at line 44 of file mitkMeshVtkMapper3D.cpp.

{
  return m_PropAssembly;
}

static Pointer mitk::MeshVtkMapper3D::New ( ) [static]

Referenced by mitk::CoreExtObjectFactory::CreateMapper(), MeshVtkMapper3D(), and mitkDataNodeExtTestClass::TestMapperSetting().

void mitk::MeshVtkMapper3D::ResetMapper ( BaseRenderer * renderer ) [protected, virtual]

Reimplemented from mitk::Mapper.

Definition at line 225 of file mitkMeshVtkMapper3D.cpp.

{
  m_PropAssembly->VisibilityOff();
}

void mitk::MeshVtkMapper3D::UpdateVtkTransform ( mitk::BaseRenderer * renderer ) [virtual]

Set the vtkTransform of the m_Prop3D for the current time step of renderer.

Called by mitk::VtkPropRenderer::Update before rendering

Reimplemented from mitk::VtkMapper3D.

Definition at line 49 of file mitkMeshVtkMapper3D.cpp.

{
  vtkLinearTransform * vtktransform =
    this->GetDataNode()->GetVtkTransform(this->GetTimestep());

  m_SpheresActor->SetUserTransform(vtktransform);
  m_ContourActor->SetUserTransform(vtktransform);
}
