mitk::LookupTableSource Class Reference [Process Classes]

Base class for all objects which have an object of type mitkLookupTable as output. More...

#include <mitkLookupTableSource.h>

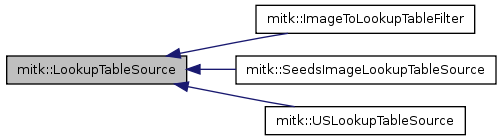

Inheritance diagram for mitk::LookupTableSource:

List of all members.

Public Types
typedef LookupTableSource	Self
typedef BaseProcess	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer < const Self >	ConstPointer
typedef mitk::LookupTable	OutputType
typedef OutputType::Pointer	OutputTypePointer
typedef itk::DataObject::Pointer	DataObjectPointer
Public Member Functions
virtual const char *	GetClassName () const
virtual DataObjectPointer	MakeOutput (unsigned int idx)
void	GenerateInputRequestedRegion ()
void	SetOutput (OutputType *output)
virtual void	GraftOutput (OutputType *output)
OutputType *	GetOutput ()
OutputType *	GetOutput (unsigned int idx)
Static Public Member Functions
static Pointer	New ()
Protected Member Functions
	LookupTableSource ()
virtual	~LookupTableSource ()

---

Detailed Description

Base class for all objects which have an object of type mitkLookupTable as output.

Base class for all objects which have an object of type mitkLookupTable as output. It is assumed, that mitkLookupTableSources do not provide support for streaming, that is, that the requested region is always the largest possible region.

Definition at line 40 of file mitkLookupTableSource.h.

---

Member Typedef Documentation

typedef itk::SmartPointer<const Self> mitk::LookupTableSource::ConstPointer

Reimplemented in mitk::ImageToLookupTableFilter, mitk::SeedsImageLookupTableSource, and mitk::USLookupTableSource.

Definition at line 44 of file mitkLookupTableSource.h.

typedef itk::DataObject::Pointer mitk::LookupTableSource::DataObjectPointer

Definition at line 52 of file mitkLookupTableSource.h.

typedef mitk::LookupTable mitk::LookupTableSource::OutputType

Reimplemented in mitk::SeedsImageLookupTableSource, and mitk::USLookupTableSource.

Definition at line 46 of file mitkLookupTableSource.h.

typedef OutputType::Pointer mitk::LookupTableSource::OutputTypePointer

Definition at line 50 of file mitkLookupTableSource.h.

typedef itk::SmartPointer<Self> mitk::LookupTableSource::Pointer

Reimplemented in mitk::ImageToLookupTableFilter, mitk::SeedsImageLookupTableSource, and mitk::USLookupTableSource.

Definition at line 44 of file mitkLookupTableSource.h.

typedef LookupTableSource mitk::LookupTableSource::Self

Reimplemented in mitk::ImageToLookupTableFilter, mitk::SeedsImageLookupTableSource, and mitk::USLookupTableSource.

Definition at line 44 of file mitkLookupTableSource.h.

typedef BaseProcess mitk::LookupTableSource::Superclass

Reimplemented in mitk::ImageToLookupTableFilter, mitk::SeedsImageLookupTableSource, and mitk::USLookupTableSource.

Definition at line 44 of file mitkLookupTableSource.h.

---

Constructor & Destructor Documentation

mitk::LookupTableSource::LookupTableSource

(

)

[protected]

Definition at line 21 of file mitkLookupTableSource.cpp.

References MakeOutput().

{
    // Create the output. We use static_cast<> here because we know the default
    // output must be of type TOutputImage
    OutputType::Pointer output = static_cast<OutputType*>( this->MakeOutput( 0 ).GetPointer() );

    if ( output.GetPointer() == NULL )
    {
        itkWarningMacro(<<"Output could not be created!");
    }

    this->ProcessObject::SetNumberOfRequiredOutputs( 1 );
    this->ProcessObject::SetNthOutput( 0, output.GetPointer() );
}

mitk::LookupTableSource::~LookupTableSource

(

)

[protected, virtual]

Definition at line 37 of file mitkLookupTableSource.cpp.

{}

---

Member Function Documentation

void mitk::LookupTableSource::GenerateInputRequestedRegion

(

)

Generates the input requested region simply by calling the equivalent method of the superclass.

Definition at line 88 of file mitkLookupTableSource.cpp.

{
    this->ProcessObject::GenerateInputRequestedRegion();
}

virtual const char* mitk::LookupTableSource::GetClassName

(

)

const [virtual]

Reimplemented in mitk::ImageToLookupTableFilter, mitk::SeedsImageLookupTableSource, and mitk::USLookupTableSource.

mitk::LookupTableSource::OutputType * mitk::LookupTableSource::GetOutput

(

unsigned int

idx )

Returns the n'th output of the lookup table source

Parameters:

idx	the index of the wanted output

Returns:

the output with index idx.

Definition at line 79 of file mitkLookupTableSource.cpp.

{
    return static_cast<OutputType*> ( this->ProcessObject::GetOutput( idx ) );
}

mitk::LookupTableSource::OutputType * mitk::LookupTableSource::GetOutput

(

void

)

Returns the output with index 0 of the lookup table source

Returns:

the output

Definition at line 63 of file mitkLookupTableSource.cpp.

{
    if ( this->GetNumberOfOutputs() < 1 )
    {
        return 0;
    }

    if ( static_cast<OutputType*> ( this->ProcessObject::GetOutput( 0 ) ) == NULL )
        itkWarningMacro(<<"Output is NULL!");
    return static_cast<OutputType*> ( this->ProcessObject::GetOutput( 0 ) );
}

void mitk::LookupTableSource::GraftOutput

(

OutputType *

output )

[virtual]

Replacement of the SetOutput method. I think it is not yet correcly implemented, so you should better not use it.

Parameters:

output

the intended output of the lookup table source.

Definition at line 97 of file mitkLookupTableSource.cpp.

{
    OutputType * output = this->GetOutput();

    if ( output && graft )
    {
        // grab a handle to the bulk data of the specified data object
        // output->SetPixelContainer( graft->GetPixelContainer() );

        // copy the region ivars of the specified data object
        // output->SetRequestedRegion( graft->GetRequestedRegion() );
        // output->SetLargestPossibleRegion( graft->GetLargestPossibleRegion() );
        // output->SetBufferedRegion( graft->GetBufferedRegion() );

        // copy the meta-information
        output->CopyInformation( graft );
    }
}

mitk::LookupTableSource::DataObjectPointer mitk::LookupTableSource::MakeOutput

(

unsigned int

idx )

[virtual]

Allocates a new output object and returns it. Currently the index idx is not evaluated.

Parameters:

idx	the index of the output for which an object should be created

Returns:

the new object

Definition at line 44 of file mitkLookupTableSource.cpp.

Referenced by LookupTableSource().

{
    return OutputType::New().GetPointer();
}

static Pointer mitk::LookupTableSource::New

(

)

[static]

Reimplemented in mitk::ImageToLookupTableFilter, mitk::SeedsImageLookupTableSource, and mitk::USLookupTableSource.

void mitk::LookupTableSource::SetOutput

(

OutputType *

output )

Allows to set the output of the lookup-table source. According to the itk documentation this method is outdated and should not be used. Instead GraftOutput(...) should be used.

Parameters:

output

the intended output of the lookup table source

Definition at line 53 of file mitkLookupTableSource.cpp.

{
    itkWarningMacro( << "SetOutput(): This method is slated to be removed from ITK.  Please use GraftOutput() in possible combination with DisconnectPipeline() instead." );
    this->SetNthOutput( 0, output );
}

---

The documentation for this class was generated from the following files:

• mitkLookupTableSource.h
• mitkLookupTableSource.cpp
