mitk::CoreObjectFactoryBase Class Reference

#include <mitkCoreObjectFactoryBase.h>

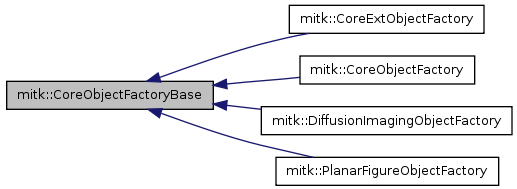

Inheritance diagram for mitk::CoreObjectFactoryBase:

List of all members.

Public Types
typedef std::list < mitk::FileWriterWithInformation::Pointer >	FileWriterList
typedef std::multimap < std::string, std::string >	MultimapType
Public Member Functions
	mitkClassMacro (CoreObjectFactoryBase, itk::Object)
virtual Mapper::Pointer	CreateMapper (mitk::DataNode *node, MapperSlotId slotId)=0
virtual void	SetDefaultProperties (mitk::DataNode *node)=0
virtual const char *	GetFileExtensions ()=0
virtual MultimapType	GetFileExtensionsMap ()=0
virtual const char *	GetSaveFileExtensions ()=0
virtual MultimapType	GetSaveFileExtensionsMap ()=0
virtual const char *	GetITKSourceVersion () const
virtual const char *	GetDescription () const
FileWriterList	GetFileWriters ()
Static Protected Member Functions
static void	CreateFileExtensions (MultimapType fileExtensionsMap, std::string &fileExtensions)
	create a string from a map that contains the file extensions
Protected Attributes
FileWriterList	m_FileWriters

---

Detailed Description

Definition at line 42 of file mitkCoreObjectFactoryBase.h.

---

Member Typedef Documentation

typedef std::list<mitk::FileWriterWithInformation::Pointer> mitk::CoreObjectFactoryBase::FileWriterList

Definition at line 45 of file mitkCoreObjectFactoryBase.h.

typedef std::multimap<std::string, std::string> mitk::CoreObjectFactoryBase::MultimapType

Definition at line 46 of file mitkCoreObjectFactoryBase.h.

---

Member Function Documentation

void mitk::CoreObjectFactoryBase::CreateFileExtensions	(	MultimapType	fileExtensionsMap,
		std::string &	fileExtensions
	)		[static, protected]

create a string from a map that contains the file extensions

Parameters:

fileExtensionsMap	input map with the file extensions, e.g. ("*.dcm", "DICOM files")("*.dc3", "DICOM files")
fileExtensions	the converted output string, suitable for the QT QFileDialog widget e.g. "all (*.dcm *.DCM *.dc3 ... *.vti *.hdr *.nrrd *.nhdr );;Q-Ball Images (*.hqbi *qbi)"

Definition at line 20 of file mitkCoreObjectFactoryBase.cpp.

{
  std::map<std::string, std::string> aMap;

  // group the extensions by extension-group
  // e.g. aMap["DICOM files"] = "*.dcm *.DCM *.dc3 *.DC3 *.gdcm"
  for (MultimapType::iterator it = fileExtensionsMap.begin(); it != fileExtensionsMap.end(); ++it)
  {
    std::string aValue = aMap[(*it).second];
    if (aValue.compare("") != 0)
    {
      aValue.append(" ");
    }
    aValue.append((*it).first);
    aMap[(*it).second] = aValue;
  }

  // build the "all" entry (it contains all the extensions)
  // and add it to the string in the first position
  // e.g. "all (*.dcm *.DCM *.dc3 *.DC3 *.gdcm *.ima *.mhd ... *.vti *.hdr *.nrrd *.nhdr );;"
  fileExtensions = "all (";
  std::string lastKey = "";
  for (MultimapType::iterator it = fileExtensionsMap.begin(); it != fileExtensionsMap.end(); ++it)
  {
    std::string aKey = (*it).first;

    if (aKey.compare(lastKey) != 0)
    {
      if (lastKey.compare("") != 0)
      {
        fileExtensions.append(" ");
      }
      fileExtensions.append(aKey);
    }
    lastKey = aKey;
  }
  fileExtensions.append(");;");

  // build the entry for each extension-group
  // e.g. "Sets of 2D slices (*.pic *.pic.gz *.bmp *.png *.dcm *.gdcm *.ima *.tiff);;"
  for (std::map<std::string, std::string>::iterator it = aMap.begin(); it != aMap.end(); ++it)
  {
    //cout << "  [" << (*it).first << ", " << (*it).second << "]" << endl;
    std::string aKey = (*it).first;
    if (aKey.compare("") != 0)
    {
      fileExtensions.append((*it).first);
      fileExtensions.append(" (");
      fileExtensions.append((*it).second);
      fileExtensions.append(");;");
    }
  }
}

virtual Mapper::Pointer mitk::CoreObjectFactoryBase::CreateMapper	(	mitk::DataNode *	node,
		MapperSlotId	slotId
	)		[pure virtual]

Implemented in mitk::CoreObjectFactory, mitk::DiffusionImagingObjectFactory, mitk::CoreExtObjectFactory, and mitk::PlanarFigureObjectFactory.

virtual const char* mitk::CoreObjectFactoryBase::GetDescription

(

)

const [inline, virtual]

Definition at line 58 of file mitkCoreObjectFactoryBase.h.

    {
      return "Core Object Factory";
    }

virtual const char* mitk::CoreObjectFactoryBase::GetFileExtensions

(

)

[pure virtual]

Implemented in mitk::CoreObjectFactory, mitk::DiffusionImagingObjectFactory, mitk::CoreExtObjectFactory, and mitk::PlanarFigureObjectFactory.

virtual MultimapType mitk::CoreObjectFactoryBase::GetFileExtensionsMap

(

)

[pure virtual]

Implemented in mitk::CoreObjectFactory, mitk::DiffusionImagingObjectFactory, mitk::CoreExtObjectFactory, and mitk::PlanarFigureObjectFactory.

FileWriterList mitk::CoreObjectFactoryBase::GetFileWriters

(

)

[inline]

Reimplemented in mitk::CoreObjectFactory.

Definition at line 62 of file mitkCoreObjectFactoryBase.h.

                                    {
      return m_FileWriters;
    }

virtual const char* mitk::CoreObjectFactoryBase::GetITKSourceVersion

(

)

const [inline, virtual]

Definition at line 54 of file mitkCoreObjectFactoryBase.h.

    {
      return ITK_SOURCE_VERSION;
    }

virtual const char* mitk::CoreObjectFactoryBase::GetSaveFileExtensions

(

)

[pure virtual]

Implemented in mitk::CoreObjectFactory, mitk::DiffusionImagingObjectFactory, mitk::CoreExtObjectFactory, and mitk::PlanarFigureObjectFactory.

virtual MultimapType mitk::CoreObjectFactoryBase::GetSaveFileExtensionsMap

(

)

[pure virtual]

Implemented in mitk::CoreObjectFactory, mitk::DiffusionImagingObjectFactory, mitk::CoreExtObjectFactory, and mitk::PlanarFigureObjectFactory.

mitk::CoreObjectFactoryBase::mitkClassMacro	(	CoreObjectFactoryBase	,
		itk::Object
	)

virtual void mitk::CoreObjectFactoryBase::SetDefaultProperties

(

mitk::DataNode *

node )

[pure virtual]

Implemented in mitk::CoreObjectFactory, mitk::DiffusionImagingObjectFactory, mitk::CoreExtObjectFactory, and mitk::PlanarFigureObjectFactory.

---

Member Data Documentation

FileWriterList mitk::CoreObjectFactoryBase::m_FileWriters [protected]

Reimplemented in mitk::CoreObjectFactory.

Definition at line 76 of file mitkCoreObjectFactoryBase.h.

Referenced by mitk::DiffusionImagingObjectFactory::DiffusionImagingObjectFactory().

---

The documentation for this class was generated from the following files:

• mitkCoreObjectFactoryBase.h
• mitkCoreObjectFactoryBase.cpp
