This class takes as input one or more reference images (acquired in the absence of diffusion sensitizing gradients) and 'n' diffusion weighted images and their gradient directions and computes an image of orientation distribution functions (ODFs). More...

#include <itkDiffusionQballReconstructionImageFilter.h>

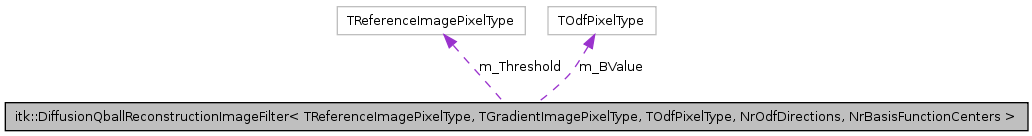

Collaboration diagram for itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >:

[legend]

List of all members.

Public Types
enum	Normalization { QBR_STANDARD, QBR_B_ZERO_B_VALUE, QBR_B_ZERO, QBR_NONE }
typedef DiffusionQballReconstructionImageFilter	Self
typedef SmartPointer< Self >	Pointer
typedef SmartPointer< const Self >	ConstPointer
typedef ImageToImageFilter < Image < TReferenceImagePixelType, 3 > , Image< Vector< TOdfPixelType, NrOdfDirections >, 3 > >	Superclass
typedef TReferenceImagePixelType	ReferencePixelType
typedef TGradientImagePixelType	GradientPixelType
typedef Vector< TOdfPixelType, NrOdfDirections >	OdfPixelType
typedef Superclass::InputImageType	ReferenceImageType
typedef Image< OdfPixelType, 3 >	OdfImageType
typedef OdfImageType	OutputImageType
typedef TOdfPixelType	BZeroPixelType
typedef Image< BZeroPixelType, 3 >	BZeroImageType
typedef Superclass::OutputImageRegionType	OutputImageRegionType
typedef Image < GradientPixelType, 3 >	GradientImageType
typedef VectorImage < GradientPixelType, 3 >	GradientImagesType
typedef vnl_matrix < TOdfPixelType > *	OdfReconstructionMatrixType
typedef vnl_vector_fixed < double, 3 >	GradientDirectionType
typedef VectorContainer < unsigned int, GradientDirectionType >	GradientDirectionContainerType
Public Member Functions
virtual const char *	GetClassName () const
	itkStaticConstMacro (NOdfDirections, int, NrOdfDirections)
	itkStaticConstMacro (NBasisFunctionCenters, int, NrBasisFunctionCenters)
void	AddGradientImage (const GradientDirectionType &, const GradientImageType *image)
void	SetGradientImage (GradientDirectionContainerType , const GradientImagesType image)
void	SetReferenceImage (ReferenceImageType *referenceImage)
virtual ReferenceImageType *	GetReferenceImage ()
virtual GradientDirectionType	GetGradientDirection (unsigned int idx) const
OdfPixelType	Normalize (OdfPixelType odf, typename NumericTraits< ReferencePixelType >::AccumulateType b0)
vnl_vector< TOdfPixelType >	PreNormalize (vnl_vector< TOdfPixelType > vec)
virtual void	SetThreshold (ReferencePixelType _arg)
virtual ReferencePixelType	GetThreshold ()
virtual void	SetNormalizationMethod (Normalization _arg)
virtual Normalization	GetNormalizationMethod ()
virtual BZeroImageType::Pointer	GetBZeroImage ()
virtual void	SetBValue (TOdfPixelType _arg)
virtual const TOdfPixelType &	GetBValue ()
Static Public Member Functions
static Pointer	New ()
Protected Types
enum	GradientImageTypeEnumeration { GradientIsInASingleImage = 1, GradientIsInManyImages, Else }
Protected Member Functions
	DiffusionQballReconstructionImageFilter ()
	~DiffusionQballReconstructionImageFilter ()
void	PrintSelf (std::ostream &os, Indent indent) const
void	ComputeReconstructionMatrix ()
void	BeforeThreadedGenerateData ()
void	ThreadedGenerateData (const OutputImageRegionType &outputRegionForThread, int)

Detailed Description

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters = NrOdfDirections>
class itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >

This class takes as input one or more reference images (acquired in the absence of diffusion sensitizing gradients) and 'n' diffusion weighted images and their gradient directions and computes an image of orientation distribution functions (ODFs).

Inputs and Usage

There are two ways to use this class. When you have one reference image and n gradient images, you would use the class as

       filter->SetReferenceImage( image0 );
       filter->AddGradientImage( direction1, image1 );
       filter->AddGradientImage( direction2, image2 );
   ...

When you have the 'n' gradient and one or more reference images in a single multi-component image (VectorImage), you can specify the images simply as

       filter->SetGradientImage( directionsContainer, vectorImage );

Note that this method is used to specify both the reference and gradient images. This is convenient when the DWI images are read in using the NRRD format. Like the Nrrd format, the reference images are those components of the vectorImage whose gradient direction is (0,0,0). If more than one reference image is present, they are averaged prior to the reconstruction.

Outputs

The output image is an image of vectors that must be understood as ODFs:

       Image< Vector< TPixelType, OdfNrDirections >, 3 >

Parameters

Threshold - Threshold on the reference image data. The output ODF will be a null pdf for pixels in the reference image that have a value less than this.
BValue - See the documentation of SetBValue().
At least 6 gradient images must be specified for the filter to be able to run. If the input gradient directions g_i are majorly sampled on one half of the sqhere, then each input image I_i will be duplicated and assign -g_i in order to guarantee stability of the Tuch-Algorithm.
OdfDirections - directions of resulting orientation distribution function
EquatorNrSamplingPoints - number of sampling points on equator when performing Funk Radeon Transform (FRT)
BasisFunctionCenters - the centers of the basis functions are used for the sRBF (spherical radial basis functions interpolation). If not set, they will be defaulted to equal m_EquatorNrSamplingPoints

Template parameters

The class is templated over

the pixel type of the reference and gradient images (expected to be scalar data types)
the internal representation of the ODF pixels (double, float etc).
the number of OdfDirections
the number of basis function centers for the sRBF

References:

[1] Tuch DS, "Q-ball imaging", Magn Reson Med. 2004 Dec;52(6):1358-72.

Definition at line 101 of file itkDiffusionQballReconstructionImageFilter.h.

Member Typedef Documentation

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters = NrOdfDirections>

typedef Image< BZeroPixelType, 3 > itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::BZeroImageType

Definition at line 157 of file itkDiffusionQballReconstructionImageFilter.h.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters = NrOdfDirections>

typedef TOdfPixelType itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::BZeroPixelType

Definition at line 155 of file itkDiffusionQballReconstructionImageFilter.h.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters = NrOdfDirections>

typedef SmartPointer<const Self> itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::ConstPointer

Definition at line 128 of file itkDiffusionQballReconstructionImageFilter.h.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters = NrOdfDirections>

typedef VectorContainer< unsigned int, GradientDirectionType > itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::GradientDirectionContainerType

Container to hold gradient directions of the 'n' DW measurements

Definition at line 180 of file itkDiffusionQballReconstructionImageFilter.h.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters = NrOdfDirections>

typedef vnl_vector_fixed< double, 3 > itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::GradientDirectionType

Holds each magnetic field gradient used to acquire one DWImage

Definition at line 176 of file itkDiffusionQballReconstructionImageFilter.h.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters = NrOdfDirections>

typedef VectorImage< GradientPixelType, 3 > itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::GradientImagesType

An alternative typedef defining one (of the many) gradient images. It will be assumed that the vectorImage has the same dimension as the Reference image and a vector length parameter of n (number of gradient directions)

Definition at line 169 of file itkDiffusionQballReconstructionImageFilter.h.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters = NrOdfDirections>

typedef Image< GradientPixelType, 3 > itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::GradientImageType

Typedef defining one (of the many) gradient images.

Definition at line 163 of file itkDiffusionQballReconstructionImageFilter.h.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters = NrOdfDirections>

typedef TGradientImagePixelType itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::GradientPixelType

Definition at line 142 of file itkDiffusionQballReconstructionImageFilter.h.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters = NrOdfDirections>

typedef Image< OdfPixelType, 3 > itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::OdfImageType

Definition at line 151 of file itkDiffusionQballReconstructionImageFilter.h.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters = NrOdfDirections>

typedef Vector< TOdfPixelType, NrOdfDirections > itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::OdfPixelType

Definition at line 145 of file itkDiffusionQballReconstructionImageFilter.h.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters = NrOdfDirections>

typedef vnl_matrix< TOdfPixelType >* itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::OdfReconstructionMatrixType

Holds the ODF reconstruction matrix

Definition at line 173 of file itkDiffusionQballReconstructionImageFilter.h.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters = NrOdfDirections>

typedef Superclass::OutputImageRegionType itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::OutputImageRegionType

Definition at line 160 of file itkDiffusionQballReconstructionImageFilter.h.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters = NrOdfDirections>

typedef OdfImageType itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::OutputImageType

Definition at line 153 of file itkDiffusionQballReconstructionImageFilter.h.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters = NrOdfDirections>

typedef SmartPointer<Self> itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::Pointer

Definition at line 127 of file itkDiffusionQballReconstructionImageFilter.h.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters = NrOdfDirections>

typedef Superclass::InputImageType itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::ReferenceImageType

Reference image data, This image is aquired in the absence of a diffusion sensitizing field gradient

Definition at line 149 of file itkDiffusionQballReconstructionImageFilter.h.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters = NrOdfDirections>

typedef TReferenceImagePixelType itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::ReferencePixelType

Definition at line 138 of file itkDiffusionQballReconstructionImageFilter.h.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters = NrOdfDirections>

typedef DiffusionQballReconstructionImageFilter itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::Self

Definition at line 126 of file itkDiffusionQballReconstructionImageFilter.h.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters = NrOdfDirections>

typedef ImageToImageFilter< Image< TReferenceImagePixelType, 3>, Image< Vector< TOdfPixelType, NrOdfDirections >, 3 > > itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::Superclass

Definition at line 131 of file itkDiffusionQballReconstructionImageFilter.h.

Member Enumeration Documentation

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters = NrOdfDirections>

enum itk::DiffusionQballReconstructionImageFilter::GradientImageTypeEnumeration [protected]

enum to indicate if the gradient image is specified as a single multi- component image or as several separate images

Enumerator:

GradientIsInASingleImage
GradientIsInManyImages
Else

Definition at line 289 of file itkDiffusionQballReconstructionImageFilter.h.

    {
    GradientIsInASingleImage = 1,
    GradientIsInManyImages,
    Else
    } GradientImageTypeEnumeration;

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters = NrOdfDirections>

enum itk::DiffusionQballReconstructionImageFilter::Normalization

Enumerator:

QBR_STANDARD
QBR_B_ZERO_B_VALUE
QBR_B_ZERO
QBR_NONE

Definition at line 119 of file itkDiffusionQballReconstructionImageFilter.h.

                     {
    QBR_STANDARD,
    QBR_B_ZERO_B_VALUE,
    QBR_B_ZERO,
    QBR_NONE
  };

Constructor & Destructor Documentation

template<class TReferenceImagePixelType , class TGradientImagePixelType , class TOdfPixelType , int NrOdfDirections, int NrBasisFunctionCenters>

DiffusionQballReconstructionImageFilter::DiffusionQballReconstructionImageFilter ( ) [protected]

Definition at line 39 of file itkDiffusionQballReconstructionImageFilter.txx.

                                              :
    m_GradientDirectionContainer(NULL),
    m_NumberOfGradientDirections(0),
    m_NumberOfEquatorSamplingPoints(0),
    m_NumberOfBaselineImages(1),
    m_Threshold(NumericTraits< ReferencePixelType >::NonpositiveMin()),
    m_BValue(1.0),
    m_GradientImageTypeEnumeration(Else),
    m_DirectionsDuplicated(false)
  {
    // At least 1 inputs is necessary for a vector image.
    // For images added one at a time we need at least six
    this->SetNumberOfRequiredInputs( 1 );
  }

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters = NrOdfDirections>

itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::~DiffusionQballReconstructionImageFilter ( ) [inline, protected]

Definition at line 277 of file itkDiffusionQballReconstructionImageFilter.h.

{};

Member Function Documentation

template<class TReferenceImagePixelType , class TGradientImagePixelType , class TOdfPixelType , int NrOdfDirections, int NrBasisFunctionCenters>

void DiffusionQballReconstructionImageFilter::AddGradientImage	(	const GradientDirectionType &	gradientDirection,
		const GradientImageType *	image
	)

Set method to add a gradient direction and its corresponding image.

Definition at line 733 of file itkDiffusionQballReconstructionImageFilter.txx.

  {
    // Make sure crazy users did not call both AddGradientImage and
    // SetGradientImage
    if( m_GradientImageTypeEnumeration == GradientIsInASingleImage)
    {
      itkExceptionMacro( << "Cannot call both methods:"
        << "AddGradientImage and SetGradientImage. Please call only one of them.");
    }

    // If the container to hold the gradient directions hasn't been allocated
    // yet, allocate it.
    if( !this->m_GradientDirectionContainer )
    {
      this->m_GradientDirectionContainer = GradientDirectionContainerType::New();
    }

    this->m_NumberOfGradientDirections = m_GradientDirectionContainer->Size();

    m_GradientDirectionContainer->InsertElement( this->m_NumberOfGradientDirections,
      gradientDirection / gradientDirection.two_norm() );

    this->ProcessObject::SetNthInput( this->m_NumberOfGradientDirections,
      const_cast< GradientImageType* >(gradientImage) );

    m_GradientImageTypeEnumeration = GradientIsInManyImages;
  }

template<class TReferenceImagePixelType , class TGradientImagePixelType , class TOdfPixelType , int NrOdfDirections, int NrBasisFunctionCenters>

void DiffusionQballReconstructionImageFilter::BeforeThreadedGenerateData ( void ) [protected]

Definition at line 62 of file itkDiffusionQballReconstructionImageFilter.txx.

  {
    // If we have more than 2 inputs, then each input, except the first is a
    // gradient image. The number of gradient images must match the number of
    // gradient directions.
    const unsigned int numberOfInputs = this->GetNumberOfInputs();

    // There need to be at least 6 gradient directions to be able to compute the
    // tensor basis
    if( m_NumberOfGradientDirections < 6 )
    {
      itkExceptionMacro( << "At least 6 gradient directions are required" );
    }

    // If there is only 1 gradient image, it must be an itk::VectorImage. Otherwise
    // we must have a container of (numberOfInputs-1) itk::Image. Check to make sure
    if ( numberOfInputs == 1
      && m_GradientImageTypeEnumeration != GradientIsInASingleImage )
    {
      std::string gradientImageClassName(
        this->ProcessObject::GetInput(0)->GetNameOfClass());
      if ( strcmp(gradientImageClassName.c_str(),"VectorImage") != 0 )
      {
        itkExceptionMacro( <<
          "There is only one Gradient image. I expect that to be a VectorImage. "
          << "But its of type: " << gradientImageClassName );
      }
    }

    // Compute reconstruction matrix that is multiplied to the data-vector
    // each voxel in order to reconstruct the ODFs
    this->ComputeReconstructionMatrix();

    // Allocate the b-zero image
    m_BZeroImage = BZeroImageType::New();
    if( m_GradientImageTypeEnumeration == GradientIsInManyImages )
    {
      typename ReferenceImageType::Pointer img = static_cast< ReferenceImageType * >(this->ProcessObject::GetInput(0));
      m_BZeroImage->SetSpacing( img->GetSpacing() );   // Set the image spacing
      m_BZeroImage->SetOrigin( img->GetOrigin() );     // Set the image origin
      m_BZeroImage->SetDirection( img->GetDirection() );  // Set the image direction
      m_BZeroImage->SetLargestPossibleRegion( img->GetLargestPossibleRegion());
      m_BZeroImage->SetBufferedRegion( img->GetLargestPossibleRegion() );
    }
    // The gradients are specified in a single multi-component image
    else if( m_GradientImageTypeEnumeration == GradientIsInASingleImage )
    {
      typename GradientImagesType::Pointer img = static_cast< GradientImagesType * >(
        this->ProcessObject::GetInput(0) );
      m_BZeroImage->SetSpacing( img->GetSpacing() );   // Set the image spacing
      m_BZeroImage->SetOrigin( img->GetOrigin() );     // Set the image origin
      m_BZeroImage->SetDirection( img->GetDirection() );  // Set the image direction
      m_BZeroImage->SetLargestPossibleRegion( img->GetLargestPossibleRegion());
      m_BZeroImage->SetBufferedRegion( img->GetLargestPossibleRegion() );
    }

    m_BZeroImage->Allocate();

  }

template<class TReferenceImagePixelType , class TGradientImagePixelType , class TOdfPixelType , int NrOdfDirections, int NrBasisFunctionCenters>

void DiffusionQballReconstructionImageFilter::ComputeReconstructionMatrix ( ) [protected]

constructs reconstrion matrix according to Tuch's algorithm

Definition at line 437 of file itkDiffusionQballReconstructionImageFilter.txx.

References QuadProgPP::exp(), int(), QuadProgPP::max(), QBALL_RECON_PI, and QuadProgPP::sqrt().

  {

    if( m_NumberOfGradientDirections < 6 )
    {
      itkExceptionMacro( << "Not enough gradient directions supplied. Need to supply at least 6" );
    }

    {
      // check for duplicate diffusion gradients
      bool warning = false;
      for(GradientDirectionContainerType::ConstIterator gdcit1 = this->m_GradientDirectionContainer->Begin();
        gdcit1 != this->m_GradientDirectionContainer->End(); ++gdcit1)
      {
        for(GradientDirectionContainerType::ConstIterator gdcit2 = this->m_GradientDirectionContainer->Begin();
          gdcit2 != this->m_GradientDirectionContainer->End(); ++gdcit2)
        {
          if(gdcit1.Value() == gdcit2.Value() && gdcit1.Index() != gdcit2.Index())
          {
            itkWarningMacro( << "Some of the Diffusion Gradients equal each other. Corresponding image data should be averaged before calling this filter." );
            warning = true;
            break;
          }
        }
        if (warning) break;
      }

      // handle acquisition schemes where only half of the spherical
      // shell is sampled by the gradient directions. In this case,
      // each gradient direction is duplicated in negative direction.
      vnl_vector<double> centerMass(3);
      centerMass.fill(0.0);
      int count = 0;
      for(GradientDirectionContainerType::ConstIterator gdcit1 = this->m_GradientDirectionContainer->Begin();
        gdcit1 != this->m_GradientDirectionContainer->End(); ++gdcit1)
      {
        if(gdcit1.Value().one_norm() > 0.0)
        {
          centerMass += gdcit1.Value();
          count ++;
        }
      }
      centerMass /= count;
      if(centerMass.two_norm() > 0.1)
      {
        m_DirectionsDuplicated = true;
        m_NumberOfGradientDirections *= 2;
      }
    }

    // set default number of equator sampling points if needed
    if(!this->m_NumberOfEquatorSamplingPoints)
      this->m_NumberOfEquatorSamplingPoints
        = (int) ceil((double)sqrt(8*QBALL_RECON_PI*this->m_NumberOfGradientDirections));

    vnl_matrix<double>* Q =
      new vnl_matrix<double>(3, m_NumberOfGradientDirections);

    {
      // Fill matrix Q with gradient directions
      int i = 0;
      for(GradientDirectionContainerType::ConstIterator gdcit = this->m_GradientDirectionContainer->Begin();
        gdcit != this->m_GradientDirectionContainer->End(); ++gdcit)
      {
        if(gdcit.Value().one_norm() > 0.0)
        {
          (*Q)(0,i) = gdcit.Value().get(0);
          (*Q)(1,i) = gdcit.Value().get(1);
          (*Q)(2,i++) = gdcit.Value().get(2);
        }
      }
      if(m_DirectionsDuplicated)
      {
        for(GradientDirectionContainerType::ConstIterator gdcit = this->m_GradientDirectionContainer->Begin();
          gdcit != this->m_GradientDirectionContainer->End(); ++gdcit)
        {
          if(gdcit.Value().one_norm() > 0.0)
          {
            (*Q)(0,i) = -gdcit.Value().get(0);
            (*Q)(1,i) = -gdcit.Value().get(1);
            (*Q)(2,i++) = -gdcit.Value().get(2);
          }
        }
      }

    }

    vnl_matrix_fixed<double, 3, NOdfDirections>* U =
      itk::PointShell<NOdfDirections, vnl_matrix_fixed<double, 3, NOdfDirections> >::DistributePointShell();

    vnl_matrix_fixed<double, 3, NBasisFunctionCenters>* V =
      itk::PointShell<NBasisFunctionCenters, vnl_matrix_fixed<double, 3, NBasisFunctionCenters> >::DistributePointShell();

    // calculate sampling points on the equator perpendicular to z-axis
    vnl_matrix<double> *C
      = new vnl_matrix<double>(3, m_NumberOfEquatorSamplingPoints);
    for(unsigned int i=0; i<m_NumberOfEquatorSamplingPoints; i++)
    {
      double theta = i * (2*QBALL_RECON_PI / m_NumberOfEquatorSamplingPoints);
      (*C)(0,i) = cos(theta);
      (*C)(1,i) = sin(theta);
      (*C)(2,i) = NumericTraits<double>::Zero;
    }

    // rotate the sampling points to each directions of interest
    vnl_matrix<double> *S
      = new vnl_matrix<double>(3,m_NumberOfEquatorSamplingPoints*NOdfDirections);

    {
      vnl_vector_fixed<double,3> z(NumericTraits<double>::Zero);
      z.put(2,NumericTraits<double>::One);
      vnl_matrix_fixed<double,3,3> eye(NumericTraits<double>::Zero);
      eye.fill_diagonal(NumericTraits<double>::One);
      for(int i=0; i<NOdfDirections; i++)
      {
        vnl_vector_fixed<double,3> ui   = (*U).get_column(i);
        vnl_matrix<double> *RC
          = new vnl_matrix<double>(3,m_NumberOfEquatorSamplingPoints);

        if( (z(0)*ui(0)+z(1)*ui(1)+z(2)*ui(2)+1) != 0 )
        {
          vnl_matrix_fixed<double,3,3> R;
          R.set_column(0, (z+ui)*(z(0)+ui(0)));
          R.set_column(1, (z+ui)*(z(1)+ui(1)));
          R.set_column(2, (z+ui)*(z(2)+ui(2)));
          R /= (z(0)*ui(0)+z(1)*ui(1)+z(2)*ui(2)+1);
          R -= eye;
          (*RC) = R*(*C);
        }
        else
        {
          RC = C;
        }
        (*S).set_columns(i*m_NumberOfEquatorSamplingPoints, *RC);
      }
    }

    // determine interpolation kernel width first
    // use to determine diffusion measurement contribution to each of the kernels
    vnl_matrix<double> *H_plus
      = new vnl_matrix<double>(NBasisFunctionCenters,m_NumberOfGradientDirections);

    double maxSigma = QBALL_RECON_PI/6;
    double bestSigma = maxSigma;

    {
      double stepsize = 0.01;
      double start = 0.01;
      double minCondition = NumericTraits<double>::max();

      vnl_matrix<double> *H
        = new vnl_matrix<double>(m_NumberOfGradientDirections,NBasisFunctionCenters,(double)0);

      {

        int increasing = 0;
        for( double sigma=start; sigma<maxSigma; sigma+=stepsize)
        {
          vnl_matrix<double> *tmpH
            = new vnl_matrix<double>(m_NumberOfGradientDirections,NBasisFunctionCenters);

          for(unsigned int r=0; r<m_NumberOfGradientDirections; r++)
          {
            for(int c=0; c<NBasisFunctionCenters; c++)
            {
              double qtv =  (*Q)(0,r)*(*V)(0,c)
                + (*Q)(1,r)*(*V)(1,c)
                + (*Q)(2,r)*(*V)(2,c);
              qtv = (qtv<-1.0) ? -1.0 : ( (qtv>1.0) ? 1.0 : qtv);
              double x = acos(qtv);
              (*tmpH)(r,c) = (1.0/(sigma*sqrt(2.0*QBALL_RECON_PI)))
                *exp((-x*x)/(2*sigma*sigma));
            }
          }

          vnl_svd<double> *solver;
          if(m_NumberOfGradientDirections>NBasisFunctionCenters)
          {
            solver = new vnl_svd<double>(*tmpH);
          }
          else
          {
            solver = new vnl_svd<double>(tmpH->transpose());
          }
          double condition = solver->sigma_max() / solver->sigma_min();

          std::cout << sigma << ": " << condition << std::endl;

          if( condition < minCondition )
          {
            minCondition = condition;
            bestSigma = sigma;
            H->update(*tmpH);
          }
          else
          {
            // optimum assumed to be hit after condition increased 3 times
            if (++increasing>3) break;
          }
        }
      }


      vnl_matrix_inverse<double> *pseudoInverse
        = new vnl_matrix_inverse<double>(*H);
      (*H_plus) = pseudoInverse->pinverse();

      std::cout << "choosing sigma = " << bestSigma << std::endl;

    }

    // this is the contribution of each kernel to each sampling point on the
    // equator
    vnl_matrix<double> *G
      = new vnl_matrix<double>(m_NumberOfEquatorSamplingPoints*NOdfDirections,NBasisFunctionCenters);

    {
      for(unsigned int r=0; r<m_NumberOfEquatorSamplingPoints*NOdfDirections; r++)
      {
        for(int c=0; c<NBasisFunctionCenters; c++)
        {
          double stv =  (*S)(0,r)*(*V)(0,c)
            + (*S)(1,r)*(*V)(1,c)
            + (*S)(2,r)*(*V)(2,c);
          stv = (stv<-1.0) ? -1.0 : ( (stv>1.0) ? 1.0 : stv);
          double x = acos(stv);
          (*G)(r,c) = (1.0/(bestSigma*sqrt(2.0*QBALL_RECON_PI)))
            *exp((-x*x)/(2*bestSigma*bestSigma));
        }
      }
    }

    vnl_matrix<double> *GH_plus =
      new vnl_matrix<double>(m_NumberOfEquatorSamplingPoints*NOdfDirections,m_NumberOfGradientDirections);

    // simple matrix multiplication, manual cause of stack overflow using operator
    for (unsigned i = 0; i < m_NumberOfEquatorSamplingPoints*NOdfDirections; ++i)
      for (unsigned j = 0; j < m_NumberOfGradientDirections; ++j)
      {
        double accum = (*G)(i,0) * (*H_plus)(0,j);
        for (unsigned k = 1; k < NOdfDirections; ++k)
          accum += (*G)(i,k) * (*H_plus)(k,j);
        (*GH_plus)(i,j) = accum;
      }

      typename vnl_matrix<double>::iterator it3;
      for( it3 = (*GH_plus).begin(); it3 != (*GH_plus).end(); it3++)
      {
        if(*it3<0.0)
          *it3 = 0;
      }

      // this is an addition to the original tuch algorithm
      for(unsigned int i=0; i<NOdfDirections*m_NumberOfEquatorSamplingPoints; i++)
      {
        vnl_vector< double > r = GH_plus->get_row(i);
        r /= r.sum();
        GH_plus->set_row(i,r);
      }

      //tofile((*G),"G.m");
      //tofile((*H_plus),"H_plus.m");
      //tofile((*GH_plus),"GH_plus.m");

      m_ReconstructionMatrix
        = new vnl_matrix<TOdfPixelType>(NOdfDirections,m_NumberOfGradientDirections,0.0);
      for(int i=0; i<NOdfDirections; i++)
      {
        for(unsigned int j=0; j<m_NumberOfGradientDirections; j++)
        {
          for(unsigned int k=0; k<m_NumberOfEquatorSamplingPoints; k++)
          {
            (*m_ReconstructionMatrix)(i,j) += (TOdfPixelType)(*GH_plus)(m_NumberOfEquatorSamplingPoints*i+k,j);
          }
        }
      }

      // this is also an addition to the original tuch algorithm
      for(int i=0; i<NOdfDirections; i++)
      {
        vnl_vector< TOdfPixelType > r = m_ReconstructionMatrix->get_row(i);
        r /= r.sum();
        m_ReconstructionMatrix->set_row(i,r);
      }
      std::cout << "Reconstruction Matrix computed." << std::endl;

  }

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters = NrOdfDirections>

virtual const TOdfPixelType& itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::GetBValue ( ) [virtual]

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters = NrOdfDirections>

virtual BZeroImageType::Pointer itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::GetBZeroImage ( ) [virtual]

Output image with b-zero weighted images

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters = NrOdfDirections>

virtual const char* itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::GetClassName ( ) const [virtual]

Runtime information support.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters = NrOdfDirections>

virtual GradientDirectionType itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::GetGradientDirection ( unsigned int idx ) const [inline, virtual]

Return the gradient direction. idx is 0 based

Definition at line 216 of file itkDiffusionQballReconstructionImageFilter.h.

    {
    if( idx >= m_NumberOfGradientDirections )
      {
      itkExceptionMacro( << "Gradient direction " << idx << "does not exist" );
      }
    return m_GradientDirectionContainer->ElementAt( idx+1 );
    }

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters = NrOdfDirections>

virtual Normalization itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::GetNormalizationMethod ( ) [virtual]

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters = NrOdfDirections>

virtual ReferenceImageType* itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::GetReferenceImage ( ) [inline, virtual]

Get reference image

Definition at line 212 of file itkDiffusionQballReconstructionImageFilter.h.

  { return ( static_cast< ReferenceImageType *>(this->ProcessObject::GetInput(0)) ); }

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters = NrOdfDirections>

virtual ReferencePixelType itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::GetThreshold ( ) [virtual]

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters = NrOdfDirections>

itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::itkStaticConstMacro	(	NBasisFunctionCenters	,
		int	,
		NrBasisFunctionCenters
	)

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters = NrOdfDirections>

itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::itkStaticConstMacro	(	NOdfDirections	,
		int	,
		NrOdfDirections
	)

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters = NrOdfDirections>

static Pointer itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::New ( ) [static]

Method for creation through the object factory.

template<class TReferenceImagePixelType , class TGradientImagePixelType , class TOdfPixelType , int NrOdfDirections, int NrBasisFunctionCenters>

itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::OdfPixelType DiffusionQballReconstructionImageFilter::Normalize	(	OdfPixelType	odf,
		typename NumericTraits< ReferencePixelType >::AccumulateType	b0
	)

Normalization performed on the reconstructed ODF according to method set in m_NormalizationMethod

Definition at line 128 of file itkDiffusionQballReconstructionImageFilter.txx.

References QuadProgPP::log(), and itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::Normalize().

Referenced by itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::Normalize().

  {
    switch( m_NormalizationMethod )
    {

      // divide by sum to retreive a PDF
    case QBR_STANDARD:
      {
        odf.Normalize();
        return odf;
        break;
      }
      // ADC style
    case QBR_B_ZERO_B_VALUE:
      {
        for(int i=0; i<NrOdfDirections; i++)
        {
          odf[i] = ((TOdfPixelType)log((TOdfPixelType)b0)-odf[i])/m_BValue;
        }
        return odf;
        break;
      }
      // divide by b-zero value of voxel
    case QBR_B_ZERO:
      {
        odf *= 1.0/b0;
        return odf;
        break;
      }
      // no normalization of ODF
    case QBR_NONE:
      {
        return odf;
        break;
      }
    }

    return odf;
  }

template<class TReferenceImagePixelType , class TGradientImagePixelType , class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters>

vnl_vector< TOdfPixelType > DiffusionQballReconstructionImageFilter::PreNormalize ( vnl_vector< TOdfPixelType > vec )

Normalization performed on diffusion signal vector according to method set in m_NormalizationMethod

Definition at line 174 of file itkDiffusionQballReconstructionImageFilter.txx.

References QuadProgPP::log().

  {
    switch( m_NormalizationMethod )
    {
      // standard: no normalization before reconstruction
    case QBR_STANDARD:
      {
        return vec;
        break;
      }
      // log of signal
    case QBR_B_ZERO_B_VALUE:
      {
        int n = vec.size();
        for(int i=0; i<n; i++)
        {
          vec[i] = log(vec[i]);
        }
        return vec;
        break;
      }
      // no normalization before reconstruction here
    case QBR_B_ZERO:
      {
        return vec;
        break;
      }
      // no normalization before reconstruction here
    case QBR_NONE:
      {
        return vec;
        break;
      }
    }

    return vec;
  }

template<class TReferenceImagePixelType , class TGradientImagePixelType , class TOdfPixelType , int NrOdfDirections, int NrBasisFunctionCenters>

void DiffusionQballReconstructionImageFilter::PrintSelf	(	std::ostream &	os,
		Indent	indent
	)		const `[protected]`

Definition at line 824 of file itkDiffusionQballReconstructionImageFilter.txx.

  {
    Superclass::PrintSelf(os,indent);

    os << indent << "OdfReconstructionMatrix: " << m_ReconstructionMatrix << std::endl;
    if ( m_GradientDirectionContainer )
    {
      os << indent << "GradientDirectionContainer: "
        << m_GradientDirectionContainer << std::endl;
    }
    else
    {
      os << indent <<
        "GradientDirectionContainer: (Gradient directions not set)" << std::endl;
    }
    os << indent << "NumberOfGradientDirections: " <<
      m_NumberOfGradientDirections << std::endl;
    os << indent << "NumberOfBaselineImages: " <<
      m_NumberOfBaselineImages << std::endl;
    os << indent << "Threshold for reference B0 image: " << m_Threshold << std::endl;
    os << indent << "BValue: " << m_BValue << std::endl;
    if ( this->m_GradientImageTypeEnumeration == GradientIsInManyImages )
    {
      os << indent << "Gradient images haven been supplied " << std::endl;
    }
    else if ( this->m_GradientImageTypeEnumeration == GradientIsInManyImages )
    {
      os << indent << "A multicomponent gradient image has been supplied" << std::endl;
    }
  }

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters = NrOdfDirections>

virtual void itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::SetBValue ( TOdfPixelType _arg ) [virtual]

B-value used to acquire the diffusion signal

template<class TReferenceImagePixelType , class TGradientImagePixelType , class TOdfPixelType , int NrOdfDirections, int NrBasisFunctionCenters>

void DiffusionQballReconstructionImageFilter::SetGradientImage	(	GradientDirectionContainerType *	gradientDirection,
		const GradientImagesType *	image
	)

Another set method to add a gradient directions and its corresponding image. The image here is a VectorImage. The user is expected to pass the gradient directions in a container. The ith element of the container corresponds to the gradient direction of the ith component image the VectorImage. For the baseline image, a vector of all zeros should be set.

Definition at line 770 of file itkDiffusionQballReconstructionImageFilter.txx.

  {
    // Make sure crazy users did not call both AddGradientImage and
    // SetGradientImage
    if( m_GradientImageTypeEnumeration == GradientIsInManyImages )
    {
      itkExceptionMacro( << "Cannot call both methods:"
        << "AddGradientImage and SetGradientImage. Please call only one of them.");
    }

    this->m_GradientDirectionContainer = gradientDirection;

    unsigned int numImages = gradientDirection->Size();
    this->m_NumberOfBaselineImages = 0;
    for(GradientDirectionContainerType::Iterator it = this->m_GradientDirectionContainer->Begin();
      it != this->m_GradientDirectionContainer->End(); it++)
    {
      if(it.Value().one_norm() <= 0.0)
      {
        this->m_NumberOfBaselineImages++;
      }
      else // Normalize non-zero gradient directions
      {
        it.Value() = it.Value() / it.Value().two_norm();
      }
    }

    this->m_NumberOfGradientDirections = numImages - this->m_NumberOfBaselineImages;

    // ensure that the gradient image we received has as many components as
    // the number of gradient directions
    if( gradientImage->GetVectorLength() != this->m_NumberOfBaselineImages + m_NumberOfGradientDirections )
    {
      itkExceptionMacro( << m_NumberOfGradientDirections << " gradients + " << this->m_NumberOfBaselineImages
        << "baselines = " << m_NumberOfGradientDirections + this->m_NumberOfBaselineImages
        << " directions specified but image has " << gradientImage->GetVectorLength()
        << " components.");
    }

    this->ProcessObject::SetNthInput( 0,
      const_cast< GradientImagesType* >(gradientImage) );
    m_GradientImageTypeEnumeration = GradientIsInASingleImage;
  }

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters = NrOdfDirections>

virtual void itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::SetNormalizationMethod ( Normalization _arg ) [virtual]

Normalization applied to ODFs

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters = NrOdfDirections>

void itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::SetReferenceImage ( ReferenceImageType * referenceImage ) [inline]

Set method to set the reference image.

Definition at line 198 of file itkDiffusionQballReconstructionImageFilter.h.

References itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::GradientIsInASingleImage, and itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::GradientIsInManyImages.

    {
    if( m_GradientImageTypeEnumeration == GradientIsInASingleImage)
      {
      itkExceptionMacro( << "Cannot call both methods:"
      << "AddGradientImage and SetGradientImage. Please call only one of them.");
      }

    this->ProcessObject::SetNthInput( 0, referenceImage );

    m_GradientImageTypeEnumeration = GradientIsInManyImages;
    }

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NrOdfDirections, int NrBasisFunctionCenters = NrOdfDirections>

virtual void itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters >::SetThreshold ( ReferencePixelType _arg ) [virtual]

Threshold on the reference image data. The output ODF will be a null pdf for pixels in the reference image that have a value less than this threshold.

template<class TReferenceImagePixelType , class TGradientImagePixelType , class TOdfPixelType , int NrOdfDirections, int NrBasisFunctionCenters>

void DiffusionQballReconstructionImageFilter::ThreadedGenerateData	(	const OutputImageRegionType &	outputRegionForThread,
		int
	)		`[protected]`

Definition at line 220 of file itkDiffusionQballReconstructionImageFilter.txx.

  {
    // init output and b-zero iterators
    typename OutputImageType::Pointer outputImage =
      static_cast< OutputImageType * >(this->ProcessObject::GetOutput(0));
    ImageRegionIterator< OutputImageType > oit(outputImage, outputRegionForThread);
    oit.GoToBegin();
    ImageRegionIterator< BZeroImageType > oit2(m_BZeroImage, outputRegionForThread);
    oit2.GoToBegin();
    vnl_vector<TOdfPixelType> B(m_NumberOfGradientDirections);

    // Two cases here:
    // 1. Gradients specified in multiple images
    // 'n' iterators for each of the gradient images
    // 2. Gradients specified in a single multi-component image
    // one iterator for all gradient directions

    if( m_GradientImageTypeEnumeration == GradientIsInManyImages )
    {
      // b-zero reference image iterator
      ImageRegionConstIterator< ReferenceImageType >
        it(static_cast< ReferenceImageType * >(this->ProcessObject::GetInput(0)),
        outputRegionForThread);
      it.GoToBegin();

      // fill vector with gradient iterators
      typedef ImageRegionConstIterator< GradientImageType > GradientIteratorType;
      std::vector< GradientIteratorType * > gradientItContainer;
      for( unsigned int i = 1; i<= m_NumberOfGradientDirections; i++ )
      {
        // adapt index in case we have a duplicated shell
        int index = i;
        if(m_DirectionsDuplicated)
          index = i % (m_NumberOfGradientDirections/2);

        // init and pushback current input image iterator
        typename GradientImageType::Pointer gradientImagePointer = NULL;
        // dynamic_cast would be nice, static because of SGI
        gradientImagePointer = static_cast< GradientImageType * >(
          this->ProcessObject::GetInput(index) );
        GradientIteratorType *git = new GradientIteratorType(
          gradientImagePointer, outputRegionForThread );
        git->GoToBegin();
        gradientItContainer.push_back(git);
      }

      // Following loop does the actual reconstruction work in each voxel
      // (Tuch, Q-Ball Reconstruction [1])
      while( !it.IsAtEnd() )
      {

        // b-zero reference value
        ReferencePixelType b0 = it.Get();

        // init ODF
        OdfPixelType odf(0.0);

        // threshold on reference value to suppress noisy regions
        if( (b0 != 0) && (b0 >= m_Threshold) )
        {

          // fill array of diffusion measurements
          for( unsigned int i = 0; i< m_NumberOfGradientDirections; i++ )
          {
            GradientPixelType b = gradientItContainer[i]->Get();
            B[i] = static_cast<TOdfPixelType>(b);
            ++(*gradientItContainer[i]);
          }

          // pre-normalization according to m_NormalizationMethod
          B = PreNormalize(B);

          // actual reconstruction
          odf = ( (*m_ReconstructionMatrix) * B ).data_block();

          // post-normalization according to m_NormalizationMethod
          odf.Normalize();

        }
        else
        {
          // in case we fall below threshold, we just increment to next voxel
          for( unsigned int i = 0; i< m_NumberOfGradientDirections; i++ )
          {
            ++(*gradientItContainer[i]);
          }
        }

        // set and increment output iterators
        oit.Set( odf );
        ++oit;
        oit2.Set( b0 );
        ++oit2;
        ++it;
      }

      // clean up
      for( unsigned int i = 0; i< gradientItContainer.size(); i++ )
      {
        delete gradientItContainer[i];
      }
    }
    // The gradients are specified in a single multi-component image
    else if( m_GradientImageTypeEnumeration == GradientIsInASingleImage )
    {

      // init input iterator
      typedef ImageRegionConstIterator< GradientImagesType > GradientIteratorType;
      typedef typename GradientImagesType::PixelType         GradientVectorType;
      typename GradientImagesType::Pointer gradientImagePointer = NULL;
      // dynamic_cast would be nice, static because of SGI
      gradientImagePointer = static_cast< GradientImagesType * >(
        this->ProcessObject::GetInput(0) );
      GradientIteratorType git(gradientImagePointer, outputRegionForThread );
      git.GoToBegin();

      // set of indicies each for the baseline images and gradient images
      std::vector<unsigned int> baselineind; // contains baseline indicies
      std::vector<unsigned int> gradientind; // contains gradient indicies
      for(GradientDirectionContainerType::ConstIterator gdcit = this->m_GradientDirectionContainer->Begin();
        gdcit != this->m_GradientDirectionContainer->End(); ++gdcit)
      {
        if(gdcit.Value().one_norm() <= 0.0)
        {
          baselineind.push_back(gdcit.Index());
        }
        else
        {
          gradientind.push_back(gdcit.Index());
        }
      }

      // in case we have a duplicated shell, we also duplicate or indices
      if( m_DirectionsDuplicated )
      {
        int gradIndSize = gradientind.size();
        for(int i=0; i<gradIndSize; i++)
          gradientind.push_back(gradientind[i]);
      }

      // Following loop does the actual reconstruction work in each voxel
      // (Tuch, Q-Ball Reconstruction [1])
      while( !git.IsAtEnd() )
      {
        // current vector of diffusion measurements
        GradientVectorType b = git.Get();

        // average of current b-zero reference values
        typename NumericTraits<ReferencePixelType>::AccumulateType b0 = NumericTraits<ReferencePixelType>::Zero;
        for(unsigned int i = 0; i < baselineind.size(); ++i)
        {
          b0 += b[baselineind[i]];
        }
        b0 /= this->m_NumberOfBaselineImages;

        // init resulting ODF
        OdfPixelType odf(0.0);

        // threshold on reference value to suppress noisy regions
        if( (b0 != 0) && (b0 >= m_Threshold) )
        {
          for( unsigned int i = 0; i< m_NumberOfGradientDirections; i++ )
          {
            B[i] = static_cast<TOdfPixelType>(b[gradientind[i]]);
          }

          // pre-normalization according to m_NormalizationMethod
          B = PreNormalize(B);

          // actual reconstruction
          odf = ( (*m_ReconstructionMatrix) * B ).data_block();

          // post-normalization according to m_NormalizationMethod
          odf = Normalize(odf, b0);

        }

        // set and increment output iterators
        oit.Set( odf );
        ++oit;
        oit2.Set( b0 );
        ++oit2;
        ++git; // Gradient  image iterator
      }
    }

    std::cout << "One Thread finished reconstruction" << std::endl;
  }

The documentation for this class was generated from the following files:

itk::DiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NrOdfDirections, NrBasisFunctionCenters > Class Template Reference

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation
