This class takes as input one or more reference image (acquired in the absence of diffusion sensitizing gradients) and 'n' diffusion weighted images and their gradient directions and computes an image of orientation distribution function coefficients in a spherical harmonic basis. More...

#include <itkAnalyticalDiffusionQballReconstructionImageFilter.h>

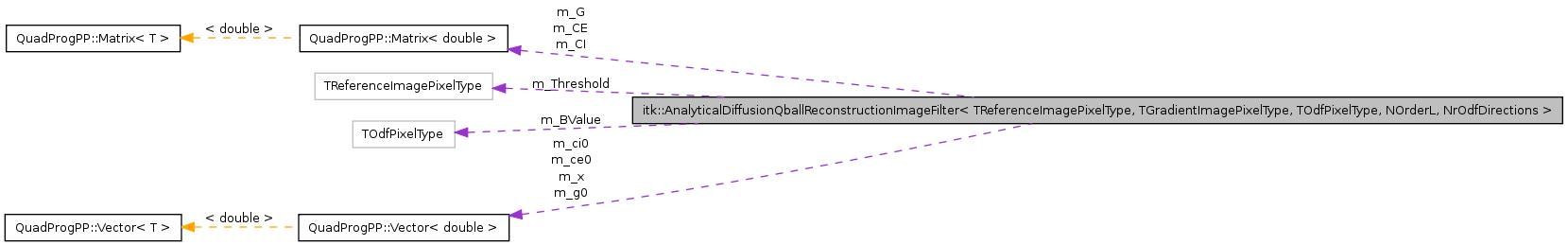

Collaboration diagram for itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >:

[legend]

List of all members.

Public Types
enum	Normalization { QBAR_STANDARD, QBAR_B_ZERO_B_VALUE, QBAR_B_ZERO, QBAR_NONE, QBAR_ADC_ONLY, QBAR_RAW_SIGNAL, QBAR_SOLID_ANGLE, QBAR_NONNEG_SOLID_ANGLE }
typedef AnalyticalDiffusionQballReconstructionImageFilter	Self
typedef SmartPointer< Self >	Pointer
typedef SmartPointer< const Self >	ConstPointer
typedef ImageToImageFilter < Image < TReferenceImagePixelType, 3 > , Image< Vector< TOdfPixelType, NrOdfDirections >, 3 > >	Superclass
typedef TReferenceImagePixelType	ReferencePixelType
typedef TGradientImagePixelType	GradientPixelType
typedef Vector< TOdfPixelType, NrOdfDirections >	OdfPixelType
typedef Superclass::InputImageType	ReferenceImageType
typedef Image< OdfPixelType, 3 >	OdfImageType
typedef OdfImageType	OutputImageType
typedef TOdfPixelType	BZeroPixelType
typedef Image< BZeroPixelType, 3 >	BZeroImageType
typedef Superclass::OutputImageRegionType	OutputImageRegionType
typedef Image < GradientPixelType, 3 >	GradientImageType
typedef VectorImage < GradientPixelType, 3 >	GradientImagesType
typedef vnl_matrix < TOdfPixelType > *	OdfReconstructionMatrixType
typedef vnl_matrix< double >	CoefficientMatrixType
typedef vnl_vector_fixed < double, 3 >	GradientDirectionType
typedef VectorContainer < unsigned int, GradientDirectionType >	GradientDirectionContainerType
Public Member Functions
virtual const char *	GetClassName () const
void	SetGradientImage (GradientDirectionContainerType , const GradientImagesType image)
virtual ReferenceImageType *	GetReferenceImage ()
virtual GradientDirectionType	GetGradientDirection (unsigned int idx) const
OdfPixelType	Normalize (OdfPixelType odf, typename NumericTraits< ReferencePixelType >::AccumulateType b0)
vnl_vector< TOdfPixelType >	PreNormalize (vnl_vector< TOdfPixelType > vec, typename NumericTraits< ReferencePixelType >::AccumulateType b0)
virtual void	SetThreshold (ReferencePixelType _arg)
virtual ReferencePixelType	GetThreshold ()
virtual void	SetNormalizationMethod (Normalization _arg)
virtual Normalization	GetNormalizationMethod ()
virtual BZeroImageType::Pointer	GetBZeroImage ()
virtual void	SetBValue (TOdfPixelType _arg)
virtual const TOdfPixelType &	GetBValue ()
virtual void	SetLambda (double _arg)
virtual double	GetLambda ()
Static Public Member Functions
static Pointer	New ()
static void	tofile2 (vnl_matrix< double > *A, std::string fname)
static double	factorial (int number)
static void	Cart2Sph (double x, double y, double z, double *cart)
static double	legendre0 (int l)
static double	spherical_harmonic (int m, int l, double theta, double phi, bool complexPart)
static double	Yj (int m, int k, double theta, double phi)
Protected Member Functions
	AnalyticalDiffusionQballReconstructionImageFilter ()
	~AnalyticalDiffusionQballReconstructionImageFilter ()
void	PrintSelf (std::ostream &os, Indent indent) const
void	ComputeReconstructionMatrix ()
void	BeforeThreadedGenerateData ()
void	ThreadedGenerateData (const OutputImageRegionType &outputRegionForThread, int)

Detailed Description

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections>
class itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >

This class takes as input one or more reference image (acquired in the absence of diffusion sensitizing gradients) and 'n' diffusion weighted images and their gradient directions and computes an image of orientation distribution function coefficients in a spherical harmonic basis.

Inputs and Usage

When you have the 'n' gradient and one or more reference images in a single multi-component image (VectorImage), you can specify the images as

       filter->SetGradientImage( directionsContainer, vectorImage );

Note that this method is used to specify both the reference and gradient images. This is convenient when the DWI images are read in using the NRRD format. Like the Nrrd format, the reference images are those components of the vectorImage whose gradient direction is (0,0,0). If more than one reference image is present, they are averaged prior to the reconstruction.

Outputs

The output image is an image of vectors that must be understood as ODFs:

       Image< Vector< TPixelType, OdfNrDirections >, 3 >

Parameters

Threshold - Threshold on the reference image data. The output ODF will be a null pdf for pixels in the reference image that have a value less than this.
BValue - See the documentation of SetBValue().
At least 6 gradient images must be specified for the filter to be able to run. If the input gradient directions g_i are majorly sampled on one half of the sqhere, then each input image I_i will be duplicated and assign -g_i in order to guarantee stability of the algorithm.
OdfDirections - directions of resulting orientation distribution function
EquatorNrSamplingPoints - number of sampling points on equator when performing Funk Radeon Transform (FRT)
BasisFunctionCenters - the centers of the basis functions are used for the sRBF (spherical radial basis functions interpolation). If not set, they will be defaulted to equal m_EquatorNrSamplingPoints

Template parameters

The class is templated over

the pixel type of the reference and gradient images (expected to be scalar data types)
the internal representation of the ODF pixels (double, float etc).
the number of OdfDirections
the number of basis function centers for the sRBF

References:

[1] Tuch DS, "Q-ball imaging", Magn Reson Med. 2004 Dec;52(6):1358-72.

Definition at line 92 of file itkAnalyticalDiffusionQballReconstructionImageFilter.h.

Member Typedef Documentation

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections>

typedef Image< BZeroPixelType, 3 > itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::BZeroImageType

Definition at line 141 of file itkAnalyticalDiffusionQballReconstructionImageFilter.h.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections>

typedef TOdfPixelType itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::BZeroPixelType

Definition at line 139 of file itkAnalyticalDiffusionQballReconstructionImageFilter.h.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections>

typedef vnl_matrix< double > itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::CoefficientMatrixType

Definition at line 159 of file itkAnalyticalDiffusionQballReconstructionImageFilter.h.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections>

typedef SmartPointer<const Self> itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::ConstPointer

Definition at line 112 of file itkAnalyticalDiffusionQballReconstructionImageFilter.h.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections>

typedef VectorContainer< unsigned int, GradientDirectionType > itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::GradientDirectionContainerType

Container to hold gradient directions of the 'n' DW measurements

Definition at line 166 of file itkAnalyticalDiffusionQballReconstructionImageFilter.h.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections>

typedef vnl_vector_fixed< double, 3 > itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::GradientDirectionType

Holds each magnetic field gradient used to acquire one DWImage

Definition at line 162 of file itkAnalyticalDiffusionQballReconstructionImageFilter.h.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections>

typedef VectorImage< GradientPixelType, 3 > itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::GradientImagesType

An alternative typedef defining one (of the many) gradient images. It will be assumed that the vectorImage has the same dimension as the Reference image and a vector length parameter of n (number of gradient directions)

Definition at line 153 of file itkAnalyticalDiffusionQballReconstructionImageFilter.h.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections>

typedef Image< GradientPixelType, 3 > itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::GradientImageType

Typedef defining one (of the many) gradient images.

Definition at line 147 of file itkAnalyticalDiffusionQballReconstructionImageFilter.h.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections>

typedef TGradientImagePixelType itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::GradientPixelType

Definition at line 126 of file itkAnalyticalDiffusionQballReconstructionImageFilter.h.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections>

typedef Image< OdfPixelType, 3 > itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::OdfImageType

Definition at line 135 of file itkAnalyticalDiffusionQballReconstructionImageFilter.h.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections>

typedef Vector< TOdfPixelType, NrOdfDirections > itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::OdfPixelType

Definition at line 129 of file itkAnalyticalDiffusionQballReconstructionImageFilter.h.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections>

typedef vnl_matrix< TOdfPixelType >* itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::OdfReconstructionMatrixType

Holds the ODF reconstruction matrix

Definition at line 157 of file itkAnalyticalDiffusionQballReconstructionImageFilter.h.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections>

typedef Superclass::OutputImageRegionType itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::OutputImageRegionType

Definition at line 144 of file itkAnalyticalDiffusionQballReconstructionImageFilter.h.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections>

typedef OdfImageType itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::OutputImageType

Definition at line 137 of file itkAnalyticalDiffusionQballReconstructionImageFilter.h.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections>

typedef SmartPointer<Self> itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::Pointer

Definition at line 111 of file itkAnalyticalDiffusionQballReconstructionImageFilter.h.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections>

typedef Superclass::InputImageType itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::ReferenceImageType

Reference image data, This image is aquired in the absence of a diffusion sensitizing field gradient

Definition at line 133 of file itkAnalyticalDiffusionQballReconstructionImageFilter.h.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections>

typedef TReferenceImagePixelType itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::ReferencePixelType

Definition at line 122 of file itkAnalyticalDiffusionQballReconstructionImageFilter.h.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections>

typedef AnalyticalDiffusionQballReconstructionImageFilter itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::Self

Definition at line 110 of file itkAnalyticalDiffusionQballReconstructionImageFilter.h.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections>

typedef ImageToImageFilter< Image< TReferenceImagePixelType, 3>, Image< Vector< TOdfPixelType, NrOdfDirections >, 3 > > itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::Superclass

Definition at line 115 of file itkAnalyticalDiffusionQballReconstructionImageFilter.h.

Member Enumeration Documentation

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections>

enum itk::AnalyticalDiffusionQballReconstructionImageFilter::Normalization

Enumerator:

QBAR_STANDARD
QBAR_B_ZERO_B_VALUE
QBAR_B_ZERO
QBAR_NONE
QBAR_ADC_ONLY
QBAR_RAW_SIGNAL
QBAR_SOLID_ANGLE
QBAR_NONNEG_SOLID_ANGLE

Definition at line 99 of file itkAnalyticalDiffusionQballReconstructionImageFilter.h.

                     {
    QBAR_STANDARD,
    QBAR_B_ZERO_B_VALUE,
    QBAR_B_ZERO,
    QBAR_NONE,
    QBAR_ADC_ONLY,
    QBAR_RAW_SIGNAL,
    QBAR_SOLID_ANGLE,
    QBAR_NONNEG_SOLID_ANGLE
  };

Constructor & Destructor Documentation

template<class T , class TG , class TO , int L, int NODF>

itk::AnalyticalDiffusionQballReconstructionImageFilter< T, TG, TO, L, NODF >::AnalyticalDiffusionQballReconstructionImageFilter ( ) [protected]

Definition at line 42 of file itkAnalyticalDiffusionQballReconstructionImageFilter.cpp.

                                                        :
    m_GradientDirectionContainer(NULL),
    m_NumberOfGradientDirections(0),
    m_NumberOfBaselineImages(1),
    m_Threshold(NumericTraits< ReferencePixelType >::NonpositiveMin()),
    m_BValue(1.0),
    m_Lambda(0.0),
    m_DirectionsDuplicated(false)
  {
    // At least 1 inputs is necessary for a vector image.
    // For images added one at a time we need at least six
    this->SetNumberOfRequiredInputs( 1 );

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections>

itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::~AnalyticalDiffusionQballReconstructionImageFilter ( ) [inline, protected]

Definition at line 244 of file itkAnalyticalDiffusionQballReconstructionImageFilter.h.

{};

Member Function Documentation

template<class T , class TG , class TO , int L, int NODF>

void itk::AnalyticalDiffusionQballReconstructionImageFilter< T, TG, TO, L, NODF >::BeforeThreadedGenerateData ( void ) [protected]

Definition at line 210 of file itkAnalyticalDiffusionQballReconstructionImageFilter.cpp.

      {
        // If we have more than 2 inputs, then each input, except the first is a
        // gradient image. The number of gradient images must match the number of
        // gradient directions.
        //const unsigned int numberOfInputs = this->GetNumberOfInputs();

        // There need to be at least 6 gradient directions to be able to compute the
        // tensor basis
        if( m_NumberOfGradientDirections < 6 )
        {
          itkExceptionMacro( << "At least 6 gradient directions are required" );
        }

        // Input must be an itk::VectorImage.
        std::string gradientImageClassName(
          this->ProcessObject::GetInput(0)->GetNameOfClass());
        if ( strcmp(gradientImageClassName.c_str(),"VectorImage") != 0 )
        {
          itkExceptionMacro( <<
            "There is only one Gradient image. I expect that to be a VectorImage. "
            << "But its of type: " << gradientImageClassName );
        }

        this->ComputeReconstructionMatrix();

        m_BZeroImage = BZeroImageType::New();
        typename GradientImagesType::Pointer img = static_cast< GradientImagesType * >(
          this->ProcessObject::GetInput(0) );
        m_BZeroImage->SetSpacing( img->GetSpacing() );   // Set the image spacing
        m_BZeroImage->SetOrigin( img->GetOrigin() );     // Set the image origin
        m_BZeroImage->SetDirection( img->GetDirection() );  // Set the image direction
        m_BZeroImage->SetLargestPossibleRegion( img->GetLargestPossibleRegion());
        m_BZeroImage->SetBufferedRegion( img->GetLargestPossibleRegion() );
        m_BZeroImage->Allocate();

        if(m_NormalizationMethod == QBAR_SOLID_ANGLE ||
          m_NormalizationMethod == QBAR_NONNEG_SOLID_ANGLE)
        {
          m_Lambda = 0.0;
        }

template<class T , class TG , class TO , int L, int NODF>

void itk::AnalyticalDiffusionQballReconstructionImageFilter< T, TG, TO, L, NODF >::Cart2Sph	(	double	x,
		double	y,
		double	z,
		double *	cart
	)		`[static]`

Definition at line 418 of file itkAnalyticalDiffusionQballReconstructionImageFilter.cpp.

References QBALL_ANAL_RECON_PI, and QuadProgPP::sqrt().

      {
        double phi, th, rad;
        rad = sqrt(x*x+y*y+z*z);
        th = atan2(z,sqrt(x*x+y*y));
        phi = atan2(y,x);
        th = -th+QBALL_ANAL_RECON_PI/2;
        phi = -phi+QBALL_ANAL_RECON_PI;
        cart[0] = phi;
        cart[1] = th;
        cart[2] = rad;

template<class T , class TG , class TO , int L, int NODF>

void itk::AnalyticalDiffusionQballReconstructionImageFilter< T, TG, TO, L, NODF >::ComputeReconstructionMatrix ( ) [protected]

Definition at line 532 of file itkAnalyticalDiffusionQballReconstructionImageFilter.cpp.

References int(), and QBALL_ANAL_RECON_PI.

      {

        //for(int i=-6;i<7;i++)
        //  std::cout << boost::math::legendre_p<double>(6, i, 0.65657) << std::endl;

        if( m_NumberOfGradientDirections < 6 )
        {
          itkExceptionMacro( << "Not enough gradient directions supplied. Need to supply at least 6" );
        }

        {
          // check for duplicate diffusion gradients
          bool warning = false;
          for(GradientDirectionContainerType::ConstIterator gdcit1 = this->m_GradientDirectionContainer->Begin();
            gdcit1 != this->m_GradientDirectionContainer->End(); ++gdcit1)
          {
            for(GradientDirectionContainerType::ConstIterator gdcit2 = this->m_GradientDirectionContainer->Begin();
              gdcit2 != this->m_GradientDirectionContainer->End(); ++gdcit2)
            {
              if(gdcit1.Value() == gdcit2.Value() && gdcit1.Index() != gdcit2.Index())
              {
                itkWarningMacro( << "Some of the Diffusion Gradients equal each other. Corresponding image data should be averaged before calling this filter." );
                warning = true;
                break;
              }
            }
            if (warning) break;
          }

          // handle acquisition schemes where only half of the spherical
          // shell is sampled by the gradient directions. In this case,
          // each gradient direction is duplicated in negative direction.
          vnl_vector<double> centerMass(3);
          centerMass.fill(0.0);
          int count = 0;
          for(GradientDirectionContainerType::ConstIterator gdcit1 = this->m_GradientDirectionContainer->Begin();
            gdcit1 != this->m_GradientDirectionContainer->End(); ++gdcit1)
          {
            if(gdcit1.Value().one_norm() > 0.0)
            {
              centerMass += gdcit1.Value();
              count ++;
            }
          }
          centerMass /= count;
          if(centerMass.two_norm() > 0.1)
          {
            m_DirectionsDuplicated = true;
            m_NumberOfGradientDirections *= 2;
          }
        }

        vnl_matrix<double> *Q
          = new vnl_matrix<double>(3, m_NumberOfGradientDirections);

        {
          int i = 0;
          for(GradientDirectionContainerType::ConstIterator gdcit = this->m_GradientDirectionContainer->Begin();
            gdcit != this->m_GradientDirectionContainer->End(); ++gdcit)
          {
            if(gdcit.Value().one_norm() > 0.0)
            {
              double x = gdcit.Value().get(0);
              double y = gdcit.Value().get(1);
              double z = gdcit.Value().get(2);
              double cart[3];
              Cart2Sph(x,y,z,cart);
              (*Q)(0,i) = cart[0];
              (*Q)(1,i) = cart[1];
              (*Q)(2,i++) = cart[2];
            }
          }
          if(m_DirectionsDuplicated)
          {
            for(GradientDirectionContainerType::ConstIterator gdcit = this->m_GradientDirectionContainer->Begin();
              gdcit != this->m_GradientDirectionContainer->End(); ++gdcit)
            {
              if(gdcit.Value().one_norm() > 0.0)
              {
                double x = gdcit.Value().get(0);
                double y = gdcit.Value().get(1);
                double z = gdcit.Value().get(2);
                double cart[3];
                Cart2Sph(x,y,z,cart);
                (*Q)(0,i) = cart[0];
                (*Q)(1,i) = cart[1];
                (*Q)(2,i++) = cart[2];
              }
            }
          }
        }

        int l = L;
        m_NumberCoefficients = (int)(l*l + l + 2.0)/2.0 + l;
        vnl_matrix<double>* B = new vnl_matrix<double>(m_NumberOfGradientDirections,m_NumberCoefficients);
        vnl_matrix<double>* _L = new vnl_matrix<double>(m_NumberCoefficients,m_NumberCoefficients);
        _L->fill(0.0);
        vnl_matrix<double>* LL = new vnl_matrix<double>(m_NumberCoefficients,m_NumberCoefficients);
        LL->fill(0.0);
        vnl_matrix<double>* P = new vnl_matrix<double>(m_NumberCoefficients,m_NumberCoefficients);
        P->fill(0.0);
        vnl_matrix<double>* Inv = new vnl_matrix<double>(m_NumberCoefficients,m_NumberCoefficients);
        P->fill(0.0);
        vnl_vector<int>* lj = new vnl_vector<int>(m_NumberCoefficients);
        m_LP = new vnl_vector<double>(m_NumberCoefficients);

        for(unsigned int i=0; i<m_NumberOfGradientDirections; i++)
        {
          for(int k=0; k<=l; k+=2)
          {
            for(int m=-k; m<=k; m++)
            {
              int j = (k*k + k + 2)/2 + m - 1;
              (*_L)(j,j) = -k*(k+1);
              (*m_LP)(j) = -k*(k+1);
              (*lj)[j] = k;
              double phi = (*Q)(0,i);
              double th = (*Q)(1,i);
              (*B)(i,j) = Yj(m,k,th,phi);
              //std::cout << "B(" << i << "," << j << ") = Yj(" << m << "," << k << "," << th << "," << phi << ") = " << (*B)(i,j) << std::endl;
            }
          }
        }

        //vnl_matrix<double> temp((*_L)*(*_L));
        LL->update(*_L);
        *LL *= *_L;
        //tofile2(LL,"LL");

        for(int i=0; i<m_NumberCoefficients; i++)
        {
          // here we leave out the 2*pi multiplication from Descoteaux
          // this is because we do not want the real integral value
          // but an average value over the equator.

          if(m_NormalizationMethod == QBAR_SOLID_ANGLE ||
            m_NormalizationMethod == QBAR_NONNEG_SOLID_ANGLE)
          {
            (*P)(i,i) = 2.0*QBALL_ANAL_RECON_PI*legendre0((*lj)[i]);
            (*m_LP)(i) *= (*P)(i,i);
          }
          else
          {
            (*P)(i,i) = legendre0((*lj)[i]);
          }
        }
        m_B_t = new vnl_matrix<double>(B->transpose());
        //tofile2(&m_B_t,"m_B_t");
        vnl_matrix<double> B_t_B = (*m_B_t) * (*B);
        //tofile2(&B_t_B,"B_t_B");
        vnl_matrix<double> lambdaLL(m_NumberCoefficients,m_NumberCoefficients);
        lambdaLL.update((*LL));
        lambdaLL *= m_Lambda;
        //tofile2(&lambdaLL,"lLL");

        vnl_matrix<double> tmp( B_t_B + lambdaLL);
        vnl_matrix_inverse<double> *pseudoInverse
          = new vnl_matrix_inverse<double>( tmp );

        (*Inv) = pseudoInverse->pinverse();
        //tofile2(Inv,"Inv");
        vnl_matrix<double> temp((*Inv) * (*m_B_t));
        double fac1 = (1.0/(16.0*QBALL_ANAL_RECON_PI*QBALL_ANAL_RECON_PI));
        switch(m_NormalizationMethod)
        {
        case QBAR_ADC_ONLY:
        case QBAR_RAW_SIGNAL:
          break;
        case QBAR_STANDARD:
        case QBAR_B_ZERO_B_VALUE:
        case QBAR_B_ZERO:
        case QBAR_NONE:
          temp = (*P) * temp;
          break;
        case QBAR_SOLID_ANGLE:
          temp = fac1 * (*P) * (*_L) * temp;
          break;
        case QBAR_NONNEG_SOLID_ANGLE:
          m_G = QuadProgPP::Matrix<double>(B_t_B.data_block(), B_t_B.rows(), B_t_B.cols());
          m_CE = QuadProgPP::Matrix<double>((double)0,m_NumberCoefficients,0);
          m_ce0 = QuadProgPP::Vector<double>((double)0,0);
          m_ci0 = QuadProgPP::Vector<double>(4*QBALL_ANAL_RECON_PI, NODF);
          m_x = QuadProgPP::Vector<double>(m_NumberCoefficients);
          (*m_LP) *= fac1;
          break;
        }

        //tofile2(&temp,"A");

        m_CoeffReconstructionMatrix = new vnl_matrix<TO>(m_NumberCoefficients,m_NumberOfGradientDirections);
        for(int i=0; i<m_NumberCoefficients; i++)
        {
          for(unsigned int j=0; j<m_NumberOfGradientDirections; j++)
          {
            (*m_CoeffReconstructionMatrix)(i,j) = (float) temp(i,j);
          }
        }

        // this code goes to the image adapter coeffs->odfs later

        int NOdfDirections = NODF;
        vnl_matrix_fixed<double, 3, NODF>* U =
          itk::PointShell<NODF, vnl_matrix_fixed<double, 3, NODF> >::DistributePointShell();

        m_SphericalHarmonicBasisMatrix  = new vnl_matrix<TO>(NOdfDirections,m_NumberCoefficients);
        vnl_matrix<double>* sphericalHarmonicBasisMatrix2
          = new vnl_matrix<double>(NOdfDirections,m_NumberCoefficients);
        for(int i=0; i<NOdfDirections; i++)
        {
          double x = (*U)(0,i);
          double y = (*U)(1,i);
          double z = (*U)(2,i);
          double cart[3];
          Cart2Sph(x,y,z,cart);
          (*U)(0,i) = cart[0];
          (*U)(1,i) = cart[1];
          (*U)(2,i) = cart[2];
        }

        for(int i=0; i<NOdfDirections; i++)
        {
          for(int k=0; k<=l; k+=2)
          {
            for(int m=-k; m<=k; m++)
            {
              int j = (k*k + k + 2)/2 + m - 1;
              double phi = (*U)(0,i);
              double th = (*U)(1,i);
              (*m_SphericalHarmonicBasisMatrix)(i,j) = Yj(m,k,th,phi);
              (*sphericalHarmonicBasisMatrix2)(i,j) = (*m_SphericalHarmonicBasisMatrix)(i,j);
            }
          }
        }

        if(m_NormalizationMethod == QBAR_NONNEG_SOLID_ANGLE)
        {
          vnl_matrix<double> CI_t =
            (*sphericalHarmonicBasisMatrix2) * (*P) * (*_L);
          m_CI = QuadProgPP::Matrix<double>(CI_t.transpose().data_block(), m_NumberCoefficients, NOdfDirections);
        }

        m_ReconstructionMatrix = new vnl_matrix<TO>(NOdfDirections,m_NumberOfGradientDirections);
        *m_ReconstructionMatrix = (*m_SphericalHarmonicBasisMatrix) * (*m_CoeffReconstructionMatrix);

template<class T , class TG , class TO , int L, int NODF>

double itk::AnalyticalDiffusionQballReconstructionImageFilter< T, TG, TO, L, NODF >::factorial ( int number ) [static]

Definition at line 408 of file itkAnalyticalDiffusionQballReconstructionImageFilter.cpp.

                              {
          if(number <= 1) return 1;
          double result = 1.0;
          for(int i=1; i<=number; i++)
            result *= i;
          return result;

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections>

virtual const TOdfPixelType& itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::GetBValue ( ) [virtual]

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections>

virtual BZeroImageType::Pointer itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::GetBZeroImage ( ) [virtual]

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections>

virtual const char* itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::GetClassName ( ) const [virtual]

Runtime information support.

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections>

virtual GradientDirectionType itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::GetGradientDirection ( unsigned int idx ) const [inline, virtual]

Return the gradient direction. idx is 0 based

Definition at line 182 of file itkAnalyticalDiffusionQballReconstructionImageFilter.h.

    {
    if( idx >= m_NumberOfGradientDirections )
      {
      itkExceptionMacro( << "Gradient direction " << idx << "does not exist" );
      }
    return m_GradientDirectionContainer->ElementAt( idx+1 );
    }

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections>

virtual double itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::GetLambda ( ) [virtual]

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections>

virtual Normalization itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::GetNormalizationMethod ( ) [virtual]

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections>

virtual ReferenceImageType* itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::GetReferenceImage ( ) [inline, virtual]

Get reference image

Definition at line 178 of file itkAnalyticalDiffusionQballReconstructionImageFilter.h.

  { return ( static_cast< ReferenceImageType *>(this->ProcessObject::GetInput(0)) ); }

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections>

virtual ReferencePixelType itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::GetThreshold ( ) [virtual]

template<class T , class TG , class TO , int L, int NODF>

double itk::AnalyticalDiffusionQballReconstructionImageFilter< T, TG, TO, L, NODF >::legendre0 ( int l ) [static]

Definition at line 433 of file itkAnalyticalDiffusionQballReconstructionImageFilter.cpp.

References QuadProgPP::pow().

      {
        if( l%2 != 0 )
        {
          return 0;
        }
        else
        {
          double prod1 = 1.0;
          for(int i=1;i<l;i+=2) prod1 *= i;
          double prod2 = 1.0;
          for(int i=2;i<=l;i+=2) prod2 *= i;
          return pow(-1.0,l/2.0)*(prod1/prod2);
        }

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections>

static Pointer itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::New ( ) [static]

Method for creation through the object factory.

template<class TReferenceImagePixelType , class TGradientImagePixelType , class TOdfPixelType , int NOrderL, int NrOdfDirections>

itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::OdfPixelType itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::Normalize	(	OdfPixelType	odf,
		typename NumericTraits< ReferencePixelType >::AccumulateType	b0
	)

Definition at line 69 of file itkAnalyticalDiffusionQballReconstructionImageFilter.cpp.

References QuadProgPP::log(), and itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::Normalize().

Referenced by itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::Normalize().

    {
      switch( m_NormalizationMethod )
      {
      case QBAR_STANDARD:
        {
          odf.Normalize();
          return odf;
          break;
        }
      case QBAR_B_ZERO_B_VALUE:
        {
          for(int i=0; i<NrOdfDirections; i++)
          {
            odf[i] = ((TOdfPixelType)log((TOdfPixelType)b0)-odf[i])/m_BValue;
          }
          return odf;
          break;
        }
      case QBAR_B_ZERO:
        {
          odf *= 1.0/b0;
          return odf;
          break;
        }
      case QBAR_NONE:
        {
          return odf;
          break;
        }
      case QBAR_ADC_ONLY:
        {
          for(int i=0; i<NrOdfDirections; i++)
          {
            odf[i] = ((TOdfPixelType)log((TOdfPixelType)b0)-odf[i])/m_BValue;
          }
          return odf;
          break;
        }
      case QBAR_RAW_SIGNAL:
        {
          return odf;
          break;
        }
      case QBAR_SOLID_ANGLE:
        {
          for(int i=0; i<NrOdfDirections; i++)
          {
            odf[i] = odf[i] < 0 ? 0 : odf[i];
          }
          break;
        }
      case QBAR_NONNEG_SOLID_ANGLE:
        {
          break;
        }
      }

      return odf;

template<class TReferenceImagePixelType , class TGradientImagePixelType , class TOdfPixelType, int NOrderL, int NrOdfDirections>

vnl_vector< TOdfPixelType > itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::PreNormalize	(	vnl_vector< TOdfPixelType >	vec,
		typename NumericTraits< ReferencePixelType >::AccumulateType	b0
	)

Definition at line 142 of file itkAnalyticalDiffusionQballReconstructionImageFilter.cpp.

References QuadProgPP::log().

      {
        switch( m_NormalizationMethod )
        {
        case QBAR_STANDARD:
          {
            return vec;
            break;
          }
        case QBAR_B_ZERO_B_VALUE:
          {
            int n = vec.size();
            for(int i=0; i<n; i++)
            {
              vec[i] = log(vec[i]);
            }
            return vec;
            break;
          }
        case QBAR_B_ZERO:
          {
            return vec;
            break;
          }
        case QBAR_NONE:
          {
            return vec;
            break;
          }
        case QBAR_ADC_ONLY:
          {
            int n = vec.size();
            for(int i=0; i<n; i++)
            {
              vec[i] = log(vec[i]);
            }
            return vec;
            break;
          }
        case QBAR_RAW_SIGNAL:
          {
            return vec;
            break;
          }
        case QBAR_SOLID_ANGLE:
        case QBAR_NONNEG_SOLID_ANGLE:
          {
            int n = vec.size();
            for(int i=0; i<n; i++)
            {
              float meas = vec[i];
              if(meas >= b0)
              {
                meas = b0 - 0.0001;
              }
              vec[i] = log(-log(meas/b0));
            }
            return vec;
            break;
          }
        }

        return vec;

template<class T , class TG , class TO , int L, int NODF>

void itk::AnalyticalDiffusionQballReconstructionImageFilter< T, TG, TO, L, NODF >::PrintSelf	(	std::ostream &	os,
		Indent	indent
	)		const `[protected]`

Definition at line 820 of file itkAnalyticalDiffusionQballReconstructionImageFilter.cpp.

      {
        Superclass::PrintSelf(os,indent);

        os << indent << "OdfReconstructionMatrix: " << m_ReconstructionMatrix << std::endl;
        if ( m_GradientDirectionContainer )
        {
          os << indent << "GradientDirectionContainer: "
            << m_GradientDirectionContainer << std::endl;
        }
        else
        {
          os << indent <<
            "GradientDirectionContainer: (Gradient directions not set)" << std::endl;
        }
        os << indent << "NumberOfGradientDirections: " <<
          m_NumberOfGradientDirections << std::endl;
        os << indent << "NumberOfBaselineImages: " <<
          m_NumberOfBaselineImages << std::endl;
        os << indent << "Threshold for reference B0 image: " << m_Threshold << std::endl;
        os << indent << "BValue: " << m_BValue << std::endl;

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections>

virtual void itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::SetBValue ( TOdfPixelType _arg ) [virtual]

template<class T , class TG , class TO , int L, int NODF>

void itk::AnalyticalDiffusionQballReconstructionImageFilter< T, TG, TO, L, NODF >::SetGradientImage	(	GradientDirectionContainerType *	gradientDirection,
		const GradientImagesType *	image
	)

set method to add gradient directions and its corresponding image. The image here is a VectorImage. The user is expected to pass the gradient directions in a container. The ith element of the container corresponds to the gradient direction of the ith component image the VectorImage. For the baseline image, a vector of all zeros should be set.

Definition at line 781 of file itkAnalyticalDiffusionQballReconstructionImageFilter.cpp.

      {
        this->m_GradientDirectionContainer = gradientDirection;

        unsigned int numImages = gradientDirection->Size();
        this->m_NumberOfBaselineImages = 0;
        for(GradientDirectionContainerType::Iterator it = this->m_GradientDirectionContainer->Begin();
          it != this->m_GradientDirectionContainer->End(); it++)
        {
          if(it.Value().one_norm() <= 0.0)
          {
            this->m_NumberOfBaselineImages++;
          }
          else // Normalize non-zero gradient directions
          {
            it.Value() = it.Value() / it.Value().two_norm();
          }
        }

        this->m_NumberOfGradientDirections = numImages - this->m_NumberOfBaselineImages;

        // ensure that the gradient image we received has as many components as
        // the number of gradient directions
        if( gradientImage->GetVectorLength() != this->m_NumberOfBaselineImages + m_NumberOfGradientDirections )
        {
          itkExceptionMacro( << m_NumberOfGradientDirections << " gradients + " << this->m_NumberOfBaselineImages
            << "baselines = " << m_NumberOfGradientDirections + this->m_NumberOfBaselineImages
            << " directions specified but image has " << gradientImage->GetVectorLength()
            << " components.");
        }

        this->ProcessObject::SetNthInput( 0,
          const_cast< GradientImagesType* >(gradientImage) );

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections>

virtual void itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::SetLambda ( double _arg ) [virtual]

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections>

virtual void itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::SetNormalizationMethod ( Normalization _arg ) [virtual]

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections>

virtual void itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >::SetThreshold ( ReferencePixelType _arg ) [virtual]

Threshold on the reference image data. The output ODF will be a null pdf for pixels in the reference image that have a value less than this threshold.

template<class T , class TG , class TO , int L, int NODF>

double itk::AnalyticalDiffusionQballReconstructionImageFilter< T, TG, TO, L, NODF >::spherical_harmonic	(	int	m,
		int	l,
		double	theta,
		double	phi,
		bool	complexPart
	)		`[static]`

Definition at line 451 of file itkAnalyticalDiffusionQballReconstructionImageFilter.cpp.

References QuadProgPP::pow(), QBALL_ANAL_RECON_PI, and QuadProgPP::sqrt().

      {
        if( theta < 0 || theta > QBALL_ANAL_RECON_PI )
        {
          std::cout << "bad range" << std::endl;
          return 0;
        }

        if( phi < 0 || phi > 2*QBALL_ANAL_RECON_PI )
        {
          std::cout << "bad range" << std::endl;
          return 0;
        }

        double pml = 0;
        double fac1 = factorial(l+m);
        double fac2 = factorial(l-m);

        if( m<0 )
        {
#if BOOST_VERSION / 100000 > 0
#if BOOST_VERSION / 100 % 1000 > 34
          pml = ::boost::math::legendre_p<double>(l, -m, cos(theta));
#else
          std::cout << "ERROR: Boost 1.35 minimum required" << std::endl;
#endif
#else
          std::cout << "ERROR: Boost 1.35 minimum required" << std::endl;
#endif
          double mypow = pow(-1.0,-m);
          double myfac = (fac1/fac2);
          pml *= mypow*myfac;
        }
        else
        {
#if BOOST_VERSION / 100000 > 0
#if BOOST_VERSION / 100 % 1000 > 34
          pml = ::boost::math::legendre_p<double>(l, m, cos(theta));
#endif
#endif
        }

        //std::cout << "legendre(" << l << "," << m << "," << cos(theta) << ") = " << pml << std::endl;

        double retval = sqrt(((2.0*(double)l+1.0)/(4.0*QBALL_ANAL_RECON_PI))*(fac2/fac1)) * pml;
        if( !complexPart )
        {
          retval *= cos(m*phi);
        }
        else
        {
          retval *= sin(m*phi);
        }
        //std::cout << retval << std::endl;
        return retval;

template<class T , class TG , class TO , int L, int NODF>

void itk::AnalyticalDiffusionQballReconstructionImageFilter< T, TG, TO, L, NODF >::ThreadedGenerateData	(	const OutputImageRegionType &	outputRegionForThread,
		int
	)		`[protected]`

this would be the place to implement a non-negative solver for quadratic programming problem: min .5*|| Bc-s ||^2 subject to -CLPc <= 4*pi*ones (refer to MICCAI 2009 Goh et al. "Estimating ODFs with PDF constraints") .5*|| Bc-s ||^2 == .5*c'B'Bc - x'B's + .5*s's

Definition at line 256 of file itkAnalyticalDiffusionQballReconstructionImageFilter.cpp.

References QBALL_ANAL_RECON_PI, QuadProgPP::QuadProg::solve_quadprog(), and QuadProgPP::sqrt().

      {
        typename OutputImageType::Pointer outputImage =
          static_cast< OutputImageType * >(this->ProcessObject::GetOutput(0));

        ImageRegionIterator< OutputImageType > oit(outputImage, outputRegionForThread);
        oit.GoToBegin();

        ImageRegionIterator< BZeroImageType > oit2(m_BZeroImage, outputRegionForThread);
        oit2.GoToBegin();

        typedef ImageRegionConstIterator< GradientImagesType > GradientIteratorType;
        typedef typename GradientImagesType::PixelType         GradientVectorType;
        typename GradientImagesType::Pointer gradientImagePointer = NULL;

        // Would have liked a dynamic_cast here, but seems SGI doesn't like it
        // The enum will ensure that an inappropriate cast is not done
        gradientImagePointer = static_cast< GradientImagesType * >(
          this->ProcessObject::GetInput(0) );

        GradientIteratorType git(gradientImagePointer, outputRegionForThread );
        git.GoToBegin();

        // Compute the indicies of the baseline images and gradient images
        std::vector<unsigned int> baselineind; // contains the indicies of
        // the baseline images
        std::vector<unsigned int> gradientind; // contains the indicies of
        // the gradient images

        for(GradientDirectionContainerType::ConstIterator gdcit = this->m_GradientDirectionContainer->Begin();
          gdcit != this->m_GradientDirectionContainer->End(); ++gdcit)
        {
          if(gdcit.Value().one_norm() <= 0.0)
          {
            baselineind.push_back(gdcit.Index());
          }
          else
          {
            gradientind.push_back(gdcit.Index());
          }
        }

        if( m_DirectionsDuplicated )
        {
          int gradIndSize = gradientind.size();
          for(int i=0; i<gradIndSize; i++)
            gradientind.push_back(gradientind[i]);
        }

        while( !git.IsAtEnd() )
        {
          GradientVectorType b = git.Get();

          typename NumericTraits<ReferencePixelType>::AccumulateType b0 = NumericTraits<ReferencePixelType>::Zero;

          // Average the baseline image pixels
          for(unsigned int i = 0; i < baselineind.size(); ++i)
          {
            b0 += b[baselineind[i]];
          }
          b0 /= this->m_NumberOfBaselineImages;

          OdfPixelType odf(0.0);
          vnl_vector<TO> B(m_NumberOfGradientDirections);

          if( (b0 != 0) && (b0 >= m_Threshold) )
          {
            for( unsigned int i = 0; i< m_NumberOfGradientDirections; i++ )
            {
              B[i] = static_cast<TO>(b[gradientind[i]]);
            }

            B = PreNormalize(B, b0);
            if(m_NormalizationMethod == QBAR_SOLID_ANGLE)
            {
              vnl_vector<TO> coeffs(m_NumberCoefficients);
              coeffs = ( (*m_CoeffReconstructionMatrix) * B );
              coeffs[0] += 1.0/(2.0*sqrt(QBALL_ANAL_RECON_PI));
              odf = ( (*m_SphericalHarmonicBasisMatrix) * coeffs ).data_block();
            }
            else if(m_NormalizationMethod == QBAR_NONNEG_SOLID_ANGLE)
            {
              QuadProgPP::Matrix<double>& G(m_G);
              int lenb = B.size();
              vnl_vector<double>* s = new vnl_vector<double>(lenb);
              for (int ii=0; ii<lenb; ii++) (*s)(ii) = B(ii);
              vnl_vector<double> g0_ = -1.0 * (*m_B_t) * (*s);
              QuadProgPP::Vector<double> g0(g0_.data_block(),m_NumberCoefficients);
              try
              {
                QuadProgPP::QuadProg::solve_quadprog(G,g0,m_CE,m_ce0,m_CI,m_ci0,m_x);
              }
              catch(...)
              {
                m_x = 0;
              }
              vnl_vector<TO> coeffs(m_NumberCoefficients);
              for (int ii=0; ii<m_NumberCoefficients; ii++) coeffs(ii) = (*m_LP)(ii) * m_x[ii];
              coeffs[0] += 1.0/(2.0*sqrt(QBALL_ANAL_RECON_PI));
              odf = ( (*m_SphericalHarmonicBasisMatrix) * coeffs ).data_block();

            }
            else
            {
              odf = ( (*m_ReconstructionMatrix) * B ).data_block();
            }
            odf = Normalize(odf, b0);

          }

          oit.Set( odf );
          ++oit;
          oit2.Set( b0 );
          ++oit2;
          ++git; // Gradient  image iterator
        }

        std::cout << "One Thread finished reconstruction" << std::endl;

template<class T , class TG , class TO , int L, int NODF>

void itk::AnalyticalDiffusionQballReconstructionImageFilter< T, TG, TO, L, NODF >::tofile2	(	vnl_matrix< double > *	A,
		std::string	fname
	)		`[static]`

Definition at line 386 of file itkAnalyticalDiffusionQballReconstructionImageFilter.cpp.

      {
        vnl_matrix<double> A = (*pA);
        ofstream myfile;
        myfile.open (fname.c_str());
        myfile << "A1=[";
        for(int i=0; i<A.rows(); i++)
        {
          for(int j=0; j<A.columns(); j++)
          {
            myfile << A(i,j) << " ";
            if(j==A.columns()-1 && i!=A.rows()-1)
              myfile << ";";
          }
        }
        myfile << "];";
        myfile.close();

template<class T , class TG , class TO , int L, int NODF>

double itk::AnalyticalDiffusionQballReconstructionImageFilter< T, TG, TO, L, NODF >::Yj	(	int	m,
		int	k,
		double	theta,
		double	phi
	)		`[static]`

Definition at line 510 of file itkAnalyticalDiffusionQballReconstructionImageFilter.cpp.

References QuadProgPP::sqrt().

      {
        if( -k <= m && m < 0 )
        {
          return sqrt(2.0) * spherical_harmonic(m,k,theta,phi,false);
        }

        if( m == 0 )
          return spherical_harmonic(0,k,theta,phi,false);

        if( 0 < m && m <= k )
        {
          return sqrt(2.0) * spherical_harmonic(m,k,theta,phi,true);
        }

        return 0;

The documentation for this class was generated from the following files:

itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections > Class Template Reference

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Detailed Description

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections> class itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

template<class TReferenceImagePixelType, class TGradientImagePixelType, class TOdfPixelType, int NOrderL, int NrOdfDirections>
class itk::AnalyticalDiffusionQballReconstructionImageFilter< TReferenceImagePixelType, TGradientImagePixelType, TOdfPixelType, NOrderL, NrOdfDirections >
