#include <tinyxml.h>

Inheritance diagram for TiXmlAttribute:

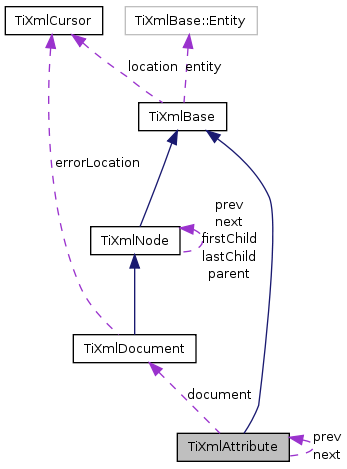

Collaboration diagram for TiXmlAttribute:

Public Member Functions
	TiXmlAttribute ()
	Construct an empty attribute.
	TiXmlAttribute (const std::string &_name, const std::string &_value)
	std::string constructor.
	TiXmlAttribute (const char _name, const char _value)
	Construct an attribute with a name and value.
const char *	Name () const
	Return the name of this attribute.
const char *	Value () const
	Return the value of this attribute.
const std::string &	ValueStr () const
	Return the value of this attribute.
int	IntValue () const
	Return the value of this attribute, converted to an integer.
double	DoubleValue () const
	Return the value of this attribute, converted to a double.
const TiXmlString &	NameTStr () const
int	QueryIntValue (int *_value) const
int	QueryDoubleValue (double *_value) const
	QueryDoubleValue examines the value string. See QueryIntValue().
void	SetName (const char *_name)
	Set the name of this attribute.
void	SetValue (const char *_value)
	Set the value.
void	SetIntValue (int _value)
	Set the value from an integer.
void	SetDoubleValue (double _value)
	Set the value from a double.
void	SetName (const std::string &_name)
	STL std::string form.
void	SetValue (const std::string &_value)
	STL std::string form.
const TiXmlAttribute *	Next () const
	Get the next sibling attribute in the DOM. Returns null at end.
TiXmlAttribute *	Next ()
const TiXmlAttribute *	Previous () const
	Get the previous sibling attribute in the DOM. Returns null at beginning.
TiXmlAttribute *	Previous ()
bool	operator== (const TiXmlAttribute &rhs) const
bool	operator< (const TiXmlAttribute &rhs) const
bool	operator> (const TiXmlAttribute &rhs) const
virtual const char *	Parse (const char p, TiXmlParsingData data, TiXmlEncoding encoding)
virtual void	Print (FILE *cfile, int depth) const
void	Print (FILE cfile, int depth, TiXmlString str) const
void	SetDocument (TiXmlDocument *doc)
Friends
class	TiXmlAttributeSet

Detailed Description

An attribute is a name-value pair. Elements have an arbitrary number of attributes, each with a unique name.

Note:: The attributes are not TiXmlNodes, since they are not part of the tinyXML document object model. There are other suggested ways to look at this problem.

Definition at line 784 of file tinyxml.h.

Constructor & Destructor Documentation

TiXmlAttribute::TiXmlAttribute ( ) [inline]

Construct an empty attribute.

Definition at line 790 of file tinyxml.h.

                         : TiXmlBase()
        {
                document = 0;
                prev = next = 0;
        }

TiXmlAttribute::TiXmlAttribute	(	const std::string &	_name,
		const std::string &	_value
	)		`[inline]`

std::string constructor.

Definition at line 798 of file tinyxml.h.

        {
                name = _name;
                value = _value;
                document = 0;
                prev = next = 0;
        }

TiXmlAttribute::TiXmlAttribute	(	const char *	_name,
		const char *	_value
	)		`[inline]`

Construct an attribute with a name and value.

Definition at line 808 of file tinyxml.h.

        {
                name = _name;
                value = _value;
                document = 0;
                prev = next = 0;
        }

Member Function Documentation

double TiXmlAttribute::DoubleValue ( ) const

Return the value of this attribute, converted to a double.

Definition at line 1232 of file tinyxml.cpp.

{
        return atof (value.c_str ());
}

int TiXmlAttribute::IntValue ( ) const

Return the value of this attribute, converted to an integer.

Definition at line 1227 of file tinyxml.cpp.

{
        return atoi (value.c_str ());
}

const char* TiXmlAttribute::Name ( ) const [inline]

Return the name of this attribute.

Definition at line 816 of file tinyxml.h.

Referenced by TiXmlAttributeSet::Add(), TiXmlElement::CopyTo(), and TiXmlElement::Parse().

const TiXmlString& TiXmlAttribute::NameTStr ( ) const [inline]

Definition at line 825 of file tinyxml.h.

Referenced by TiXmlElement::Parse().

{ return name; }

TiXmlAttribute* TiXmlAttribute::Next ( ) [inline]

Definition at line 855 of file tinyxml.h.

                               {
                return const_cast< TiXmlAttribute* >( (const_cast< const TiXmlAttribute* >(this))->Next() );
        }

const TiXmlAttribute * TiXmlAttribute::Next ( ) const

Get the next sibling attribute in the DOM. Returns null at end.

Definition at line 1125 of file tinyxml.cpp.

Referenced by TiXmlElement::CopyTo(), TiXmlElement::Print(), and TiXmlPrinter::VisitEnter().

{
        // We are using knowledge of the sentinel. The sentinel
        // have a value or name.
        if ( next->value.empty() && next->name.empty() )
                return 0;
        return next;
}

bool TiXmlAttribute::operator< ( const TiXmlAttribute & rhs ) const [inline]

Definition at line 866 of file tinyxml.h.

{ return name < rhs.name; }

bool TiXmlAttribute::operator== ( const TiXmlAttribute & rhs ) const [inline]

Definition at line 865 of file tinyxml.h.

{ return rhs.name == name; }

bool TiXmlAttribute::operator> ( const TiXmlAttribute & rhs ) const [inline]

Definition at line 867 of file tinyxml.h.

{ return name > rhs.name; }

const char * TiXmlAttribute::Parse	(	const char *	p,
		TiXmlParsingData *	data,
		TiXmlEncoding	encoding
	)		`[virtual]`

Implements TiXmlBase.

Definition at line 1390 of file tinyxmlparser.cpp.

References TiXmlParsingData::Cursor(), TiXmlBase::IsWhiteSpace(), TiXmlBase::location, TiXmlBase::ReadName(), TiXmlBase::ReadText(), TiXmlDocument::SetError(), TiXmlBase::SkipWhiteSpace(), TiXmlParsingData::Stamp(), TiXmlBase::TIXML_ERROR_READING_ATTRIBUTES, and TiXmlNode::value.

Referenced by TiXmlDeclaration::Parse(), and TiXmlElement::Parse().

{
        p = SkipWhiteSpace( p, encoding );
        if ( !p || !*p ) return 0;

        if ( data )
        {
                data->Stamp( p, encoding );
                location = data->Cursor();
        }
        // Read the name, the '=' and the value.
        const char* pErr = p;
        p = ReadName( p, &name, encoding );
        if ( !p || !*p )
        {
                if ( document ) document->SetError( TIXML_ERROR_READING_ATTRIBUTES, pErr, data, encoding );
                return 0;
        }
        p = SkipWhiteSpace( p, encoding );
        if ( !p || !*p || *p != '=' )
        {
                if ( document ) document->SetError( TIXML_ERROR_READING_ATTRIBUTES, p, data, encoding );
                return 0;
        }

        ++p;    // skip '='
        p = SkipWhiteSpace( p, encoding );
        if ( !p || !*p )
        {
                if ( document ) document->SetError( TIXML_ERROR_READING_ATTRIBUTES, p, data, encoding );
                return 0;
        }

        const char* end;
        const char SINGLE_QUOTE = '\'';
        const char DOUBLE_QUOTE = '\"';

        if ( *p == SINGLE_QUOTE )
        {
                ++p;
                end = "\'";             // single quote in string
                p = ReadText( p, &value, false, end, false, encoding );
        }
        else if ( *p == DOUBLE_QUOTE )
        {
                ++p;
                end = "\"";             // double quote in string
                p = ReadText( p, &value, false, end, false, encoding );
        }
        else
        {
                // All attribute values should be in single or double quotes.
                // But this is such a common error that the parser will try
                // its best, even without them.
                value = "";
                while (    p && *p                                                                                      // existence
                                && !IsWhiteSpace( *p )                                                          // whitespace
                                && *p != '/' && *p != '>' )                                                     // tag end
                {
                        if ( *p == SINGLE_QUOTE || *p == DOUBLE_QUOTE ) {
                                // [ 1451649 ] Attribute values with trailing quotes not handled correctly
                                // We did not have an opening quote but seem to have a
                                // closing one. Give up and throw an error.
                                if ( document ) document->SetError( TIXML_ERROR_READING_ATTRIBUTES, p, data, encoding );
                                return 0;
                        }
                        value += *p;
                        ++p;
                }
        }
        return p;
}

const TiXmlAttribute * TiXmlAttribute::Previous ( ) const

Get the previous sibling attribute in the DOM. Returns null at beginning.

Definition at line 1145 of file tinyxml.cpp.

{
        // We are using knowledge of the sentinel. The sentinel
        // have a value or name.
        if ( prev->value.empty() && prev->name.empty() )
                return 0;
        return prev;
}

TiXmlAttribute* TiXmlAttribute::Previous ( ) [inline]

Definition at line 861 of file tinyxml.h.

                                   {
                return const_cast< TiXmlAttribute* >( (const_cast< const TiXmlAttribute* >(this))->Previous() );
        }

void TiXmlAttribute::Print	(	FILE *	cfile,
		int	depth,
		TiXmlString *	str
	)		const

Definition at line 1165 of file tinyxml.cpp.

References TiXmlBase::EncodeString(), and TIXML_STRING.

{
        TIXML_STRING n, v;

        EncodeString( name, &n );
        EncodeString( value, &v );

        if (value.find ('\"') == TIXML_STRING::npos) {
                if ( cfile ) {
                fprintf (cfile, "%s=\"%s\"", n.c_str(), v.c_str() );
                }
                if ( str ) {
                        (*str) += n; (*str) += "=\""; (*str) += v; (*str) += "\"";
                }
        }
        else {
                if ( cfile ) {
                fprintf (cfile, "%s='%s'", n.c_str(), v.c_str() );
                }
                if ( str ) {
                        (*str) += n; (*str) += "='"; (*str) += v; (*str) += "'";
                }
        }
}

virtual void TiXmlAttribute::Print	(	FILE *	cfile,
		int	depth
	)		const `[inline, virtual]`

All TinyXml classes can print themselves to a filestream or the string class (TiXmlString in non-STL mode, std::string in STL mode.) Either or both cfile and str can be null.

This is a formatted print, and will insert tabs and newlines.

(For an unformatted stream, use the << operator.)

Implements TiXmlBase.

Definition at line 875 of file tinyxml.h.

                                                           {
                Print( cfile, depth, 0 );
        }

int TiXmlAttribute::QueryDoubleValue ( double * _value ) const

QueryDoubleValue examines the value string. See QueryIntValue().

Definition at line 1198 of file tinyxml.cpp.

References TIXML_SSCANF, TIXML_SUCCESS, and TIXML_WRONG_TYPE.

Referenced by TiXmlElement::Attribute(), and TiXmlElement::QueryDoubleAttribute().

{
        if ( TIXML_SSCANF( value.c_str(), "%lf", dval ) == 1 )
                return TIXML_SUCCESS;
        return TIXML_WRONG_TYPE;
}

int TiXmlAttribute::QueryIntValue ( int * _value ) const

QueryIntValue examines the value string. It is an alternative to the IntValue() method with richer error checking. If the value is an integer, it is stored in 'value' and the call returns TIXML_SUCCESS. If it is not an integer, it returns TIXML_WRONG_TYPE.

A specialized but useful call. Note that for success it returns 0, which is the opposite of almost all other TinyXml calls.

Definition at line 1191 of file tinyxml.cpp.

References TIXML_SSCANF, TIXML_SUCCESS, and TIXML_WRONG_TYPE.

Referenced by TiXmlElement::Attribute(), and TiXmlElement::QueryIntAttribute().

{
        if ( TIXML_SSCANF( value.c_str(), "%d", ival ) == 1 )
                return TIXML_SUCCESS;
        return TIXML_WRONG_TYPE;
}

void TiXmlAttribute::SetDocument ( TiXmlDocument * doc ) [inline]

Definition at line 882 of file tinyxml.h.

Referenced by TiXmlElement::Parse().

{ document = doc; }

void TiXmlAttribute::SetDoubleValue ( double _value )

Set the value from a double.

Definition at line 1216 of file tinyxml.cpp.

References SetValue(), and TIXML_SNPRINTF.

Referenced by TiXmlElement::SetDoubleAttribute().

{
        char buf [256];
        #if defined(TIXML_SNPRINTF)
                TIXML_SNPRINTF( buf, sizeof(buf), "%g", _value);
        #else
                sprintf (buf, "%g", _value);
        #endif
        SetValue (buf);
}

void TiXmlAttribute::SetIntValue ( int _value )

Set the value from an integer.

Definition at line 1205 of file tinyxml.cpp.

References SetValue(), and TIXML_SNPRINTF.

Referenced by TiXmlElement::SetAttribute().

{
        char buf [64];
        #if defined(TIXML_SNPRINTF)
                TIXML_SNPRINTF(buf, sizeof(buf), "%d", _value);
        #else
                sprintf (buf, "%d", _value);
        #endif
        SetValue (buf);
}

void TiXmlAttribute::SetName ( const std::string & _name ) [inline]

STL std::string form.

Definition at line 848 of file tinyxml.h.

{ name = _name; }

void TiXmlAttribute::SetName ( const char * _name ) [inline]

Set the name of this attribute.

Definition at line 840 of file tinyxml.h.

Referenced by TiXmlAttributeSet::FindOrCreate().

void TiXmlAttribute::SetValue ( const char * _value ) [inline]

Set the value.

Definition at line 841 of file tinyxml.h.

Referenced by TiXmlElement::SetAttribute(), SetDoubleValue(), and SetIntValue().

void TiXmlAttribute::SetValue ( const std::string & _value ) [inline]

STL std::string form.

Definition at line 850 of file tinyxml.h.

{ value = _value; }

const char* TiXmlAttribute::Value ( void ) const [inline]

Return the value of this attribute.

Definition at line 817 of file tinyxml.h.

Referenced by TiXmlElement::Attribute(), TiXmlElement::CopyTo(), and TiXmlDeclaration::Parse().

const std::string& TiXmlAttribute::ValueStr ( ) const [inline]

Return the value of this attribute.

Definition at line 819 of file tinyxml.h.

Referenced by TiXmlElement::Attribute(), and TiXmlElement::QueryValueAttribute().

Friends And Related Function Documentation

friend class TiXmlAttributeSet [friend]

Definition at line 786 of file tinyxml.h.

The documentation for this class was generated from the following files:

TiXmlAttribute Class Reference

Public Member Functions

Friends

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation
