Inheritance diagram for QxtTabBarPrivate:

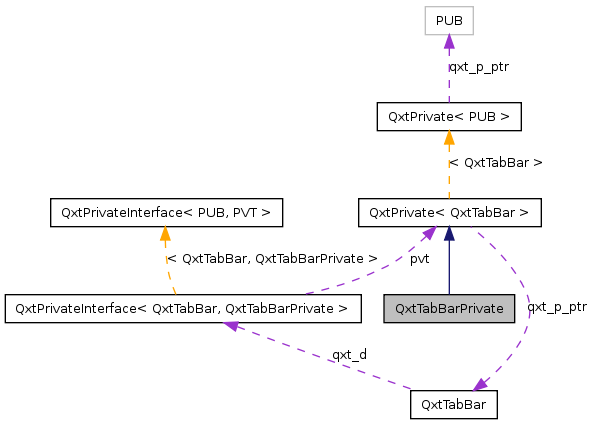

Collaboration diagram for QxtTabBarPrivate:

Classes
struct	Tab
Public Types
enum	MovementAction { PressAction, MoveAction, DragAction, DropAction }
Public Member Functions
	QxtTabBarPrivate ()
int	tabAt (const QPoint &position, MovementAction action) const
bool	contains (const QRect &rect, const QPoint &position, MovementAction action) const
bool	shouldMove (const QPoint &pos, int fromIndex, int toIndex, MovementAction action) const
bool	moveTab (const QPoint &pos, int fromIndex, int toIndex, MovementAction action)
Tab	saveTab (int index) const
void	restoreTab (int index, const Tab &tab)
Public Attributes
int	movingTab
QPoint	pressPoint
QxtTabBar::TabMovementMode	mode
Friends
class	QxtTabBar

Detailed Description

Definition at line 32 of file qxttabbar.cpp.

Member Enumeration Documentation

enum QxtTabBarPrivate::MovementAction

Enumerator:

PressAction
MoveAction
DragAction
DropAction

Definition at line 39 of file qxttabbar.cpp.

    {
        PressAction,
        MoveAction,
        DragAction,
        DropAction,
    };

Constructor & Destructor Documentation

QxtTabBarPrivate::QxtTabBarPrivate ( )

Definition at line 70 of file qxttabbar.cpp.

                                   : movingTab(-1), mode(QxtTabBar::NoMovement)
{
}

Member Function Documentation

bool QxtTabBarPrivate::contains	(	const QRect &	rect,
		const QPoint &	position,
		MovementAction	action
	)		const

Definition at line 87 of file qxttabbar.cpp.

References PressAction, and QxtPrivate< QxtTabBar >::qxt_p().

Referenced by shouldMove(), and tabAt().

{
    if (action != PressAction)
    {
        switch (qxt_p().shape())
        {
        case QTabBar::RoundedNorth:
        case QTabBar::RoundedSouth:
        case QTabBar::TriangularNorth:
        case QTabBar::TriangularSouth:
            return position.x() >= rect.x() && position.x() <= rect.x() + rect.width();

        case QTabBar::RoundedWest:
        case QTabBar::RoundedEast:
        case QTabBar::TriangularWest:
        case QTabBar::TriangularEast:
            return position.y() >= rect.y() && position.y() <= rect.y() + rect.height();

        default:
            qWarning("QTabBarPrivate: unknown QTabBar::Shape %i", qxt_p().shape());
            return false;
        }
    }
    else // (action == PressAction)
    {
        return rect.contains(position);
    }
}

bool QxtTabBarPrivate::moveTab	(	const QPoint &	pos,
		int	fromIndex,
		int	toIndex,
		MovementAction	action
	)

Definition at line 163 of file qxttabbar.cpp.

References QxtPrivate< QxtTabBar >::qxt_p(), restoreTab(), saveTab(), and shouldMove().

{
    QxtTabBar* tabBar = &qxt_p();

    if (shouldMove(pos, fromIndex, toIndex, action))
    {
        Tab tab = saveTab(fromIndex);

        // if parent is a QTabWidget we can use it to move the tabs and widgets
        QTabWidget* tabWidget = qobject_cast<QTabWidget*>(tabBar->parent());
        if (tabWidget)
        {
            QWidget* widget = tabWidget->widget(fromIndex);
            tabWidget->removeTab(fromIndex);
            tabWidget->insertTab(toIndex, widget, "");
            tabWidget->setCurrentIndex(toIndex);
        }
        else // tabbar is standalone (not embedded into a QTabWidget)
        {
            tabBar->removeTab(fromIndex);
            tabBar->insertTab(toIndex, "");
            tabBar->setCurrentIndex(toIndex);
        }

        restoreTab(toIndex, tab);
        return true;
    }

    return false;
}

void QxtTabBarPrivate::restoreTab	(	int	index,
		const Tab &	tab
	)

Definition at line 207 of file qxttabbar.cpp.

References QxtTabBarPrivate::Tab::data, QxtTabBarPrivate::Tab::icon, QxtPrivate< QxtTabBar >::qxt_p(), QxtTabBarPrivate::Tab::text, QxtTabBarPrivate::Tab::textColor, QxtTabBarPrivate::Tab::toolTip, and QxtTabBarPrivate::Tab::whatsThis.

Referenced by moveTab().

{
    QTabBar* tabBar = &qxt_p();
    tabBar->setTabIcon(index, tab.icon);
    tabBar->setTabData(index, tab.data);
    tabBar->setTabText(index, tab.text);
    tabBar->setTabTextColor(index, tab.textColor);
    tabBar->setTabToolTip(index, tab.toolTip);
    tabBar->setTabWhatsThis(index, tab.whatsThis);
}

QxtTabBarPrivate::Tab QxtTabBarPrivate::saveTab ( int index ) const

Definition at line 194 of file qxttabbar.cpp.

References QxtTabBarPrivate::Tab::data, QxtTabBarPrivate::Tab::icon, QxtPrivate< QxtTabBar >::qxt_p(), QxtTabBarPrivate::Tab::text, QxtTabBarPrivate::Tab::textColor, QxtTabBarPrivate::Tab::toolTip, and QxtTabBarPrivate::Tab::whatsThis.

Referenced by moveTab().

{
    Tab tab;
    const QTabBar* tabBar = &qxt_p();
    tab.icon      = tabBar->tabIcon(index);
    tab.data      = tabBar->tabData(index);
    tab.text      = tabBar->tabText(index);
    tab.textColor = tabBar->tabTextColor(index);
    tab.toolTip   = tabBar->tabToolTip(index);
    tab.whatsThis = tabBar->tabWhatsThis(index);
    return tab;
}

bool QxtTabBarPrivate::shouldMove	(	const QPoint &	pos,
		int	fromIndex,
		int	toIndex,
		MovementAction	action
	)		const

Definition at line 116 of file qxttabbar.cpp.

References contains(), DropAction, and QxtPrivate< QxtTabBar >::qxt_p().

Referenced by moveTab().

{
    if (fromIndex == -1 || toIndex == -1 || fromIndex == toIndex)
        return false;

    QRect sourceRect = qxt_p().tabRect(fromIndex);
    QRect targetRect = qxt_p().tabRect(toIndex);

    QRect finalRect;
    if (action == DropAction)
    {
        finalRect = targetRect;
    }
    else
    {
        finalRect = sourceRect;
        switch (qxt_p().shape())
        {
        case QTabBar::RoundedNorth:
        case QTabBar::RoundedSouth:
        case QTabBar::TriangularNorth:
        case QTabBar::TriangularSouth:
            if (qxt_p().layoutDirection() == Qt::LeftToRight && sourceRect.x() < targetRect.x())
                finalRect.moveRight(targetRect.right());
            else
                finalRect.moveLeft(targetRect.left());
            break;

        case QTabBar::RoundedWest:
        case QTabBar::RoundedEast:
        case QTabBar::TriangularWest:
        case QTabBar::TriangularEast:
            if (sourceRect.y() < targetRect.y())
                finalRect.moveBottom(targetRect.bottom());
            else
                finalRect.moveTop(targetRect.top());
            break;

        default:
            qWarning("QTabBarPrivate: unknown QTabBar::Shape %i", qxt_p().shape());
            return false;
        }
    }

    return contains(finalRect, pos, action);
}

int QxtTabBarPrivate::tabAt	(	const QPoint &	position,
		MovementAction	action
	)		const

Definition at line 74 of file qxttabbar.cpp.

References contains(), and QxtPrivate< QxtTabBar >::qxt_p().

{
    const int count = qxt_p().count();
    for (int i = 0; i < count; ++i)
    {
        if (contains(qxt_p().tabRect(i), position, action))
        {
            return i;
        }
    }
    return -1;
}
