A stars assessment widget. More...

#include <qxtstars.h>

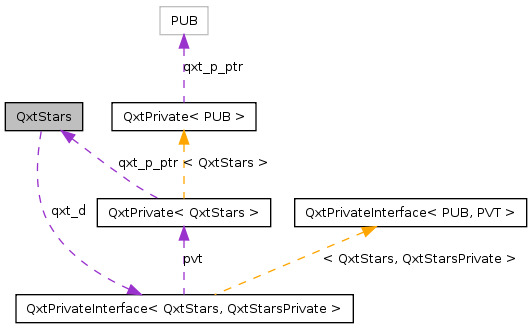

Collaboration diagram for QxtStars:

Public Member Functions
	QxtStars (QWidget *parent=0)
virtual	~QxtStars ()
bool	isReadOnly () const
void	setReadOnly (bool readOnly)
QSize	starSize () const
void	setStarSize (const QSize &size)
virtual QSize	sizeHint () const
virtual QSize	minimumSizeHint () const
Protected Member Functions
virtual void	keyPressEvent (QKeyEvent *event)
virtual void	mousePressEvent (QMouseEvent *event)
virtual void	mouseMoveEvent (QMouseEvent *event)
virtual void	mouseReleaseEvent (QMouseEvent *event)
virtual void	paintEvent (QPaintEvent *event)
Properties
bool	readOnly
	This property holds whether stars are adjustable.
QSize	starSize
	This property holds the size of star icons.
Friends
class	QxtStarsPrivate

Detailed Description

A stars assessment widget.

QxtStars is an optionally interactive stars assessment widget.

By default, orientation is Qt::Horizonal and range is from 0 to 5.

The stars are rendered accoring to palette with the following color roles:

ColorRole	Element
QPalette::Text	outlines
QPalette::Base	unselected stars
QPalette::Highlight	selected stars

QxtStars in action.

Definition at line 34 of file qxtstars.h.

Constructor & Destructor Documentation

QxtStars::QxtStars ( QWidget * parent = 0 ) [explicit]

Constructs a new QxtStars with parent.

Definition at line 156 of file qxtstars.cpp.

References QXT_INIT_PRIVATE.

                                  : QAbstractSlider(parent)
{
    QXT_INIT_PRIVATE(QxtStars);
    setOrientation(Qt::Horizontal);
    setFocusPolicy(Qt::FocusPolicy(style()->styleHint(QStyle::SH_Button_FocusPolicy)));
    setSizePolicy(QSizePolicy::Fixed, QSizePolicy::Fixed);
    setRange(0, 5);
}

QxtStars::~QxtStars ( ) [virtual]

Destructs the stars.

Definition at line 168 of file qxtstars.cpp.

{}

Member Function Documentation

bool QxtStars::isReadOnly ( ) const

Definition at line 178 of file qxtstars.cpp.

{
    return qxt_d().readOnly;
}

void QxtStars::keyPressEvent ( QKeyEvent * event ) [protected, virtual]

Definition at line 292 of file qxtstars.cpp.

References readOnly.

{
    if (qxt_d().readOnly)
    {
        event->ignore();
        return;
    }
    QAbstractSlider::keyPressEvent(event);
}

QSize QxtStars::minimumSizeHint ( ) const [virtual]

Definition at line 227 of file qxtstars.cpp.

Referenced by sizeHint().

{
    QSize size = qxt_d().getStarSize();
    size.rwidth() *= maximum() - minimum();
    if (orientation() == Qt::Vertical)
        size.transpose();
    return size;
}

void QxtStars::mouseMoveEvent ( QMouseEvent * event ) [protected, virtual]

Definition at line 335 of file qxtstars.cpp.

References readOnly.

{
    if (qxt_d().readOnly)
    {
        event->ignore();
        return;
    }
    QAbstractSlider::mouseMoveEvent(event);

    event->accept();
    int newPosition = qxt_d().pixelPosToRangeValue(qxt_d().pick(event->pos()));
    QStyleOptionSlider opt = qxt_d().getStyleOption();
    int m = style()->pixelMetric(QStyle::PM_MaximumDragDistance, &opt, this);
    if (m >= 0)
    {
        QRect r = rect();
        r.adjust(-m, -m, m, m);
        if (!r.contains(event->pos()))
            newPosition = qxt_d().snapBackPosition;
    }
    setSliderPosition(newPosition);
}

void QxtStars::mousePressEvent ( QMouseEvent * event ) [protected, virtual]

Definition at line 305 of file qxtstars.cpp.

References readOnly.

{
    if (qxt_d().readOnly)
    {
        event->ignore();
        return;
    }
    QAbstractSlider::mousePressEvent(event);

    if (maximum() == minimum() || (event->buttons() ^ event->button()))
    {
        event->ignore();
        return;
    }

    event->accept();
    QStyleOptionSlider opt = qxt_d().getStyleOption();
    const QRect sliderRect = style()->subControlRect(QStyle::CC_Slider, &opt, QStyle::SC_SliderHandle, this);
    const QPoint center = sliderRect.center() - sliderRect.topLeft();
    const int pos = qxt_d().pixelPosToRangeValue(qxt_d().pick(event->pos() - center));
    setSliderPosition(pos);
    triggerAction(SliderMove);
    setRepeatAction(SliderNoAction);
    qxt_d().snapBackPosition = pos;
    update();
}

void QxtStars::mouseReleaseEvent ( QMouseEvent * event ) [protected, virtual]

Definition at line 361 of file qxtstars.cpp.

References readOnly.

{
    if (qxt_d().readOnly)
    {
        event->ignore();
        return;
    }
    QAbstractSlider::mouseReleaseEvent(event);

    if (event->buttons())
    {
        event->ignore();
        return;
    }

    event->accept();
    setRepeatAction(SliderNoAction);
}

void QxtStars::paintEvent ( QPaintEvent * event ) [protected, virtual]

Definition at line 239 of file qxtstars.cpp.

References sizeHint().

{
    QAbstractSlider::paintEvent(event);

    QPainter painter(this);
    painter.save();
    painter.setPen(palette().color(QPalette::Text));
    painter.setRenderHint(QPainter::Antialiasing);

    const bool invert = invertedAppearance();
    const QSize size = qxt_d().getStarSize();
    const QRectF star = qxt_d().star.boundingRect();
    painter.scale(size.width() / star.width(), size.height() / star.height());
    const int count = maximum() - minimum();
    if (orientation() == Qt::Horizontal)
    {
        painter.translate(-star.x(), -star.y());
        if (invert != isRightToLeft())
            painter.translate((count - 1) * star.width(), 0);
    }
    else
    {
        painter.translate(-star.x(), -star.y());
        if (!invert)
            painter.translate(0, (count - 1) * star.height());
    }
    for (int i = 0; i < count; ++i)
    {
        if (value() > minimum() + i)
            painter.setBrush(palette().highlight());
        else
            painter.setBrush(palette().base());
        painter.drawPath(qxt_d().star);

        if (orientation() == Qt::Horizontal)
            painter.translate(invert != isRightToLeft() ? -star.width() : star.width(), 0);
        else
            painter.translate(0, invert ? star.height() : -star.height());
    }

    painter.restore();
    if (hasFocus())
    {
        QStyleOptionFocusRect opt;
        opt.initFrom(this);
        opt.rect.setSize(sizeHint());
        style()->drawPrimitive(QStyle::PE_FrameFocusRect, &opt, &painter, this);
    }
}

void QxtStars::setReadOnly ( bool readOnly )

Definition at line 183 of file qxtstars.cpp.

References readOnly.

{
    if (qxt_d().readOnly != readOnly)
    {
        qxt_d().readOnly = readOnly;
        if (readOnly)
            setFocusPolicy(Qt::NoFocus);
        else
            setFocusPolicy(Qt::FocusPolicy(style()->styleHint(QStyle::SH_Button_FocusPolicy)));
    }
}

void QxtStars::setStarSize ( const QSize & size )

Definition at line 206 of file qxtstars.cpp.

References starSize().

{
    if (qxt_d().starSize != size)
    {
        qxt_d().starSize = size;
        updateGeometry();
        update();
    }
}

QSize QxtStars::sizeHint ( ) const [virtual]

Definition at line 219 of file qxtstars.cpp.

References minimumSizeHint().

Referenced by paintEvent().

{
    return minimumSizeHint();
}

QSize QxtStars::starSize ( ) const

Referenced by setStarSize().

Friends And Related Function Documentation

friend class QxtStarsPrivate [friend]

Definition at line 37 of file qxtstars.h.

Property Documentation

QxtStars::readOnly [read, write]

This property holds whether stars are adjustable.

In read-only mode, the user is not able to change the value. The default value is false.

Definition at line 37 of file qxtstars.h.

Referenced by keyPressEvent(), mouseMoveEvent(), mousePressEvent(), mouseReleaseEvent(), and setReadOnly().

QSize QxtStars::starSize [read, write]

This property holds the size of star icons.

The default value is QStyle::PM_SmallIconSize.

Definition at line 39 of file qxtstars.h.
